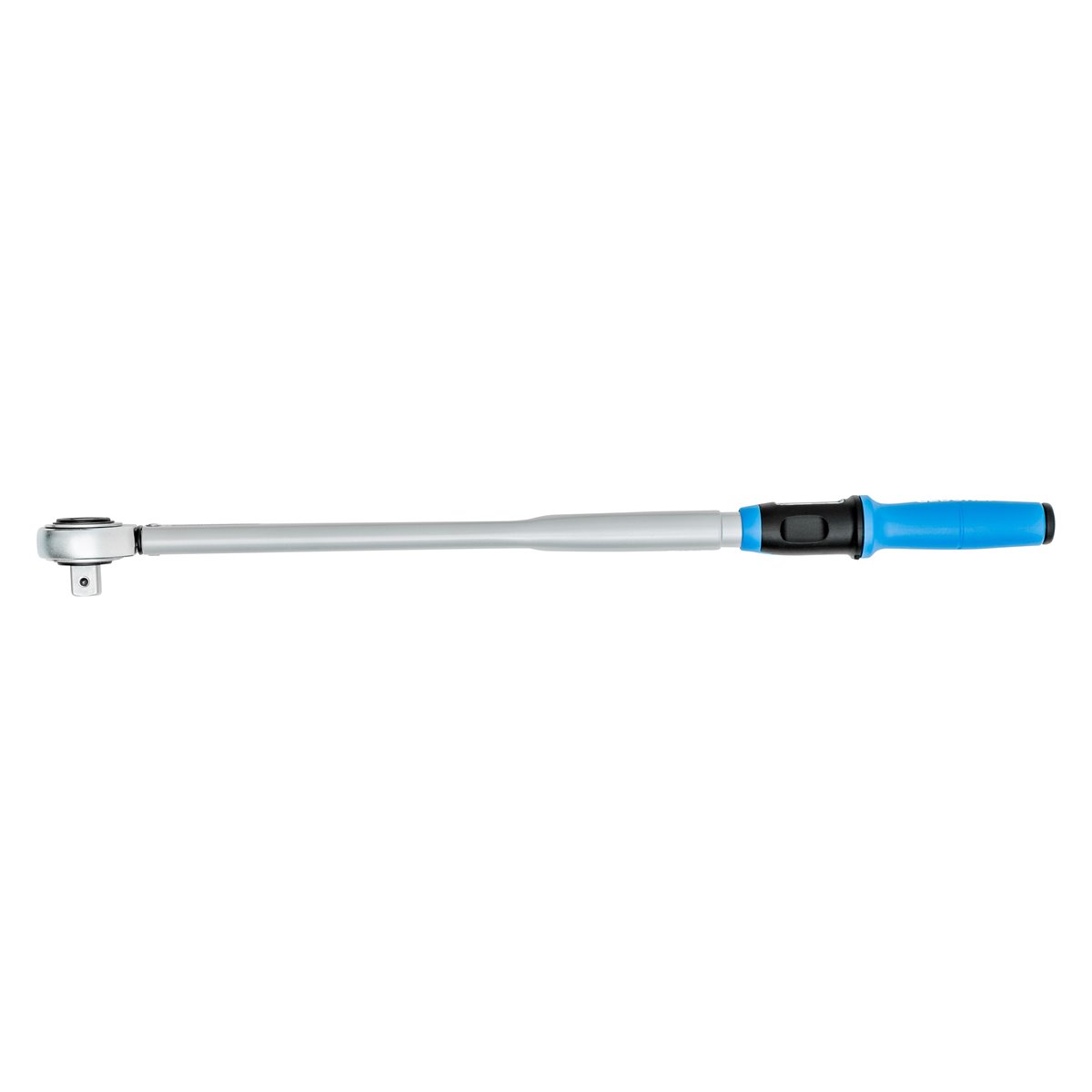

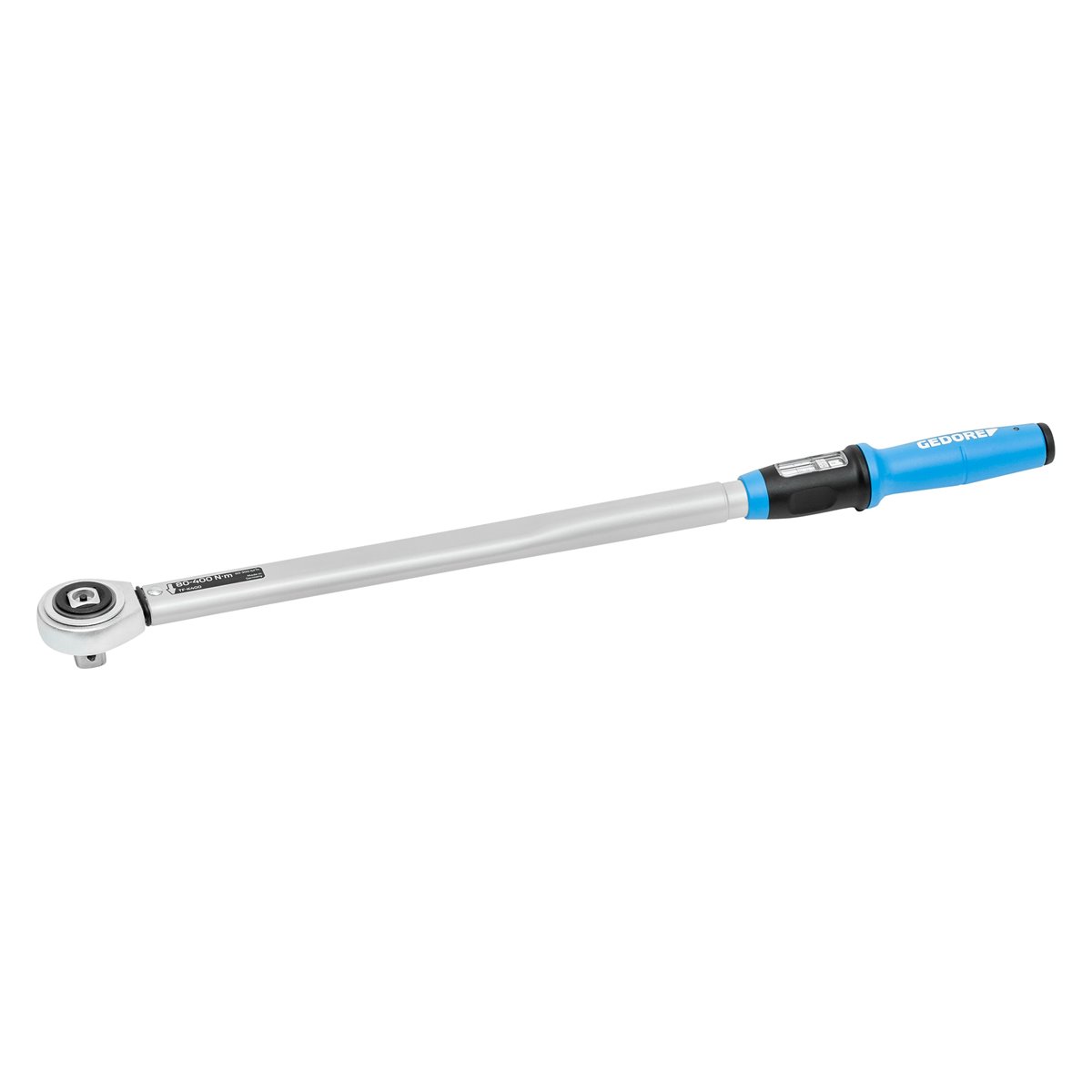

Gedore TF-K400 Torque wrench TORCOFIX K
€407.00
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
1966933
Manufacturer no.:
3278409
EAN:
4010886962336
Weight in kg:
2.15
Product information "Gedore TF-K400 Torque wrench TORCOFIX K "
Gedore TF-K400 Torque wrench TORCOFIX TF-K 80-400 Nm
Gedore TF-K400 Torque wrench TORCOFIX TF-K 80-400 Nm
Features:
- Use: Controlled screw tightening in the range of 80 - 400 Nm / 60 -300 lbf·ft
- Adjustable
- releasing and sturdy tubular torque wrench with integrated ratchet and with square drive for industry and the trades
- Features: Classified as per DIN EN ISO 6789-2:2017 Type II Class A - adjusted to a maximum permissible +/-3% deviation and thus with a greater precision than the standard-stipulated +/-4%
- incl. traceable test certificate (DIN EN ISO 6789-2:2017)
- For controlled bi-directional tightening
- 3/4 square drive through with pin lock
- Robust
- matt powder-coated tubular steel construction
- with galvanized ratchet and high-quality plastic parts
- New ergonomic handle
- shaped according to the natural grip position of the hand
- clearly recognisable and tactile hand centring aid and calibration aid in the middle of the handle
- Double scale Nm / lbf·ft and vernier are protected from abrasion and contamination by an enlarged viewing window
- With vernier scale for Nm main scale for setting intermediate scale values - lbf-ft setting only via main scale
- Vertical alignment of the scale
- torque adjustment therefore suitable for left and right handers
- Scale line positioned directly above the scale prevents reading errors (parallax errors)
- Unit labeling integrated in the scale frame and also protected against abrasion via viewing windows
- Precise jump-off mechanism generates a clearly perceptible and audible trigger signal when the set torque value is reached
- incl. roll away protection
- prevents rolling away when the tool is put down"
Technical features:
- Graduation: 10
- Number of teeth: 36
- Precision +/-: +/- 3 %
- vernier Nm: 1 Nm
- Net weight [kg]: 1,93 kg
- Return angle: 10 °
Gedore Code-Number: 3278409
EAN: 4010886962336
