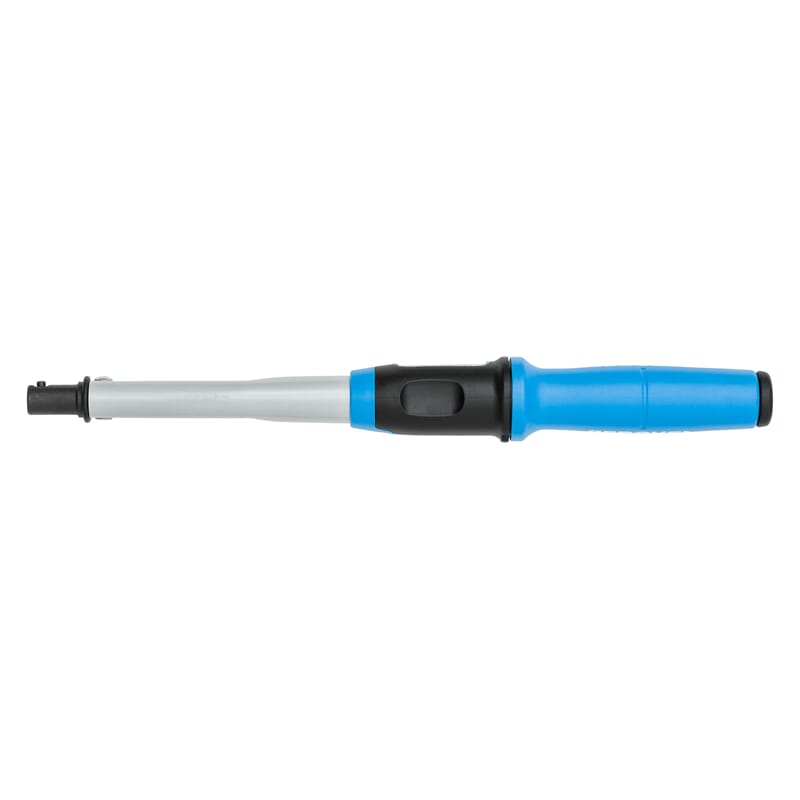

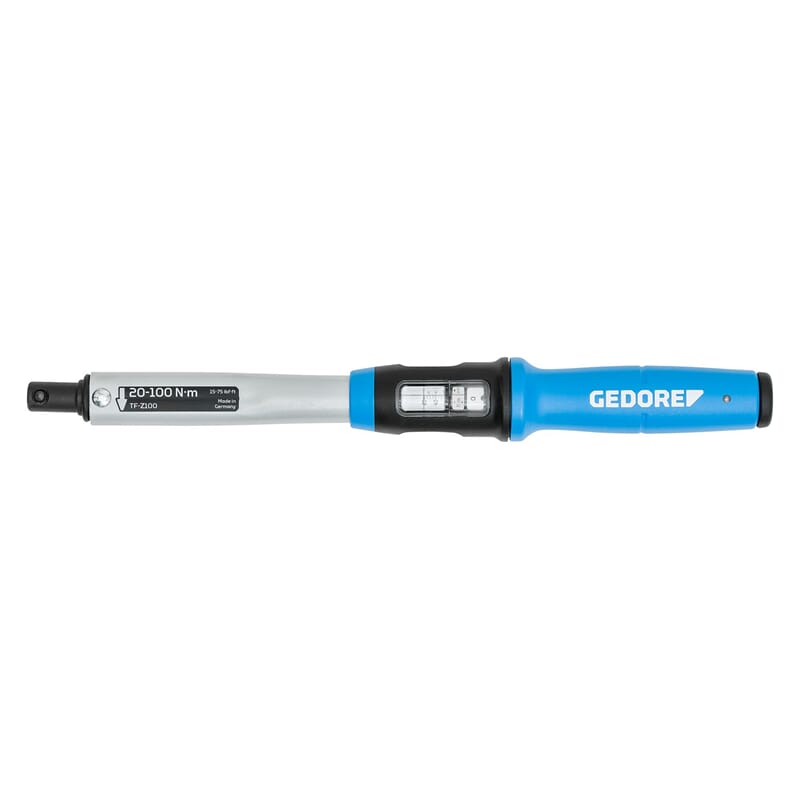

Gedore TF-Z100 Torque wrench TORCOFIX Z
€170.95
Content:
1 pcs
/ 62
Please request delivery time
Product number:
1973800
Manufacturer no.:
3278573
EAN:
4010886962435
Weight in kg:
0.76
Product information "Gedore TF-Z100 Torque wrench TORCOFIX Z "
Gedore TF-Z100 Torque wrench TORCOFIX TF-Z 20-100 Nm
Gedore TF-Z100 Torque wrench TORCOFIX TF-Z 20-100 Nm
Features:
- Use: Controlled screw tightening in the range of 20 - 100 Nm / 15 - 75 lbf·ft
- Adjustable
- releasing and sturdy tubular torque wrench with spigot end for industry and the trades
- Features: Classified as per DIN EN ISO 6789-2:2017 Type II Class A - adjusted to a maximum permissible +/-3 % deviation and thus with a greater precision than the standard-stipulated +/-4 %
- Incl. traceable test certificate (DIN EN ISO 6789-2:2017)
- For controlled right- and left-hand tightening (change tool for changing direction)
- Pin holder Ø 16 mm
- Working calibration pitch: 32 mm (Ø 16 mm)
- Robust
- matt powder-coated tubular steel construction
- with galvanized ratchet and high-quality plastic parts
- New ergonomic handle
- shaped according to the natural grip position of the hand
- Clearly recognisable and tactile hand centring aid and calibration aid in the middle of the handle
- Double scale Nm / lbf·ft and vernier are protected from abrasion and contamination by an enlarged viewing window
- With vernier scale for Nm main scale for setting intermediate scale values - lbf-ft setting only via main scale
- Vertical alignment of the scale
- torque adjustment therefore suitable for left and right handers
- Scale line positioned directly above the scale prevents reading errors (parallax errors)
- Unit labeling integrated in the scale frame and also protected by viewing windows
- Precise jump-off mechanism generates a clearly perceptible and audible trigger signal when the set torque value is reached
- Incl. roll away protection
- prevents rolling away when the tool is put down
Technical features:
- Graduation: 5
- Precision +/-: +/- 3 %
- vernier Nm: 0,5 Nm
- Net weight [kg]: 0,76 kg
- Torque (max.) [Nm]: 100 Nm
- Torque (min.) [lbf·ft]: 15 lbf·ft
Gedore Code-Number: 3278573
EAN: 4010886962435
