Hazet 176N-7/193 Tool trolley Assistent 193-pcs
€1,835.95
/ 5
Delivery time 5 working days
Variante
Product number:
1991365
Manufacturer no.:
176N-7/193
EAN:
4000896264810
Weight in kg:
100
Product information "Hazet 176N-7/193 Tool trolley Assistent 193-pcs "

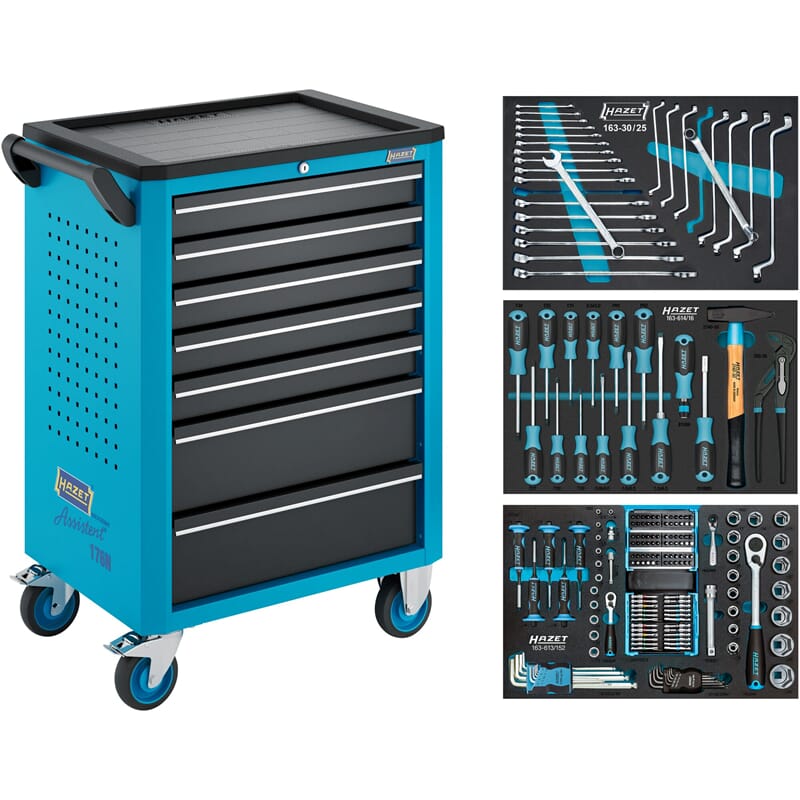

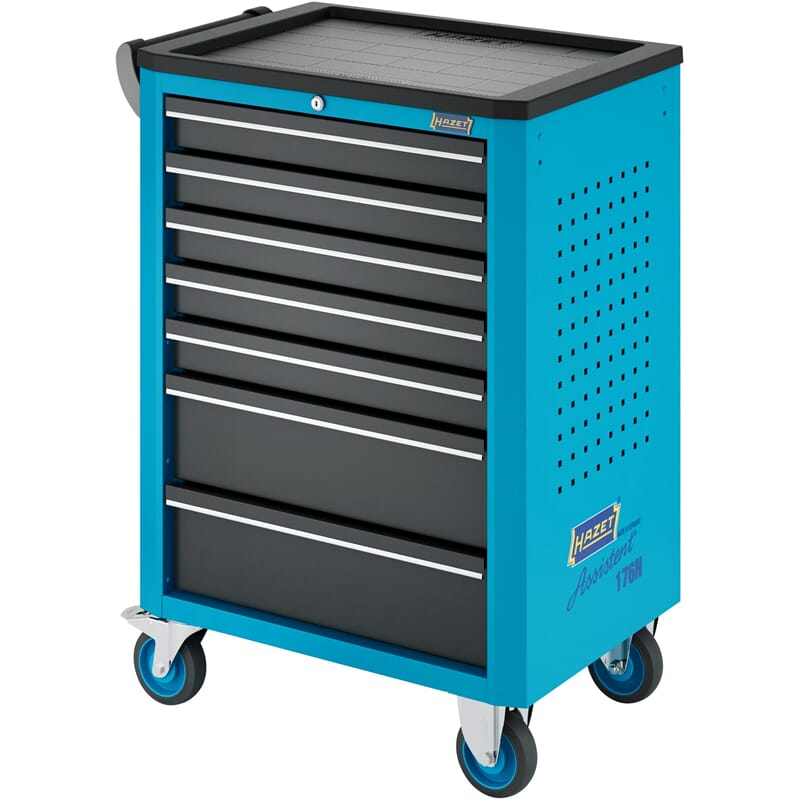

Hazet 176N-7/193 Tool trolley Assistent with assortment 193-pieces
HAZET Tool trolley Assistent 176N-7 with assortment 193-pieces, Drawers, flat: 5× 81x522x348 mm, Drawers, high: 2× 166x522x348 mm
Features:
Application:
Efficient, mobile organisation of tools
- Tool trolley
- 5 flat and 2 high drawers
- Complete with 193-piece tool assortment in Safety-Insert-System soft foam insert
- High flexibility
- Handle and castors can be mounted either on the left or right
- Practical HAZET design
- Handle strips for a comfortable feel
- Plastic cover with textures and large recessed, fully usable work surface
- Fully sealed work surface protects inside of trolley from leaking liquids
- Bevelled edges prevent damage
- Numerous fixing options
- Accessories, e.g. HAZET paper bin, can holder mountable on left and right side
- Rear screw point for mounting additional accessories

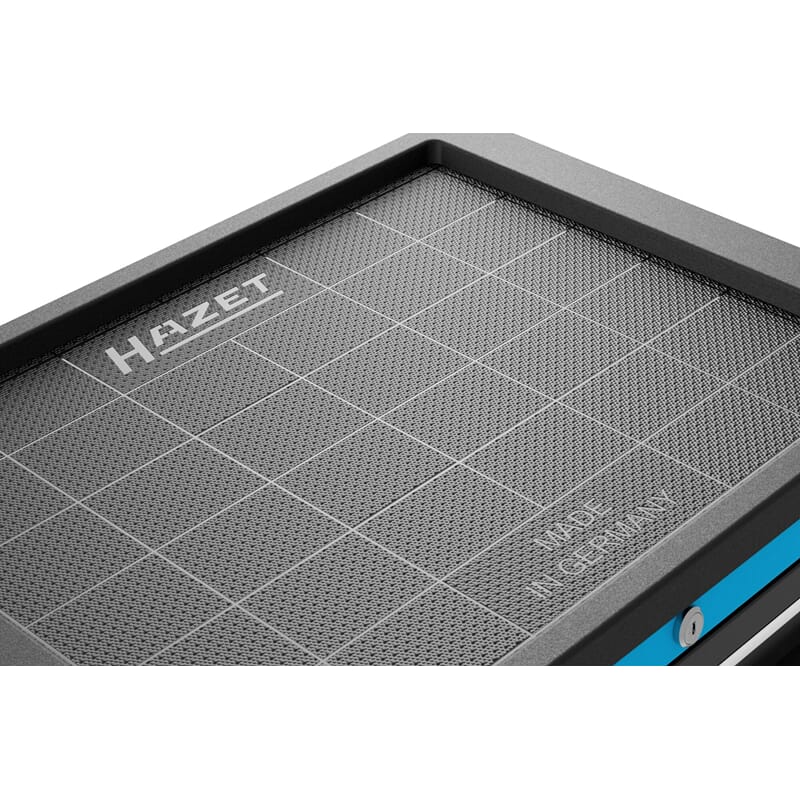

Work areas
- Much larger storage and work areas in plastic
- Modern work surface design
- Solvent-resistant work surface protects inside of trolley from leaking liquids
- Work surface border strip prevents parts from falling down
Body / Pull-handle
- Extremely robust design thanks to dual-wall structure
- Complete welded construction of the entire body for tough daily workshop use
- Square perforations on the side panels offer individual fastening options, e.g. for tool hooks of the article group HAZET 112 or other accessories such as can holder, holder for paper reel, paper bin, etc.
- Sturdy handle can be firmly mounted on both sides of the body
Locking concept
- 2-stage locking
- Central locking, lockable with cylinder lock and 2 folding keys
- Mutual drawer locking for minimum tilting risk

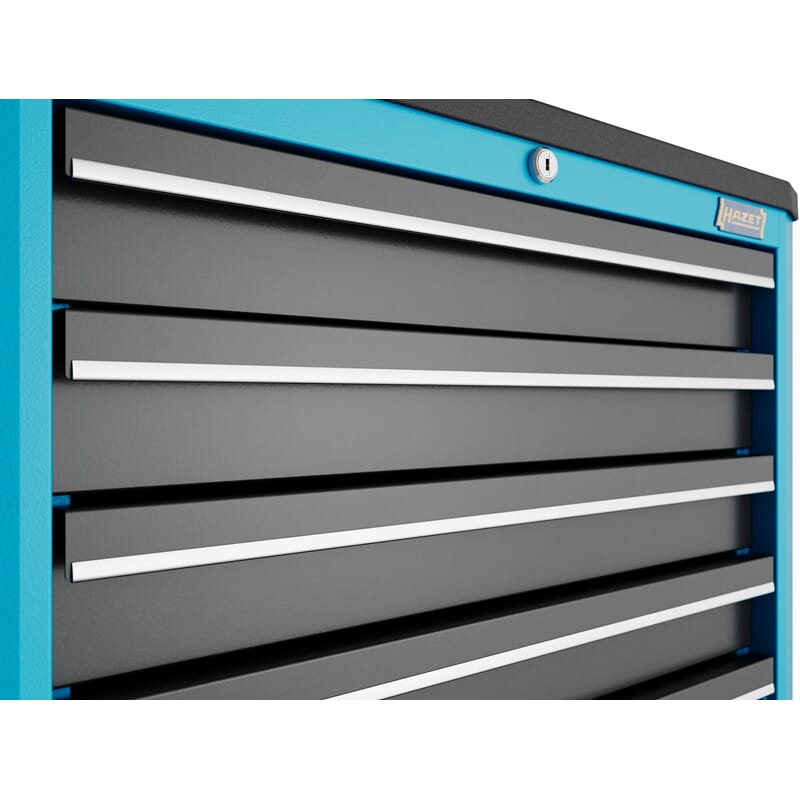

Drawer concept
- Reciprocal locking of the drawers prevents unwanted opening
- 100 % pull-out with ball-bearing guiding rails
- Drawer design for optimum use of the interior
- Drawer fronts for optimised handling
- Dirt-resistant drawer coating for easy cleaning
High performance chassis
- Large wheels with high loading capacity, precision ball bearing and dual rounded rim in the pivot bearing, easy manoeuvrability, even with high dynamic load
- 2 swivel castors with double stop function: fixed castors prevent inadvertent rolling of the trolley,
fixed swivel bearings prevent the castors from swivelling,
e.g. on inclined surfaces - Protective ring prevents dirt and threads from getting in
- Elastic castors enable smooth movement
- Total loading capacity (dynamic): 480 kg
- Loading capacity (static): 480 kg
- Loading capacity of high drawer: 20 kg
- Colour: HAZET blue
- Tool trolley Made in Germany

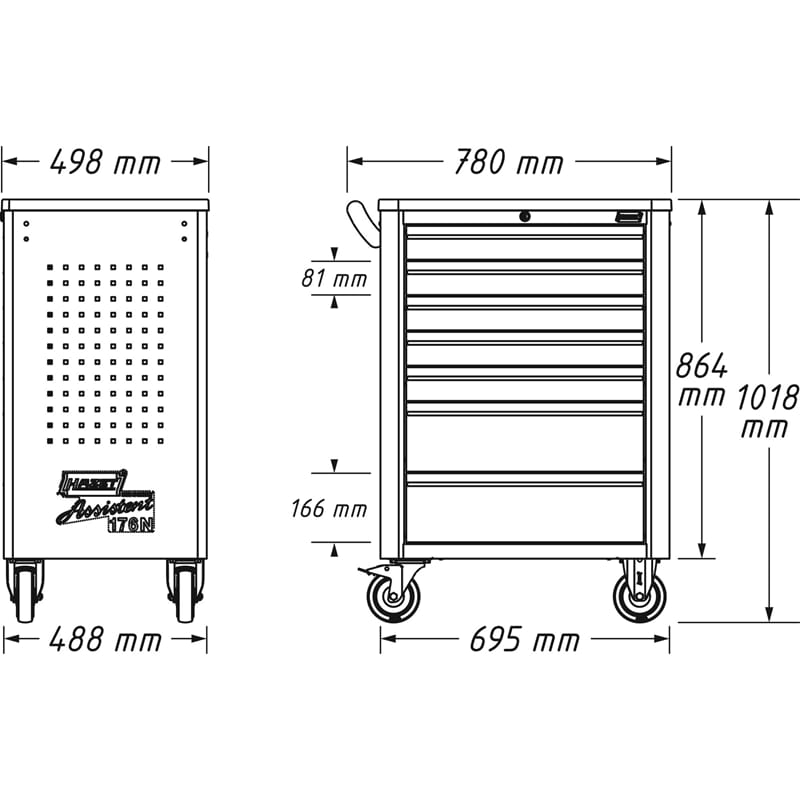

- Dimensions / length: 780 mm x 500 mm x 1018 mm
- Drawers, flat: 5× 81x522x348 mm
- Drawers, high: 2× 166x522x348 mm
- (Drawer) size for plastic drawer insert: 3/3
- Worktop height: 1002 mm
- Number of fixed castors: 2 (125 mm)
- Number of swivel castors: 2 (125 mm)
- Number of tools: 193
Technical features:
- Hazet item number: 176N-7/193
- EAN: 4000896264810
