Hazet 1847-12/15 Circlip pliers set, 15pcs
Product information "Hazet 1847-12/15 Circlip pliers set, 15pcs "
Hazet 1847-12/15 Circlip pliers set, 15pcs
Features:
Application:

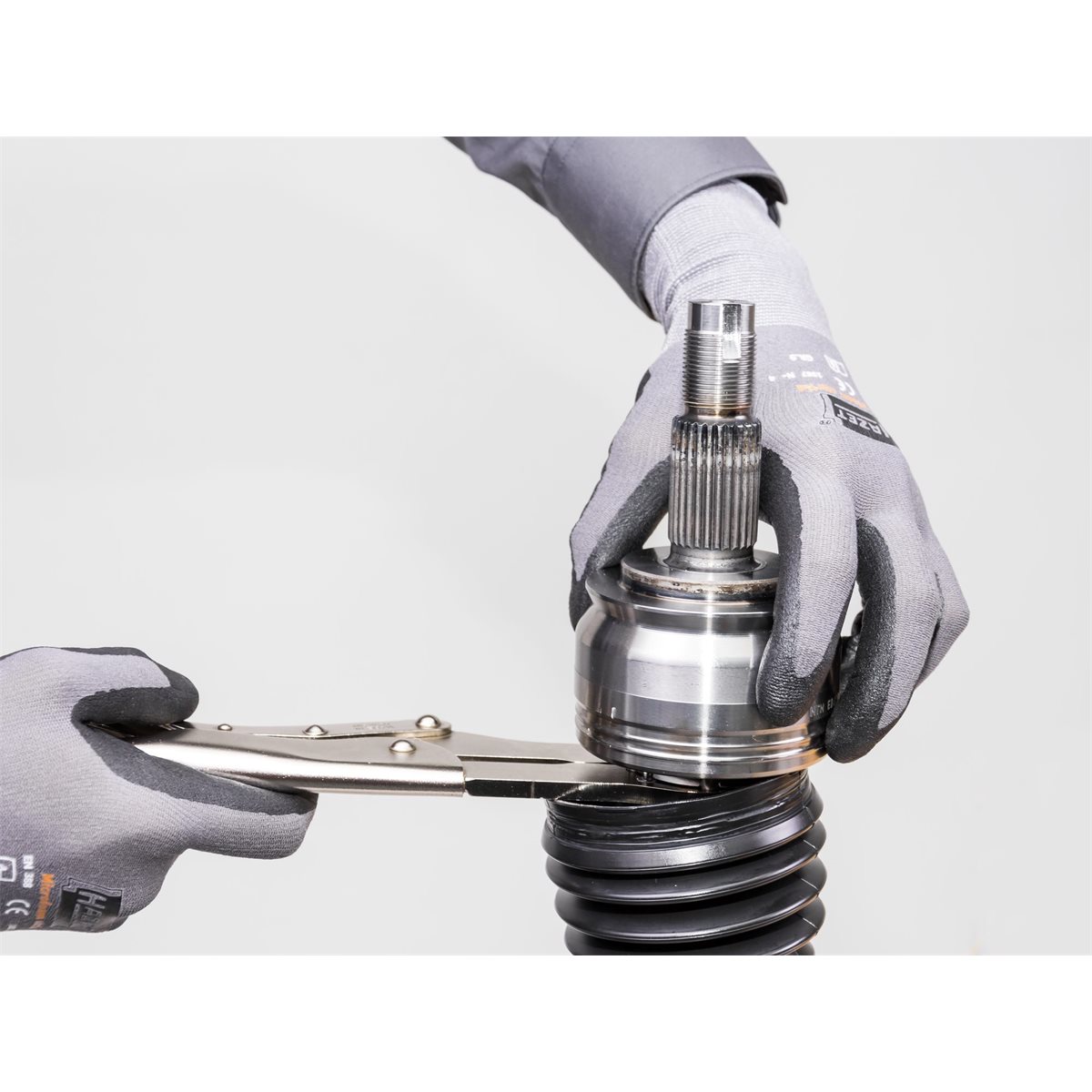

Correct, centred insertion of the circlip, e.g. when mounting the joint on the drive shaft
- Easier, damage-free assembly of the drive shaft joint: damage to the serration of joint and shaft is avoided with internal circlip during assembly of the drive shaft joint
- Easy fixing of the locking pliers with the circlip
- The pliers automatically slip down when striking the joint
- Safe work without damage to the bellows
- Suitable for drive shafts from all manufacturers
- One-hand operation of the pliers
- No other tools needed
- Safety-Insert-System, 2-component soft foam insert. Insert also suitable for HAZET Assistent
- Made in Germany
- Number of tools: 15
Application tip:

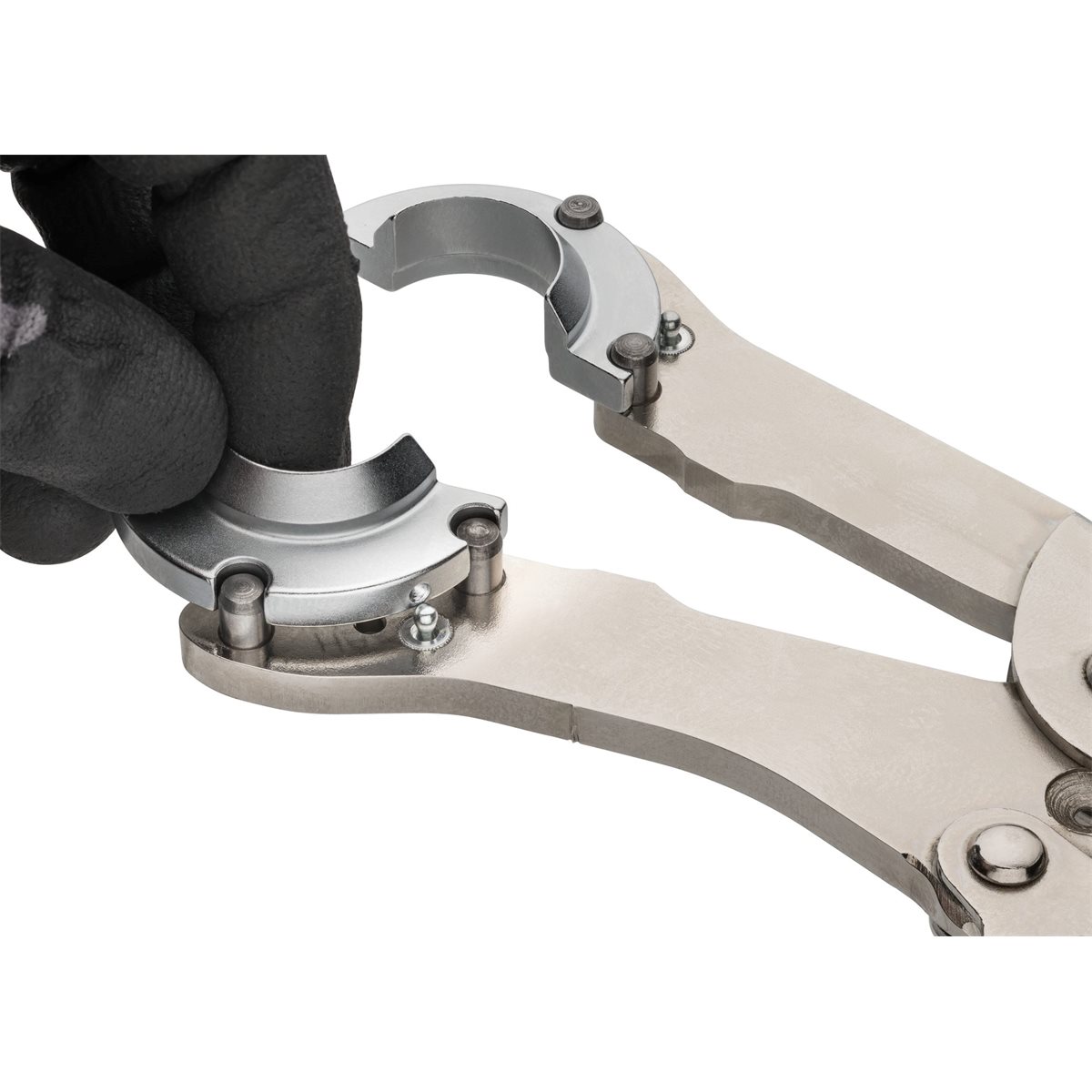

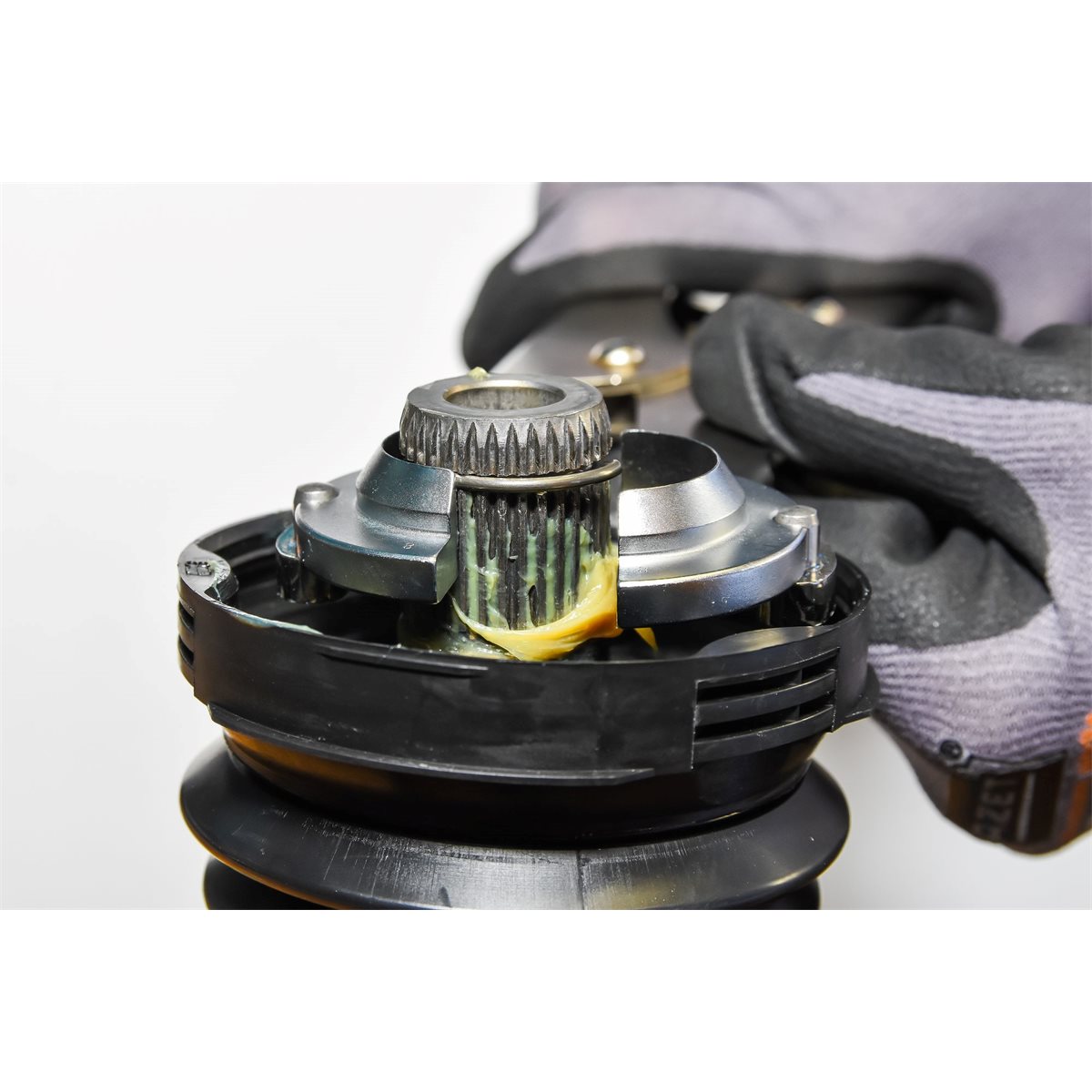

- Insert appropriate half shells in pliers depending on shaft diameter
- Place pliers on serration with pre-assembled circlip and clamp
- Pre-positioning of the joint due to conical shape of the pliers makes it easier to introduce the serration without damage
- Suitable for almost all vehicles commonly registered in Europe

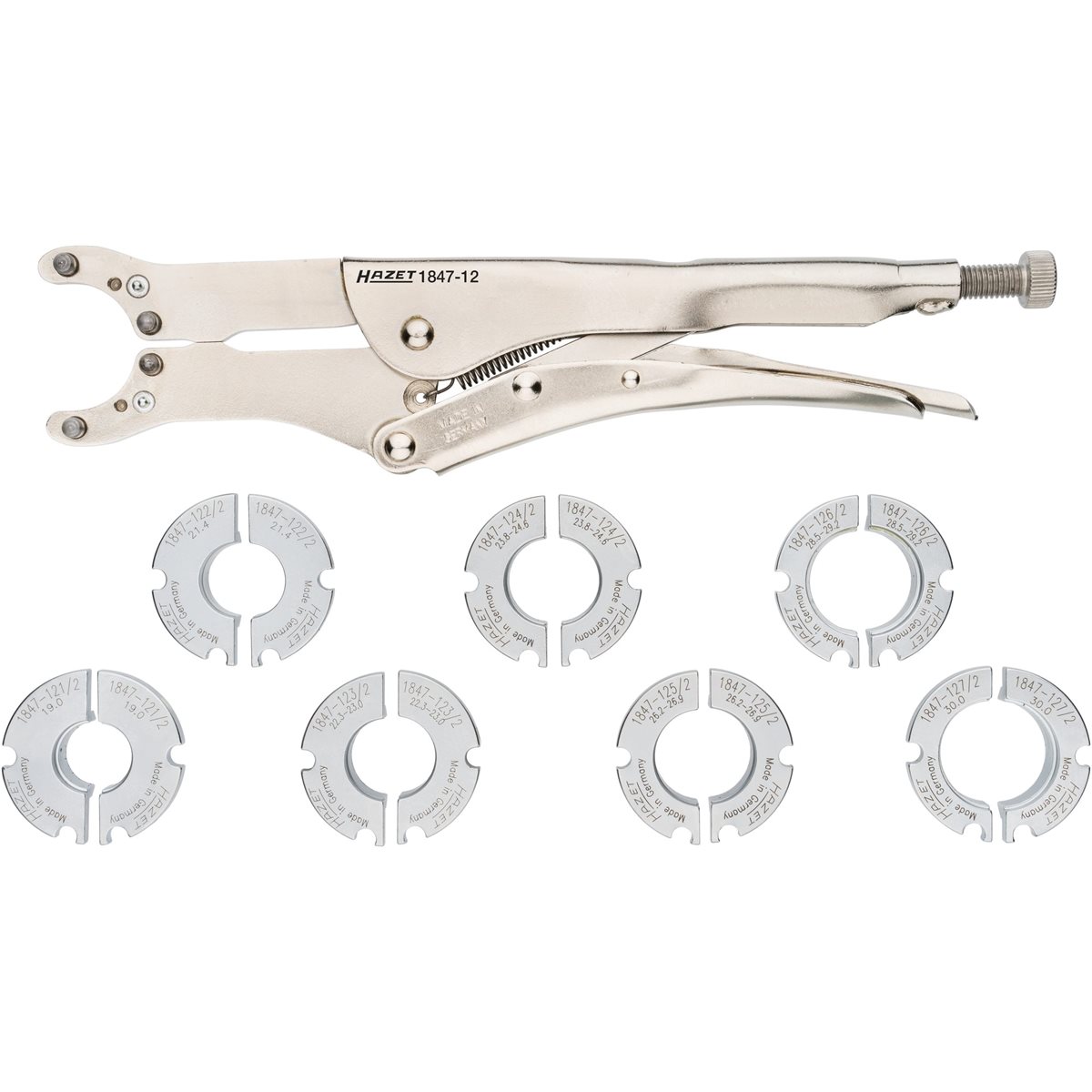

Contents:

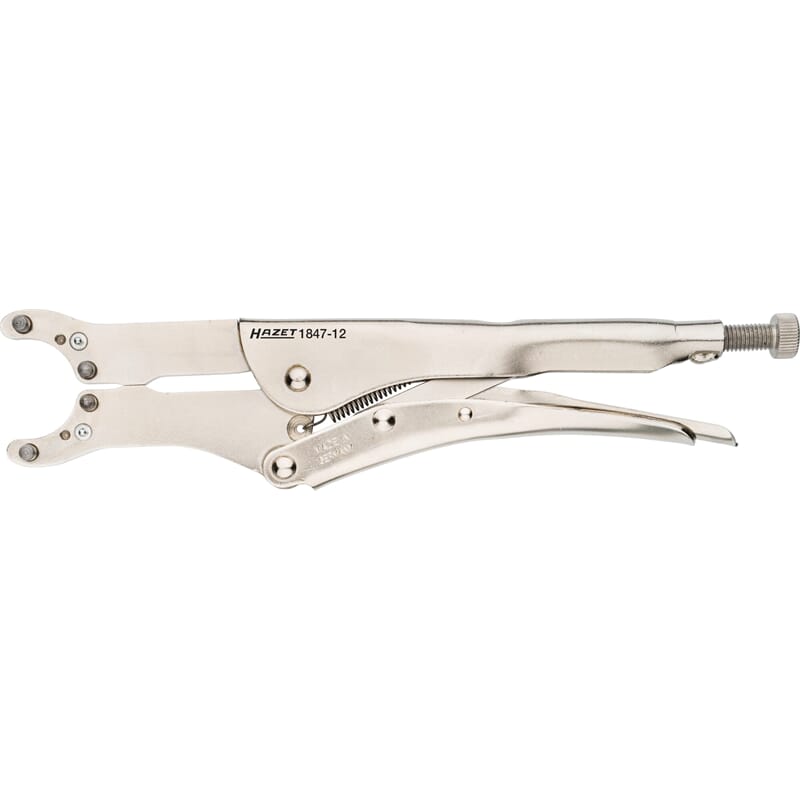

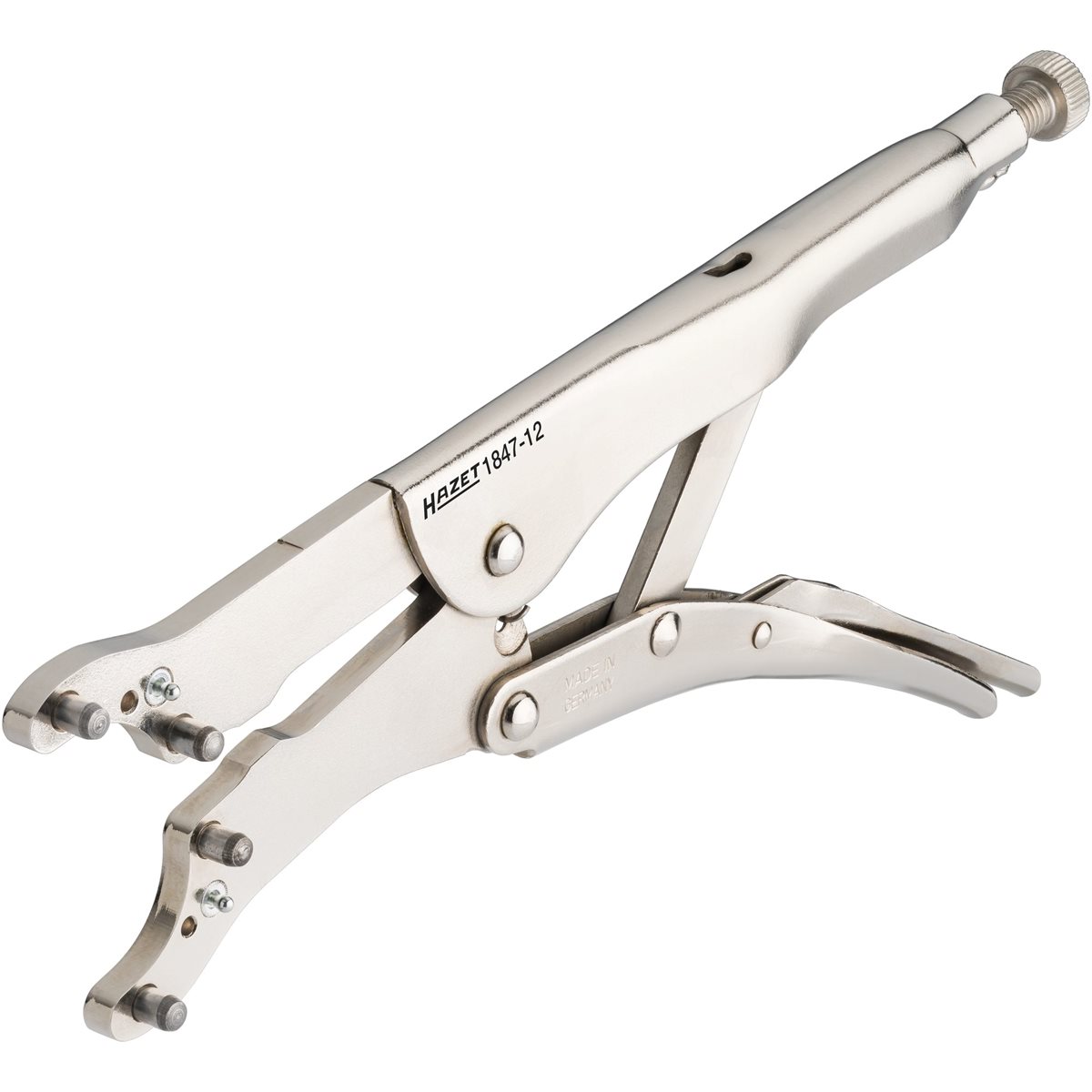

- 1 pair 1847-12 circlip pliers
- Half-shells in graduated diameters:

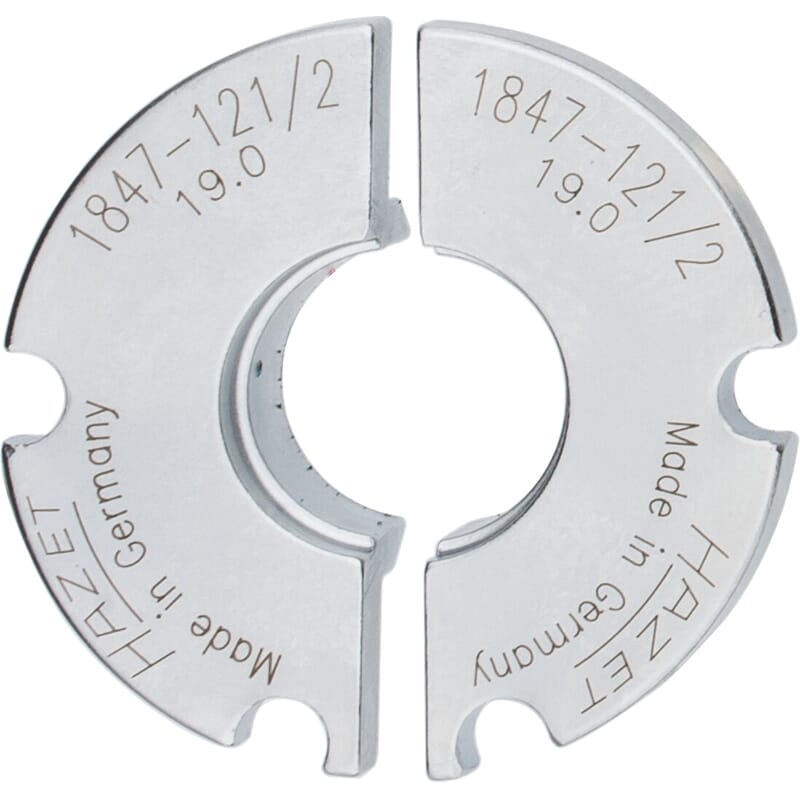

- 2 1847-121/2 half-shells (∅ 19.0 mm)

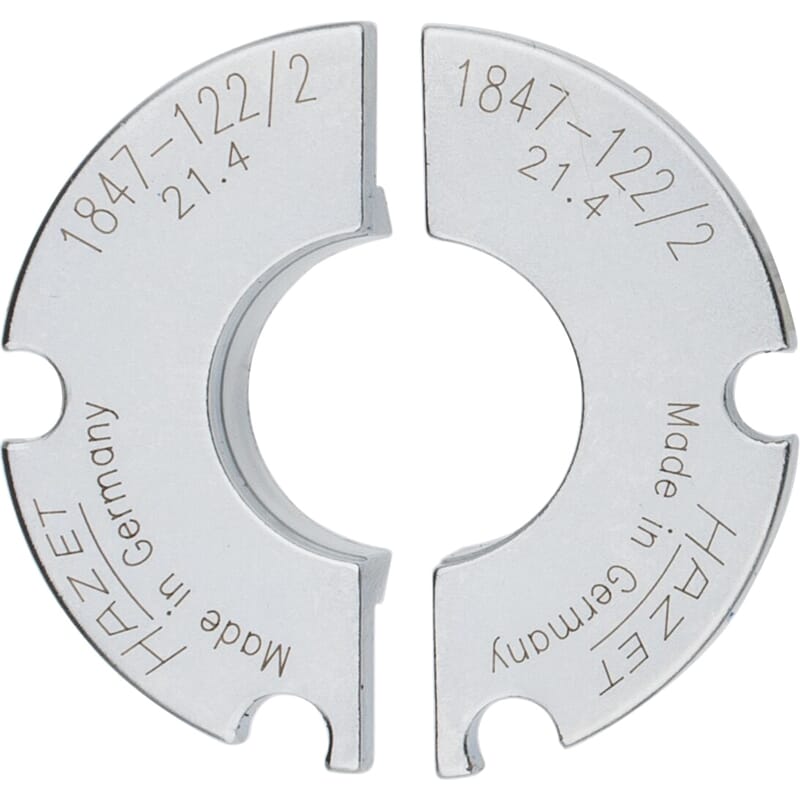

- 2 1847-122/2 half-shells (∅ 21.4 mm)

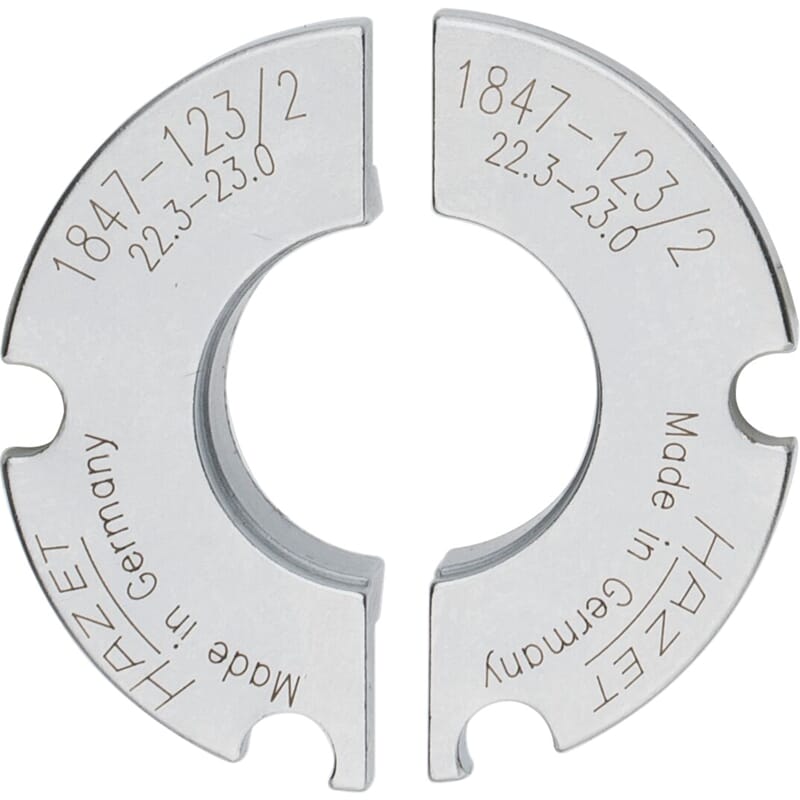

- 2 1847-123/2 half-shells (∅ 22.3 – 23.0 mm)

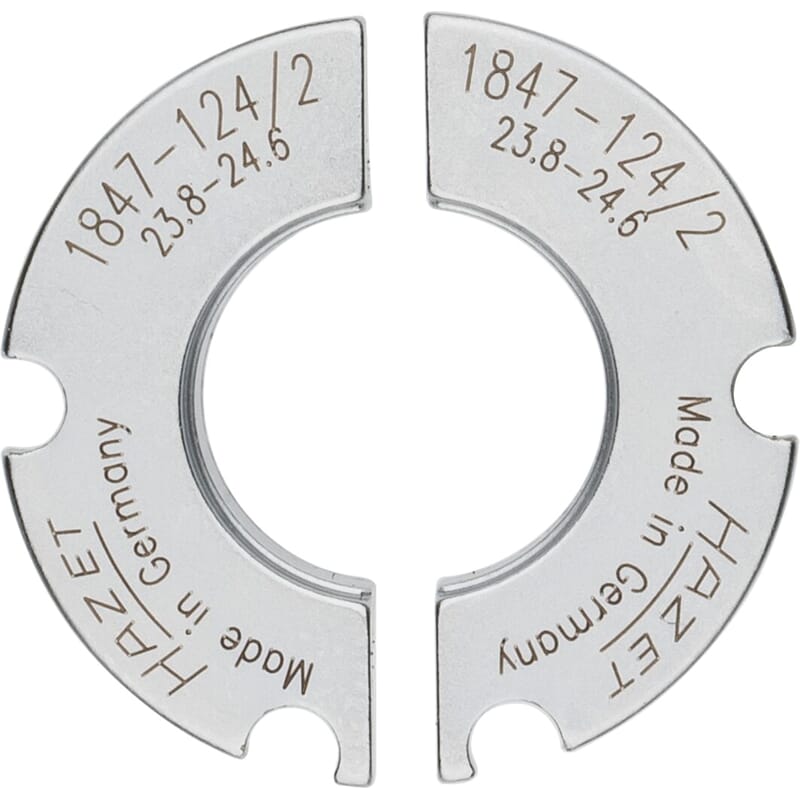

- 2 1847-124/2 half-shells (∅ 23.8 – 24.6 mm)

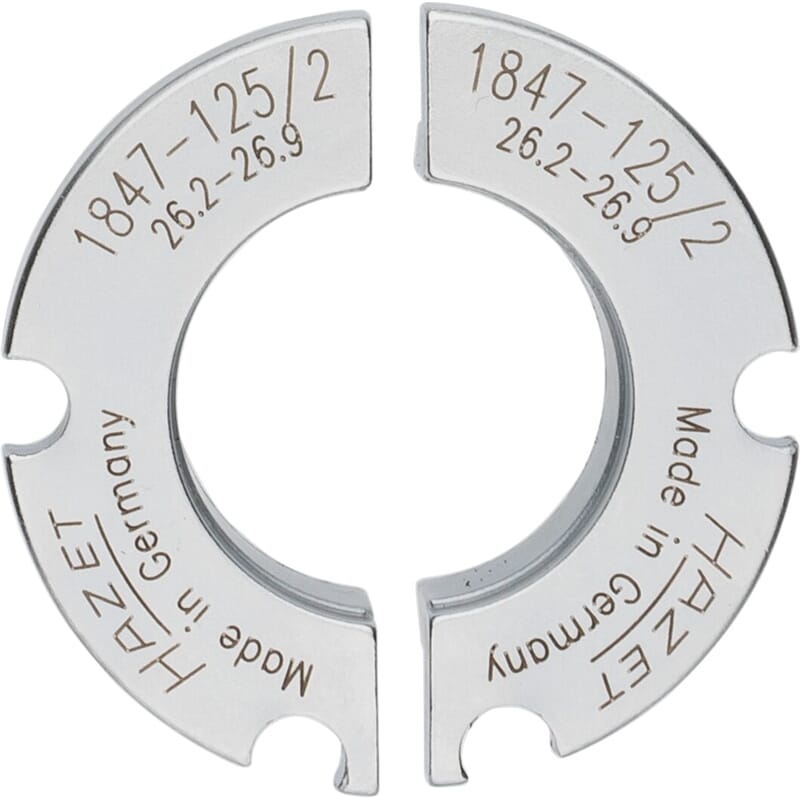

- 2 1847-125/2 half-shells (∅ 26.2 – 26.9 mm)

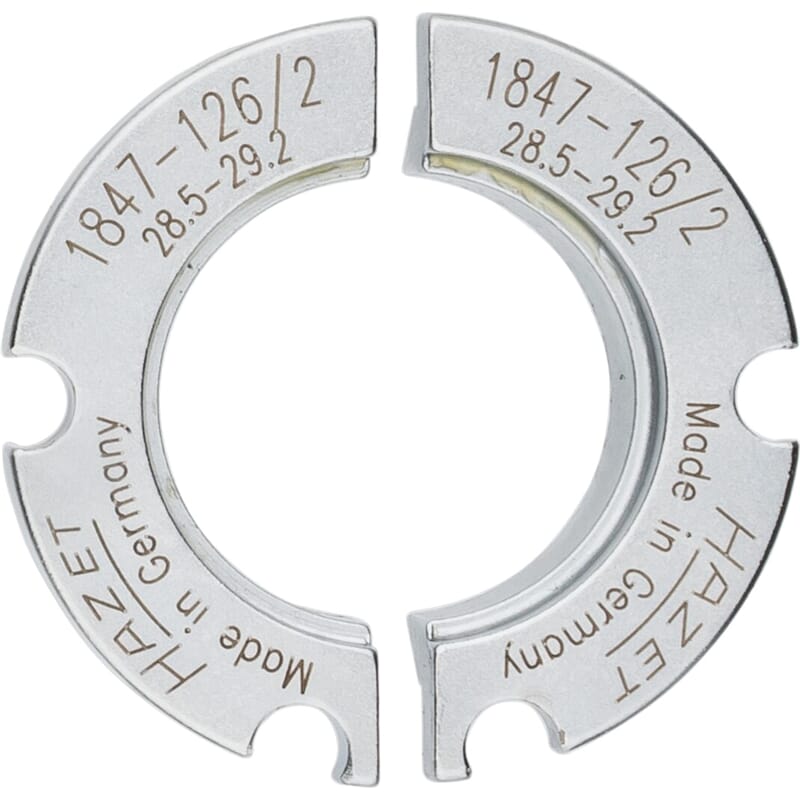

- 2 1847-126/2 half-shells (∅ 28.5 – 29.2 mm)

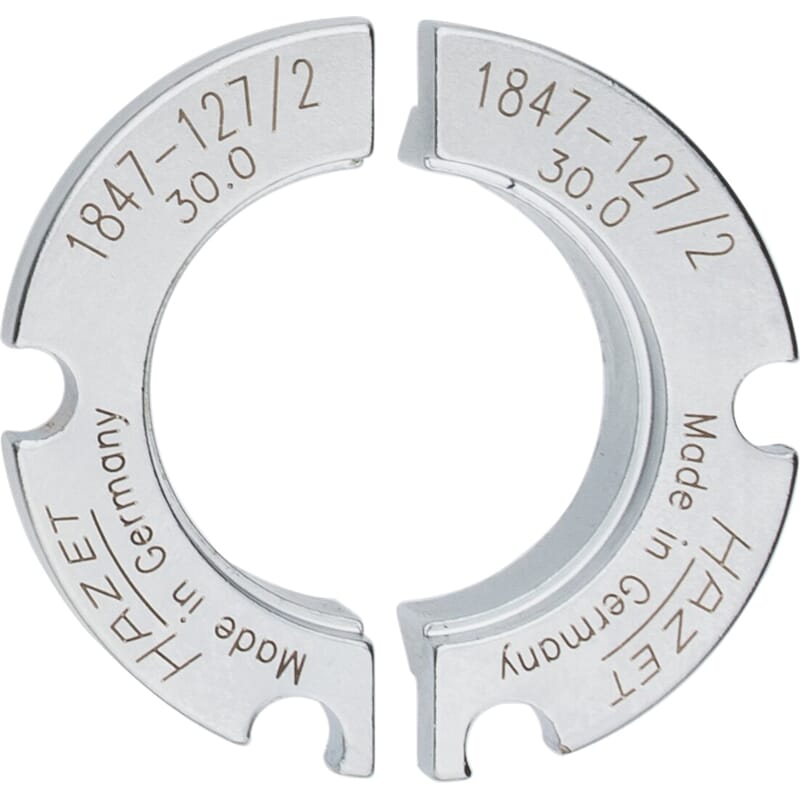

- 2 1847-127/2 half-shells (∅ 30.0 mm)
- SmartCase (1/3) 165-L
Product Safety and Downloads
Documents and datasheets
Product safety information
Manufacturer
HAZET-WERK - Hermann Zerver GmbH & Co. KG
Güldenwerther Bahnhofstraße 17
42857 Remscheid
Germany
