Hazet 1992N-1 Wärmebildkamera
Product number:
1991345
Manufacturer no.:
1992N-1
EAN:
4000896263523
Weight in kg:
2
Product information "Hazet 1992N-1 Wärmebildkamera "

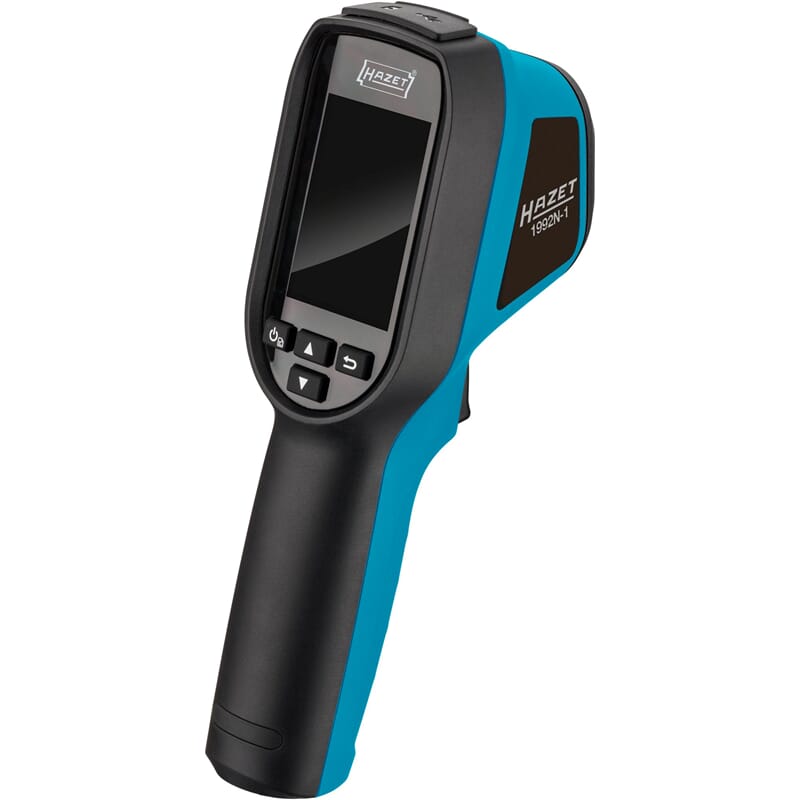

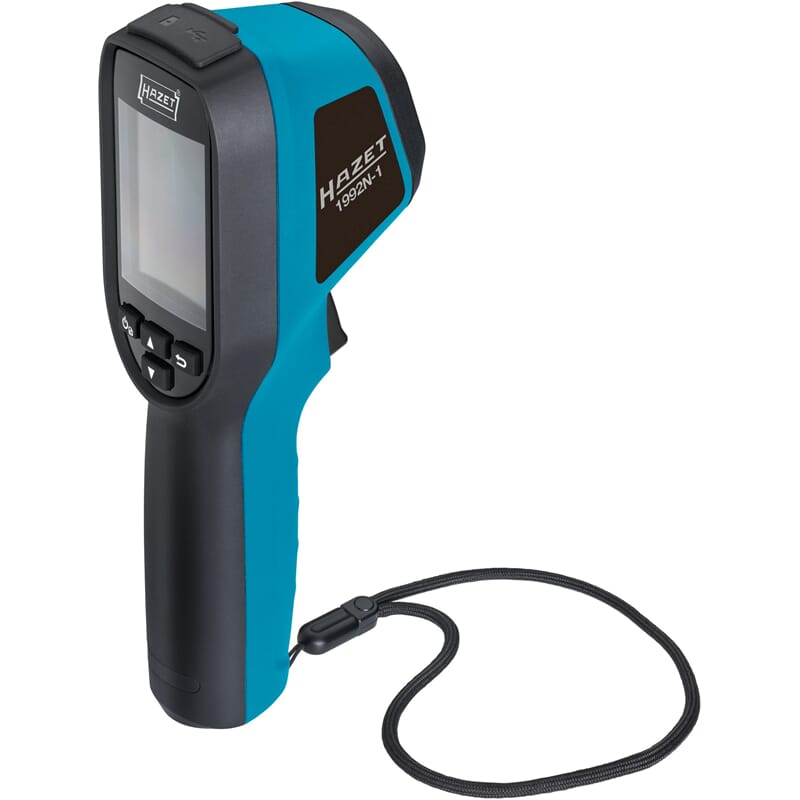

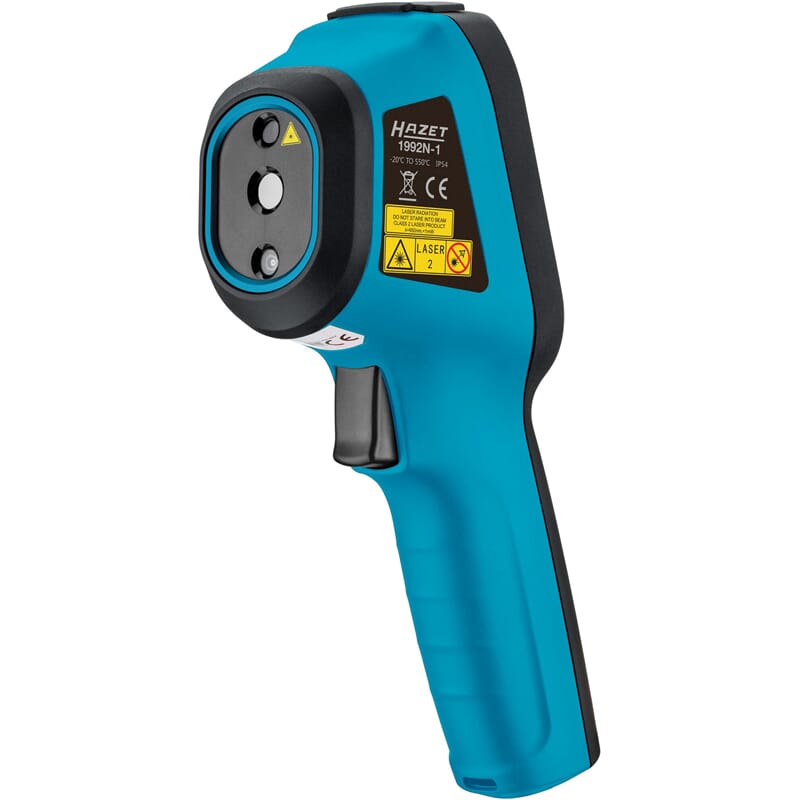

Hazet 1992N-1 Thermal camera, L x W x H: 117 mm x 59 mm x 196 mm

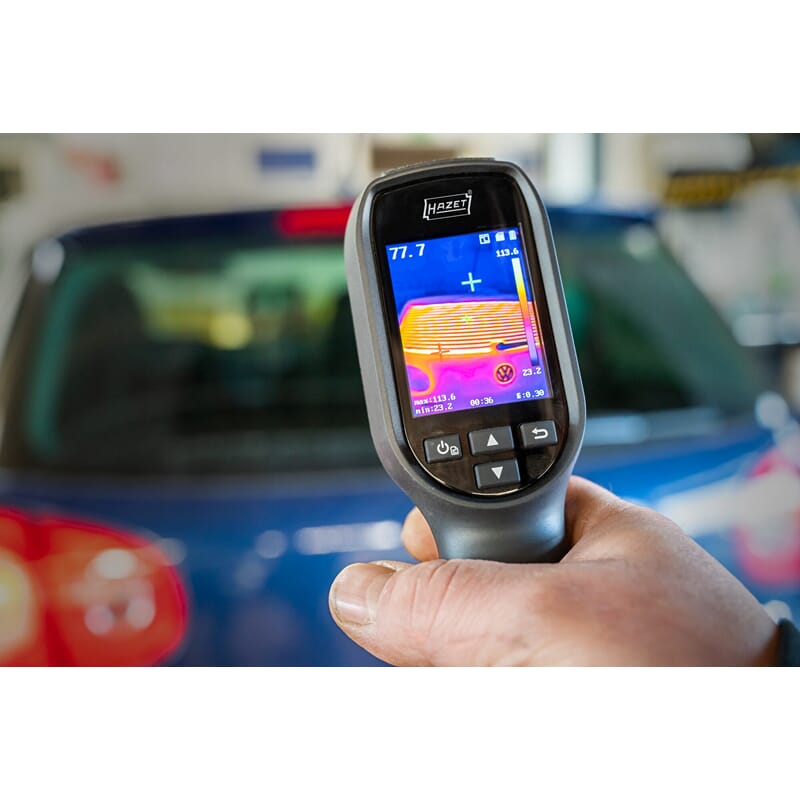

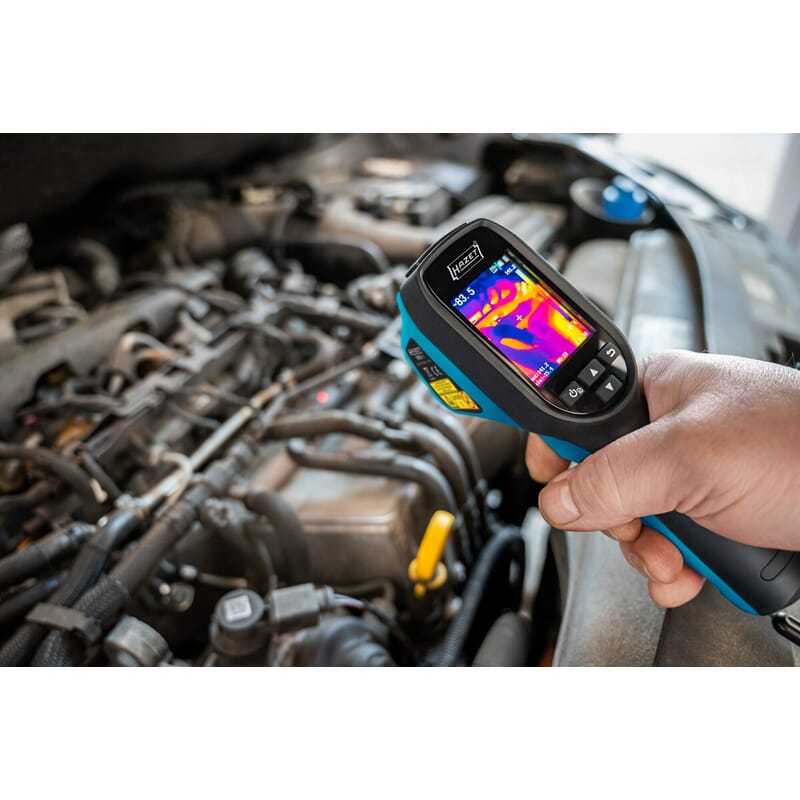

For building diagnostics, electrical installation, sanitary, air-conditioning and heating technology and inspection of engine compartment, brake system, cooling and heating system.
Features:
- Automatic hot, cold and central point measurement
- Focus IR (infrared) for improved resolution and quality
- Additional camera for better resolution of live video recordings (640 x 480 pixels)
- Screen size: 2.4 inch LCD screen
- Display resolution: 320 x 240 pixels
- Thermal (or IR) resolution: 160 x 120 pixels
- Battery life: up to 8 hours
- 6 colour palettes for optimum diagnostics: Black Hot, White Hot, Rainbow, Ironbow, Fusion, Red
- Storage medium: Micro SD card (included in delivery) up to 150,000 images
- Image sensor: Vanadium oxide uncooled focal plane arrays (FPA)
- Refresh rate: 25 Hz
- Thermal sensitivity (Noise Equivalent Temperature Difference, NETD): < 40 mK (0.04° C)
- Measuring accuracy maximum (±2 °C - ±2 %): Ambient temperatures 15 °C - 35 °C / Object temperatures above 0° C
- Field of view: 50° x 50°
- Dimensions / length: 117 mm x 59 mm x 196 mm
- Net weight: 0.29 kg
- Temperature range: -20 °C - 550 °C
Technical features:
- Hazet item number: 1992N-1
- EAN: 4000896263523
