Hazet 2191/12K Tube Flaring Tool Set
Product number:
252561
Manufacturer no.:
2191/12K
EAN:
4000896013890
Weight in kg:
3.11
Product information "Hazet 2191/12K Tube Flaring Tool Set"

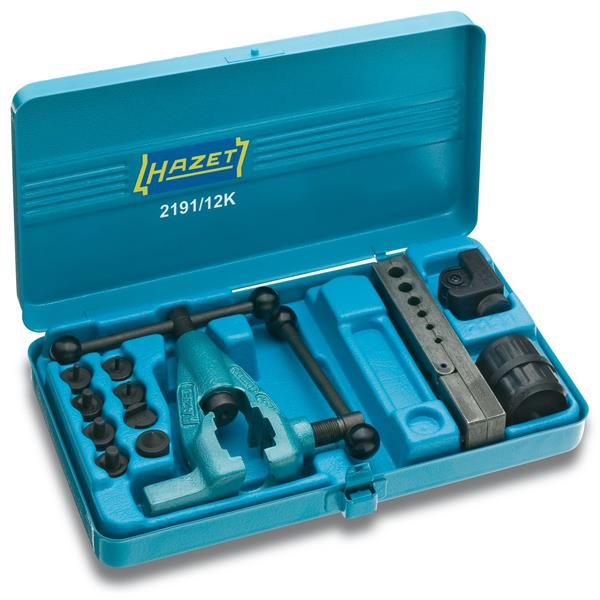

Hazet 2191/12K Tube Flaring Tool Set
Features:
- For metal tubes and pipes with a wall thickness of 0.7 und 1.0 mm pipe- 4.75 - 10 mm
- For open (F) or double (E) flares according to DIN 74234 , for normal 90°- and 180° flares
- For flares on rolled and drawn pipes
- With replaceable hinged gripping jaws
Note: For plastic coated brake lines use HAZET 2193/4K! - Special cast steel
- Set of 12 pieces
- In sheet metal box
- Surface: lacquered
Scope of delivery:
- 1 Tube Cutter 2181-1

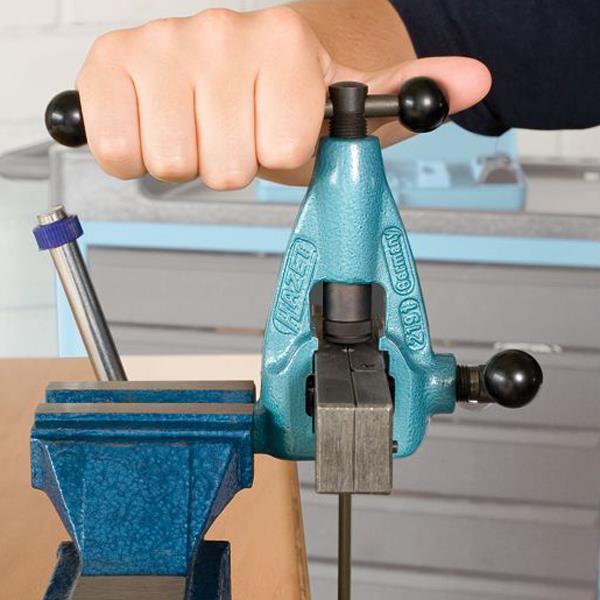

- 1 Tube Flaring Unit 2191

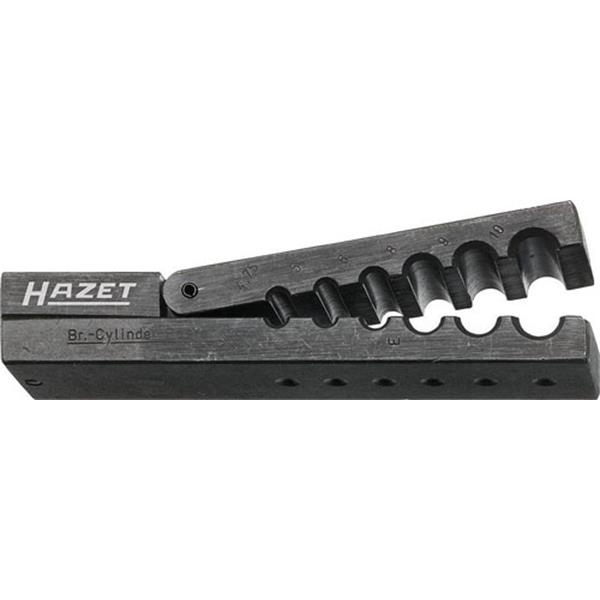

- 1 Gripping Jaw 2191-1
- 1 Tube Deburring Tool 2191-2
- 1 Base Block 2191-3
- 6 Thrust Blocks 2191-4 to 2191-10
- 1 90°- Thrust Block 2191-90
