Hazet 4812-10/4S Video Borescope
Product number:
2770541
Manufacturer no.:
4812-10/4S
EAN:
4000896181742
Weight in kg:
3.3
Product information "Hazet 4812-10/4S Video Borescope "
Hazet 4812-10/4S Video Borescope with 4.9mm switch probe, 4 pieces
Features:
- 1 m camera cable with 4.9 mm calibre micro lens and LED light sources with reversing switch 90° + 0° viewing direction
- Instant replay of video or photos at TFT monitor
- Show and hide date and time easily
- Automatic power off to save energy
- Improved resolution
- Improved connection between probe and housing (metal), (adapter for using older probes optional)
- Single-hand operation of the multifunction panel
- All in one: Live video - recording - replay on TFT display!
Probe of the 2. Generation
- Modified position of the lateral LED for improved illumination at 90 -function
- Improved illumination power of LED
- Simplified application
- Improved quality of the probe coating
Included in delivery:
- Operating panel
- Hook with magnet
- SD card with 4 GB storage capacity
- 4 x AA batteries
- In plastic case
Product Safety and Downloads
Documents and datasheets
Product safety information
Manufacturer
HAZET-WERK - Hermann Zerver GmbH & Co. KG
Güldenwerther Bahnhofstraße 17
42857 Remscheid
Germany
info@hazet.de
Zubehör

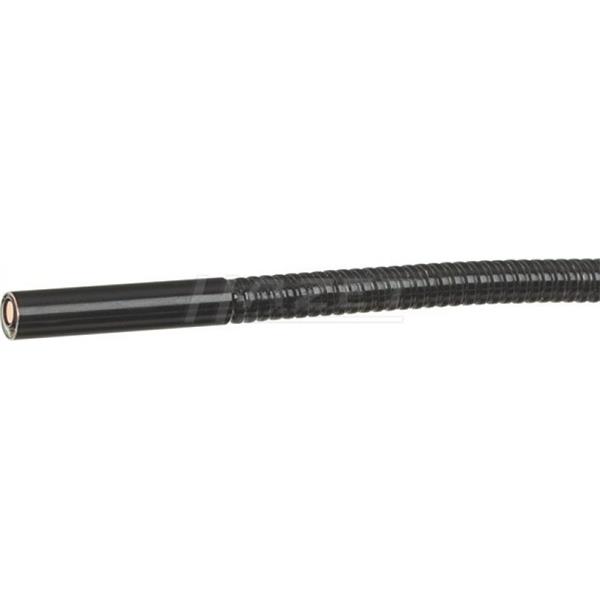

Hazet 4812N-1F Semi-flexible probe, 3.9 mm
€626.75*
Hazet 4812N-1F Semi-flexible probe, 3.9 mm
Features:
For probes with new, improved connection (4812 N) to be used in conjunction with the operating panels of the sets 4812-10/4 S · 4812-1/7 · 4812-1/6 · 4812-1/8
For connection with older operating panels, please use the adapter 4812-30
Camera resolution: 325 (H) x 250 (v) = 76800 pixels
Aperture angle of the camera: horizontal 46°, vertical: 34°, diagonal: 56°
Depth of field: 10 to 60 mm
Probe length: 1000 mm
Ambient conditions: 0° to +55° C
Weight: 220 g
3.9 mm ∅
Viewing direction of the camera: straight view (Front-View)
Luminous source: 3 dimmable LEDs
Total length: 1000 mm
Diameter: 3.9 mm
Net weight: 0.11 kg
