Hazet 4812-24/4AF Endoskop Satz Schwenksonde 360°- 3,9Mm
Product number:
1991346
Manufacturer no.:
4812-24/4AF
EAN:
4000896264568
Weight in kg:
2
Product information "Hazet 4812-24/4AF Endoskop Satz Schwenksonde 360°- 3,9Mm"

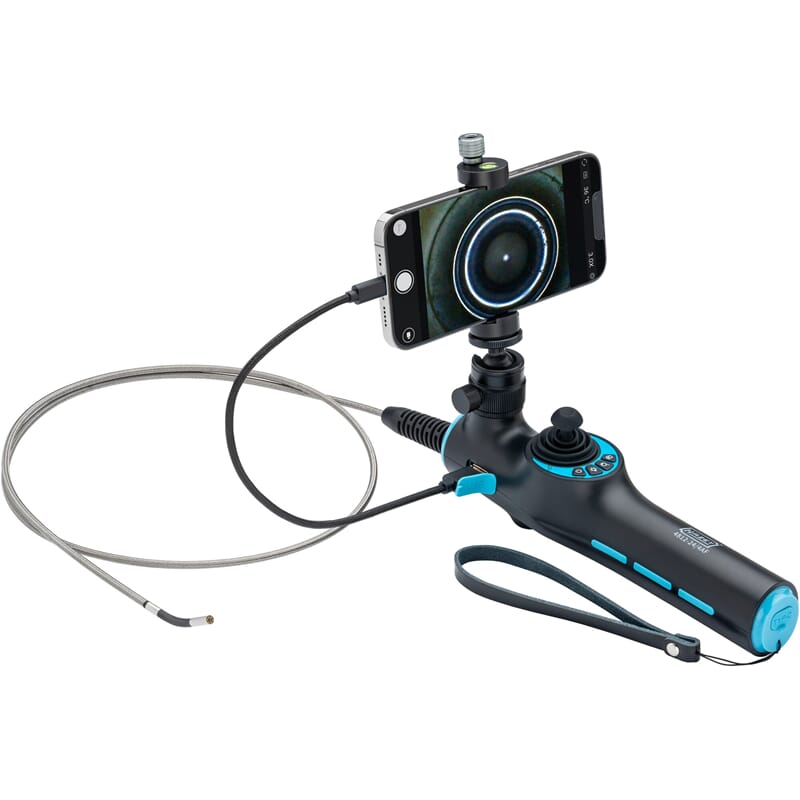

Hazet 4812-24/4AF HD video borescope set with 360° swivelling probe, diameter 3.9 mm, 4-pieces

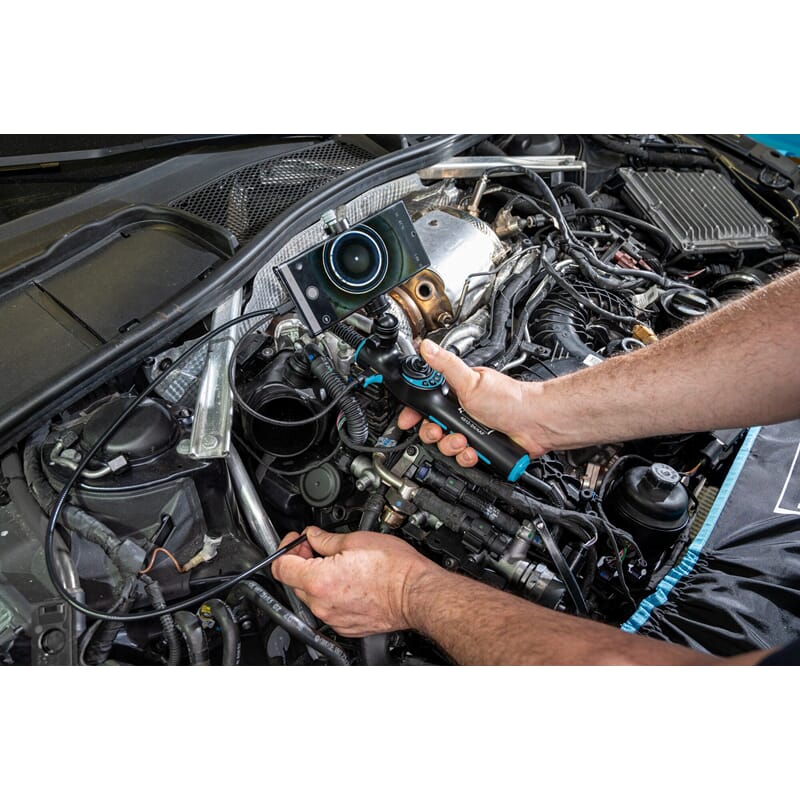

For diagnosis and documentation of cavities for damage assessment.
Features:
- Fully articulated 3.9 mm diameter probe - hard-to-reach areas are now much easier to access
- Photo and video recording via app or control via operating elements of the borescope

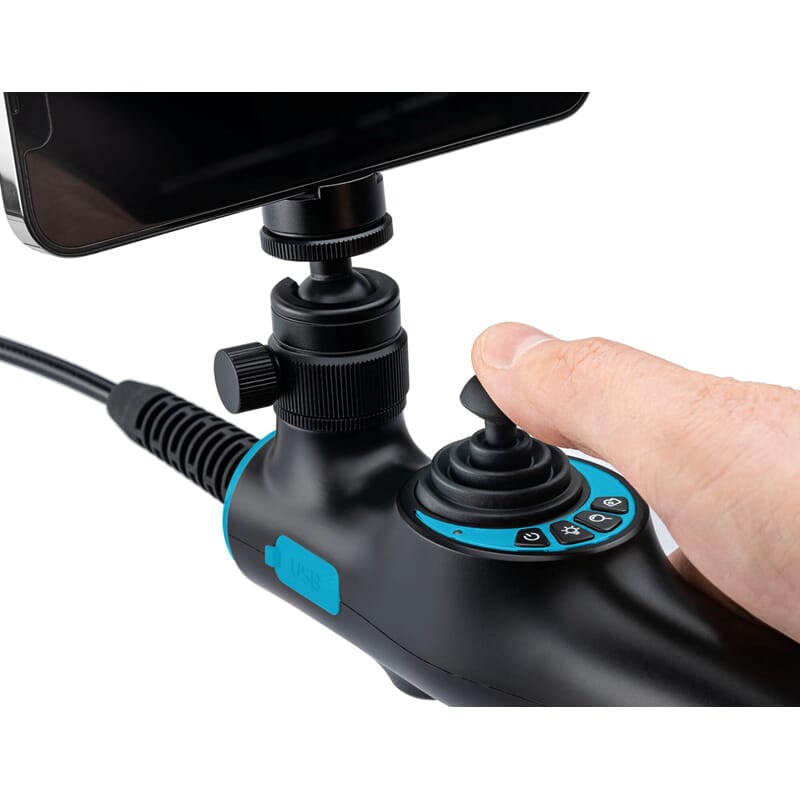

- Joystick control of the camera probe via operating elements on the basic unit
- Wired connection of a smartphone as a display (Lightning - USB-C)
- Image memory dependent on smartphone memory
- Removable Li-ion battery (1 x type 18650 - 3350 mAh) without additional tools
- Battery life: greater or equal to 2 hours
- Focus range (DOF): 5–100 mm
- Viewing angle (FOV): 100°
- Temperature warning alarm (app) and automatic switch-off if the maximum permissible camera temperature is exceeded
- Robust, swivelling and adjustable smartphone holder (span: 58–100 mm)
- Additional magnification of the image possible using the smartphone display (drag)

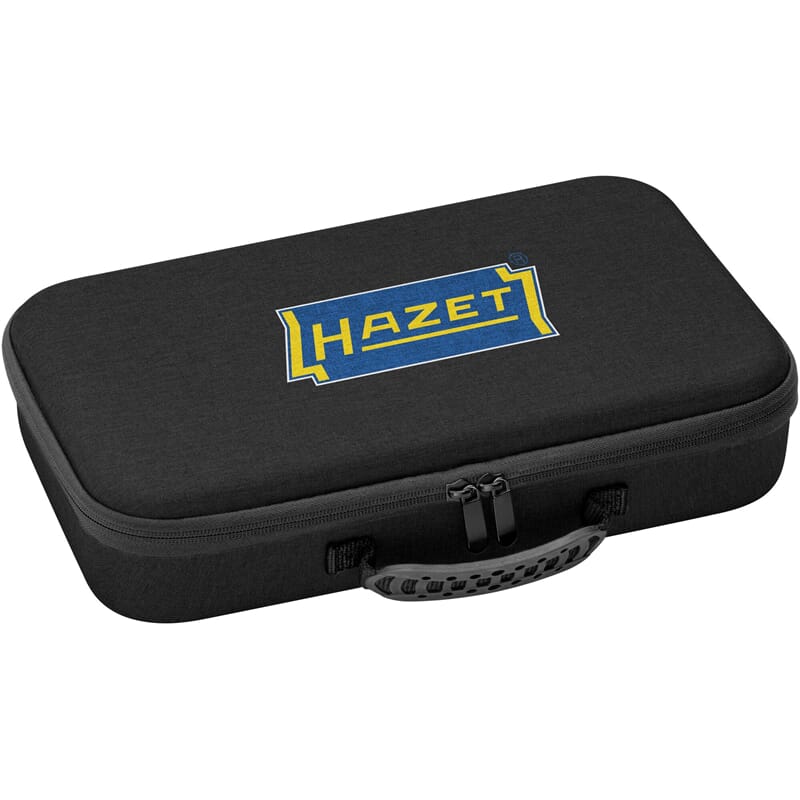

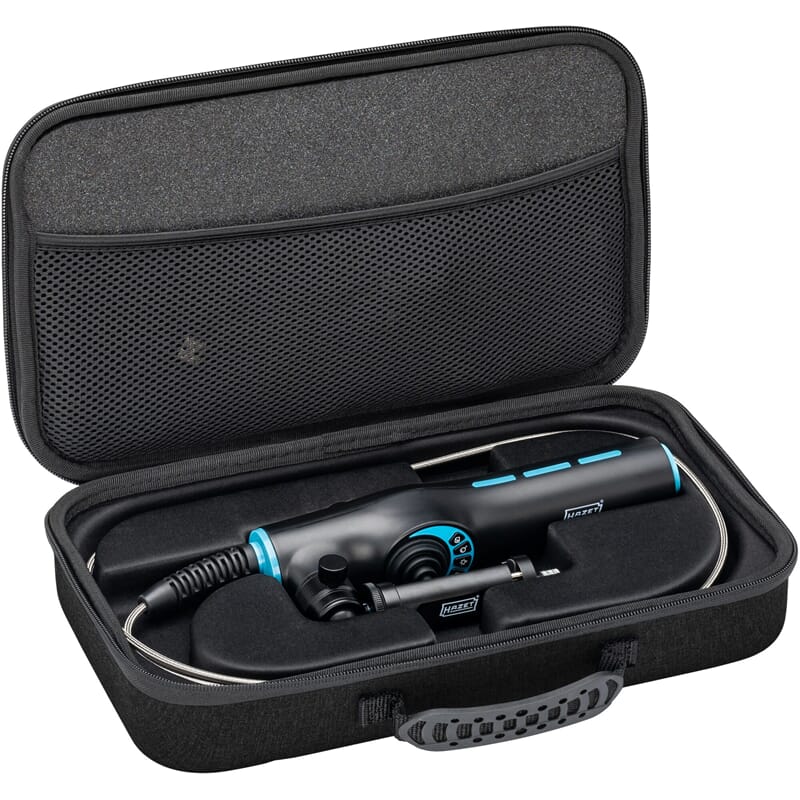

- 4-piece set in soft case with moulded insert
- Data cable USB-A to Lightning (iOS legacy) - length: 0.3 m
- Data cable USB-A to USB-C (Android, current iOS etc.) - length: 0.3 m
- Data cable USB-A to USB Micro (Android legacy) - length: 0.3 m
- Charging cable USB-A to USB-C - length: 1.0 m
- Basic unit and HD probe
- USB-C charging port
- Smartphone app
- Four-language smartphone app for Android and IOS
- Temperature display of the camera
- Creating PDF reports (footer - header - logo)
- Five-fold zoom (with display of the zoom factor in the app)
- Rotation of the image in 90° increments
- Adding a timestamp
- Probe
- Probe length: 1 m
- IP protection rating: IP67
- Articulation of the camera probe: Axial 180° - Radial 360°
- Camera light: LED with white light 6000 to 8000 lux
- Three-stage brightness setting
- Temperature range: -20° C to 70° C
- Wear-resistant, elastic metal hose (stainless steel)
- Photo image format: Jpeg: resolution: 1280 x 720 - 640 x 480 pixels
- Video format MP4: resolution: 1280 x 720 - 640 x 480 pixels
- Device:
- With handle and sturdy smartphone holder
- IP protection rating: IP54
- Temperature range: -10° C to 50° C
- Operating humidity of up to 90 % (non-condensing)
- Weight (with battery ? without smartphone): 430 g
- Tripod mounting thread in the basic unit
- Buttons for on/off switch - Light control - Zoom - Photo - Video start on the basic unit
- USB-C data and charging socket
- Weight complete (with bag and cable set): 1000 g
- Soft case size: 370 x 215 x 750 mm
- Number of tools: 4
Technical features:
- Hazet item number: 4812-24/4AF
- EAN: 4000896264568
