Hazet 4910/13 Shock Absorber Tool Assortment
Product number:
252400
Manufacturer no.:
4910/13
EAN:
4000896061495
Weight in kg:
3.39
Product information "Hazet 4910/13 Shock Absorber Tool Assortment"
Hazet 4910/13 Shock absorber tool set
Features:
-
Application:

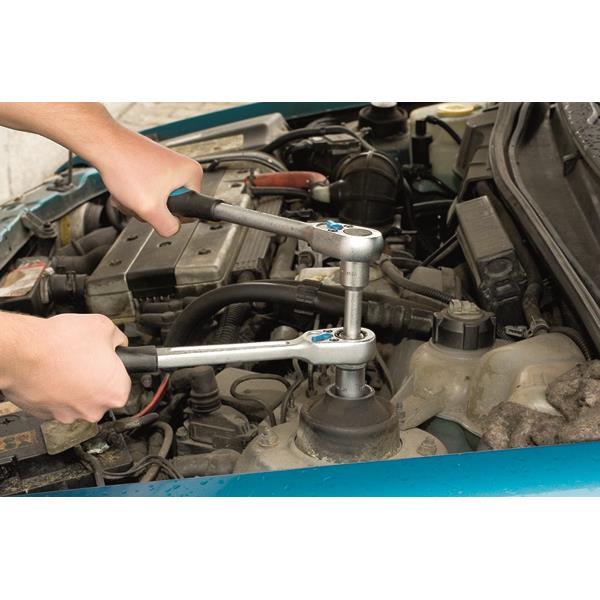

Repair work at the strut e.g. shock absorber, strut mounting, coil spring - Counterholder for piston rod when removing and installing the spring strut
- Caution: Follow vehicle manufacturer’s specifications concerning torque values
- Application e.g. with torque wrench, e.g. HAZET 6291–1 CT together with insert box-end wrench 6630 d-21
Application of an impact wrench may damage the thrust bearing and the piston rod - Made in Germany
Technical Features:
- Drive: Square, hollow 12.5 mm (1/2 inch)
- Output: Inside hexagon profile, Pin profile, hollow, Outside hexagon profile
- Dimensions / length: 355 mm x 235 mm x 65 mm
- Net weight: 3.39 kg
- Number of tools: 13
- Hazet Article no.: 4910/13
- EAN: 4000896061495

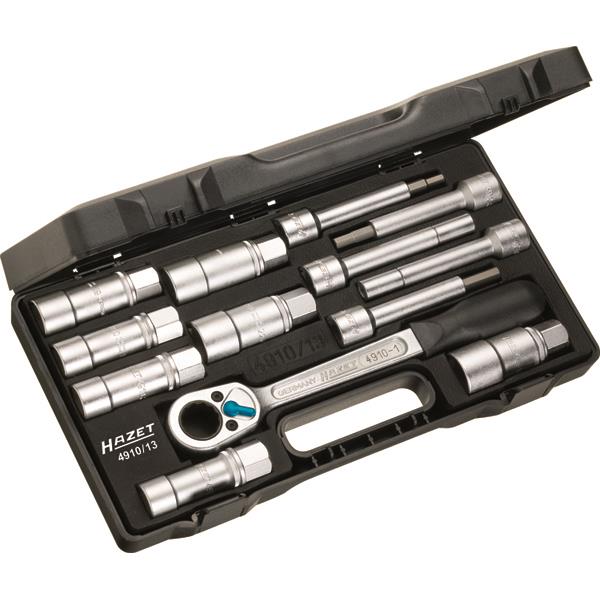

List of items:
| 4910-1 | Reversible ratchet |
| 4910-6 | Extension Square, hollow 12.5 mm (1/2 inch) ∙ Inside hexagon profile ∙ 6 mm |
| 4910-7 | Extension Square, hollow 12.5 mm (1/2 inch) ∙ Inside hexagon profile ∙ 7 mm |
| 4910-8 | Extension Square, hollow 12.5 mm (1/2 inch) ∙ Inside hexagon profile ∙ 8 mm |
| 4910-58 | Extension Square, hollow 12.5 mm (1/2 inch) ∙ Pin profile, hollow ∙ Y 5 x 8 mm |
| 4910-68 | Extension Square, hollow 12.5 mm (1/2 inch) ∙ Pin profile, hollow ∙ Y 6 x 8 mm |
| 4910-16 | Socket ∙ hexagon Outside hexagon profile ∙ 16 mm |
| 4910-17 | Socket ∙ hexagon Outside hexagon profile ∙ 17 mm |
| 4910-18 | Socket ∙ hexagon Outside hexagon profile ∙ 18 mm |
| 4910-19 | Socket ∙ hexagon Outside hexagon profile ∙ 19 mm |
| 4910-21 | Socket ∙ hexagon Outside hexagon profile ∙ 21 mm |
| 4910-22 | Socket ∙ hexagon Outside hexagon profile ∙ 22 mm |
| 4910-24 | Socket ∙ hexagon Outside hexagon profile ∙ 24 mm |
