Hazet 5107-3CT Torque wrench 1/4" 1 - 9 Nm
Product number:
1938675
Manufacturer no.:
5107-3CT
EAN:
4000896218875
Weight in kg:
0.42
Product information "Hazet 5107-3CT Torque wrench 1/4" 1 - 9 Nm "
Hazet 5107-3CT Torque wrench 1/4" 1 - 9 Nm
Features:
- User-friendly reversible ratchet
- Perfect for working on motorcycles, bicycles and tyre pressure control systems
- Accuracy ± 3 % of the scale value (in direction of actuation for right-hand tightening
- For left-hand tightening, use our torque wrenches with insert tool)
- (5107-3 CT ± 4 % accuracy of the scale value)
- Safety:
- Haptic (close-gap release)
- Audible (“click” sound)
- Designed for rough workshop use

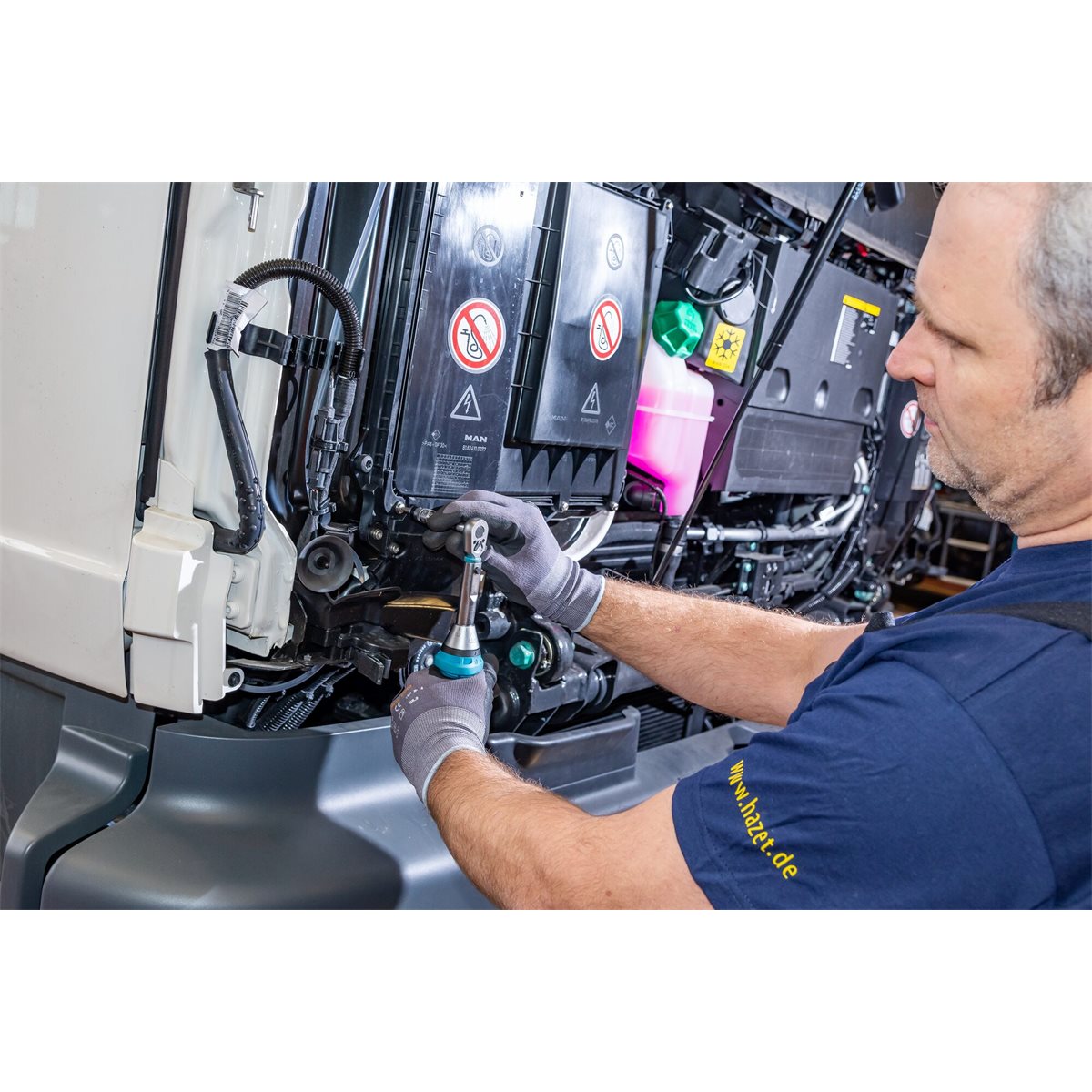

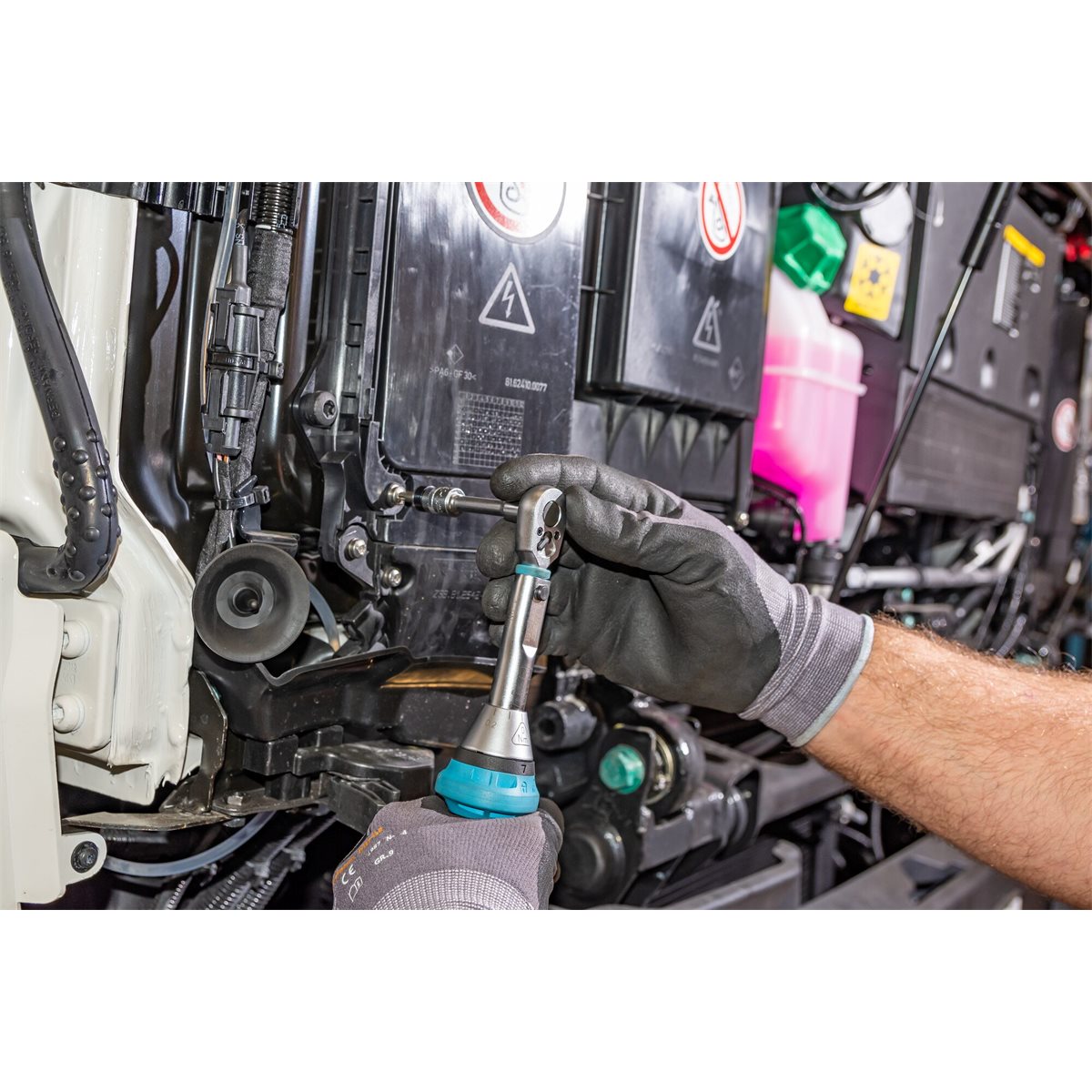

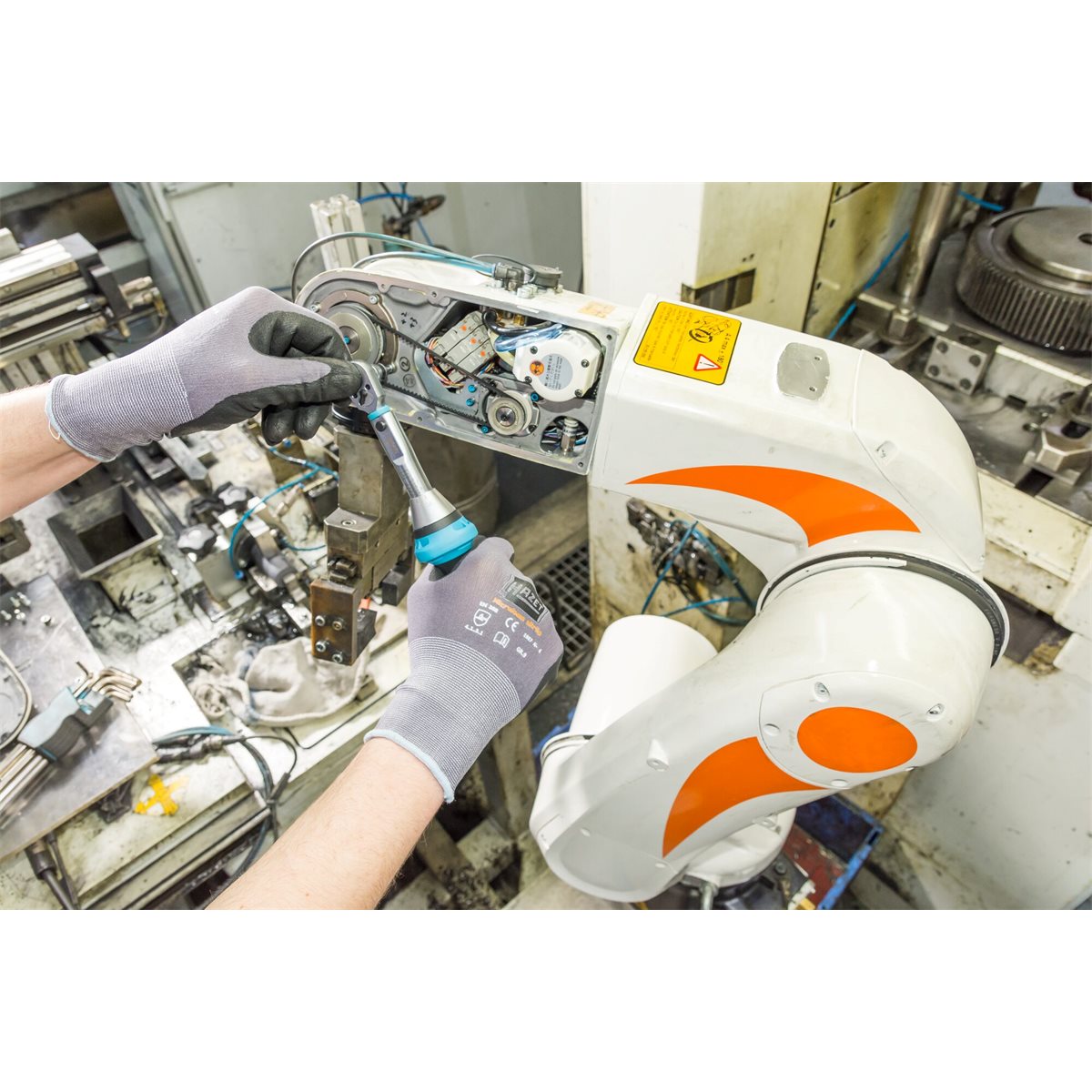

- Wide range of applications for controlled screw tightening in tyre service, bicycle, passenger car and commercial vehicle applications as well as various applications in trade and industry.
- Optimised sealing ring to protect against debris
- Ratchet repair set for customer-oriented self-assembly enables decades of use
- Handle with better grip for easier power transmission
- Adjustment aid with detent points for optimised operator guidance ensures safe and fast adjustment of the desired torque value by turning the handle
- Safe locking of the setting values by latching function on the rotary assembly
- Rotary assembly in triangular form prevents uncontrolled rolling
- Lock symbols indicate the respective locking status.
- Can be attached to the cable loop through openings on the locking rotary assembly

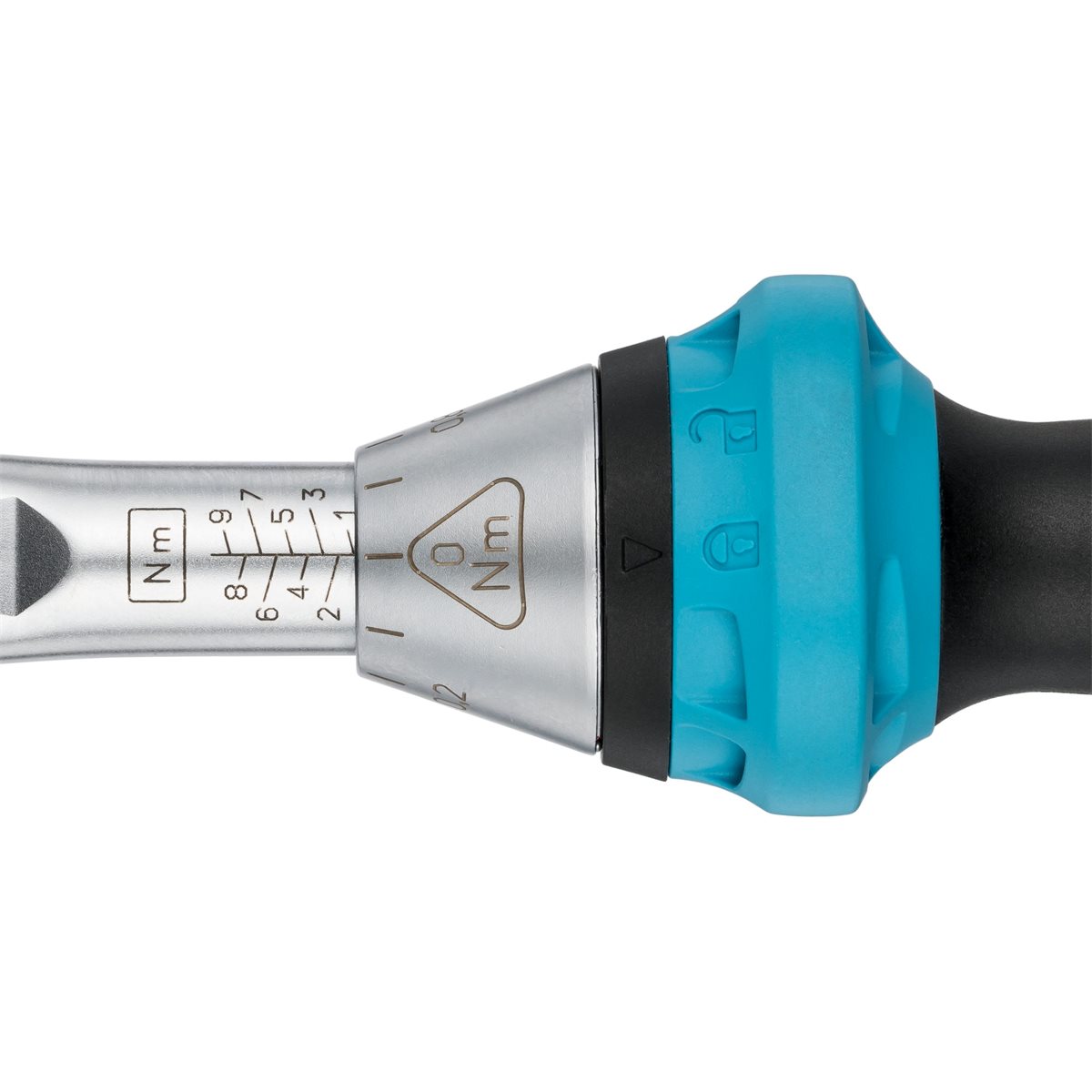

- Easy-to-read, high-contrast scale
- Permanent readability due to laser marking on the scale bush
- Integrated shift lever
- 5121-3 CT – 5123-3 CT: shift level with idle function – reduces risk of injury and malfunction
- With calibration certificate and serial number
- Delivery in sturdy Hexa plastic box
- DIN EN ISO 6789-2:2017, DIN 3120, ISO 1174-1
- Made in Germany
- Output: Square, solid 6.3 mm (1/4 inch)
- Dimensions / length: 234 mm
- Net weight: 0.42 kg
- Nm min-max: 1 – 9 Nm
- Tolerance: 4 %
- Scale Graduation (Nm): 0.1 Nm
- Actuating force min.-max. kg: 0.6 – 5.5 kg
- Number of teeth: 20 (Opening angle 18°)
- Head Thickness a: 10.2 mm
- Head Width b: 24 mm
- No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required
Technical features:
- Head width b: 24 mm
- Torque min Nm: 1 Nm
- Tightening torque max.: 9 Nm
- Scale graduation (Nm): 0.1 Nm
- Tolerance: 4 %
- Standard: DIN 3120, DIN EN ISO 6789-2:2017, ISO 1174-1
- Dimensions / length: 234 mm
- Number of teeth: 20 teeth
- Operating angle: 18 °
- Length_min-max: 10.2 mm
- Article no.: 5107-3CT
- EAN: 4000896218875
