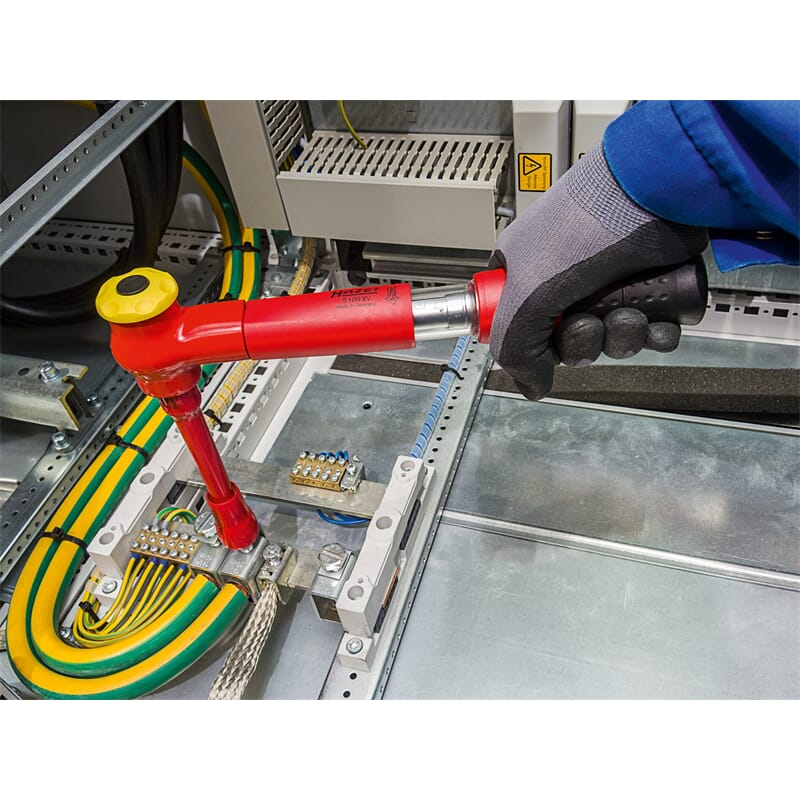

Hazet 5109KV Torqe wrench 3/8" VDE 5-25 Nm

€463.95*

Content: 1 pcs

Delivery time 5 working days

Variante

Stk

Product number: 1967289

Manufacturer no.: 5109KV

EAN: 4000896235445

Weight in kg: 0.86

Product information "Hazet 5109KV Torqe wrench 3/8" VDE 5-25 Nm "

Long life/accuracy through the option of:
- Disassembly
- Adjustment
- Repair (if necessary)
- Calibration
- Assembly
Suitable for control of inspection and test equipment
Sustainable and environmentally sound
Fine scale graduation with vernier scale
Locking against unintentional adjustment of the setting value
Safe torque release:
- palpable (close gap release)
- audible (“click” sound)
Right/left release by square box wrench,
thereby tightening at torque setting both to the right and to the left within the specified tolerance
VDE-tested
Using sockets from other manufacturers is possible provided they conform to the standard IEC 60900:2018 or DIN EN 60900
Low weight for good handling and fatigue-free work
Can be readjusted and recalibrated
Possible repairs to the VDE torque wrenches in the HAZET Service Centre

Slim design in strict accordance with the required insulating properties (material strength/overlaps)
Smooth transitions on switching and moving parts with ergonomic handle design and calibration notch
Consistent appearance even when using other components (e.g. red insulated sockets)
Attractive colour design of the housing and head with established VDE signal colours red/yellow
Handle colour in black to make a distinction with the colour and to prevent it appearing dirty quickly
No disturbing projecting parts (e.g. shift lever)
Made in Germany

Standard: Standard: DIN EN ISO 6789-2:2017, DIN 3120, ISO 1174-1, IEC 60900:2018
Length: 305 mm
Output: Square, solid 10 mm (3/8 inch)
Weight: 640 g
Torque min: 5 Nm
Torque max: 25 Nm
Scale graduation: 0.25 Nm
Tolerance: 4 %
