Hazet 6150-1CTCAL Drehmomentschlüssel 400-1000 Nm
Product number:
1880190
Manufacturer no.:
6150-1CTCAL
EAN:
4000896193059
Weight in kg:
10.45
Product information "Hazet 6150-1CTCAL Drehmomentschlüssel 400-1000 Nm "

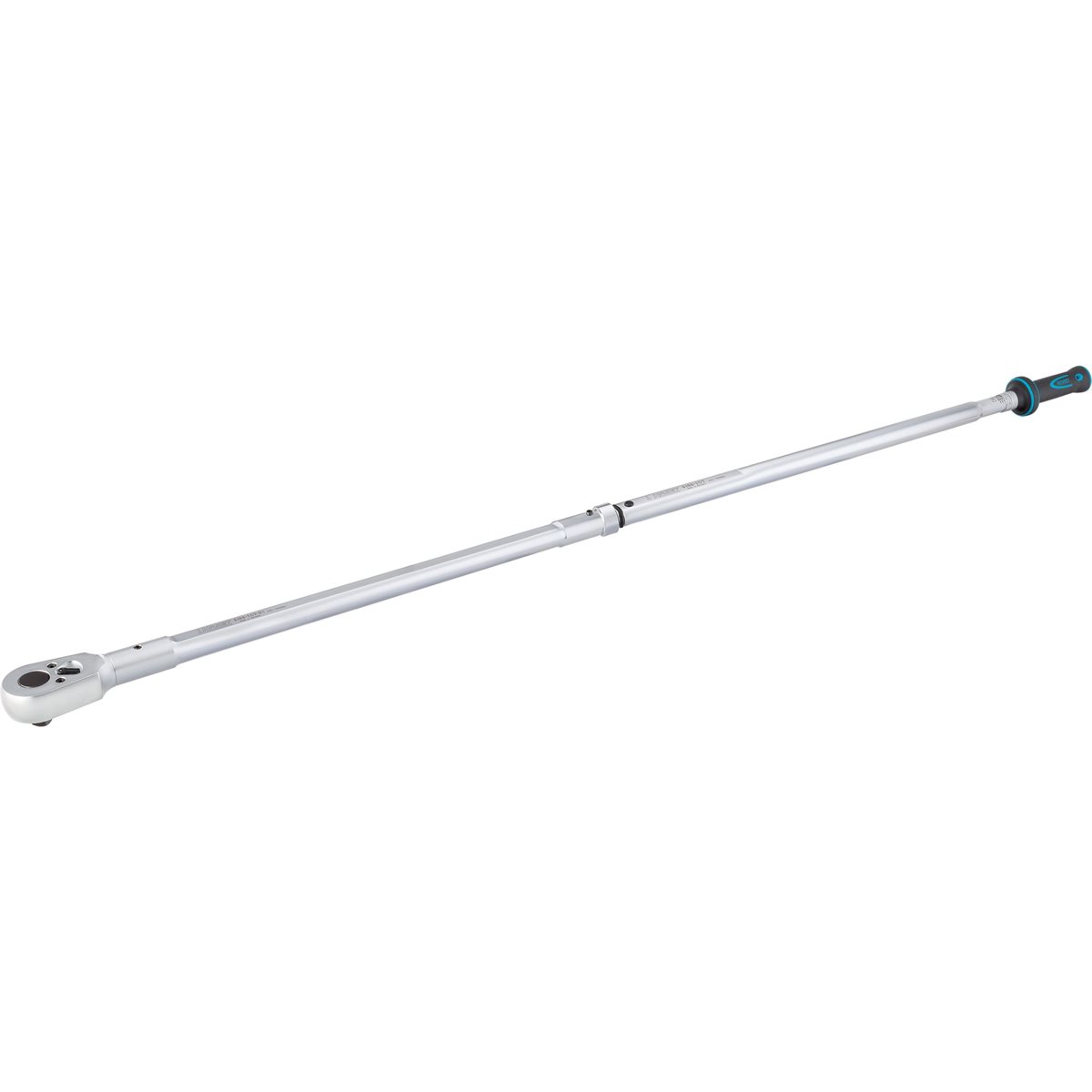

Hazet 6150-1CT CAL Torque Wrench 3/4" 400-1000 Nm with DAkkS calibration certificat
Features:
- For highest torque values
- Especially suited for industrial climbers

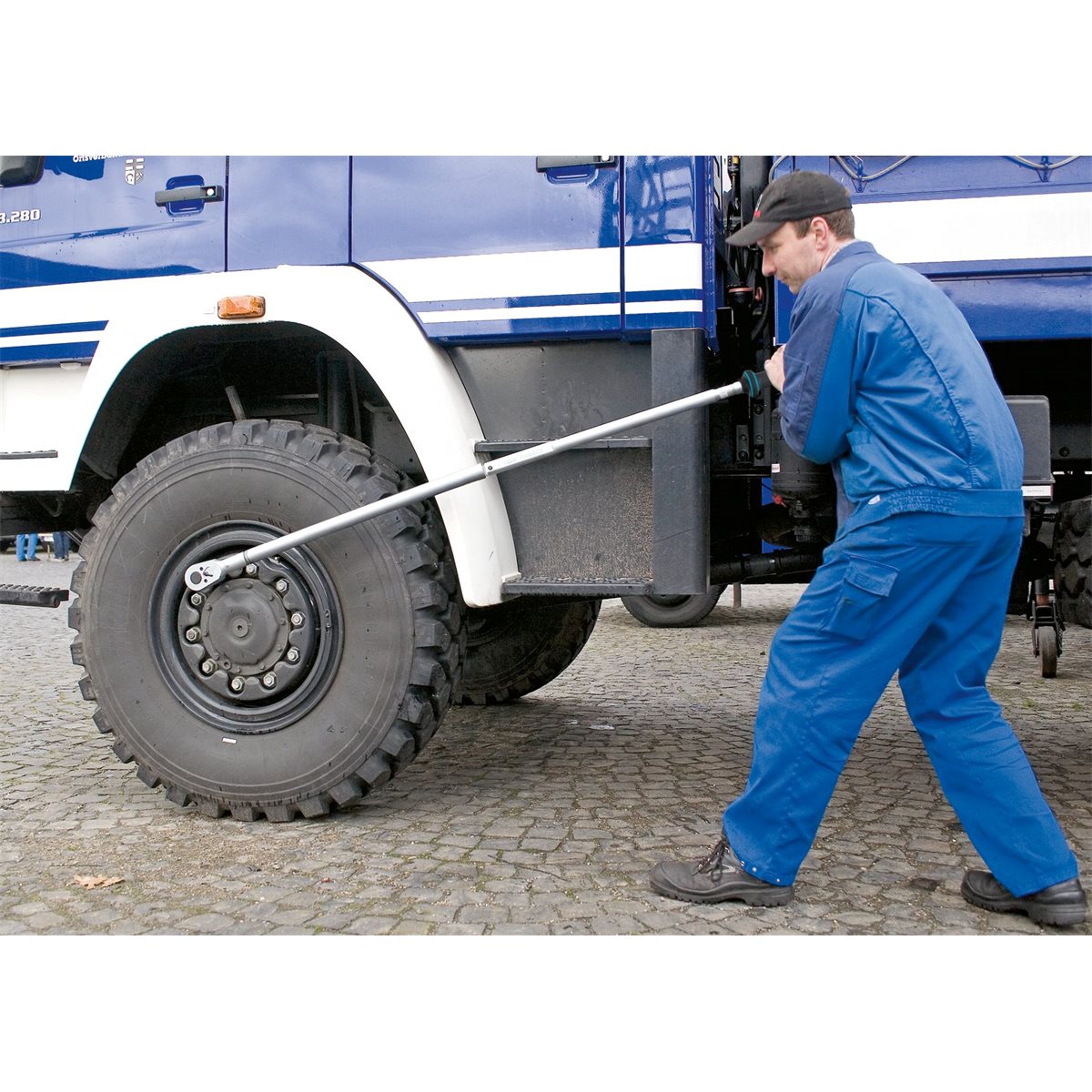

- Application on wind turbines, dockyards, heavy industry, etc.
- To be disassembled in two parts with release tool

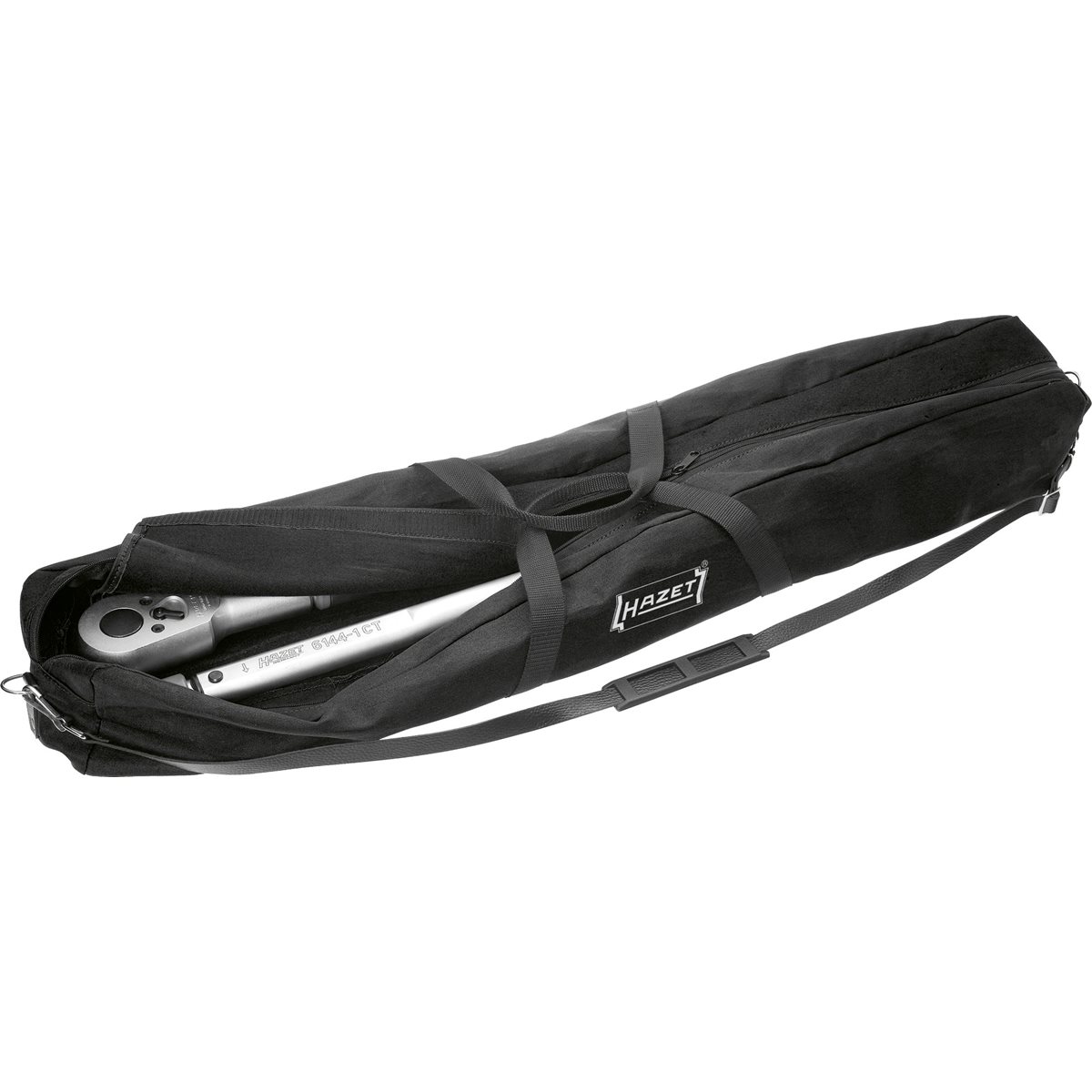

- In carrier bag with carrying handle and shoulder strap
- Release accuracy tolerance ± 3% of scale value in direction of actuation
- Screw tightening also possible with ratchet shaft. For torque controlled screw tightening always use the complete wrench.
- 2-component handle for improved feel

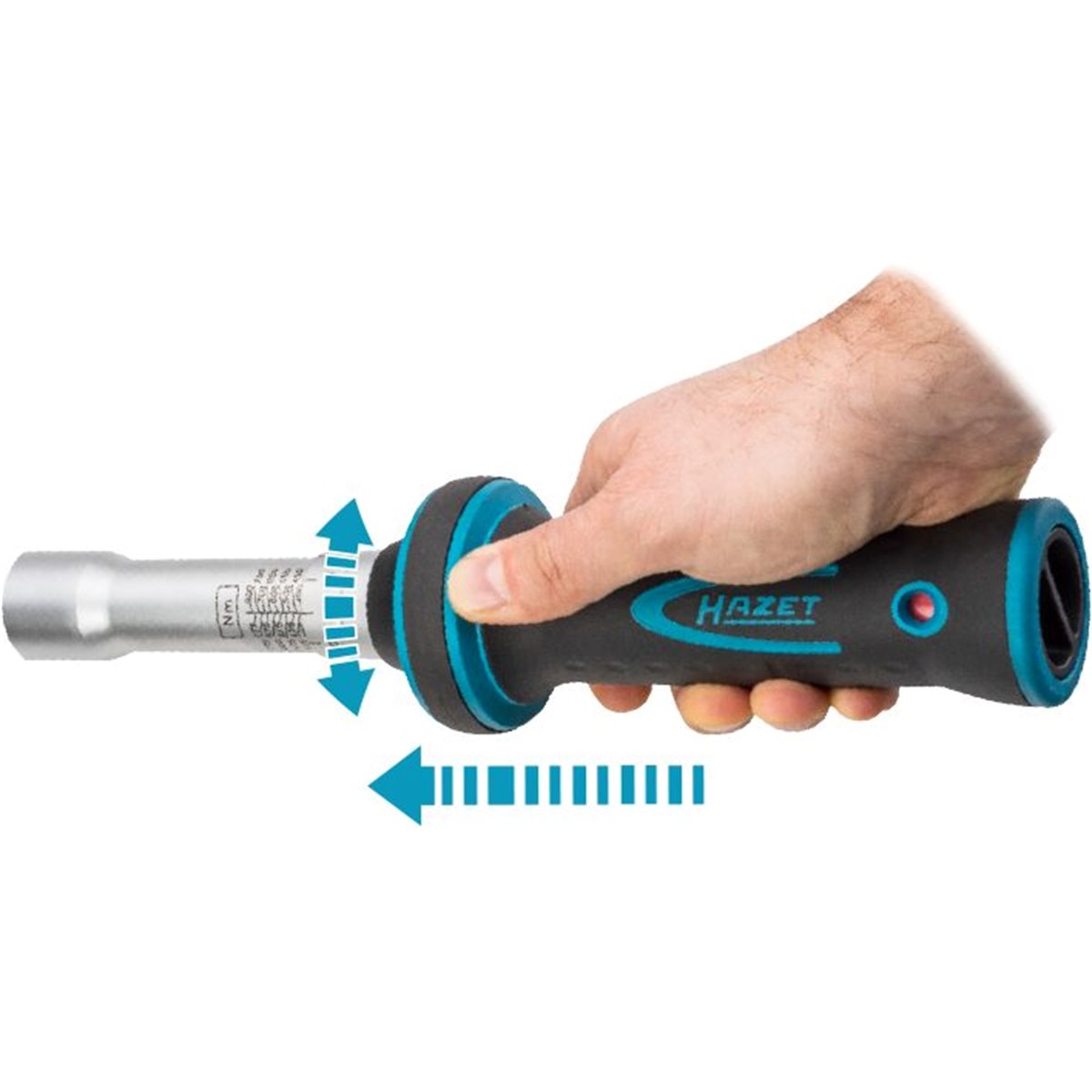

- Simplified locking for adjusting the torque value
- Viewing window for visual checking of the locking

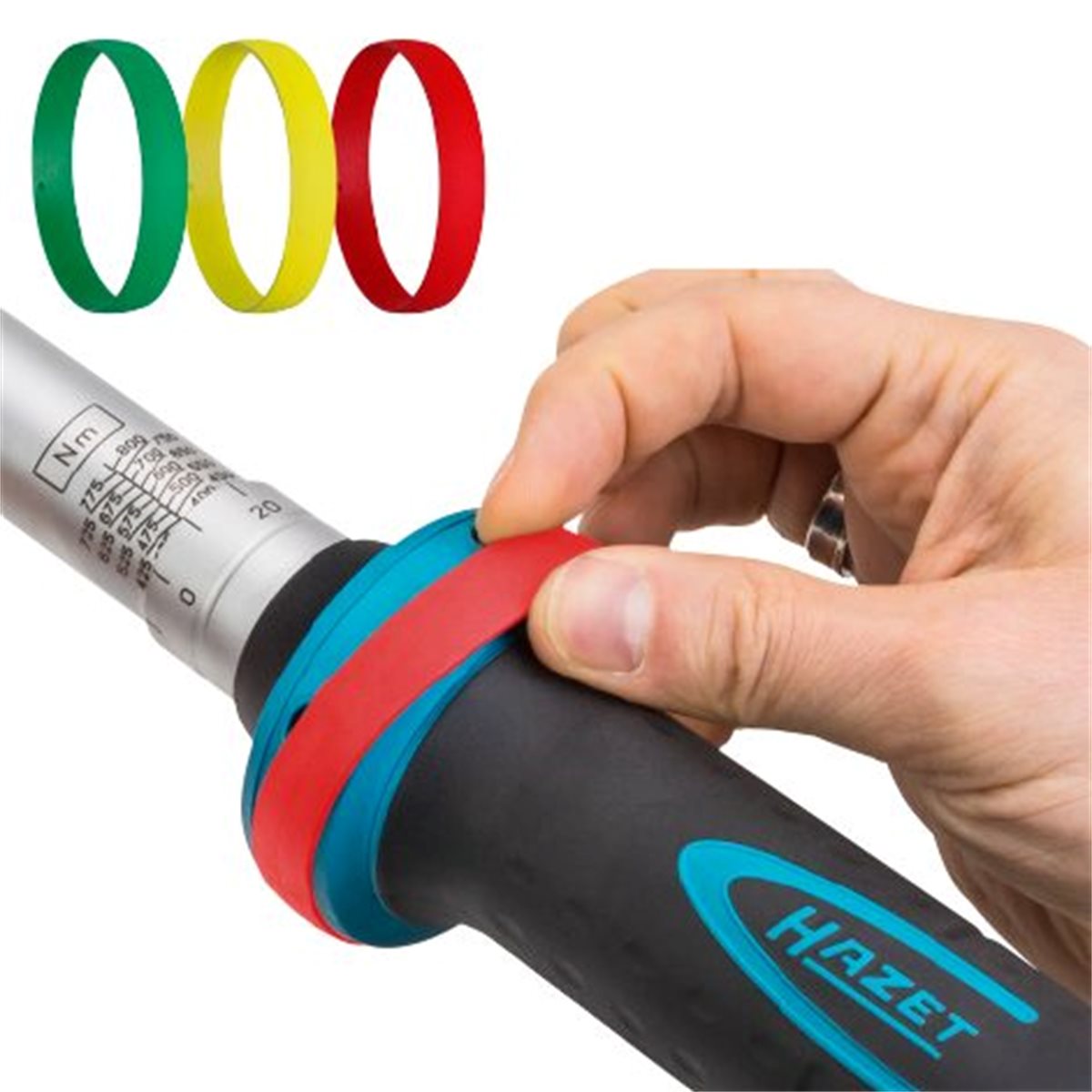

- With 3 additional coloured coding rings for markings with personalizations or special workflows
- Release torque only 590 N (60 kg) with 1000 Nm
- Length of ratchet shaft 903 mm, handle 930 mm
Technical specification:
- 1000 Nm Torque Wrench
- Weight only approx. 10 kg
- l: 1788 mm
- 400 - 1000 Nm
- Square drive: 20 (3/4")
- Graduation: 5 Nm
| Design/type: | reversible |
|---|---|
| Drive: | 1" (25 mm)),3/4" (20 mm) |
| Special feature (variant): | with calibration certificate, without calibration certificate |
| Torque Tools: | Mechanical torque wrench |
| Torque range: | 400-1000 N·m, 600-1600 N·m, 800-2000 N·m |
