Hazet 6170-1CT Drehmomentschlüssel 1" 800-2000 Nm
Product number:
2770385
Manufacturer no.:
6170-1CT
EAN:
4000896177776
Weight in kg:
19.4
Product information "Hazet 6170-1CT Drehmomentschlüssel 1" 800-2000 Nm "

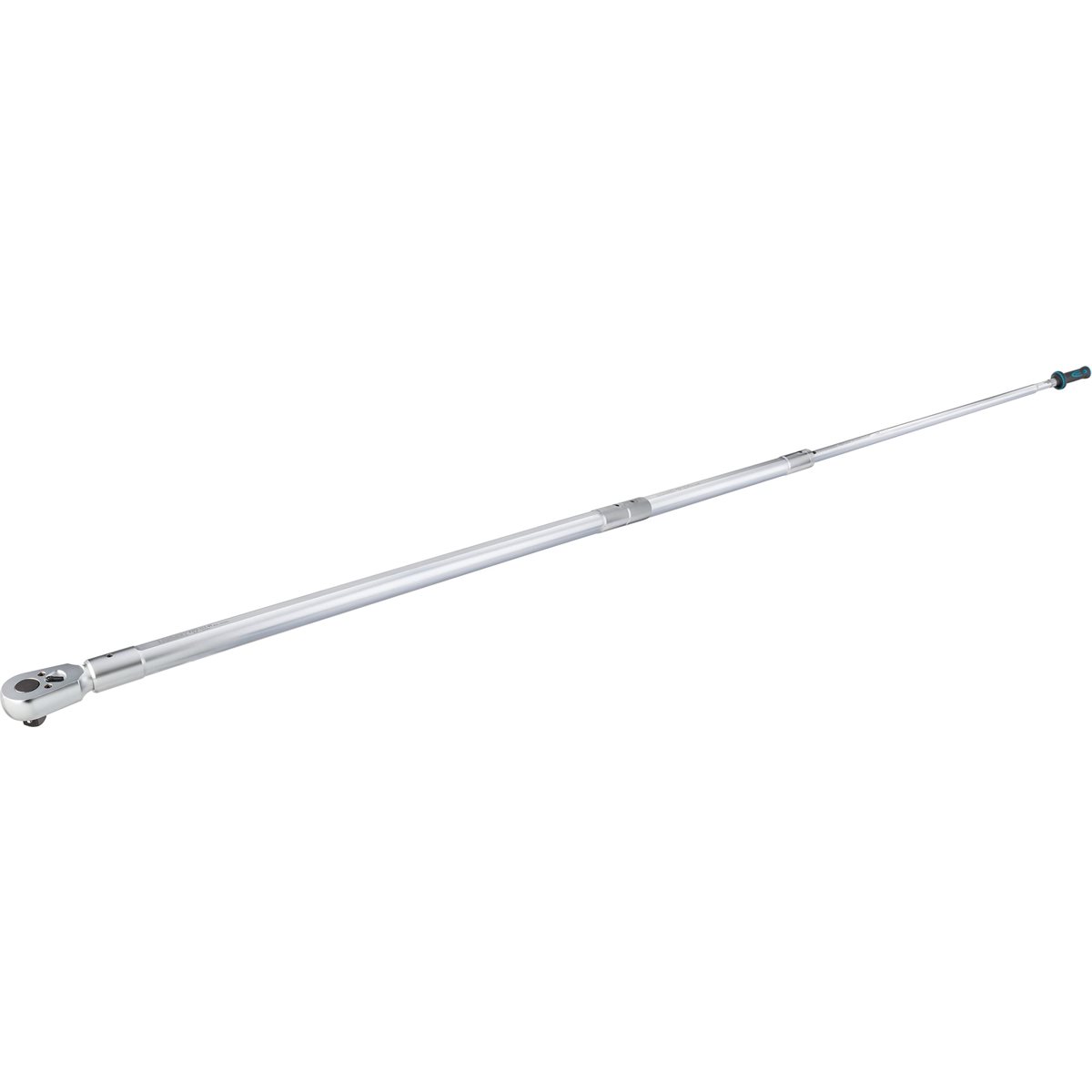

Hazet 6170-1CT Torque Wrench 1" 800-2000 Nm
Features:
- Square drive: 25 mm (1")
- 800-2000 Nm
- For highest torque values
- Especially suited for industrial climbers

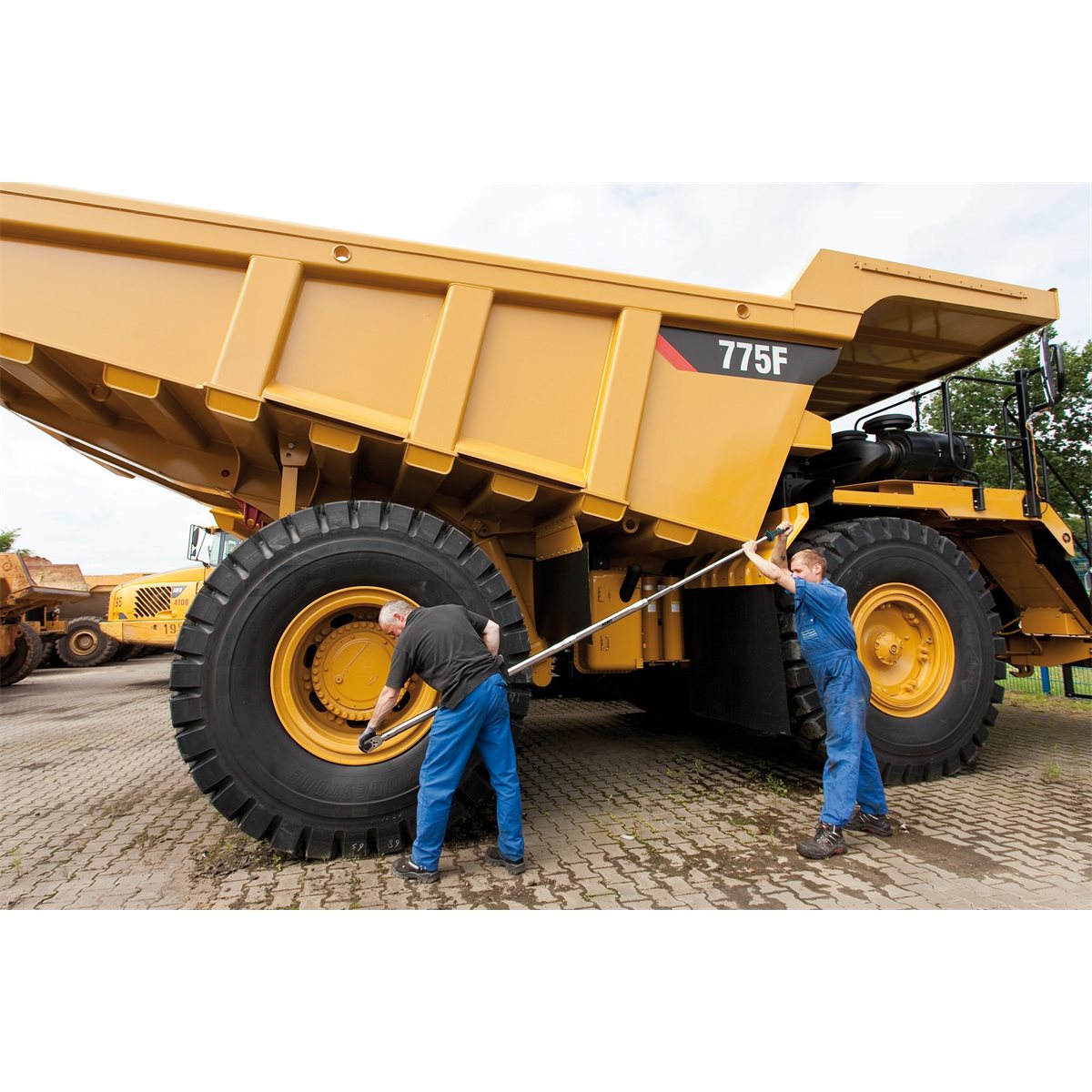

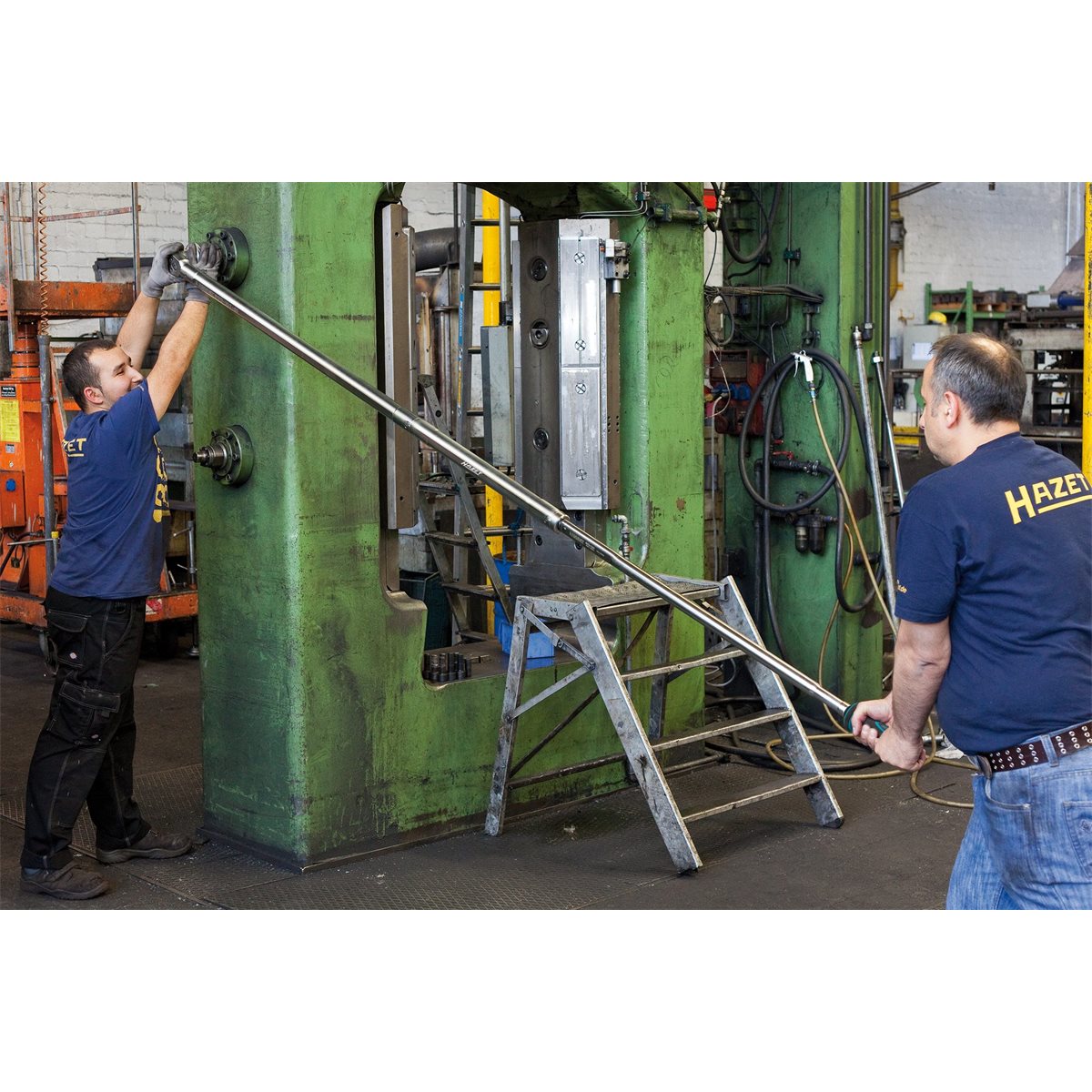

- Application on wind turbines, dockyards, heavy industry, etc.
- To be disassembled in three parts with release tool
- In carrier bag with carrying handle and shoulder strap
Release accuracy tolerance ± 4% of scale value in direction of actuation - Screw tightening also possible with ratchet shaft. For torque controlled screw tightening always use the complete wrench.
- Mit Seriennummer und Zertifikat
- Made In Germany
Technical specifications:
- Weight only approx. 18 kg
- Actuating force only 685 N (70 kg) at 2000 Nm
- Ratched shaft: 1317 mm
- Handle: 1203 mm
- Graduation: 6 Nm
- Tolerance : 4
- Lenght: 3034 mm
- Verlängerungsstück: 645 mm
| Design/type: | reversible |
|---|---|
| Drive: | 1" (25 mm)),3/4" (20 mm) |
| Special feature (variant): | with calibration certificate, without calibration certificate |
| Torque Tools: | Mechanical torque wrench |
| Torque range: | 400-1000 N·m, 600-1600 N·m, 800-2000 N·m |
