Hazet 6280-1CT Torque Wrench - SYSTEM 6000 CT - Re lease Accuracy Tolerance - ± 2%
€292.08
/ 5
Delivery time 5 working days
Variante
Product number:
269965
Manufacturer no.:
6280-1CT
EAN:
4000896026005
Weight in kg:
0.39
Product information "Hazet 6280-1CT Torque Wrench - SYSTEM 6000 CT - Re lease Accuracy Tolerance - ± 2%"

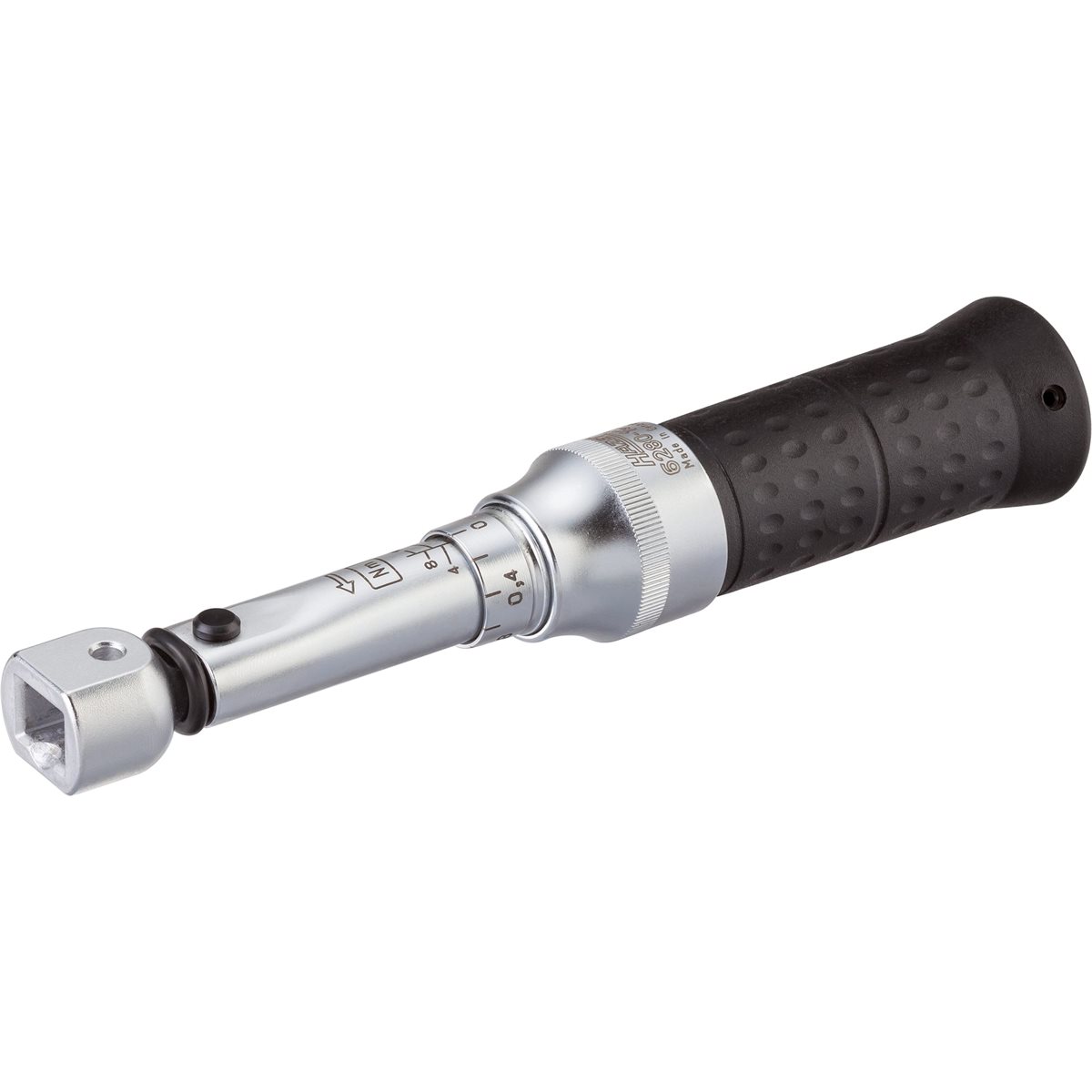

Hazet 6280-1CT Torque Wrench 2-10 Nm 9x12 mm
Features:
- With plug-and-socket connection to accomodate insert tools
- Accuracy ± 2% of scale value (in direction of actuation)
- DIN EN ISO 6789-2:2017
- Made in Germany
- Total length: 181 mm
- Output: Insert square 9 x 12 mm
- Net weight: 0.32 kg
- * = 6282-1 CT and 6282-1 CT CAL outside the DIN series, as the maximum torque value of the square specified in the standard 6789-1:2017 is exceeded
- No turning back: continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have been able to demonstrate that turning them back to the smallest scale value is no longer required
Technical data:
- Actuating force min.-max. kg : 1.3 - 6.6
- Effective torque wrench length I1 mm : 141 mm
- Effective torque wrench length max. I1 mm : 154.4 mm
- Effective torque wrench length min. I1 mm : 160.4 mm
- Head thickness a : 17 mm
- Head width b : 22 mm
- Length : 181 mm
- Net weight : 0.32 kg
- Nm min-max : 2 - 10
- Output : Insert square 9 x 12 mm
- Scale graduation (Nm) : 0.2 Nm
- Standard : DIN EN ISO 6789-2:2017
- Tightening torque max. : 10 Nm
- Tolerance : 2 %
- Torque min Nm : 2 Nm
- Total length : 181
| Drive: | 9x12 |
|---|---|
| Special feature (variant): | with calibration certificate, without calibration certificate |
| Torque Tools: | Mechanical torque wrench |
| Torque range: | 2-10 N·m, 4-40 N·m, 5-13 N·m |
