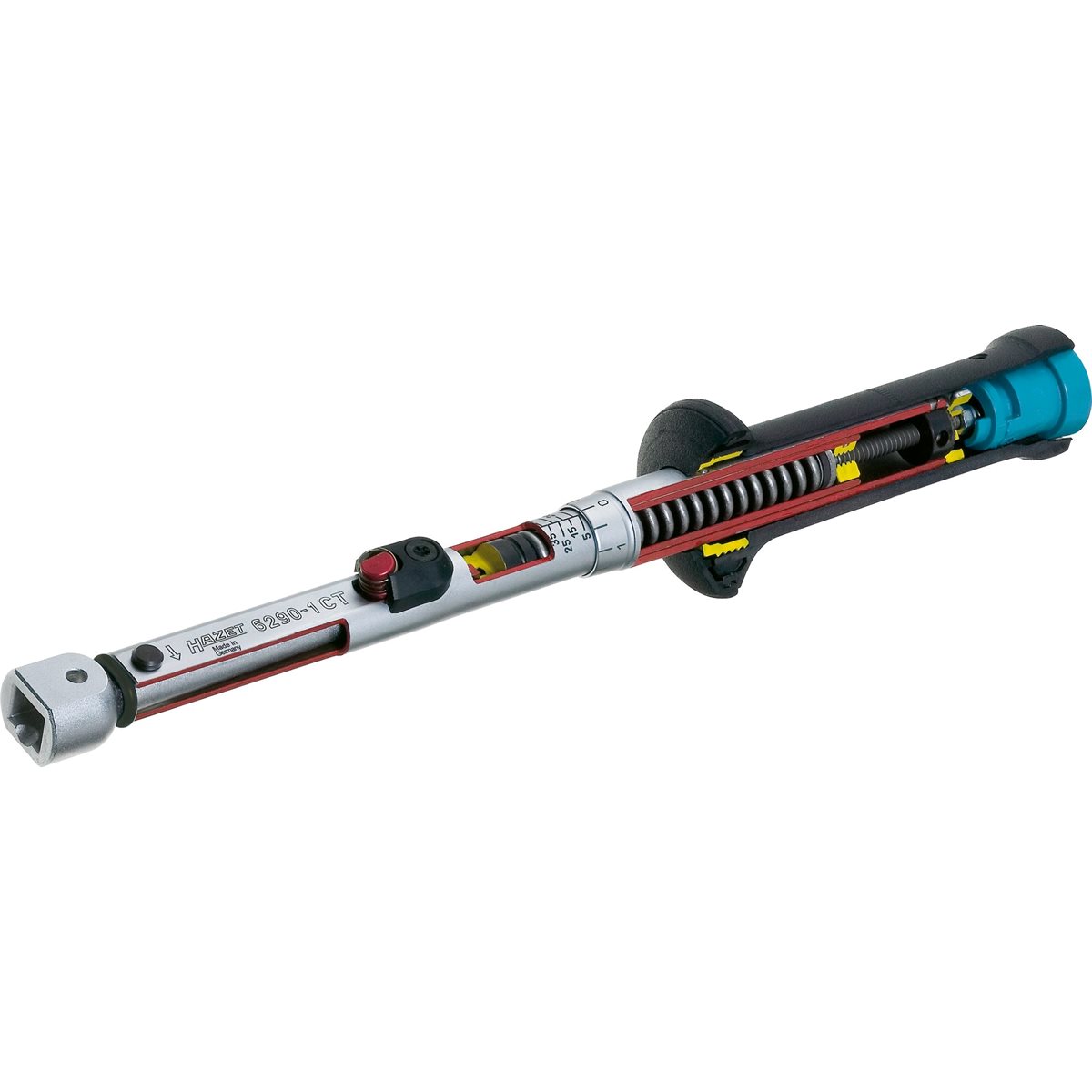

Hazet 6290-1CTCAL Drehmomentschlüssel 5-60 Nm
Product number:
1880195
Manufacturer no.:
6290-1CTCAL
EAN:
4000896193097
Weight in kg:
0.988
Product information "Hazet 6290-1CTCAL Drehmomentschlüssel 5-60 Nm "
Hazet 6290-1CT CAL Torque Wrench 5-60 Nm 9x12 mm with DAkkS calibration certificate
Features:
- Torque wrench including DAkkS calibration certificate
- With plug-and-socket connection to accomodate insert tools
- Accuracy ± 2% of scale value (in direction of actuation)
- In safe box
- DIN EN ISO 6789-2:2017
- Made in Germany
- Total length: 306 mm
- Output: Insert square 9 x 12 mm
- Net weight: 0.46 kg
- No turning back: continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have been able to demonstrate that turning them back to the smallest scale value is no longer required
Technical data:
- Actuating force min.-max. kg : 1.8 - 23.1
- Effective torque wrench length I1 mm : 252 mm
- Effective torque wrench length max. I1 mm : 265.02 mm
- Effective torque wrench length min. I1 mm : 281.52 mm
- Head thickness a : 17 mm
- Head width b : 22 mm
- Length : 306 mm
- Net weight : 0.455 kg
- Nm min-max : 5 - 60
- Output : Insert square 9 x 12 mm
- Scale graduation (Nm) : 0.5 Nm
- Signal transmitter : yes
- Standard : DIN EN ISO 6789-2:2017
- Tightening torque max. : 60 Nm
- Tolerance : 2 %
- Torque min Nm : 5 Nm
- Total length : 306
| Drive: | 9x12, 14x18 |
|---|---|
| Special feature (variant): | with calibration certificate, without calibration certificate |
| Torque Tools: | Mechanical torque wrench |
| Torque range: | 5-60 N·m, 20-120 N·m, 40-200 N·m, 60-320 N·m |
