Hazet 9012M/4 Schlagschrauber-Satz mit 2 Einsätzen
Product number:
1896212
Manufacturer no.:
9012M/4
EAN:
4000896202843
Weight in kg:
3.13
Product information "Hazet 9012M/4 Schlagschrauber-Satz mit 2 Einsätzen"

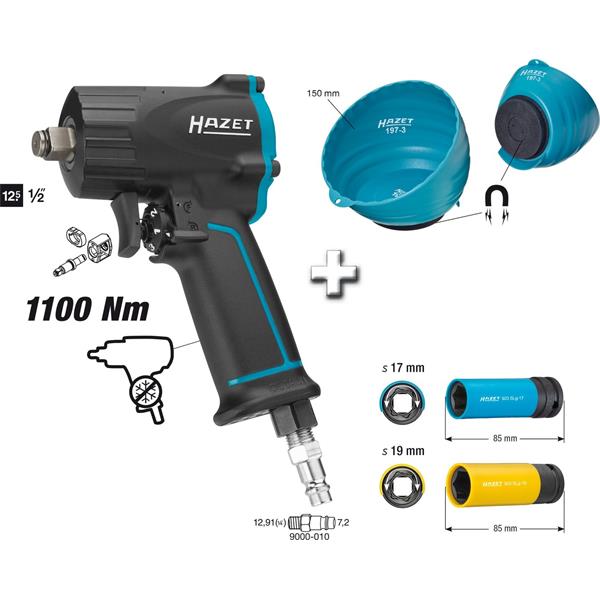

Hazet 9012M/4 Impact wrench set
Contents:
- Special sale from Hazet
- Impact wrench, extra short 9012M
- Magnetic cup 150 mm 197-3
- HAZET Impact socket (6-point) 903SLG-17 and 903SLG-19
9012M Impact wrench, extra short:
- Extra short – only 92 mm
- Loosening torque max.: 1100 Nm
- Exhaust air is guided through the handle downwards
- Reduced vibrations
- Easy handling
- Cold insulated handle
- Jumbo hammer striking mechanism
- Air inlet thread: 12,91 mm (1/4″)
- Coupler plug: nominal size 7.2 (included)
- Recommended torque: 610 Nm
- Hose diameter (recommended): 10 mm
- Working pressure (bar): 6.3
- Sound power level: 108.1 db(A) Lp W
- Vibration acceleration: 9.57 m/s2
- Screw size M: 16
- Forward and reverse: three-stage (forward), single-stage (reverse)
- Extremely compact construction enables working in areas with restricted access
- One-hand operation for right and left handed operators
- Output: Square, solid 12.5 mm (1/2 inch)
- Net weight: 1.24 kg
- Tightening torque max.: 678 Nm
- Loosening torque max.: 1100 Nm
- Sound pressure level: 97.1 dB(A) Lp A
- Revolutions per minute: 10000
- Air requirement: 127 l/min(2.1 l/sec)
197-3 Magnetic cup 150 mm
- Holds small parts such as screws etc.
- Plastic
- Magnetic foot allows fixation to tool trolleys, workshop panels, car lifts etc.
- Diameter: 150 mm
903SLG-17 und 903SLG-19 Impact socket (6-point)
- Sizes: 17 mm and 19 mm
- Material-friendly wheel mounting or dismounting (alloy rims)
- With plastic insert to protect the surface of the wheel bolts
- Additionally with rotating outside plastic sleeve (replaceable) to protect the rims when screwing the wheel bolts
- Colour-coded plastic sleeve facilitates finding the correct size
- Long design
- With borehole for locking pin or safety spring and grove for O-ring
- Surface: phosphatised, oiled
- Made in Germany
- Optimised contours for deeper rim holes in e.g. AUDI S-Line, AMG, OZ etc.
- Plastic sleeve blue
- Wrench size: 17
- Total length: 85 mm
- Drive: Square, hollow 12.5 mm (1/2 inch)
- Output: Outside hexagon Traction profile
- Diameter d1 (output side): 30 mm
- Diameter d2 (drive side): 30 mm
