Hazet 9040D-2.5 Cable reel 3 x 2.5 mm2, 15 m
Product number:
1920428
Manufacturer no.:
9040D-2.5
EAN:
4000896214631
Weight in kg:
10.6
Product information "Hazet 9040D-2.5 Cable reel 3 x 2.5 mm2, 15 m "
Hazet 9040D-2.5 Cable reel, cable H07RN-F 3 x 2.5 mm2, 15 m, 230 V AC
Features:
- Automatic cable reel offers tidiness in the workshop – cable not left lying around, thus reducing the risk of accidents
- Hose stop function possible at any point with “Stop at any point”
- Neat winding of the hose thanks to automatic guidance
- Braked winding to prevent risk of accidents
- Including in-line circuit breaker
- Only suitable for indoor use
- Integrated drill template for mounting on cardboard packaging
- High-quality, closed special plastic case
- Supplied with rotating metal mounting bracket made for separate installation at the workplace
Technical features:
- 230V AC

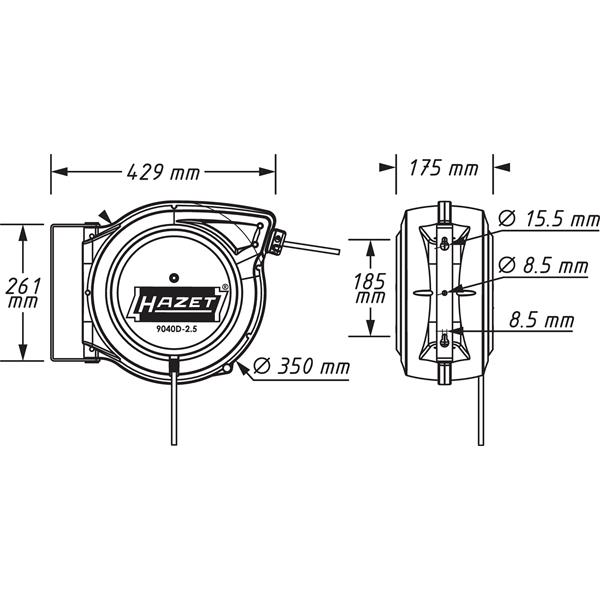

- Dimensions: 429 x 350 x 175 mm
- Cable: H07RN-F 3 x 2.5 mm2
- Cable length: 20 m
- Connecting cable length: 1.5 m
- Borehole spacing of the mounting bracket: 186 mm
- Resilient when wound up with 1600 Watt
- Resilient when unwound with 3200 Watt
- Net weight: 9.2 kg
- Temperature range: -20°C – 45°C
Product Safety and Downloads
Documents and datasheets
Product safety information
Manufacturer
HAZET-WERK - Hermann Zerver GmbH & Co. KG
Güldenwerther Bahnhofstraße 17
42857 Remscheid
Germany
info@hazet.de
