Hazet 9040N-13 Hose reel 15 m
€225.95*
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
1920429
Manufacturer no.:
9040N-13
EAN:
4000896214648
Weight in kg:
11.42
Product information "Hazet 9040N-13 Hose reel 15 m "
Hazet 9040N-13 Hazet 9040N-13 Hose reel 15 m
Features:
- Automatic hose reel offers tidiness in the workshop – hose not left lying around, thus reducing the risk of accidents
- Hose stop function possible at any point with “Stop at any point”
- Neat winding of the hose thanks to automatic guidance
- Braked winding to prevent risk of accidents
- Suitable for compressed air or water

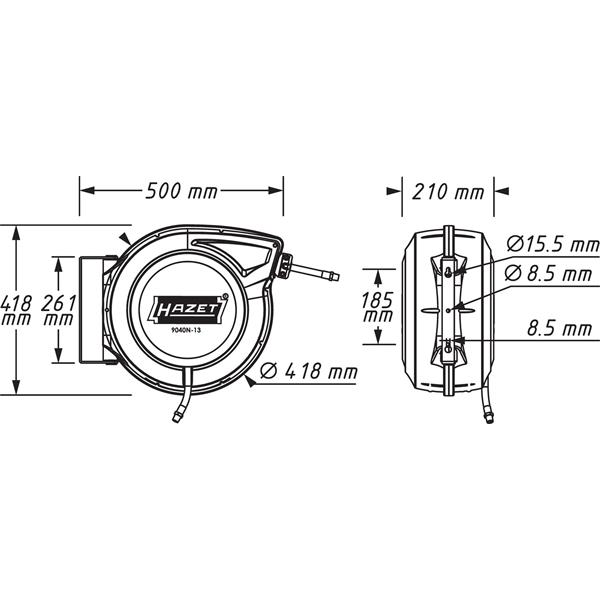

- Dimensions: 500 x 418 x 210 mm
- Hybrid polymer hose, black
- Inside diameter of the hose: 13 mm (1/2?)
- Hose length: 15 m
- Length of connection hose: 1 m
- Max. working pressure: 20 bar
- Integrated drill template for mounting on cardboard packaging
- Meets all relevant requirements defined in the European Directives for Machinery 2006/46/EC
- High-quality, closed special plastic case, supplied with rotating metal mounting bracket for separate installation at the workplace Drill hole distance to mounting bracket: 186 mm
- Temperature range: -40°C – 80°C
Technical features:
- Air connection inlet (from the compressor): 20,96 mm (1/2")
- Air connection outlet (to machine): 20,96 mm (1/2")
- Net weight: 9.5 kg
Product Safety and Downloads
Documents and datasheets
Product safety information
Manufacturer
HAZET-WERK - Hermann Zerver GmbH & Co. KG
Güldenwerther Bahnhofstraße 17
42857 Remscheid
Germany
info@hazet.de
Zubehör

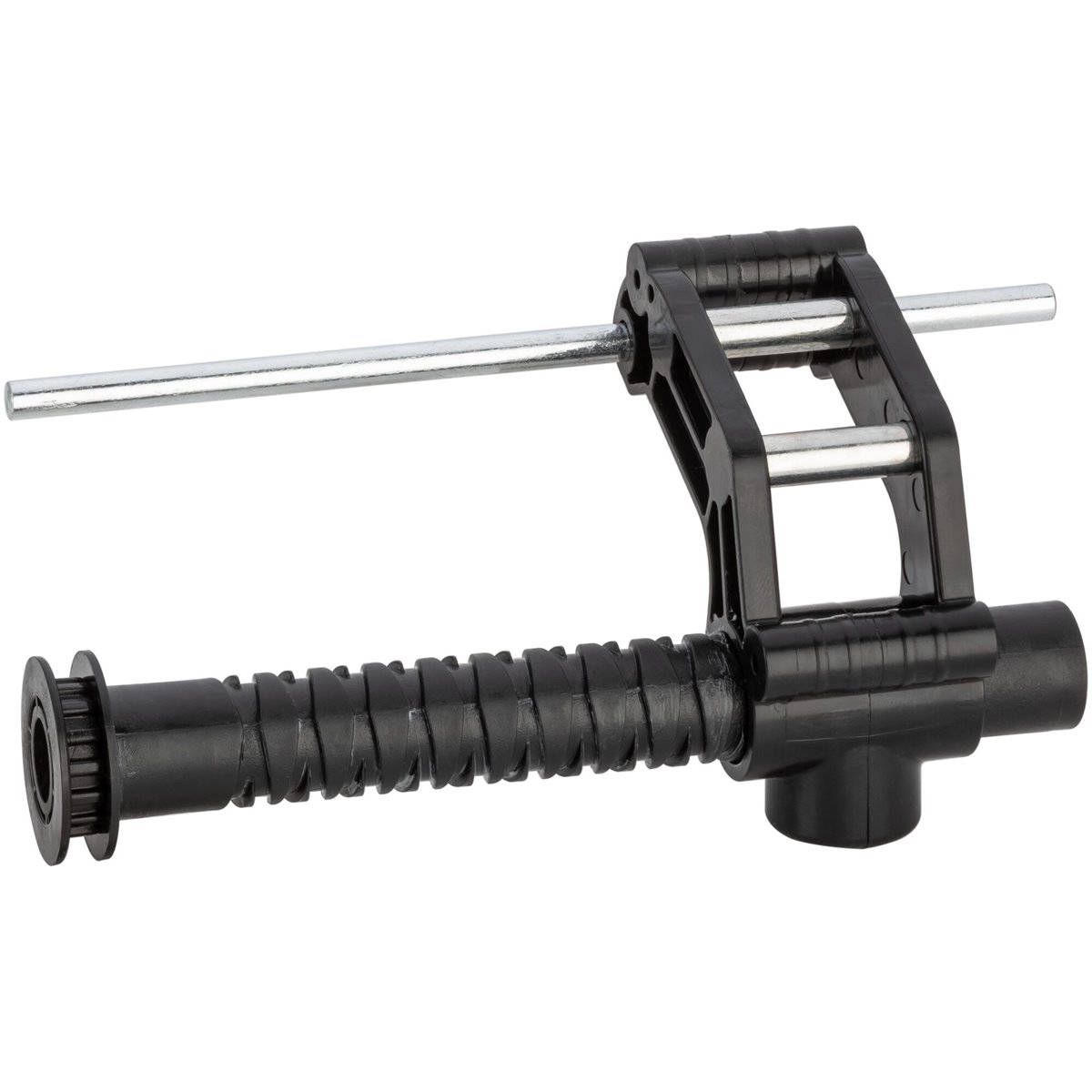

Hazet 9040N-13-01/3 Aufrollmechanismus
€10.91*
Hazet 9040N-13-01/3 Aufrollmechanismus Merkmale:AufrollmechanismusLänge cm: 14Breite cm: 11Höhe cm: 2,5Gewicht kg: 0,13Hazet Artikelnummer: 9040N-13-01/3EAN: 4000896242054
