Knipex 00 31 31 V01 SB KNIPEX-SET ErgoStrip PV & PreciForce

€169.00

Stk

Product number: 1993323

Manufacturer no.: 003131V01SB

EAN: 4003773092780

Weight in kg: 1.128

Product information "Knipex 00 31 31 V01 SB KNIPEX-SET ErgoStrip PV & PreciForce"

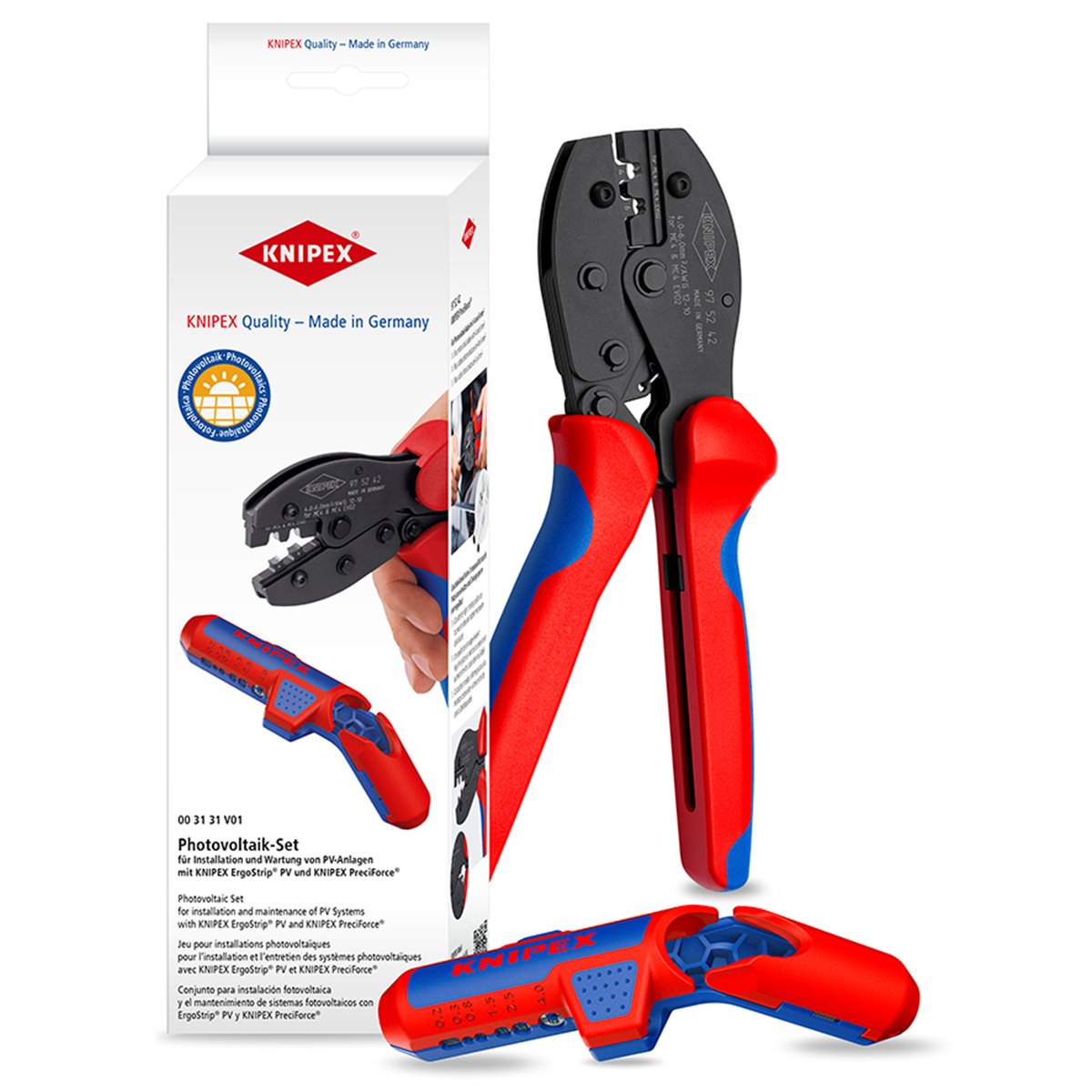

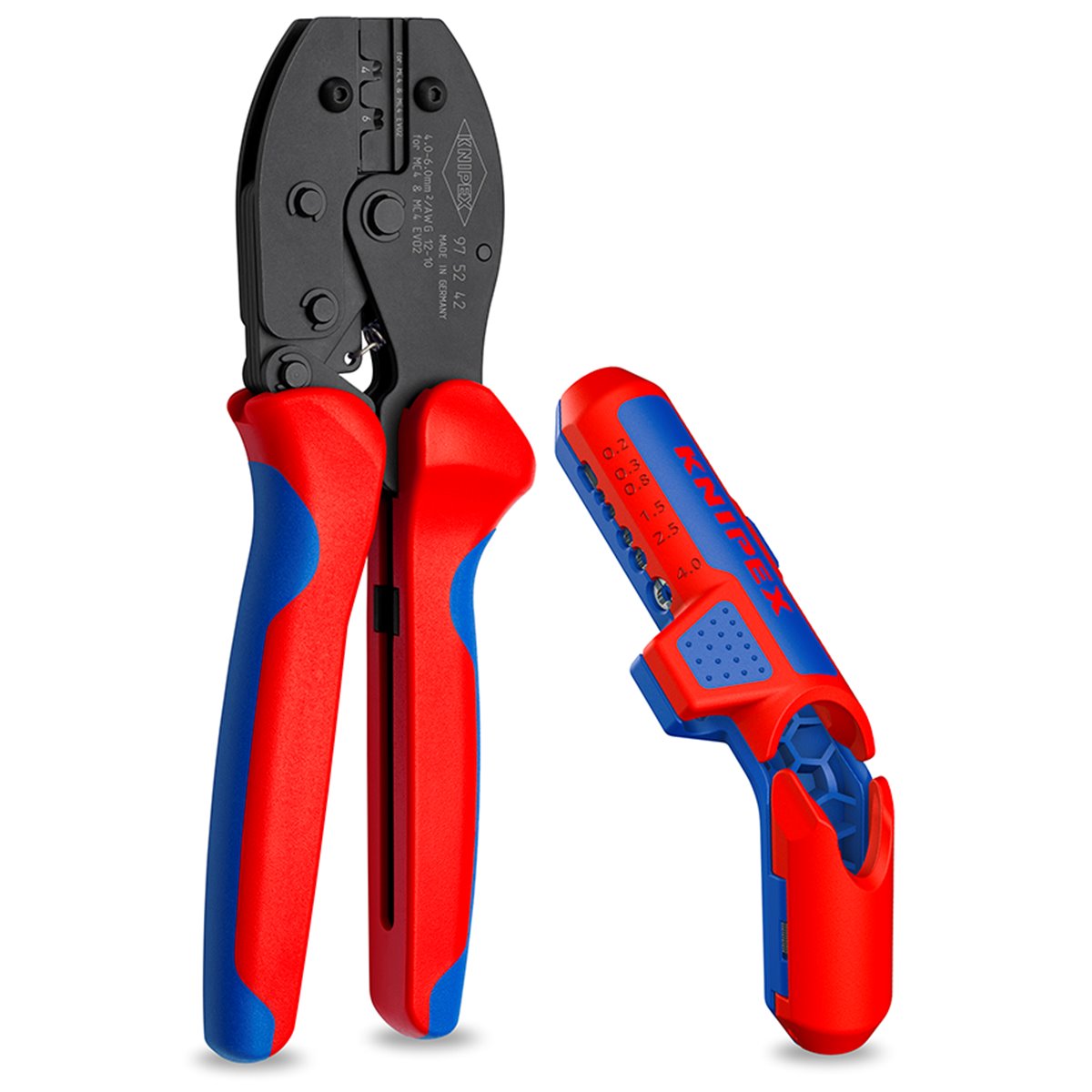

For installation and maintenance of PV systems, includes KNIPEX ErgoStrip PV stripping tool and KNIPEX PreciForce crimping pliers

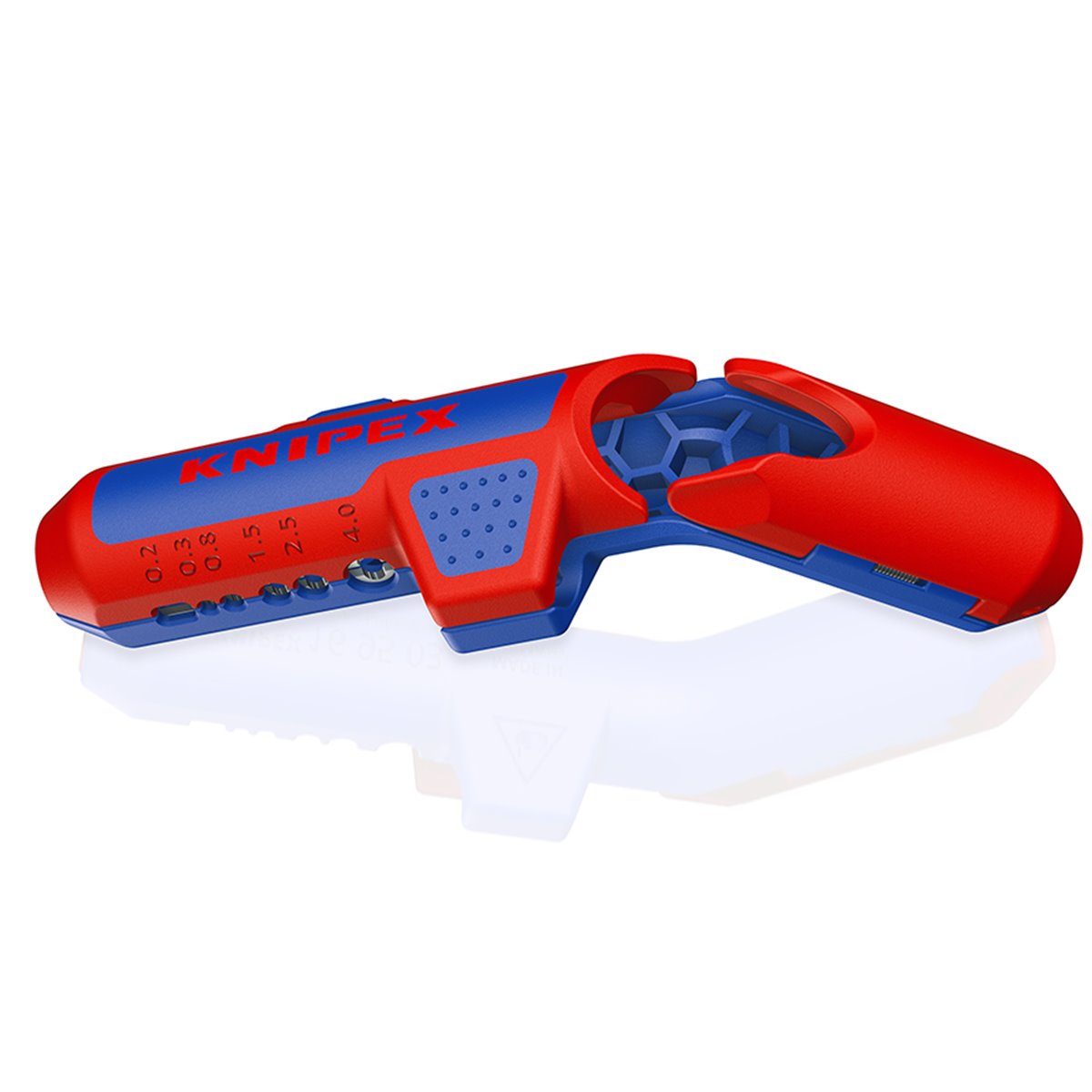

KNIPEX ErgoStrip 16 95 03: For fast and precise stripping of solar cables (e.g. H1Z2Z2-K) with 4 and 6 mm², as well as sheathing and stripping of all standard round and damp environment cables (e.g. NYM cable 3 x 1.5 mm² to 5 x 2.5 mm²)

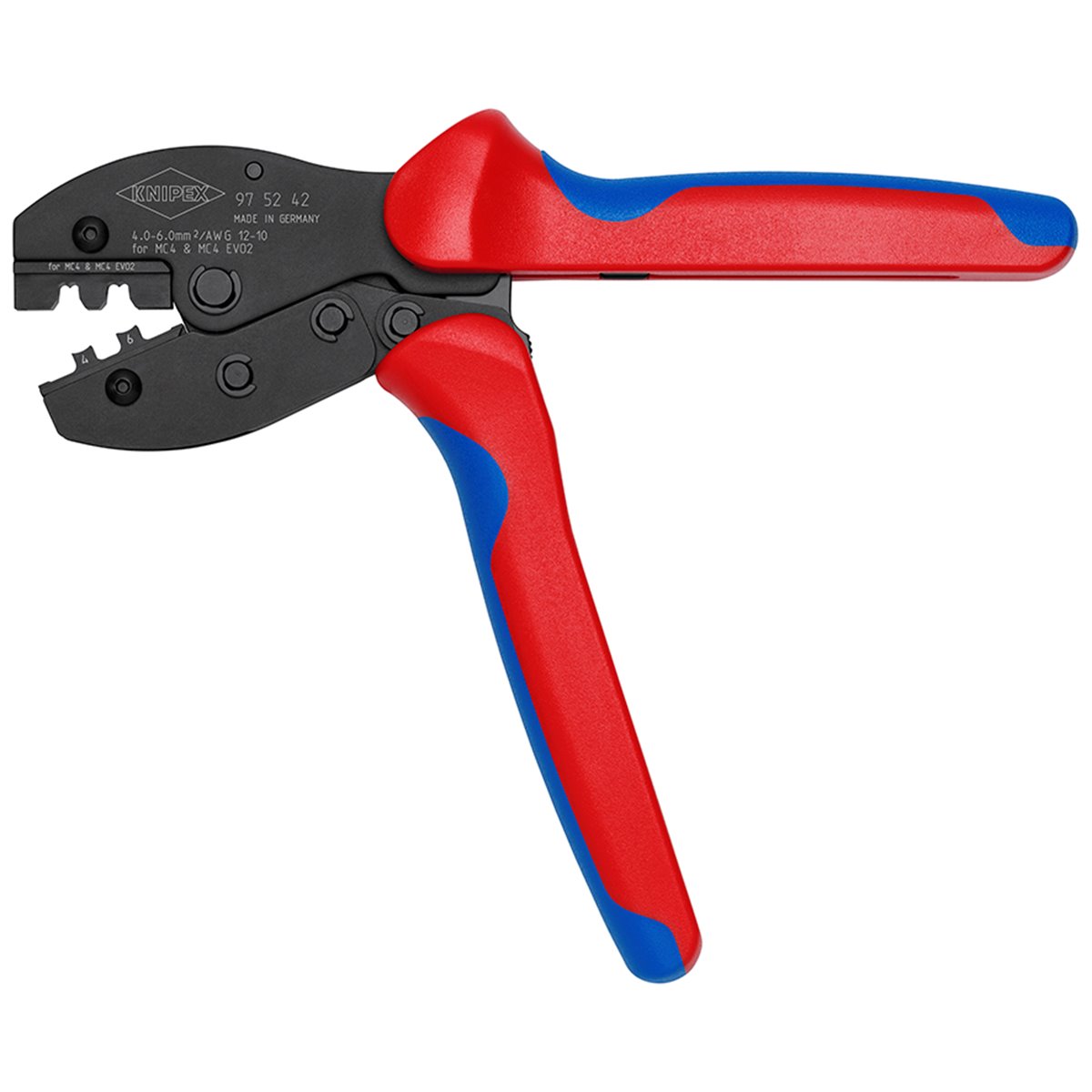

KNIPEX PreciForce 97 52 42: Crimps PV conductors (4 and 6 mm²) with MC4 and MC4 EVO 2 connectors

For fast and precise stripping of all common round and damp environment cables (e.g. NYM cable 3 x 1.5 mm² to 5 x 2.5 mm²), data cables (e.g. twisted pair), and coaxial cables

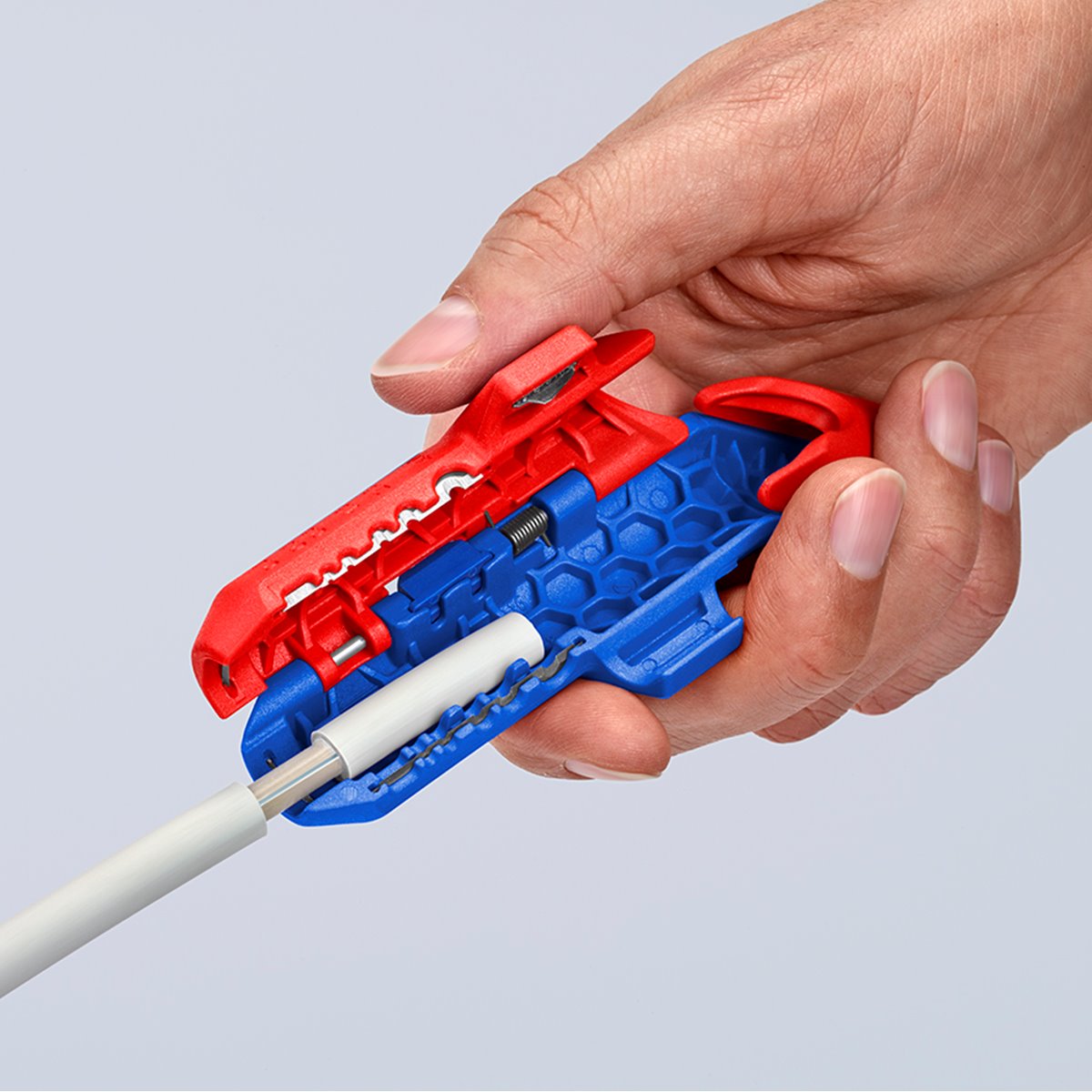

Innovative ergonomic pistol grip design for easy incision, removal, and longitudinal cutting of the sheath
Tapered tool ends for better accessibility in tight spaces
Stripping device for cross-sections from 0.2 – 4 mm²
Simple insertion of single conductors via positioning ridges
With opening spring and catch
Comfortable insertion of coaxial and data cables thanks to opening aid
Multi-component design with soft-grip zone for comfortable handling

For MC4/MC4 EVO 2 connectors

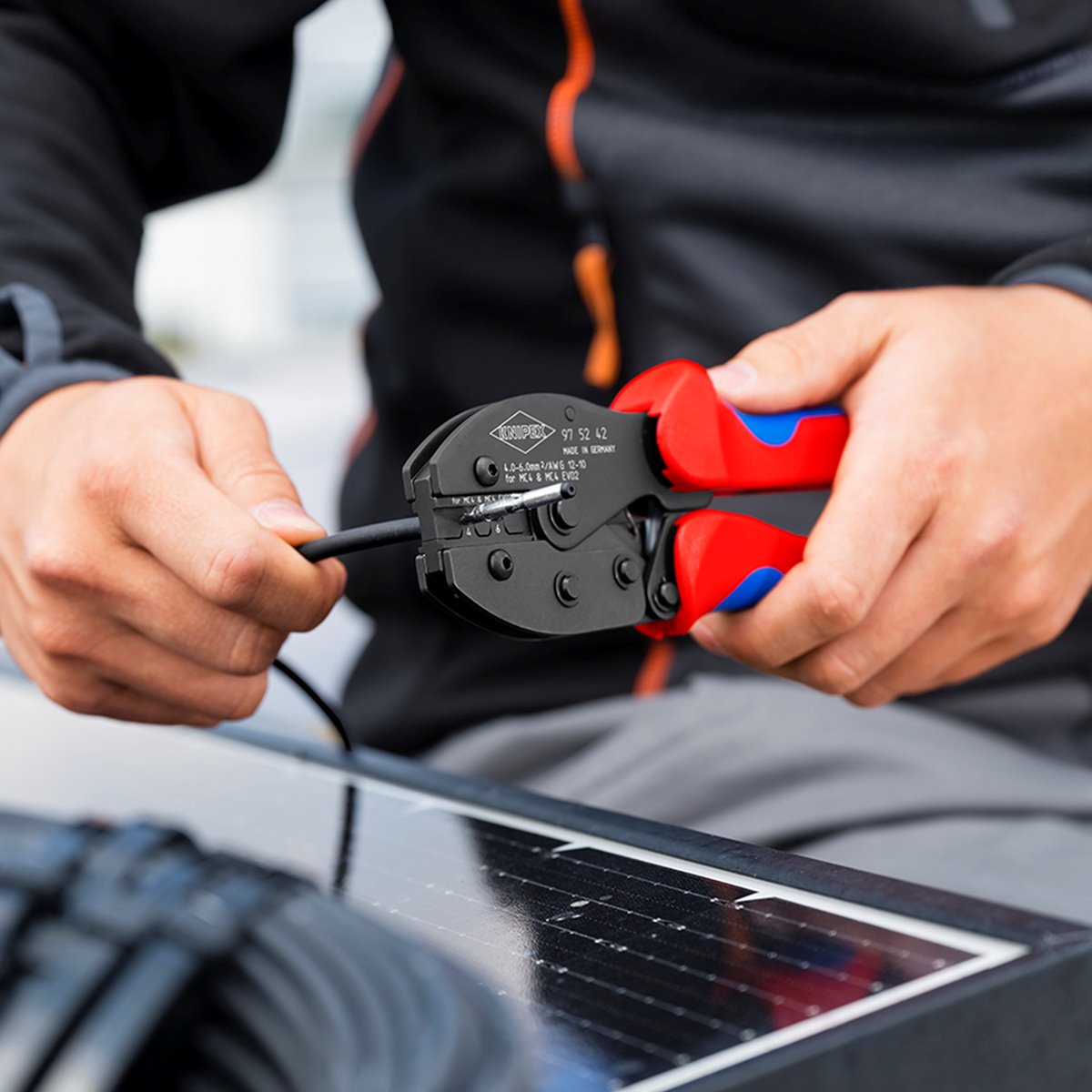

For PV system installations using MC4 and MC4 EVO 2 connectors
Improved crimp geometry for excellent conductivity
For installations on residential and industrial buildings or off-grid systems, including mobile homes
Consistently high crimping quality thanks to precision dies and ratchet lock (releaseable)
Crimping pressure is factory set (calibrated)
High crimping force due to efficient leverage
Good handling thanks to favorable grip position, low weight, short design, and ergonomically shaped handles
Crimping insert is not interchangeable
