Knipex 95 12 225 SB KNIPEX StepCut XL cable Shears
€56.95
Product number:
1993337
Manufacturer no.:
9512225SB
EAN:
4003773089940
Weight in kg:
0.46
Product information "Knipex 95 12 225 SB KNIPEX StepCut XL cable Shears "
Knipex 95 12 225 SB KNIPEX StepCut XL cable Shears
Cable shears with step cut, with comfort handles
Features:
- High-leverage joint, long handles and optimisedcutting edges: noticeably easier cutting than withcompact cable shears
- Large cutting capacity: cuts solid copper or aluminium cables up to 35 mm², stranded cables up to 70 mm²and fine stranded cables up to 120 mm²

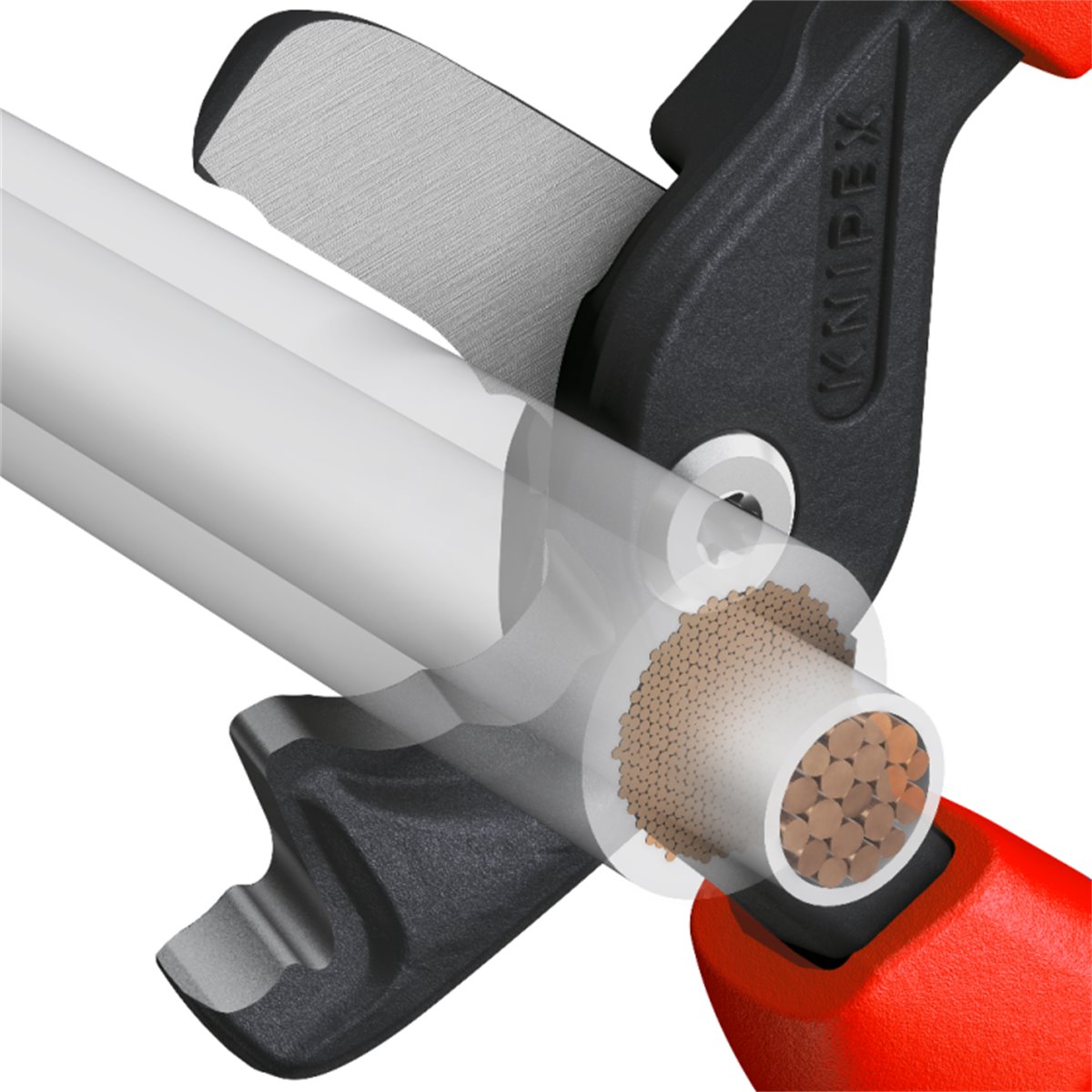

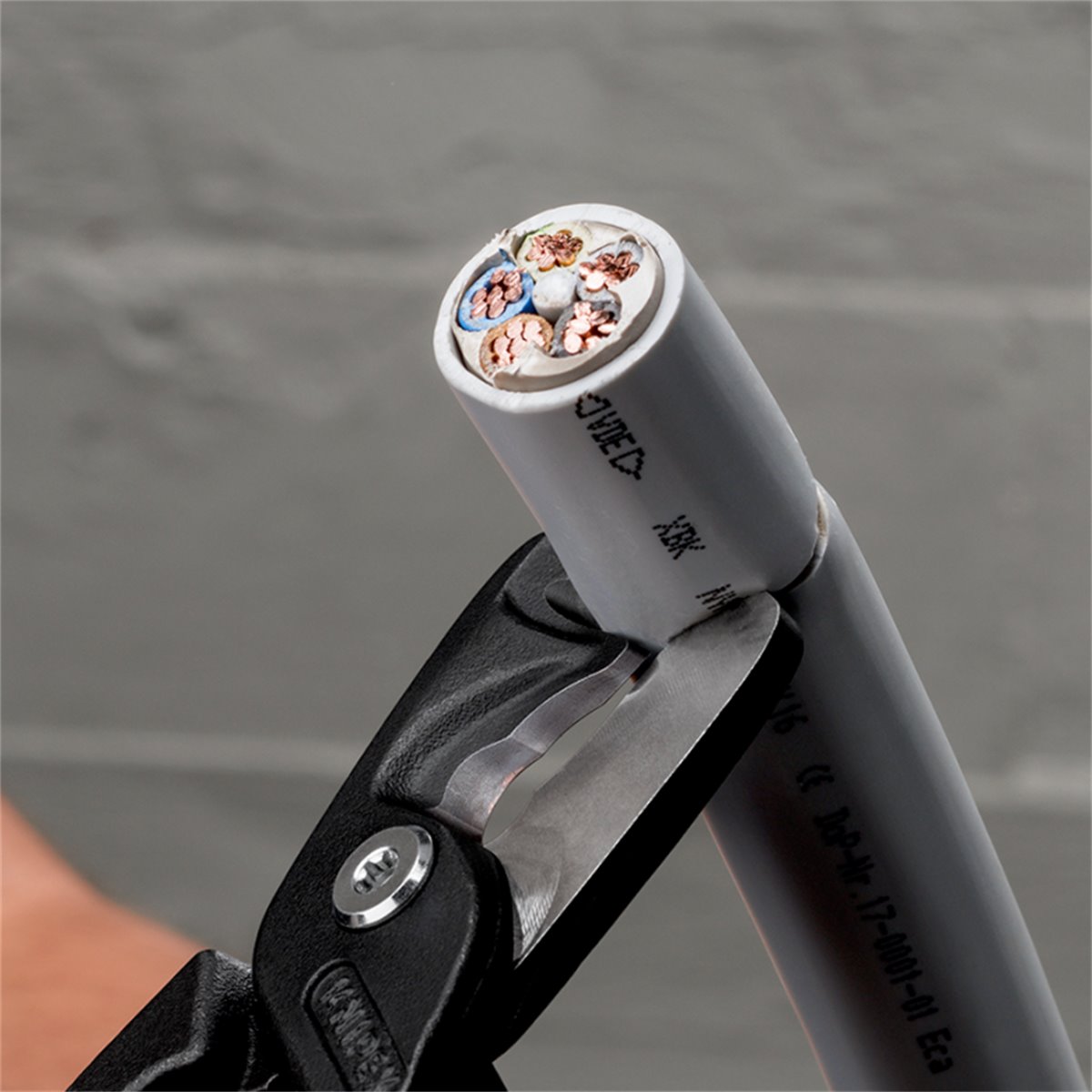

- Dual cutting areas: Stepped cutting edge holds small and larger cables close to the joint during the cut; the front cutting edge cuts very large cables step by step
- Easy one- or two-handed operation with minimum handle opening for large cable diameters
- Adjustable, high-leverage bolted joint provides precise and smooth cutting
- Slim head for easier accessibility
- Pinch guard prevents operators' fingers being pinched
- Not suitable for steel-reinforced cables, e.g. ACSR
- Cutting edges additionally laser-hardened, cutting edge hardness approx. 56 HRC

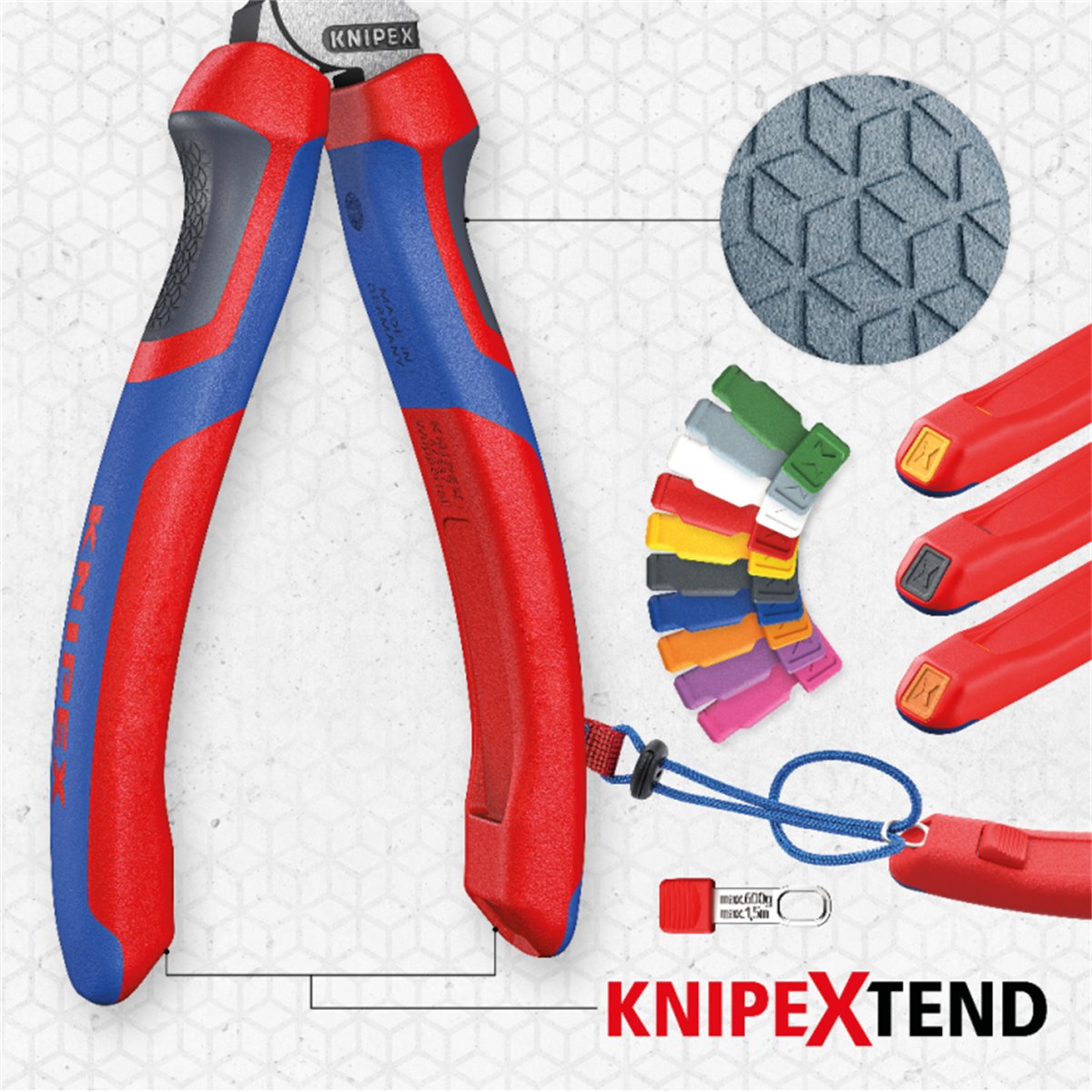

- With comfort handles: consisting of three ergonomic components for optimized handling and equipped with two KNIPEXtend interfaces for extensions
Technical features:
- Shears: burnished
- Head: burnished
- Handles: with comfort handles
- REACH compliant: does not contain SVHC
- RoHS compliant: not applicable
- Length (cm): 29,6
- Width (cm): 8,5
- Height (cm): 2,1
- Weight (kg): 0,46
- EAN: 4003773089940
