Knipex 97 33 03 KNIPEX MultiCrimp® for PV, MC4/MC4 EVO2

€199.95

Available, delivery time: 2 working days

Available₁: 1 unit(s)

Stk

Product number: 1993345

Manufacturer no.: 973303

EAN: 4003773092599

Weight in kg: 0.885

Product information "Knipex 97 33 03 KNIPEX MultiCrimp® for PV, MC4/MC4 EVO2"

Universal, high-performance crimping pliers in professional quality for photovoltaic systems

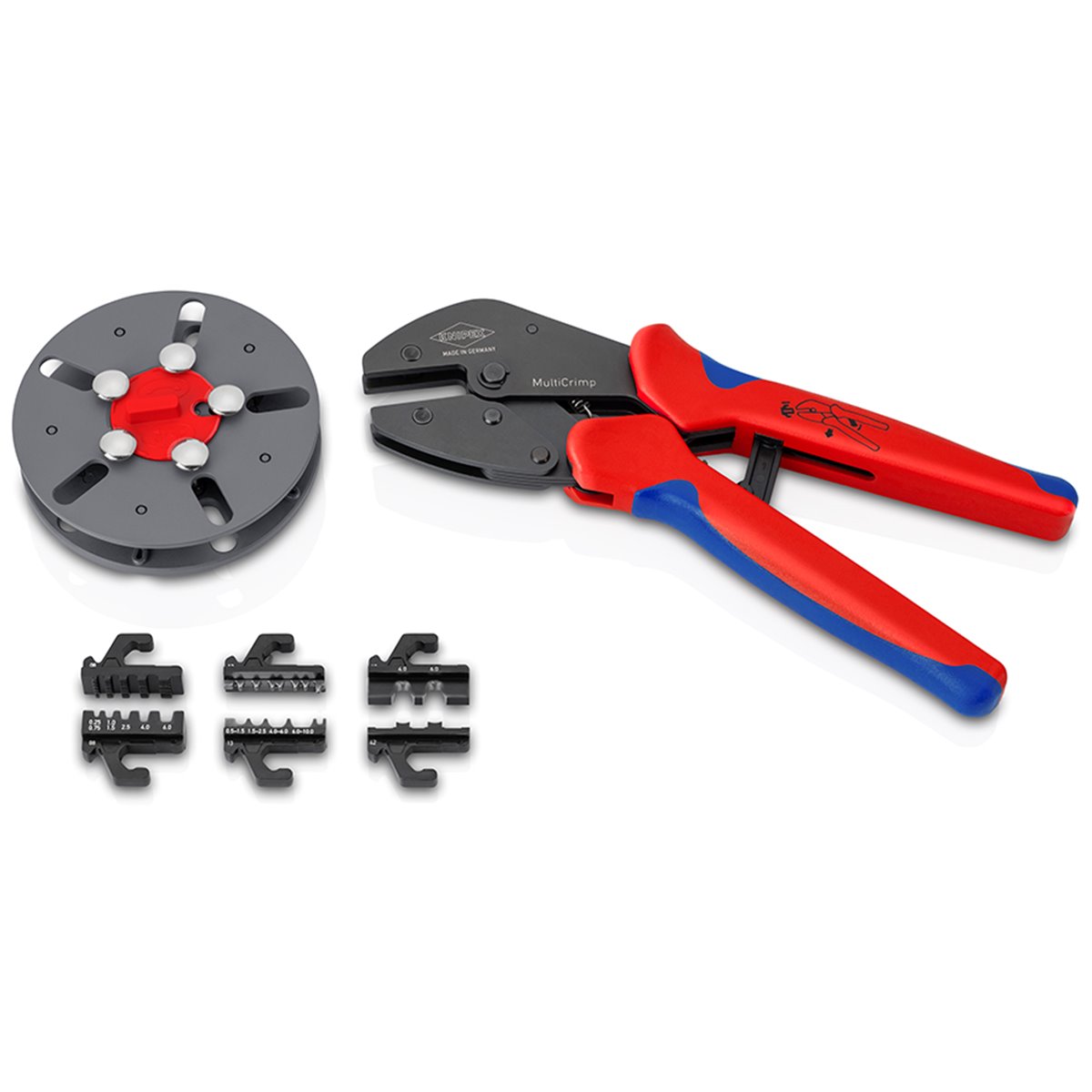

Only one tool with three crimp inserts for MC4® / MC4® Evo 2, non-insulated cable connectors and ferrules
Quick and easy change of crimp inserts without additional tools
For PV cables, grounding conductors and wiring to the meter cabinet

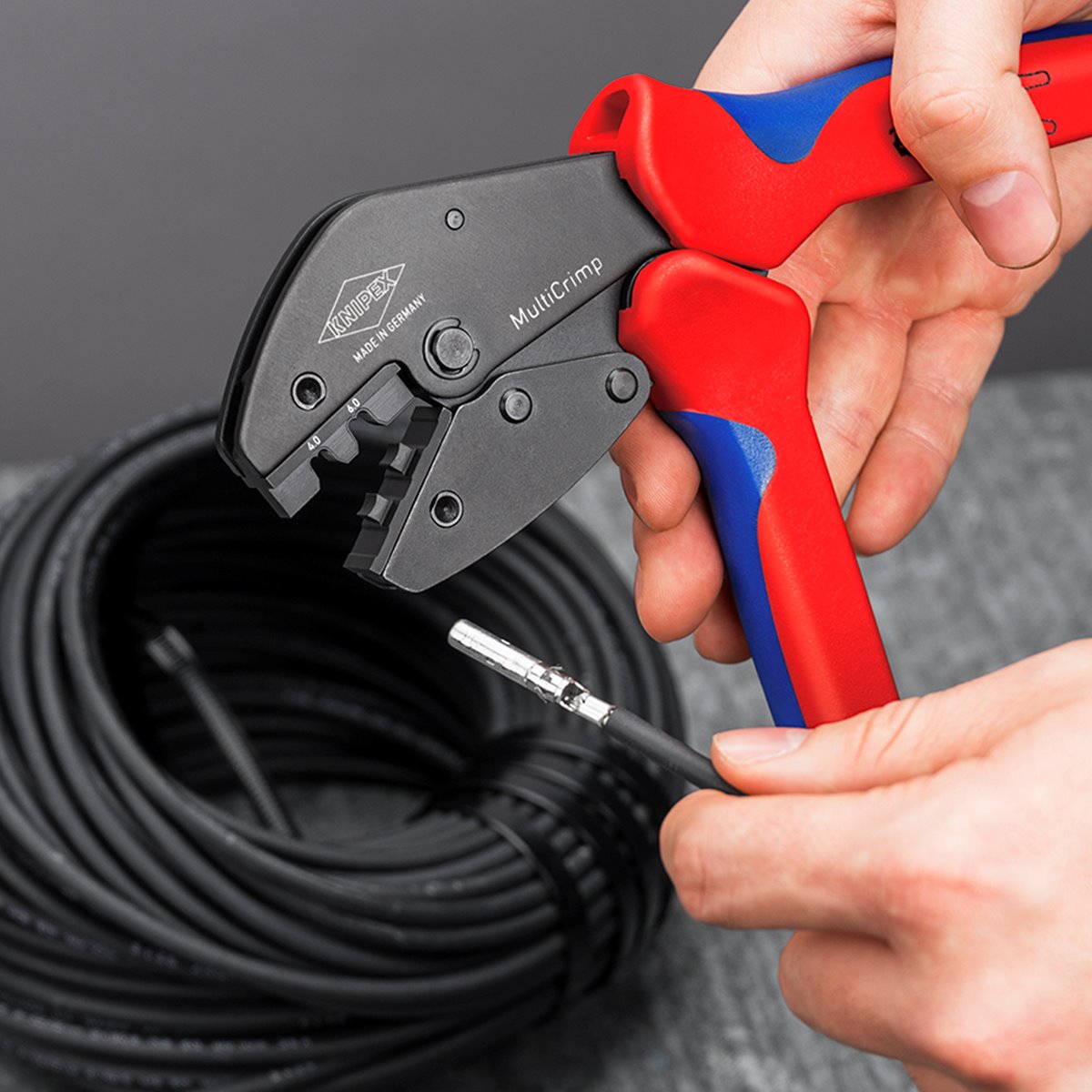

Crimps connectors for PV conductors – with crimp insert 97 39 42 for MC4® and MC4® Evo 2 connectors with 4 and 6 mm²
Crimps connections for e.g. grounding cables – with crimp insert 97 39 13 for non-insulated cable connectors 0.5 - 10 mm²

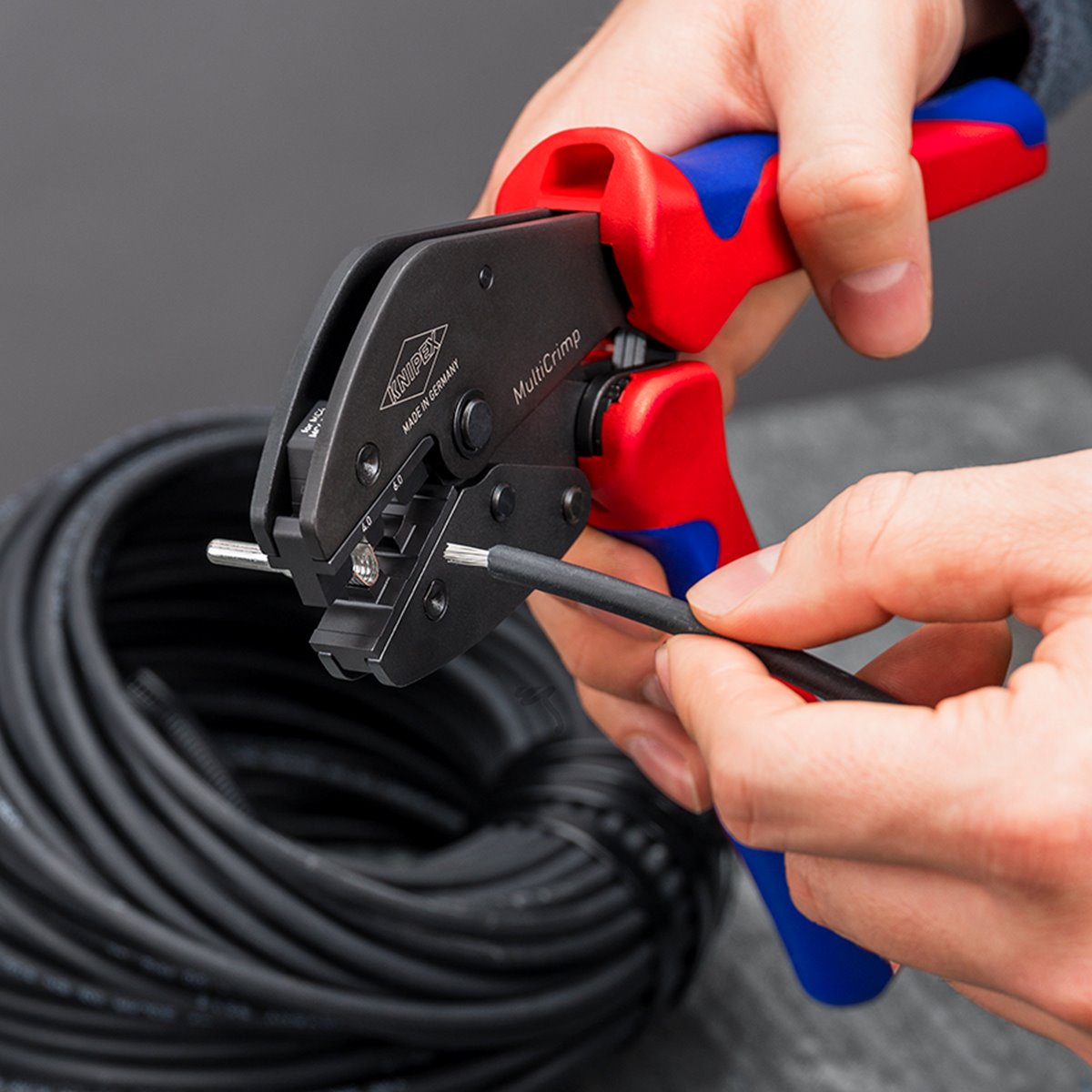

Crimps conductors from the inverter to the meter cabinet – with crimp insert 97 39 08 for insulated and non-insulated ferrules 0.25 - 6 mm²

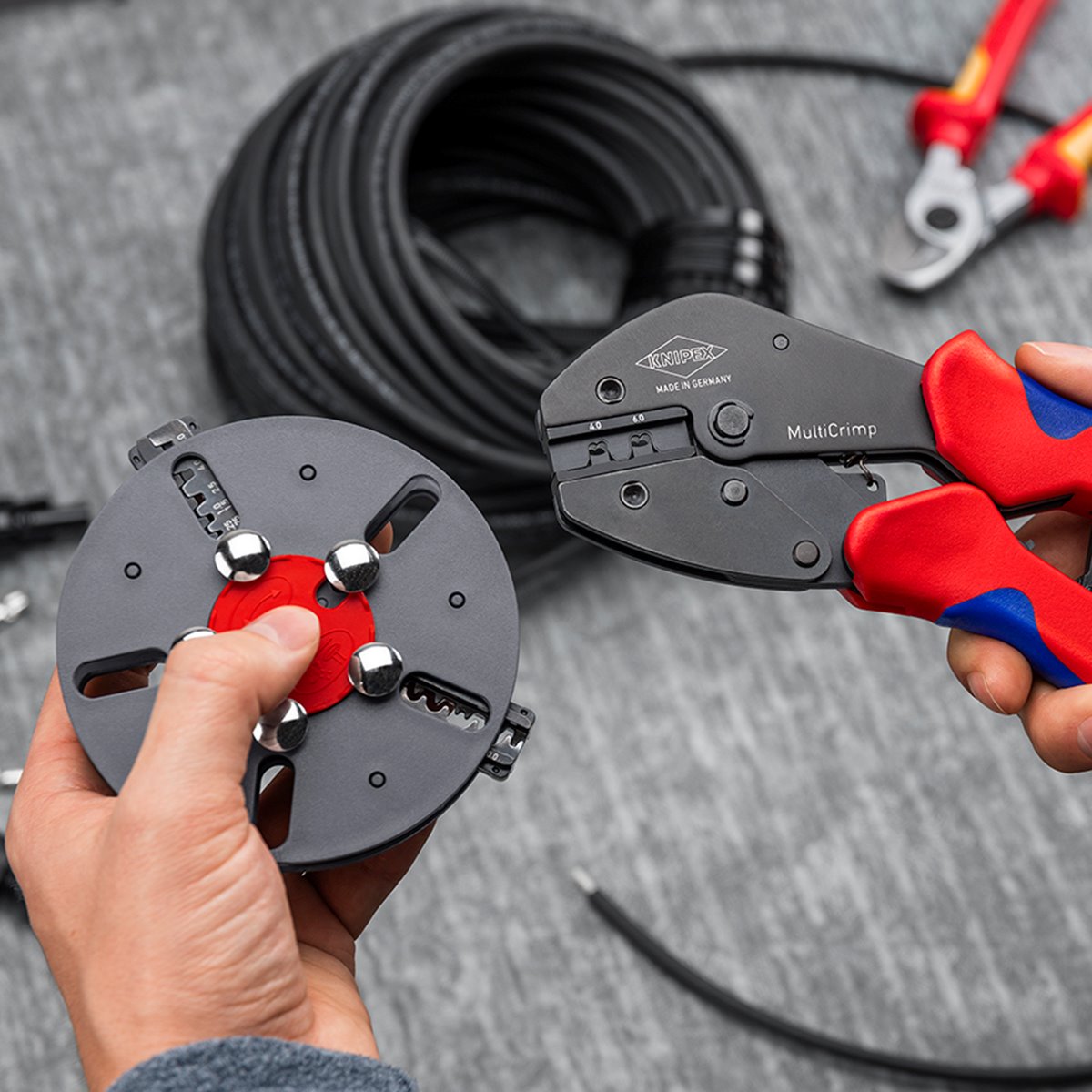

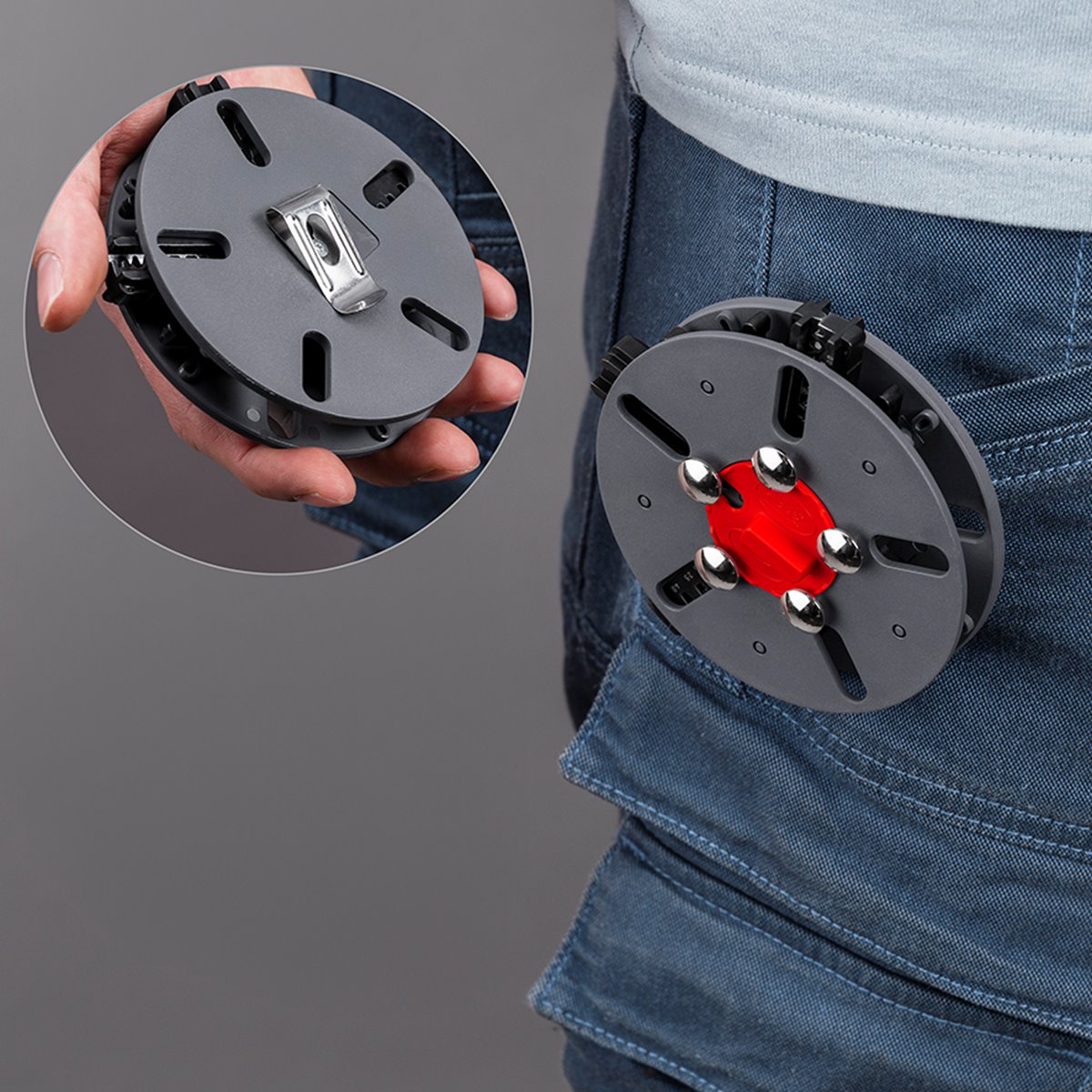

Safe and protected storage of interchangeable inserts in a round magazine for up to 5 crimp inserts
Expandable with optional crimp inserts 97 39 05/06/09
Consistently high crimp quality thanks to precision inserts and ratchet mechanism (unlockable)
The crimp inserts 97 49 xx of the Crimp System Pliers 97 43 200 are not compatible with the KNIPEX MultiCrimp 97 33 01/02/03
