Knipex 97 53 04 CRIMP PLIERS F. CABLE LINKS
€159.95
Content:
1 pcs
/ 5
Delivery time 5 working days
Product number:
1846427
Manufacturer no.:
975304
EAN:
4003773028017
Weight in kg:
0.46
Product information "Knipex 97 53 04 CRIMP PLIERS F. CABLE LINKS "

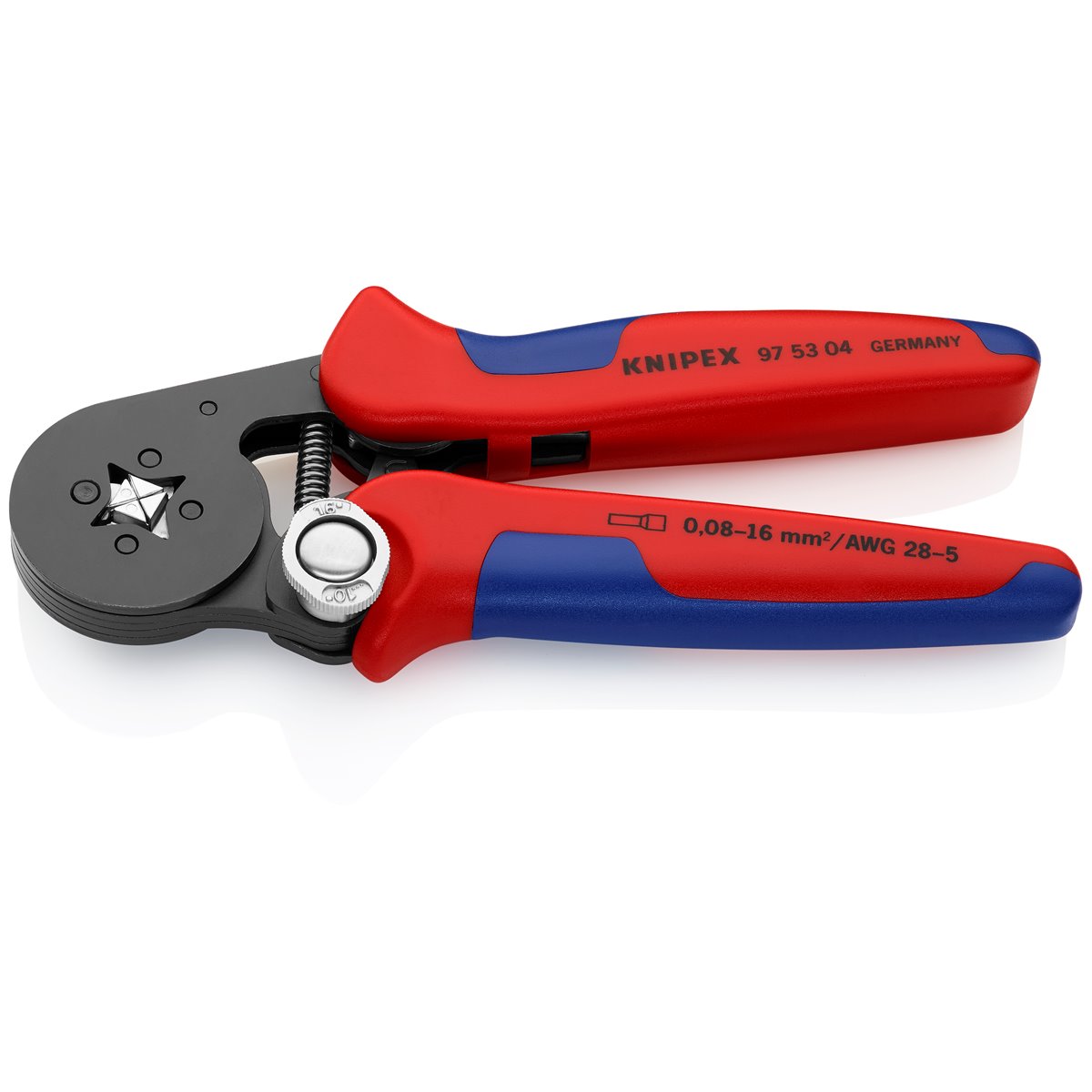

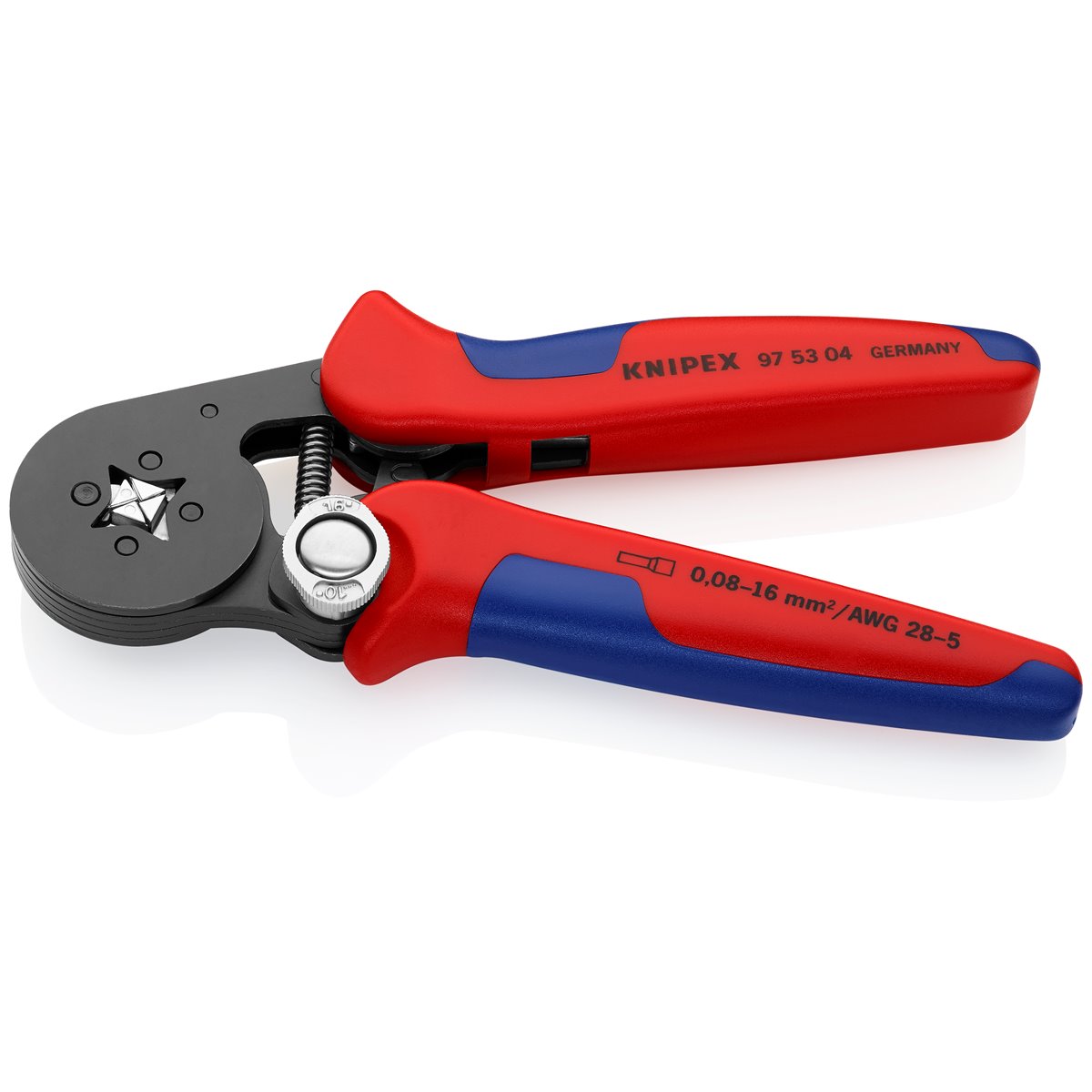

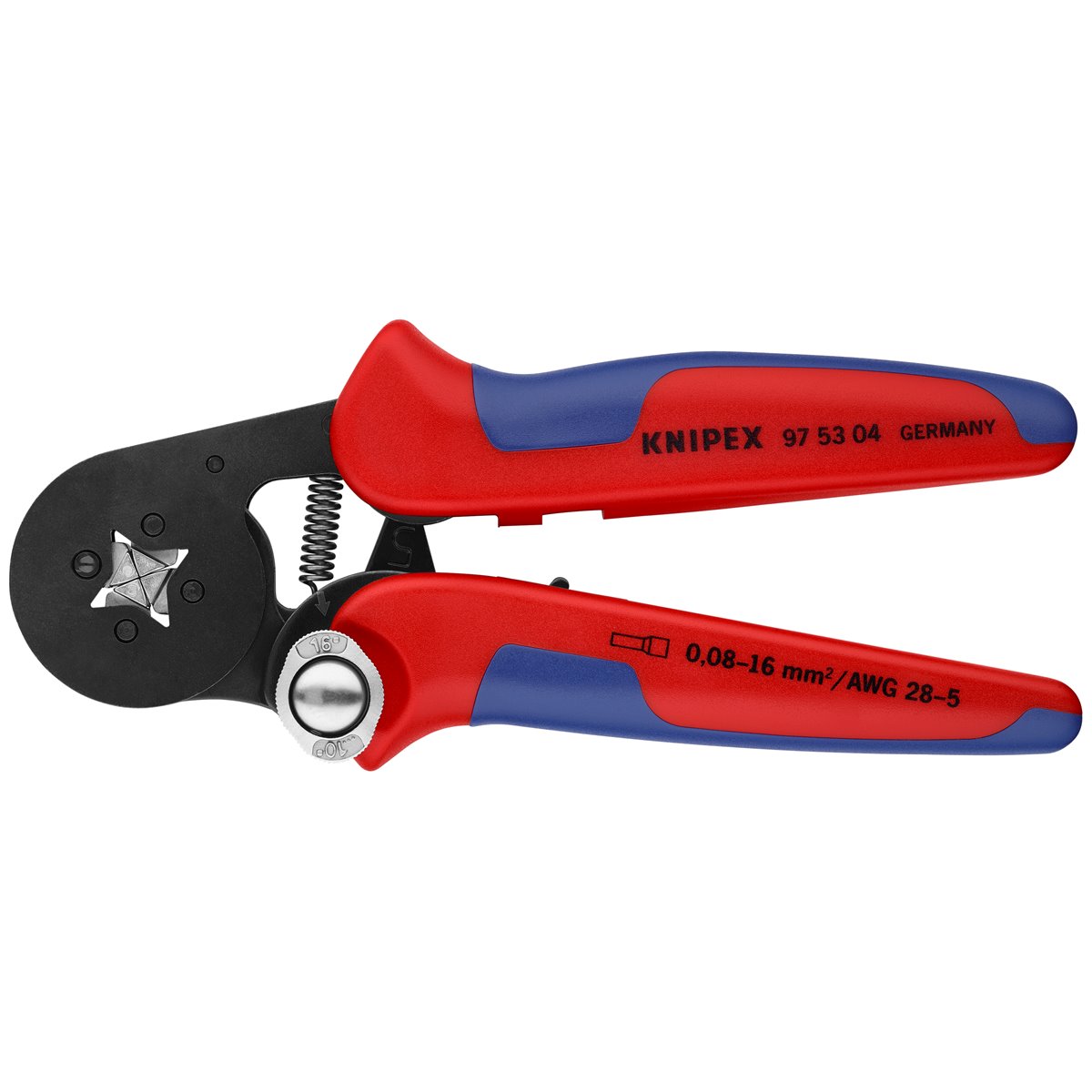

Knipex 97 53 04 Self-Adjusting Crimping Pliers for End Sleeves (ferrules) burnished 180 mm
Features:
- narrow handle width and improved ergonomics
- manual force reduced by 20%

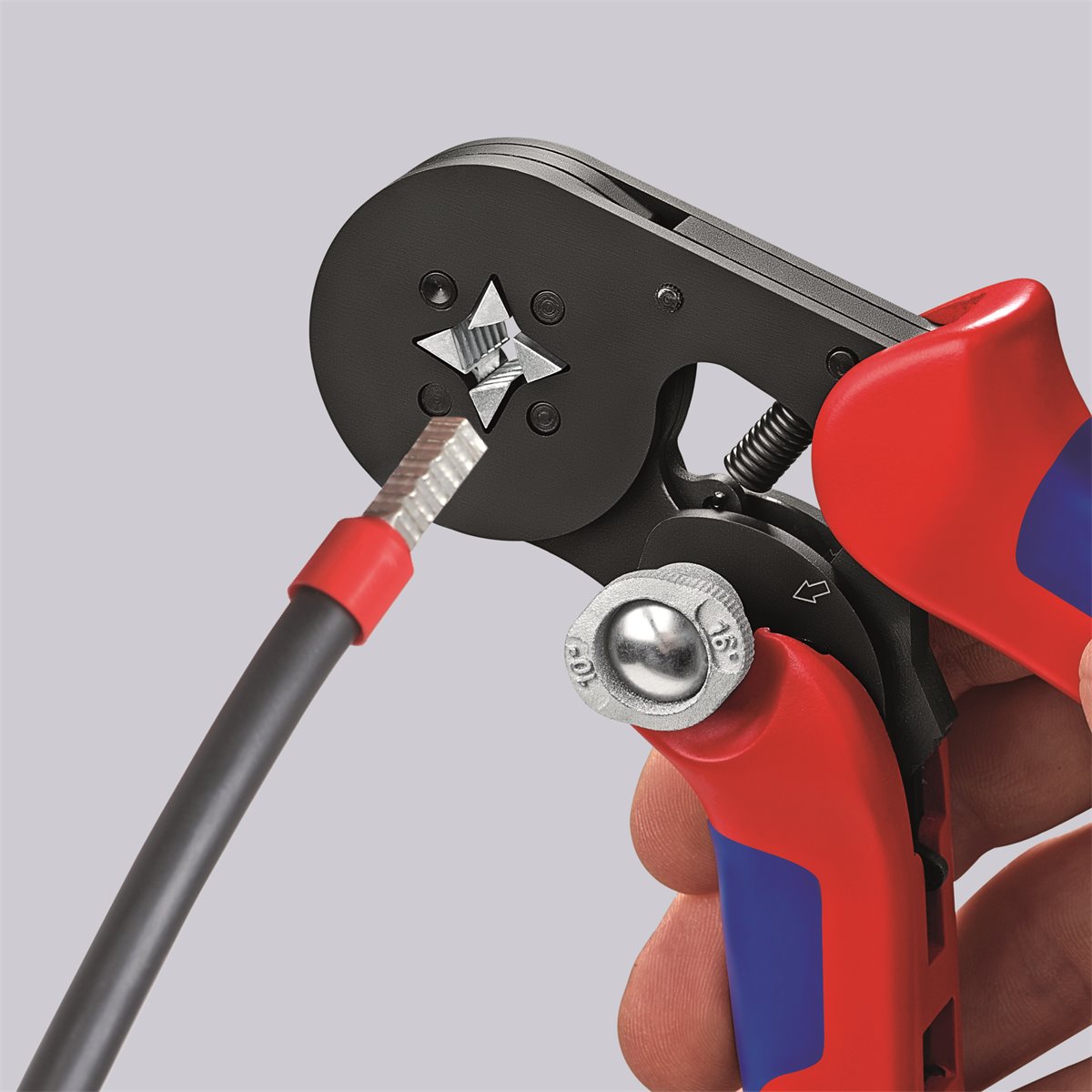

- square compression now additionally also for end sleeves (ferrules) up to 16 mm²
- Crimping capacity can be switched over simply from 10 mm² to 16 mm².

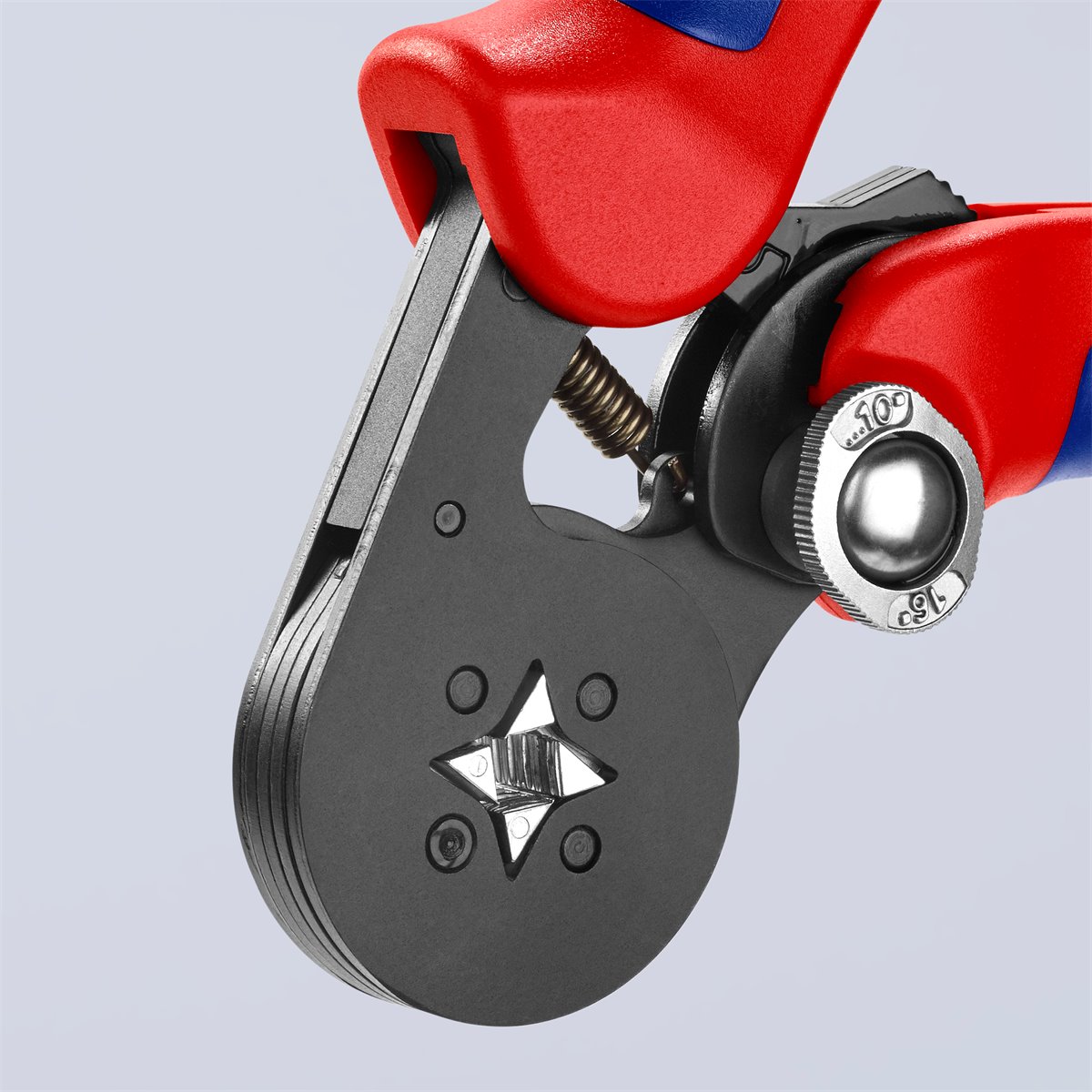

- square compression for ideal contact surfaces in the clamp connection
- suitable in particular for all twin end sleeves (ferrules) up to 2 x 6 mm² or 2 x AWG 8
- for crimping end sleeves (ferrules) according to DIN 46228 parts 1 + 4
- self-adjustment to the size of end sleeves (ferrules) required
- repetitive, high crimping quality due to integral lock (self-releasing mechanism)
- tools have been set precisely (calibrated) in the factory
- optimum transmission of force thanks to toggle lever for fatigue-reduced operation
- handy shape and low weight provide high operation comfort
- Chrome vanadium electric steel in special quality, oil-hardened
Technical data:
- Pliers: burnished
- Handles: with multi-component grips
- Applications: End Sleeves (ferrules)
- Capacity: 0,08 - 10 + 16 mm²
- AWG: 28 - 5
- Number of crimping positions: 1
- Length: 180 mm
- Weight: 405 g
| Plier type: | Crimping pliers |
|---|
