Knipex 97 53 14 SB Self-Adjusting Crimping Pliers multi-component grips burnished 180 mm
Product number:
1852904
Manufacturer no.:
975314SB
EAN:
4003773048497
Weight in kg:
0.41
Product information "Knipex 97 53 14 SB Self-Adjusting Crimping Pliers multi-component grips burnished 180 mm"
Knipex 97 53 14 Self-Adjusting Crimping Pliers for End Sleeves (ferrules) burnished 180 mm
The small crimping pliers for end sleeves (ferrules) with two major advantages for the user: - Automatic adjustment to the end sleeves used: This makes work easier for the professional and offers reliable and fast crimping. – Expanded range of applications
Features:
- narrow handle width and improved ergonomics
- Expanded capacity of hexagonal crimping up to 10 mm²

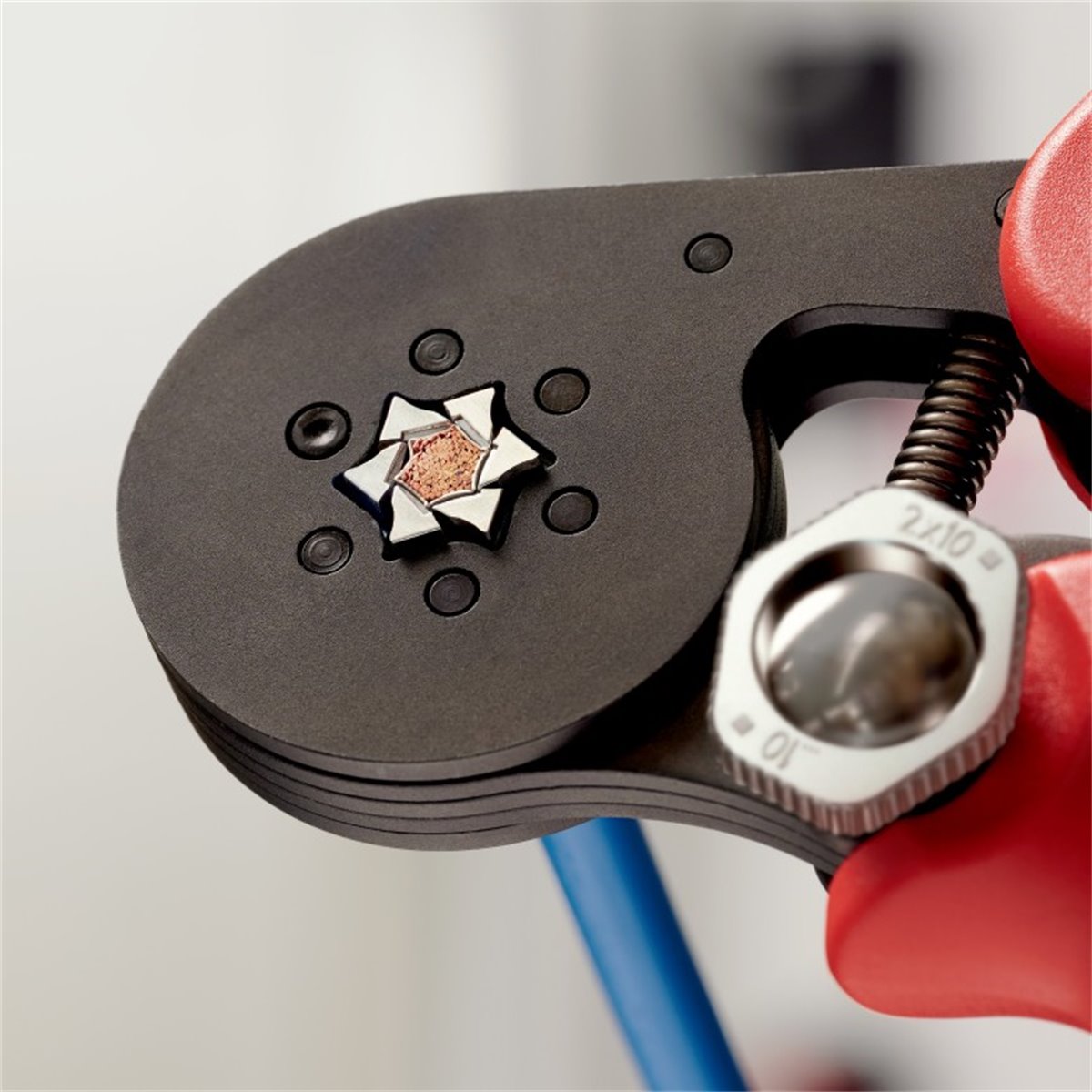

- hexagonal compression for confined connection dimensions
- suitable in particular for all twin end sleeves (ferrules) up to 2 x 4 mm² or 2 x AWG 10
- for crimping end sleeves (ferrules) according to DIN 46228 parts 1 + 4

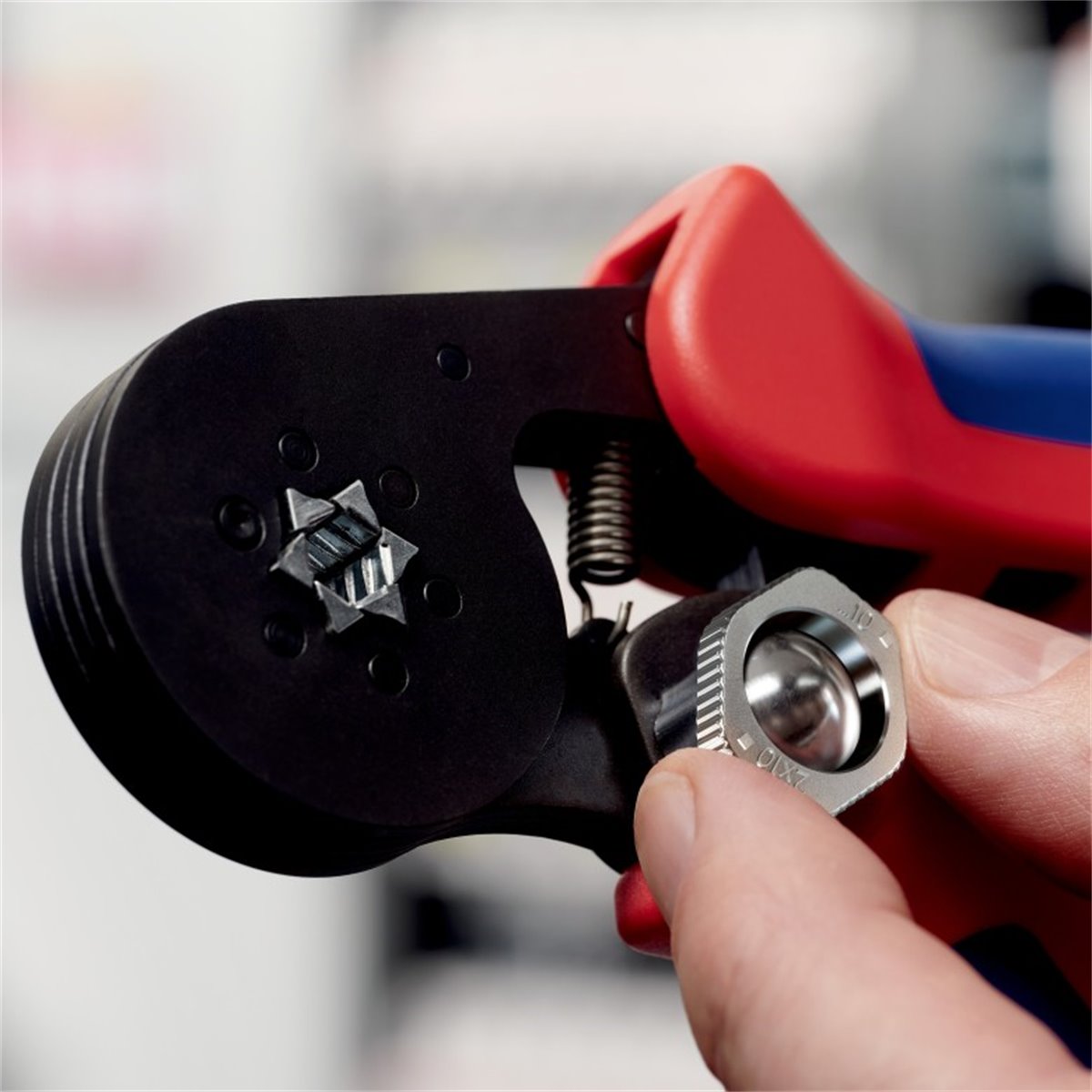

- self-adjustment to the size of end sleeves (ferrules) required
- repetitive, high crimping quality due to integral lock (self-releasing mechanism)
- tools have been set precisely (calibrated) in the factory
- optimum transmission of force thanks to toggle lever for fatigue-reduced operation
- handy shape and low weight provide high operation comfort
- Chrome vanadium electric steel in special quality, oil-hardened
Technical data:
- Pliers: burnished
- Handles: with multi-component grips
- Applications: End Sleeves (ferrules)
- Capacity: 0,08 - 10,0 mm²
- AWG: 28 - 7
- Number of crimping positions: 1
- Length: 180 mm
- Weight: 404 g
