KS-Tools 150.3220 Thermal imaging camera with UV l ight
Product number:
1908653
Manufacturer no.:
150.3220
EAN:
4042146692615
Weight in kg:
0.82
Product information "KS-Tools 150.3220 Thermal imaging camera with UV l ight"
KS-Tools 150.3220 Thermal imaging camera with UV light
Features:
- Thermal imaging camera with UV light

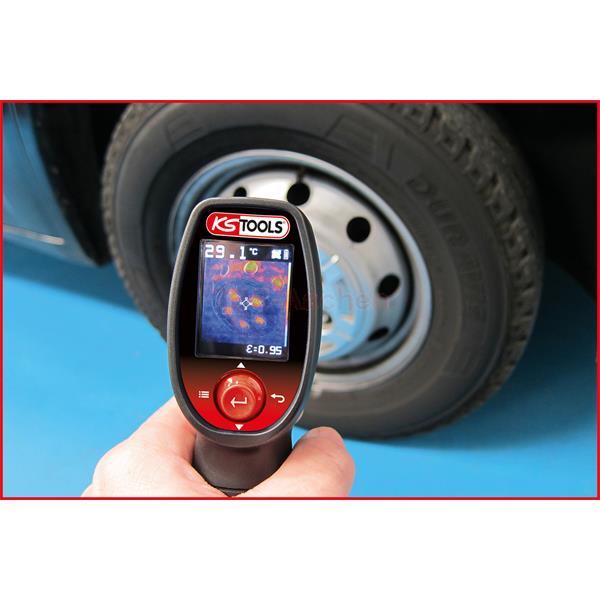

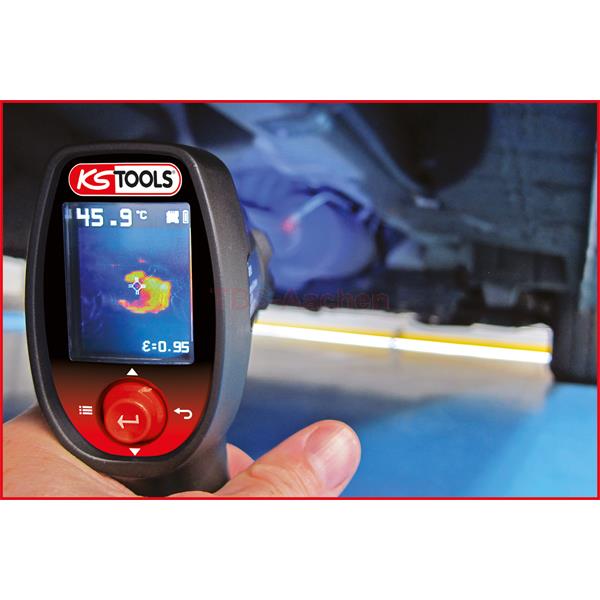

- Compact thermal imaging camera for applications in construction, electrical engineering, mechanical engineering, automotive industry, etc.
- Reliably measure temperature and store images and data for reports
- Accurate readings can be taken from safer distances
- Colour display for the safe evaluation and analysis of temperature conditions
- With a laser pointer for precise positioning
- Three selectable colour palettes for image display: hot iron, rainbow and grey
- Selectable measuring range between Celsius °C or Fahrenheit °F
- Integrated LED lights support working in dark areas
- The integrated UV lamps are ideal for the detection of leaks in cooling or air conditioning systems
- Adjustable automatic switch-off
- Date and time can be set for accurate data acquisition
- Integrated micro USB interface
- On and off switch is also used to protect the camera
- Includes 3xAA batteries

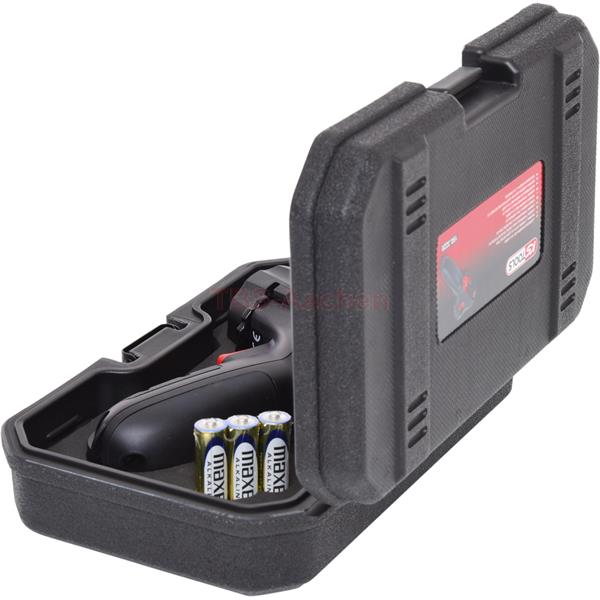

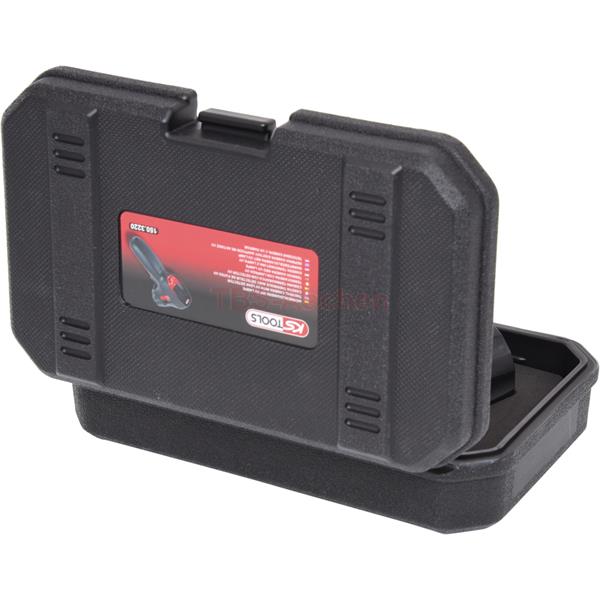

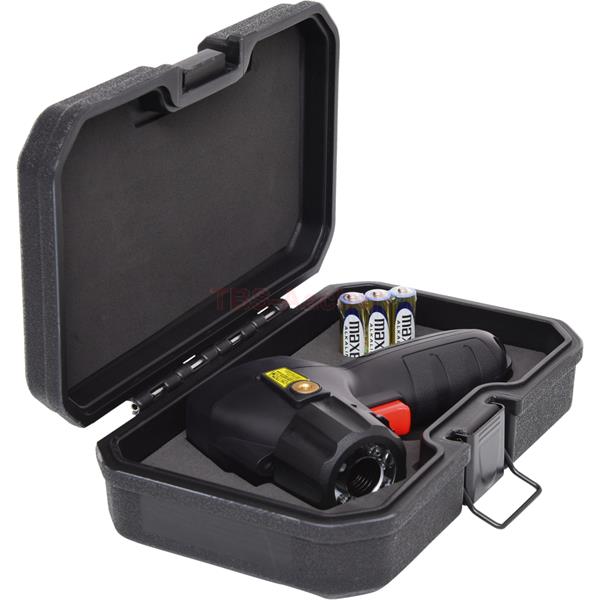

- In durable plastic storage case
- for replacing the silent bearing from the longitudinal control arm and cross control arm on the front and rear axles
Advantages:
Measure temperatures more accuratelyResult report with integrated imagesQuick fault diagnosisSafety and greater distance for the employee
Contents:
Basic unit2 GB micro SD memory cardsBatteries 3xAA
Technical data:
Accuracy: ±1.5% or 1.5°CMeasurement range: -30°C to 650°C (-22°F to 1202°F)Emissivity: 4 pre-set values, user adjustments between ? 0.10 and 1.00 are possibleDistance-to-spot ratio (D:S): 30:1Measurement value resolution: 0.1°C/°FResponse time: >125 msSpectral range: 8 to 14 µmvLaser: a laser cross-hair encircles the area being measuredDetector: IR-EX? technology (integrated IR array sensor with CMOS sensor)Screen resolution (H x W): 16,384 pixels (128 x 128)Field of view (H x W): 30.0°Upper range: 650°CThermal sensitivity: 150 mKScreen refresh rate: <9 HzColour range: 3 (iron, rainbow and grey)Picture storage format: image in bitmap format (BMP) with temperature and emissivityScreen: 1.77? TFT colour screen (pixel resolution 128 x 160)Battery: 3 x AABattery life with laser and light: 12 hoursMemory: 2 GB micro SD cardWorking temperature: 0°C to 50°C (31°F to 122°F)
Technical features:
- KS-Tools item number: 150.3220
- EAN: 4042146692615
- Weight: 300 g
