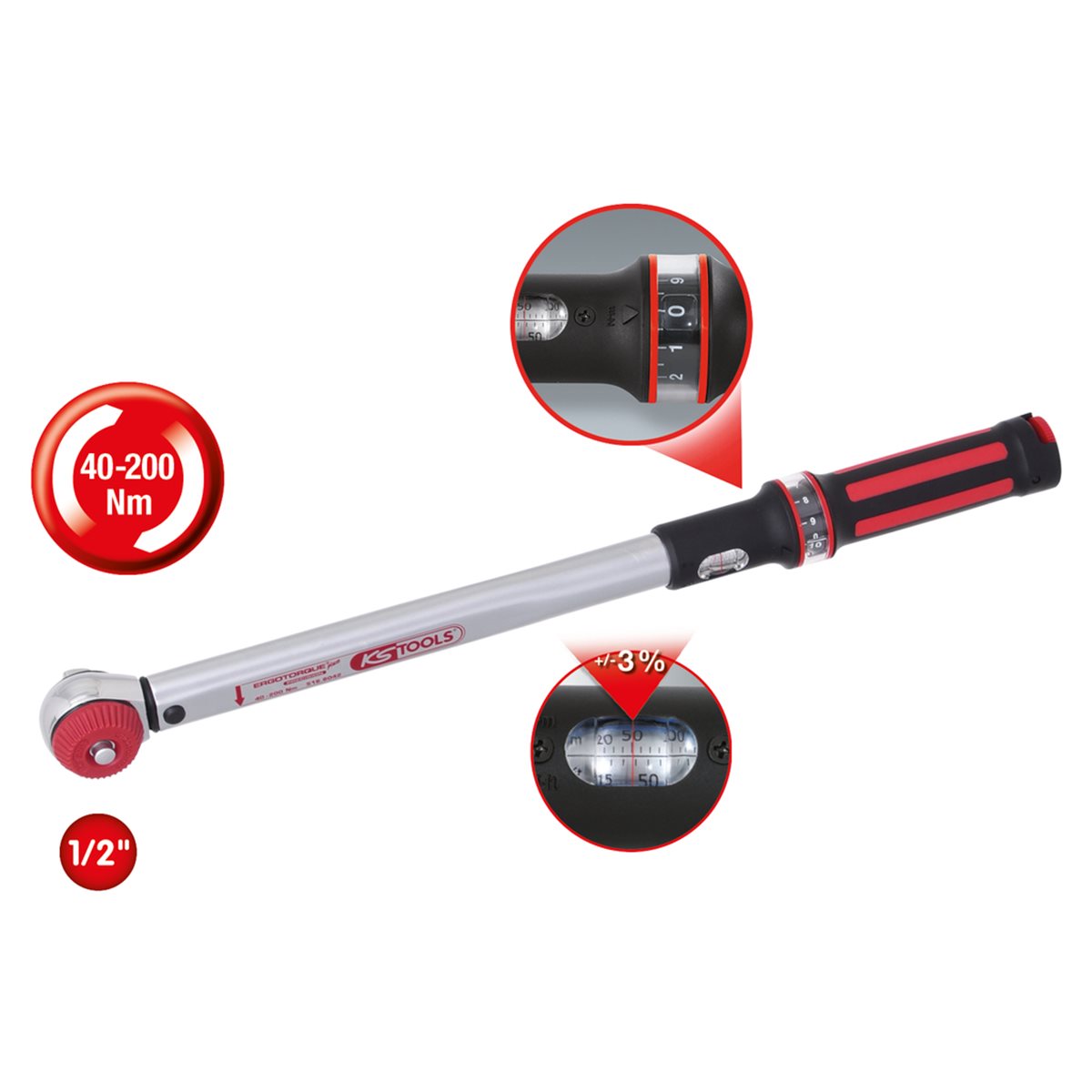

KS-Tools 516.6042 1/2" ERGOTORQUE®precision torque wrench 20-200 Nm with quick lock rotary mushroom
Product information "KS-Tools 516.6042 1/2" ERGOTORQUE®precision torque wrench 20-200 Nm with quick lock rotary mushroom "
KS-Tools 516.6042 1/2" ERGOTORQUE®precision torque wrench 40-200 Nm with quick lock rotary mushroom ratchet head
Features:
- 1/2" ERGOTORQUE®precision torque wrench 40-200 Nm with quick lock rotary mushroom ratchet head
- Actuation accuracy: ±3 % tolerance of the set scale value
- Precise reading accuracy for a minimum 5.000 tightening cycles
- For controlled fastening in clockwise and counter clockwise directions
- Torque setting by pulling out and pushing in the slide in knob at the end of the handle
- The direction of rotation (clockwise and counter clockwise) can be changed by simply rotating the square drive piece

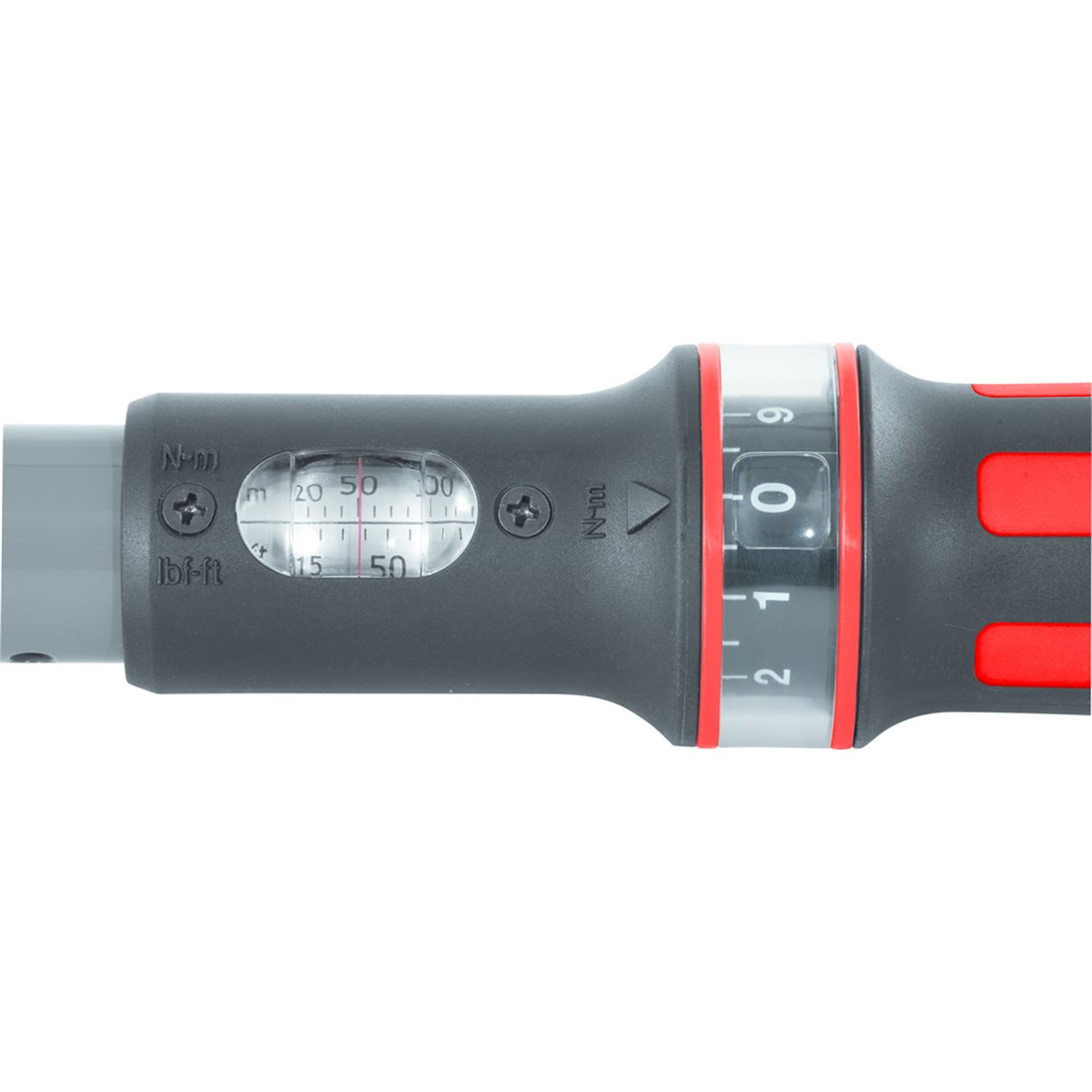

- Double scale in Nm and lbf?ft divisions for precise adjustment
- Includes micrometer scale in Nm divisions for precise and fine adjustment
- Large vision panel, precise adjustment using a magnifying glass
- An audible and palpable signal when the desired torque value is achieved
- Exact gearing 30 teeth ratchet mechanism

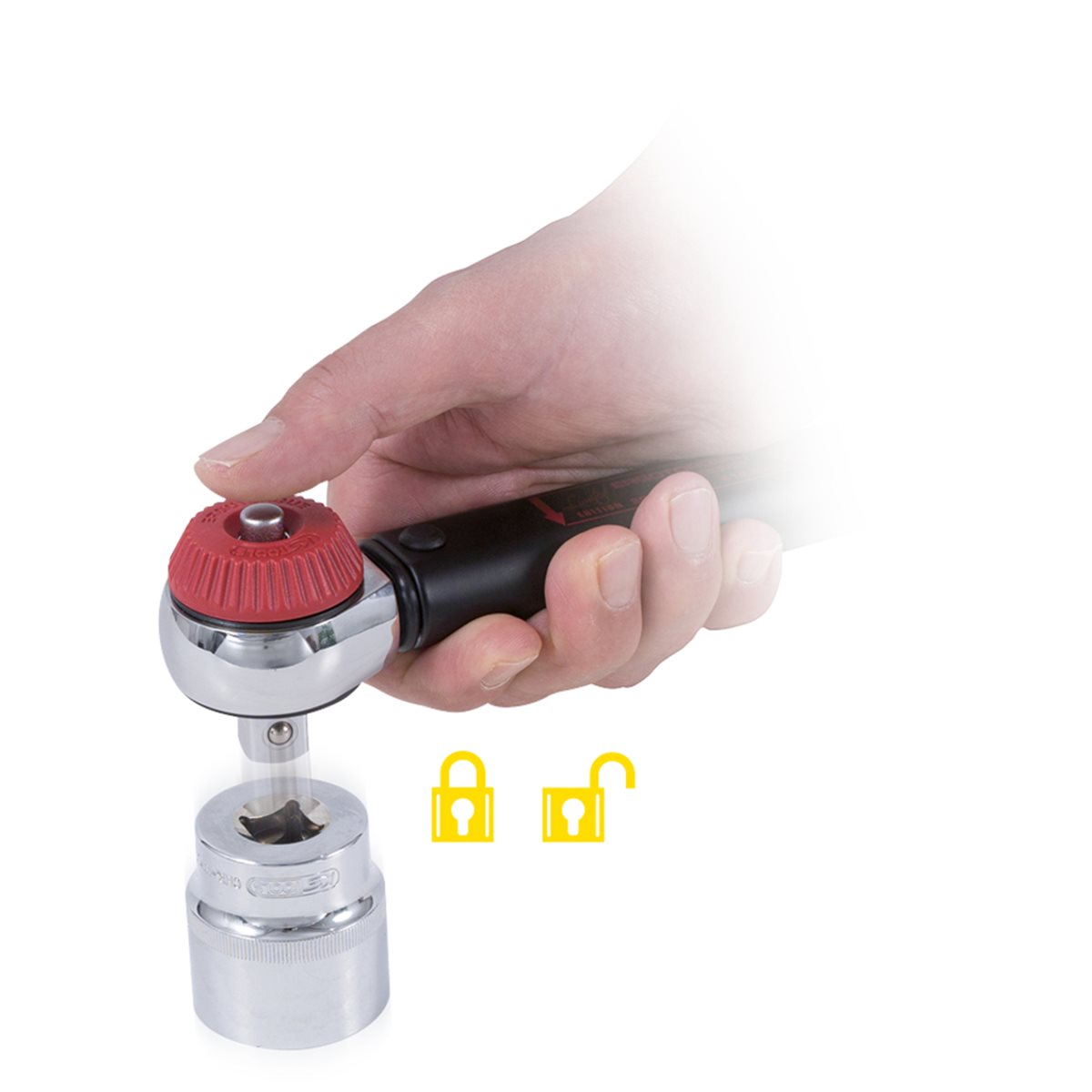

- With ejection mechanism on the ratchet head

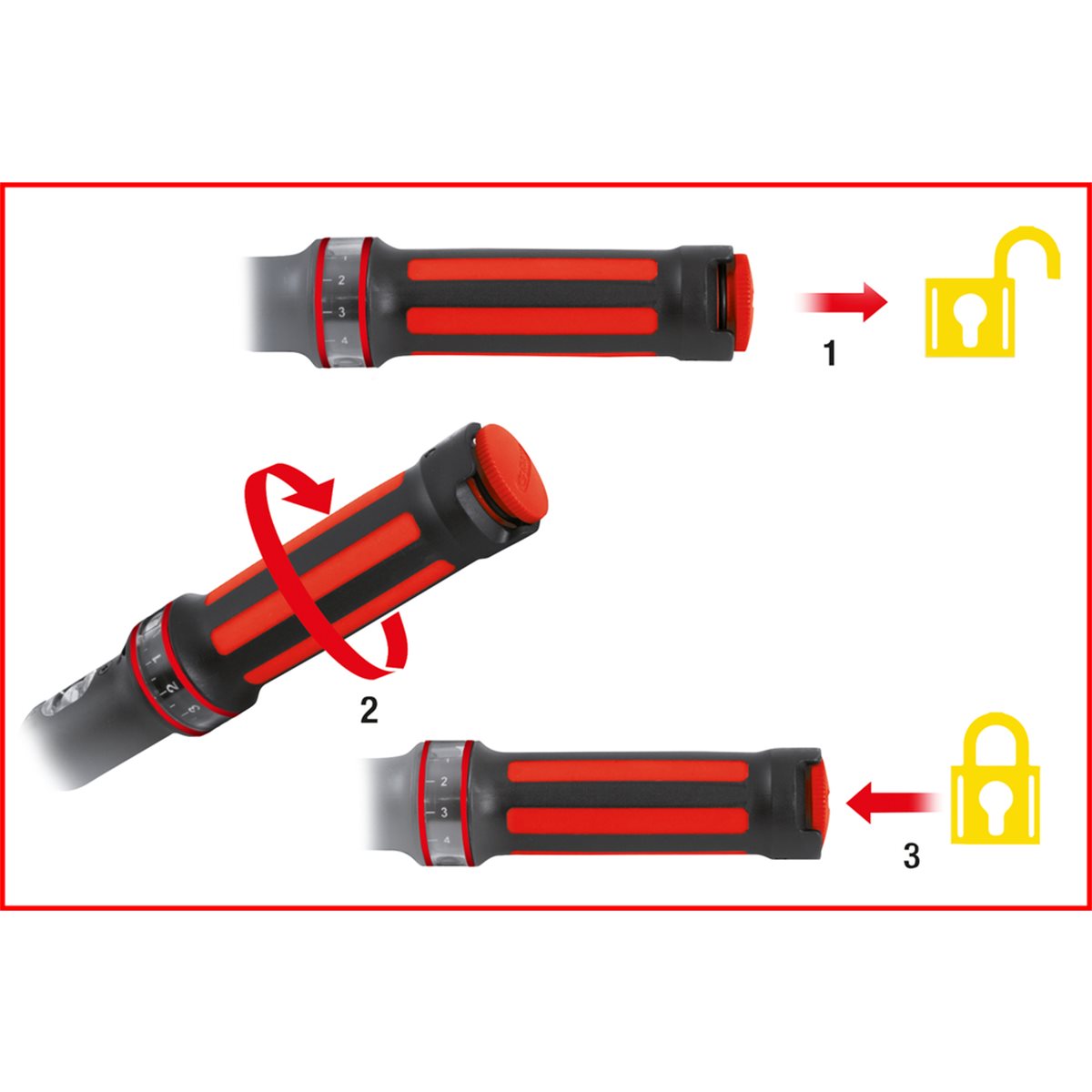

- Torque setting is quick and easy using the locking knob in the handle end
- Secure locking function within the handle
- Two component handle with a soft zone, is ergonomic in design and comfortable in the hand
- Square drive adaptor to DIN 3120 / ISO 1174 with ball lock
- Individually marked with serial number - unique product identification
- including calibration declaration of conformity according to DIN EN ISO 6789:2017(E) - traceable to national standards
Technical features:
- KS-Tools item number: 516.6042
- EAN: 4042146574058
- Weight: 1300 g
- Keywords: Torque, Torque wrench, Measuring tool
