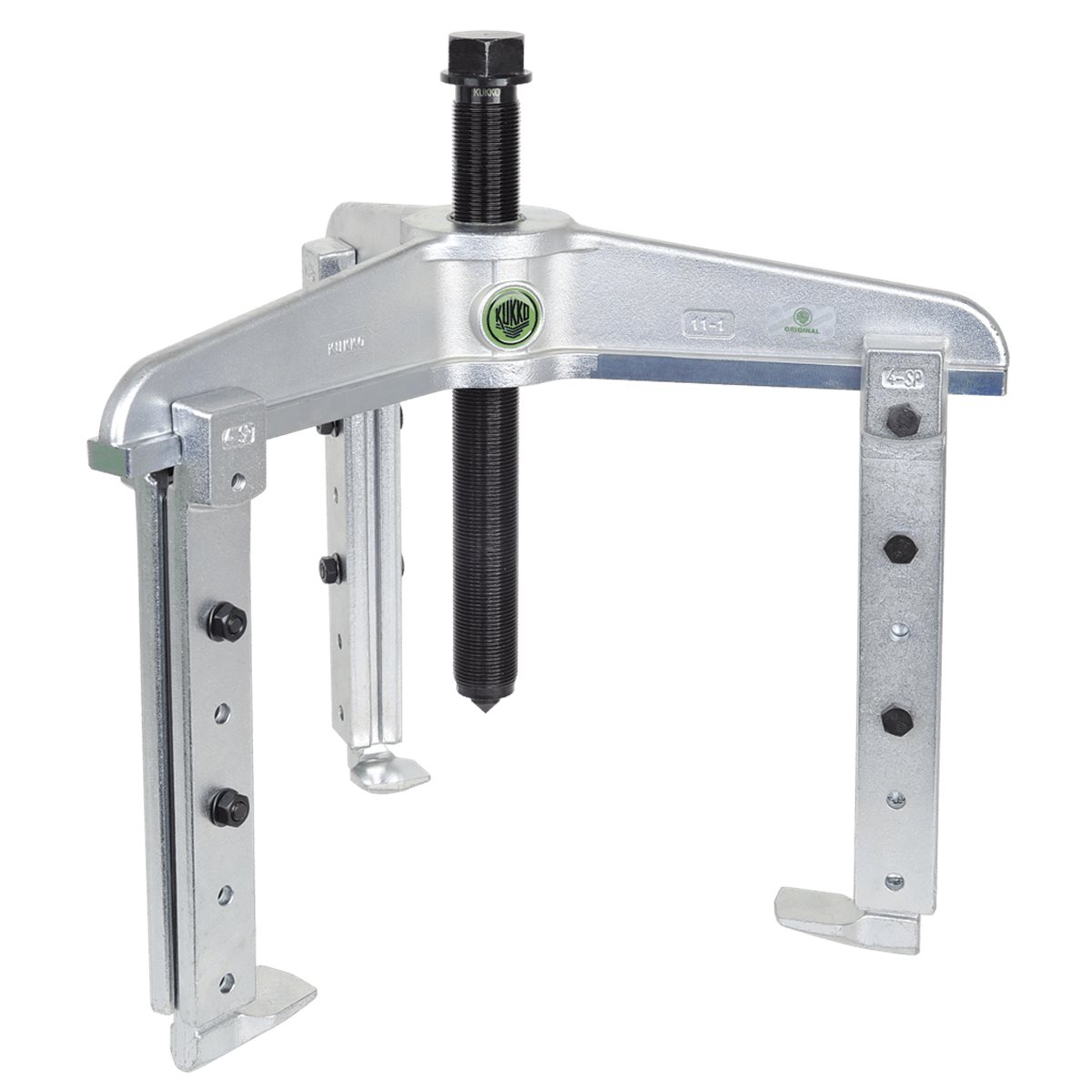

Kukko 11-0-AV 3-Arm Puller 375X300-500 Mm With Adj ustable-Length Arms
Product number:
1932672
Manufacturer no.:
11-0-AV
EAN:
4021176730078
Weight in kg:
23.1
Product information "Kukko 11-0-AV 3-Arm Puller 375X300-500 Mm With Adj ustable-Length Arms"
Kukko 3-jaw puller with adjustable reach

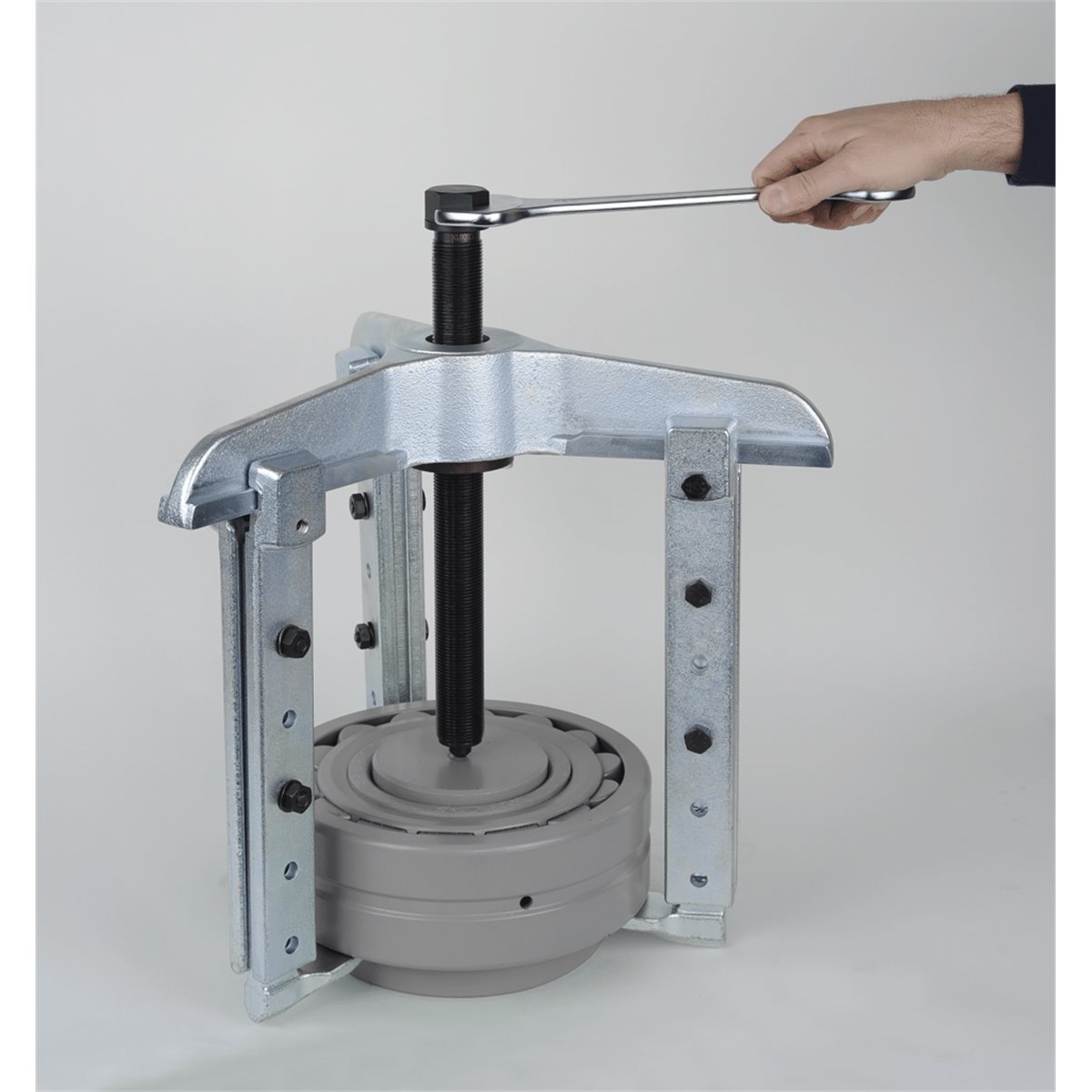

For removing bearings, gears, discs, etc.
Description
- High performance is guaranteed.
- Standard pulling hook with adjustable depths.
- Parallel pulling hooks in every position, even with full load.
- Pulling hooks with infinitely variable adjustment on the cross-beam.
- Mechanical pressure screw.
- Milled thread treated with special coating.
- The three-arm design ensures that the load is distributed evenly and that the part to be removed is held securely.
- If there is not adequate free space around the part to be removed, we recommend using a 2-jaw puller series 20.
Advantage
- Pulling hooks can be adjusted lengthwise and to meet the required clamping depths.
- Turning the pulling hooks enables them to be used both internally and externally.
- Suitable for pulling asymmetric workpieces.
- Spindle head band prevents the wrench from slipping off.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
- Hydraulic spindle series 8 for particularly tight-fitting parts also available as an option.
- Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.
- Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
Kukko quality standards
- Quality made in Germany.
- Strong design, high performance and long service life.
- Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
- Safety label to ensure protection of intellectual property.
- A tube of KUKKO special grease included for pressure spindle.
Series 11-AV
| Item no. | EAN 4021176 |
Clamping reach outside mm |
Clamping reach outside inch |
Clamping depth mm |
Clamping depth inch |
Clamping reach inside mm |
Clamping reach inside inch |
Hex drive size mm |
Max. tonne t |
Max. torque Nm |
Weight kg |
| 11-0-AV | 730078 | 375 | 14 3/4 | 300 - 500 | 11 7/8 - 19 3/4 | 220 - 500 | 8 5/8 - 19 3/4 | 36 | 15 | 500 | 23.1 |
| 11-1-AV | 730153 | 520 | 20 1/2 | 300 - 500 | 11 7/8 - 19 3/4 | 280 - 600 | 11 1/32 - 23 5/8 | 41 | 20 | 650 | 30.39 |
| 11-2-AV | 730238 | 650 | 25 5/8 | 300 - 500 | 11 7/8 - 19 3/4 | 290 - 740 | 11 3/8 - 29 1/8 | 41 | 20 | 650 | 34 |
