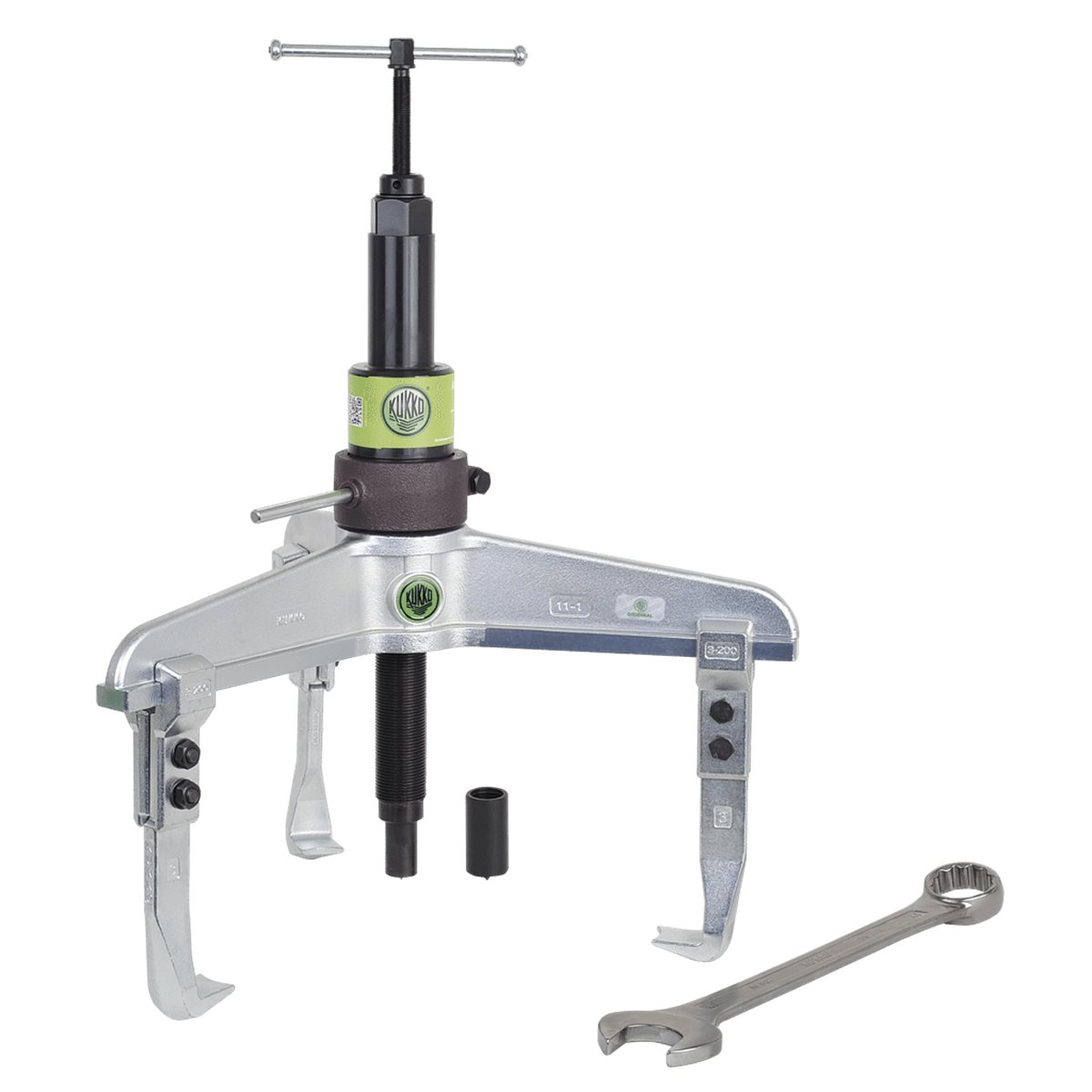

Kukko 11-1-B 3-Arm Puller 520 X 200 Mm W . Hydraulic Screw 20 Tons
Product number:
1932680
Manufacturer no.:
11-1-B
EAN:
4021176006128
Weight (kg):
29.24
Product information "Kukko 11-1-B 3-Arm Puller 520 X 200 Mm W . Hydraulic Screw 20 Tons "
Kukko 3-jaw puller with adjustable reach and long hydraulic spindle
For pulling particularly tight bearings, gears, discs, etc.
Description
- High performance is guaranteed.
- Grease hydraulics.
- Standard pulling hook.
- Parallel pulling hooks in every position, even with full load.
- Pulling hooks with infinitely variable adjustment on the cross-beam.
- Hydraulic spindle.
- The three-arm design ensures that the load is distributed evenly and that the part to be removed is held securely.
- If there is not adequate free space around the part to be removed, we recommend using a 2-jaw puller series 20-B.
Advantage
- Easy and even pulling for particularly tight parts.
- Turning the pulling hooks enables them to be used both internally and externally.
- Suitable for pulling asymmetric workpieces.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
- Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
KUKKO quality standards
- Quality made in Germany.
- Strong design, high performance and long service life.
- Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
- Safety label to ensure protection of intellectual property.
- A tube of KUKKO special grease included for pressure spindle.
Series 11-B
| Item no. | EAN 4021176 |
Clamping reach outside mm |
Clamping reach outside inch |
Clamping depth mm |
Clamping depth inch |
Clamping reach inside mm |
Clamping reach inside inch |
Max. tonne t |
Max. torque Nm |
Weight kg |
| 11-0-B | 075346 | 375 | 14 3/4 | 200 | 7 7/8 | 220 - 500 | 8 5/8 - 19 3/4 | 15 | 30 | 22.7 |
| 11-1-B | 006128 | 520 | 20 1/2 | 200 | 7 7/8 | 280 - 600 | 11 1/32 - 23 5/8 | 20 | 45 | 29.24 |
| 11-2-B | 006388 | 650 | 25 5/8 | 200 | 7 7/8 | 290 - 740 | 11 3/8 - 29 1/8 | 20 | 30 | 29.5 |
| 11-3-B | 706073 | 650 | 25 5/8 | 300 | 11 7/8 | 290 - 740 | 11 3/8 - 29 1/8 | 20 | 30 | 32.54 |
