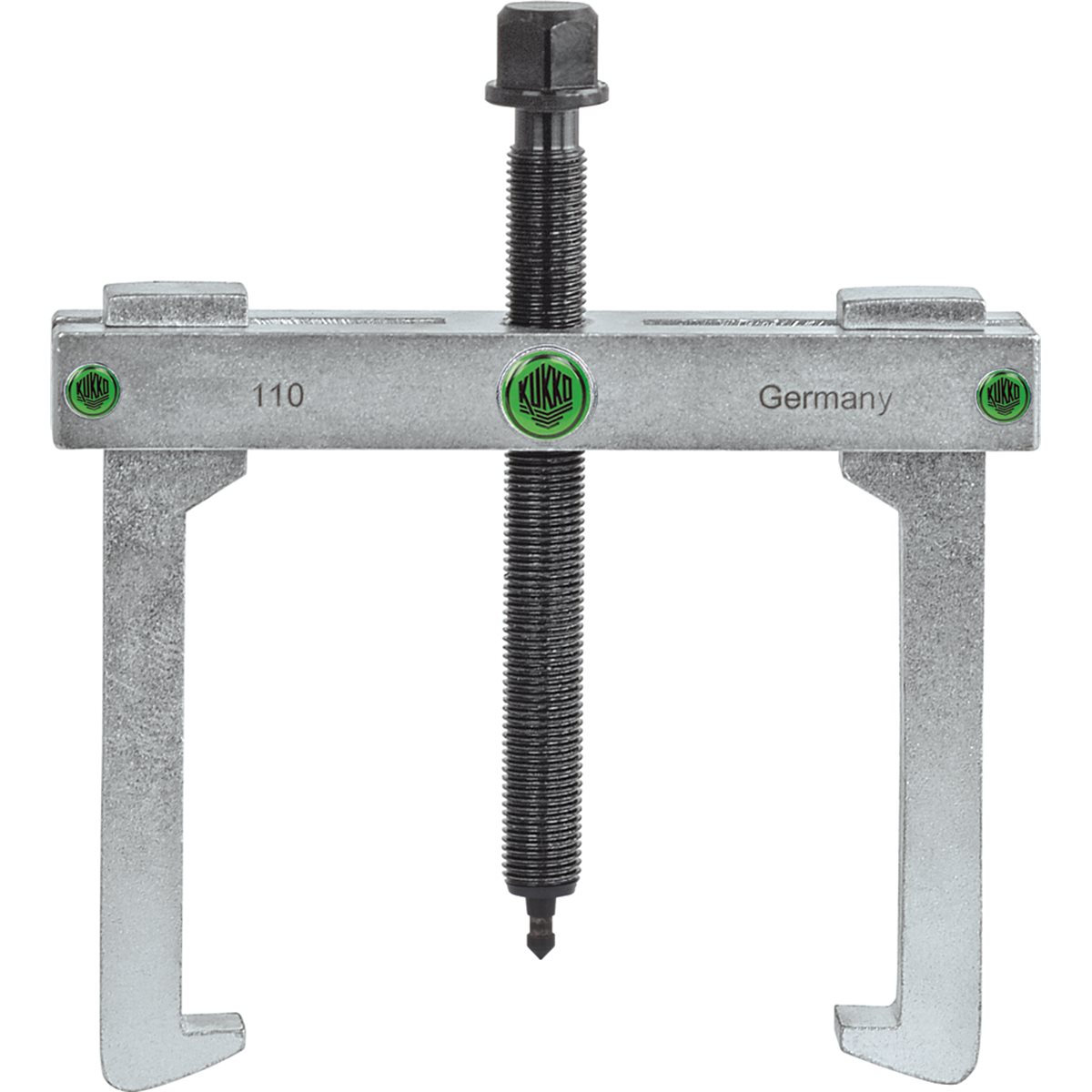

Kukko 110-10 2-Arm Univ. Puller 120X100 Mm Slender Pulling Arm Model
Product number:
1932693
Manufacturer no.:
110-10
EAN:
4021176923784
Weight in kg:
1.26
Product information "Kukko 110-10 2-Arm Univ. Puller 120X100 Mm Slender Pulling Arm Model"
Kukko 110-10 Universal 2-jaw puller "Techno"
Description
- Standard pulling hook.
- The pin protects the pulling jaw from slipping off the cross-beam.
- The pulling jaws are consistently straight and equally slim.
- Pulling hooks with infinitely variable adjustment on the cross-beam.
- Two-arm design for space-saving operation.
- Parallel pulling hooks in every position, even with full load.
- Mechanical pressure screw.
- Exchangeable spindle top (as from size 110-1).
- Milled thread treated with special coating.
Use
- For removing bearings, gears, discs, etc.
Advantage
- Turning the pulling hooks enables them to be used both internally and externally.
- Spindle head band prevents the wrench from slipping off.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
- Quality made in Germany.
- Strong design, high performance and long service life.
- Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
- Safety label to ensure protection of intellectual property.
- A tube of KUKKO special grease included for pressure spindle.
Series 110
| Item no. | EAN 4021176 |
Clamping reach outside mm |
Clamping reach outside inch |
Clamping depth mm |
Clamping depth inch |
Hex drive size mm |
Max. tonne t |
Weight kg |
| 110-01 | 923753 | 50 | 2 | 50 | 2 | 10 | 0,5 | 0.265 |
| 110-02 | 923760 | 80 | 3 3/16 | 50 | 2 | 10 | 1 | 0.31 |
| 110-1 | 923777 | 100 | 3 7/8 | 100 | 3 7/8 | 17 | 4 | 1.18 |
| 110-10 | 923784 | 120 | 4 3/4 | 100 | 3 7/8 | 17 | 2 | 1.255 |
| 110-2 | 923791 | 160 | 6 3/8 | 150 | 5 7/8 | 19 | 5 | 2.46 |
| 110-20 | 923807 | 200 | 7 7/8 | 150 | 5 7/8 | 19 | 4 | 2.645 |
| 110-3 | 923814 | 250 | 9 7/8 | 200 | 7 7/8 | 22 | 6 | 4.88 |
| 110-4 | 956317 | 350 | 13 3/4 | 250 | 9 7/8 | 22 | 7 | 6.21 |
