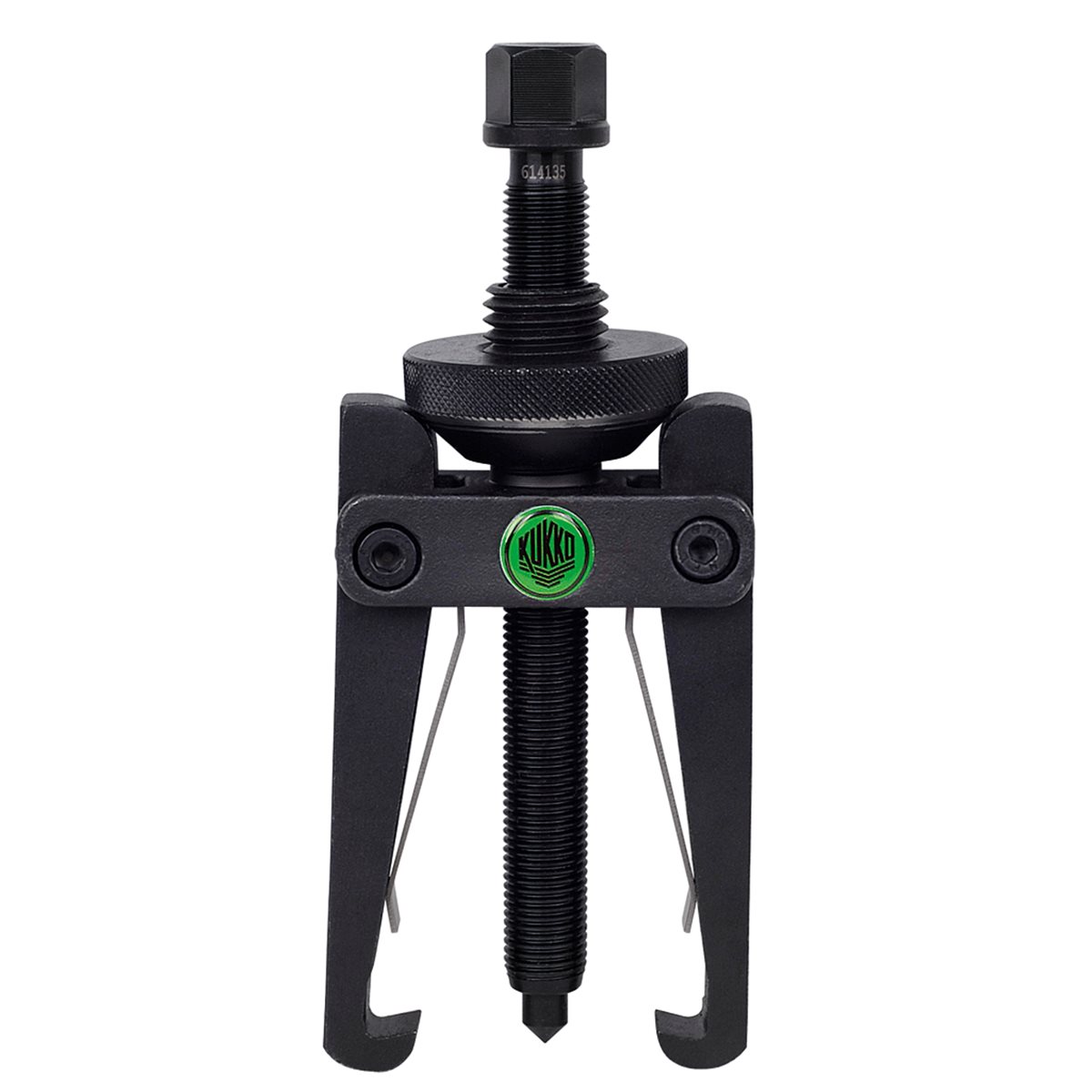

Kukko 112-10 2-Arm Bearing Puller 65X70 Mm S kf Standard Type
Product number:
1932699
Manufacturer no.:
112-10
EAN:
4021176418891
Weight in kg:
0.46
Product information "Kukko 112-10 2-Arm Bearing Puller 65X70 Mm S kf Standard Type"
Kukko 112-10 2-jaw puller for roller bearings, swedish model
For removing bearings, gears, discs, etc.
Description
- Standard pulling hook.
- Automatic self-centering pulling hooks.
- Two-arm design for space-saving operation.
- Mechanical pressure screw.
- Milled thread treated with special coating.
Advantage
- Quick adjustment of the spread by a knurled cone.
- Spindle head band prevents the wrench from slipping off.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
- Quality made in Germany.
- Strong design, high performance and long service life.
- Safety label to ensure protection of intellectual property.
- A tube of KUKKO special grease included for pressure spindle.
Series 112
| Item no. | EAN 4021176 |
Clamping reach outside mm |
Clamping reach outside inch |
Clamping depth mm |
Clamping depth inch |
Hex drive size mm |
Max. tonne t |
Max. torque Nm |
Weight kg |
| 112-1 | 418143 | 55 | 2 3/16 | 45 | 1 3/4 | 8 | 1,5 | 25 | 0.405 |
| 112-10 | 418891 | 65 | 2 5/8 | 70 | 2 3/4 | 8 | 1,5 | 25 | 0.46 |
| 112-2 | 419218 | 90 | 4 | 70 | 2 3/4 | 17 | 3 | 55 | 0.86 |
| 112-20 | 420283 | 100 | 3 7/8 | 100 | 3 7/8 | 17 | 3 | 55 | 0.945 |
| 112-3 | 420368 | 185 | 7 1/4 | 165 | 6 1/2 | 17 | 4 | 65 | 2.17 |
