Kukko 113-3 3-Arm Bearing Pull. 185X165 Mm Sk f Standard Type
Product number:
1932710
Manufacturer no.:
113-3
EAN:
4021176422751
Weight in kg:
2.94
Product information "Kukko 113-3 3-Arm Bearing Pull. 185X165 Mm Sk f Standard Type"

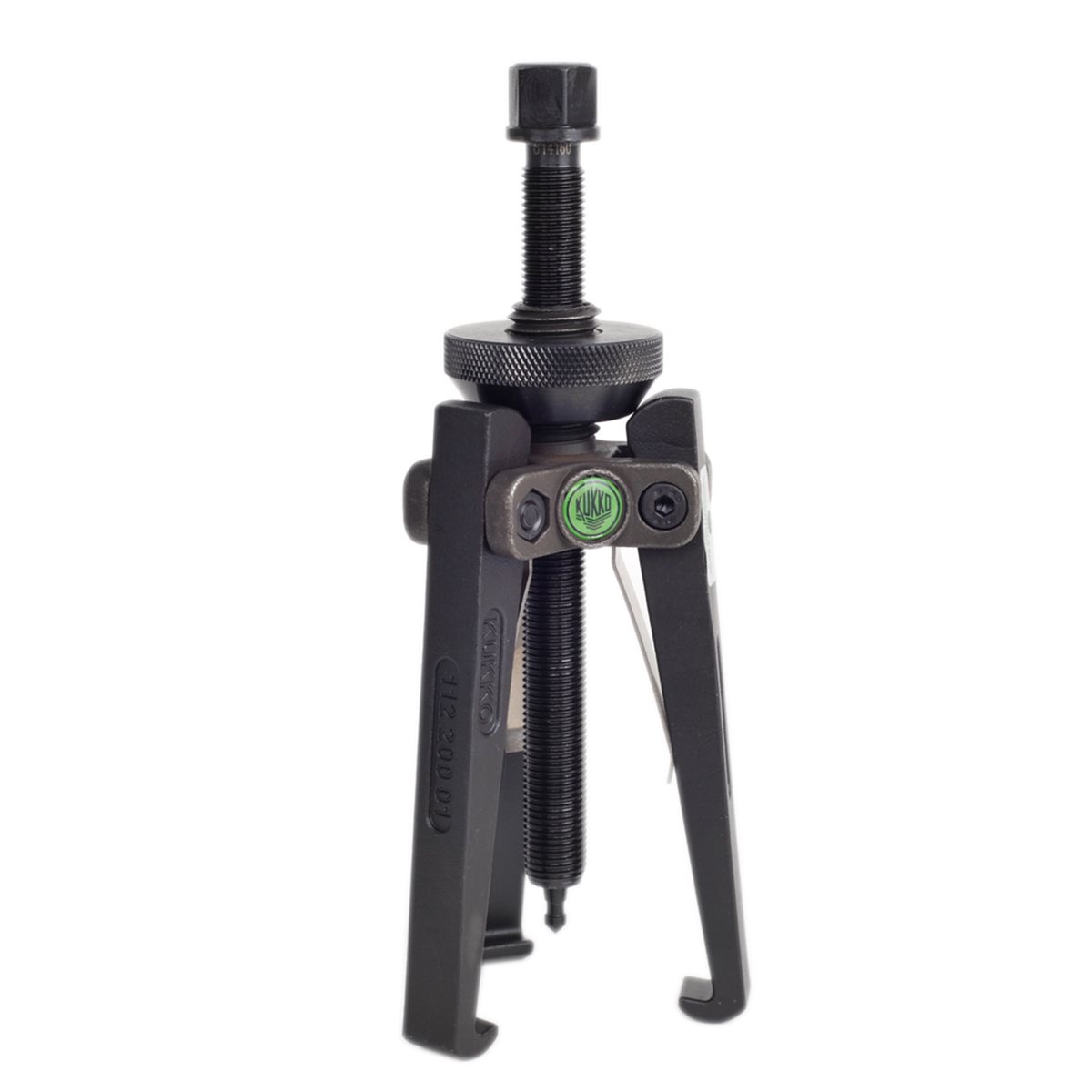

Kukko 113-3 3-jaw puller for roller bearings, swedish model
For removing bearings, gears, discs, etc.
Description
- Standard pulling hook.
- Automatic self-centering pulling hooks.
- The three-arm design ensures that the load is distributed evenly and that the part to be removed is held securely.
- Mechanical pressure screw.
- Milled thread treated with special coating.
Advantage
- Quick adjustment of the spread by a knurled cone.
- Spindle head band prevents the wrench from slipping off.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
- Quality made in Germany.
- Strong design, high performance and long service life.
- Safety label to ensure protection of intellectual property.
- A tube of KUKKO special grease included for pressure spindle.
Series 113
| Item no. | EAN 4021176 |
Clamping reach outside mm |
Clamping reach outside inch |
Clamping depth mm |
Clamping depth inch |
Hex drive size mm |
Max. tonne t |
Max. torque Nm |
Weight kg |
| 113-20 | 422423 | 125 | 4 7/8 | 100 | 3 7/8 | 17 | 3 | 45 | 1.23 |
| 113-3 | 422751 | 185 | 7 1/4 | 165 | 6 1/2 | 17 | 4 | 60 | 2.94 |
Product Safety and Downloads
Documents and datasheets
Product safety information
Manufacturer
KUKKO Werkzeugfabrik
Kleinbongartz & Kaiser oHG
Heinrich-Hertz-Straße 5
40721 Hilden
Germany
