Kukko 120-3 2-Arm Univ. Puller 250X200 Mm One-Piec e Self-Lock. Arm Type
Product number:
1932726
Manufacturer no.:
120-3
EAN:
4021176918711
Weight in kg:
3.84
Product information "Kukko 120-3 2-Arm Univ. Puller 250X200 Mm One-Piec e Self-Lock. Arm Type"

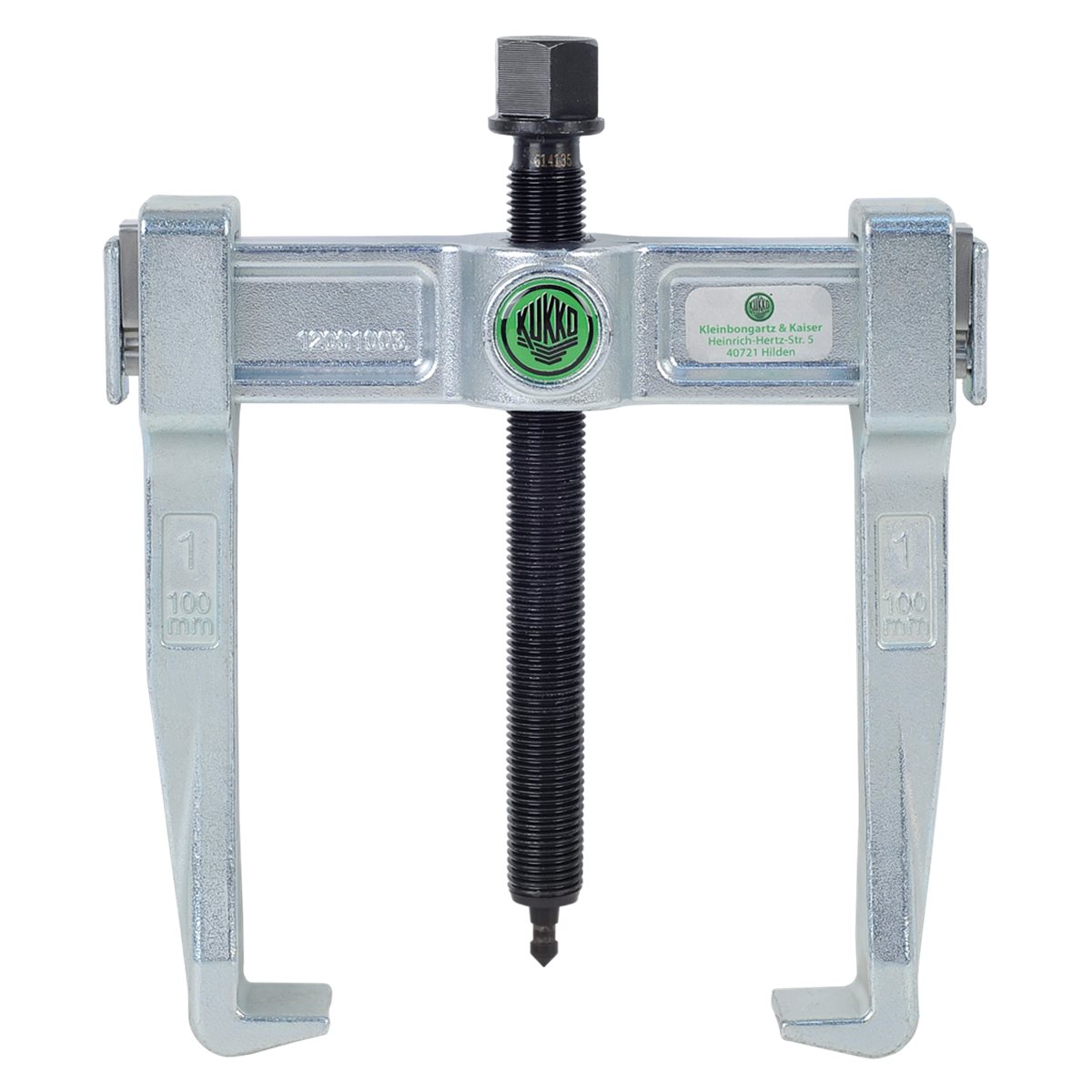

Kukko 120-3 Universal 2-jaw puller "Vario"
Description
- Standard pulling hook.
- The end stop protects the hook from slipping off the cross-beam.
- Pulling hooks with infinitely variable adjustment on the cross-beam.
- Two-arm design for space-saving operation.
- Mechanical pressure screw.
- Exchangeable spindle top.
- Milled thread treated with special coating.
- If there is adequate free space around the part to be removed, we recommend using a 3-jaw puller.
Use

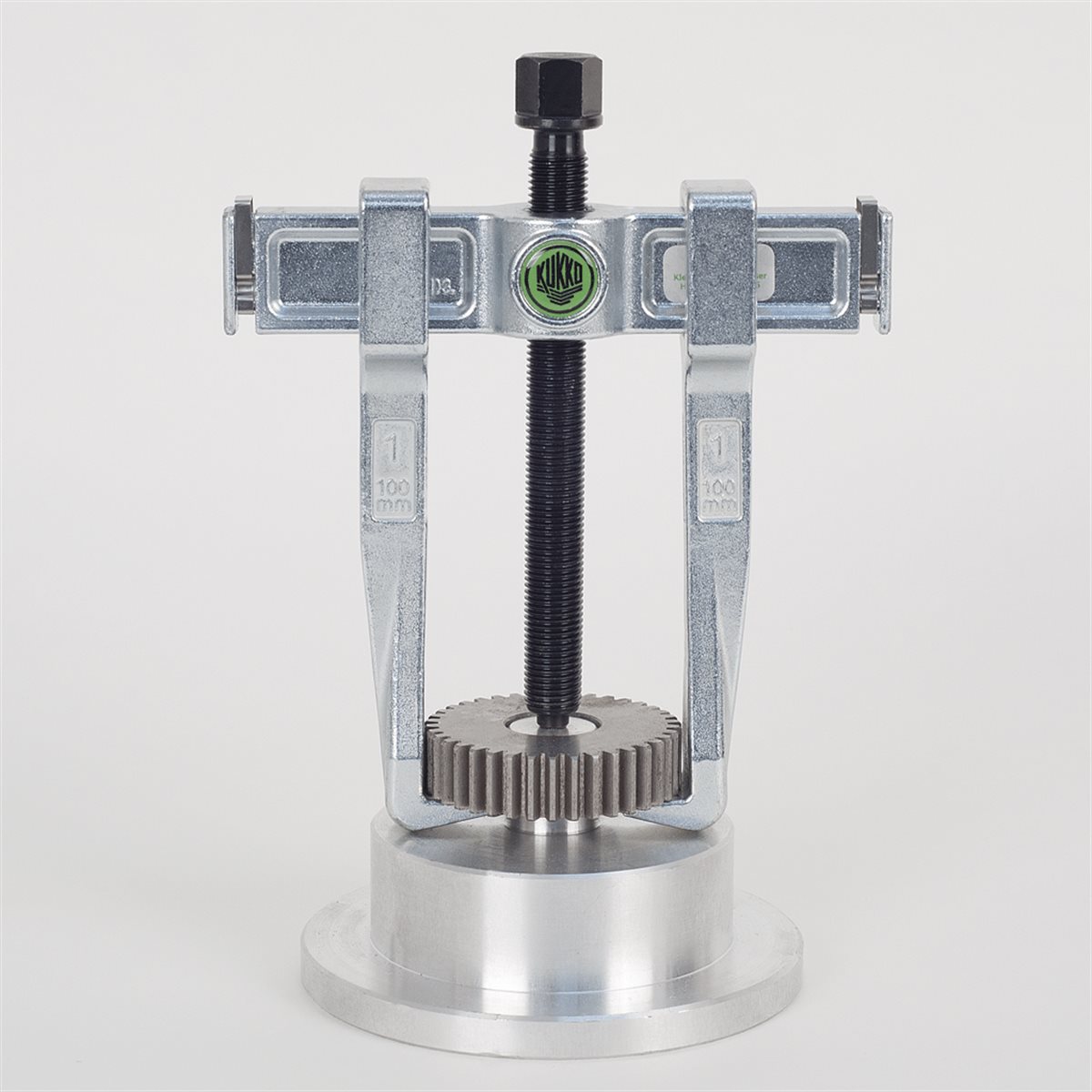

- For removing bearings, gears, discs, etc.
Advantage
- Quick change or turning of the pulling jaws by depressing the end stop.
- Turning the pulling hooks enables them to be used both internally and externally.
- Suitable for pulling asymmetric workpieces.
- Spindle head band prevents the wrench from slipping off.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
- Quality made in Germany.
- Strong design, high performance and long service life.
- Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
- Safety label to ensure protection of intellectual property.
- A tube of KUKKO special grease included for pressure spindle.
Series 120
| Item no. | EAN 4021176 |
Clamping reach outside mm |
Clamping reach outside inch |
Clamping depth mm |
Clamping depth inch |
Hex drive size mm |
Max. tonne t |
Weight kg |
| 120-1 | 918551 | 100 | 3 7/8 | 100 | 3 7/8 | 17 | 3 | 1.06 |
| 120-10 | 918599 | 125 | 4 7/8 | 100 | 3 7/8 | 17 | 3 | 1.16 |
| 120-2 | 918636 | 150 | 5 7/8 | 150 | 5 7/8 | 17 | 3 | 1.28 |
| 120-20 | 918674 | 200 | 7 7/8 | 150 | 5 7/8 | 17 | 3 | 3.005 |
| 120-3 | 918711 | 250 | 9 7/8 | 200 | 7 7/8 | 24 | 3 | 3.84 |
| 120-30 | 918759 | 350 | 13 3/4 | 200 | 7 7/8 | 24 | 4 | 5.025 |
