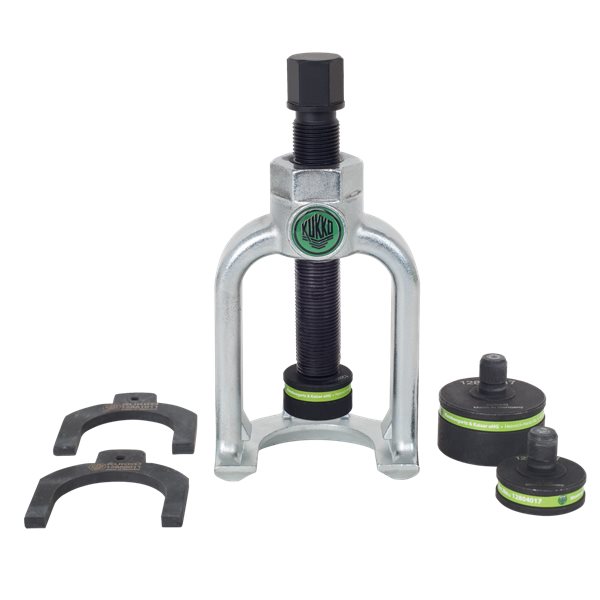

Kukko 128-T-4 Ball Joint Extractor 40 Mm Mercedes Type

Product information "Kukko 128-T-4 Ball Joint Extractor 40 Mm Mercedes Type "

Kukko Universal KUKKO system for ball joint repairs



Description

  • Bell-shaped design
  • Direct pressure on the ball pin
  • Ideal if enough space is available
  • Working without damage
  • The tool was specifically developed for uses on the VW T4.
  • Two additional insertion plates of 40 mm and 46 mm are included.
  • For installation and removal of ball joints.
  • A torque wrench is recommended for the drive

Use

  • For assembly and disassembly of ball joints on the T4.

Advantage

  • Saves a lot of time when replacing suspension joints.

How it works

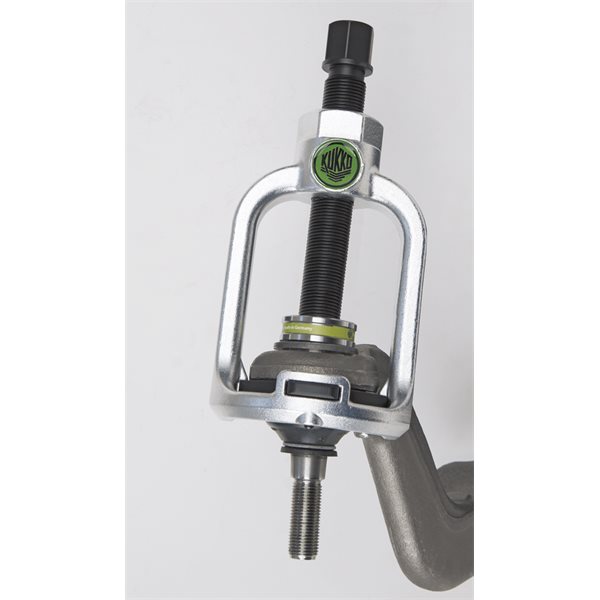

  • Use in disassembly
  • 1. Ensure free access to the ball joint.
  • 2. Remove the retaining ring.
  • 3. Insert the appropriate pressure pad for the ball joint, either (12803617) or (12804017).
  • 4. Position the puller body on the transverse control arm. Possibly adjust the size with insertion plates.
  • 5. Push the ball joint out by tightening the spindle.

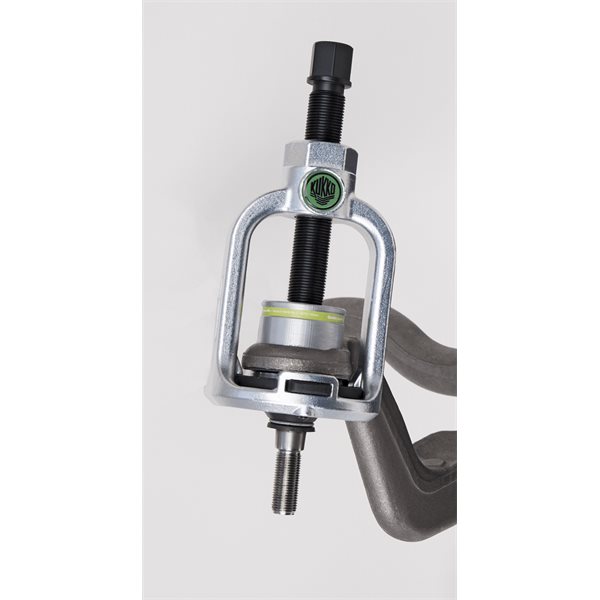

  • Use in assembly
  • 1. Before assembly, clean the mounting on the transverse control arm.
  • 2. Insert the pressure pad (12805217) into the spindle.
  • 3. Insert the appropriate insertion plate (12851011 or 12855011) into the puller body.
  • 4. Position the new ball joint on the transverse control arm.
  • 5. Position the body and pull in the ball joint by tightening the spindle.
  • Warning! Don‘t forget the new retaining ring!

Safety information

  • Do not use any electrical or pneumatic servo screwdrivers or hammer drills.
  • Protective blanket required.
  • Protective goggles required.
