Kukko 129-4-H Ball Joint Ectractor 40 Mm With Hydraulic Ram 15 Tons
Product number:
1932787
Manufacturer no.:
129-4-H
EAN:
4021176803666
Weight in kg:
4.18
Product information "Kukko 129-4-H Ball Joint Ectractor 40 Mm With Hydraulic Ram 15 Tons"
Kukko Ball joints extractor with short hydraulic spindle
Description
- Grease hydraulics.
- Simple adjustment of clamping depths thanks to spring mechanism.
- Hydraulic and mechanical pressure screw.
- Milled thread treated with special coating.
- Made from sturdy, alloyed, hardened and tampered steel, galvanized.
Use
- For extracting particularly tight ball pins when dismantling ball joints, track-rod ends on track rods, for medium-sized heavy goods vehicles, buses and construction vehicles.
Advantage
- Little force required for a strong pulling performance.
- Piston functions on the axis and does not turn in the hydraulic spindle.
- Spindle head band prevents the wrench from slipping off.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
How it works
- Screw the upper spindle together before use.
- Insert the pressure piece onto the pressure bolt.
- Screw the hydraulic spindle into the body.

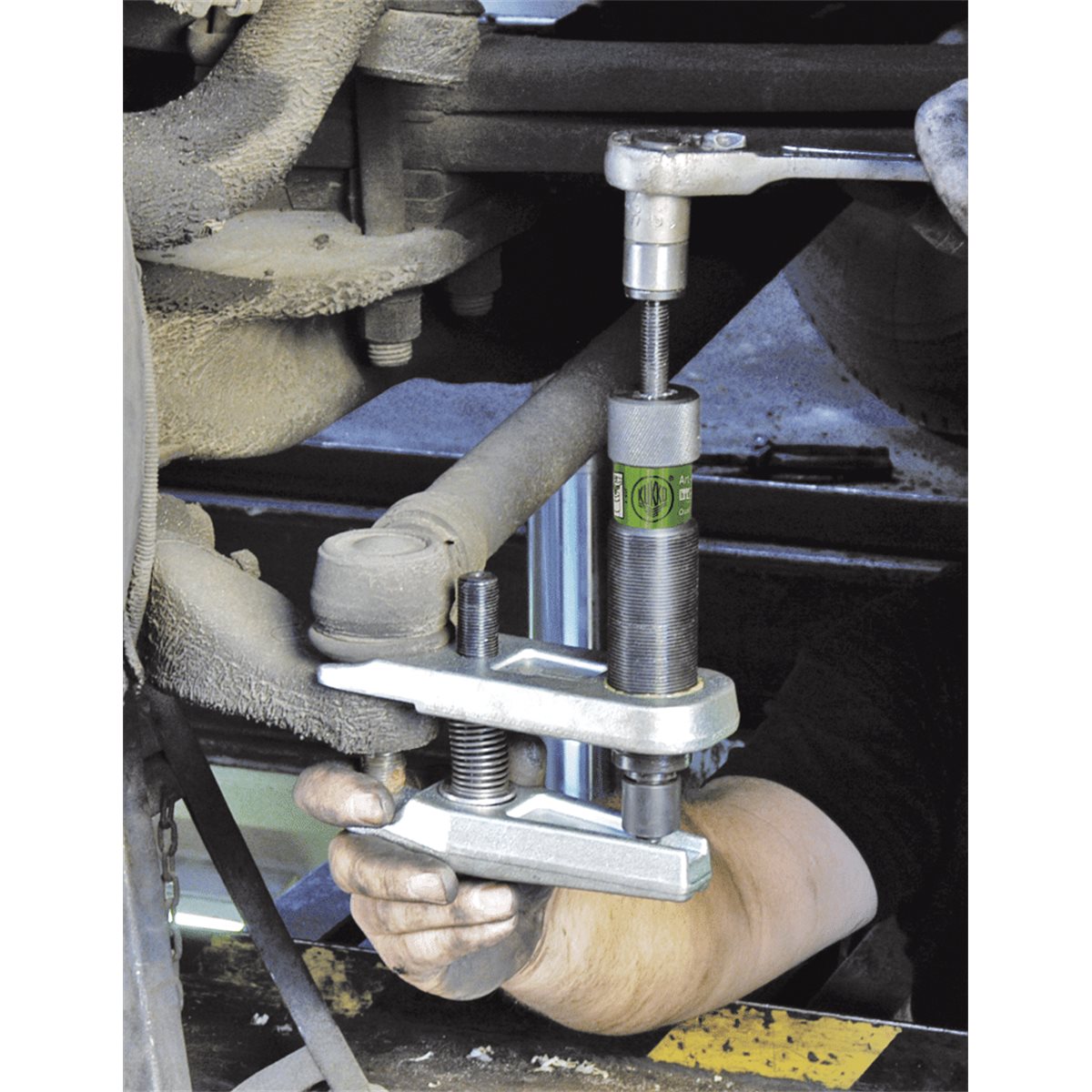

- Position the puller clamp by pressing on the spring, slide it between the ball joint and operate the pressure spindle.
Safety information
- Observe max. torque.
- Do not use any electrical or pneumatic servo screwdrivers or hammer drills.
- Protective blanket required.
- Protective goggles required.
