Kukko 129-5-50-H10 Hydraulischer Spur- Und Schubst angengelenkabzieher - Ausdrücker Mit 10 Tonnen Ma

Product information "Kukko 129-5-50-H10 Hydraulischer Spur- Und Schubst angengelenkabzieher - Ausdrücker Mit 10 Tonnen Ma"

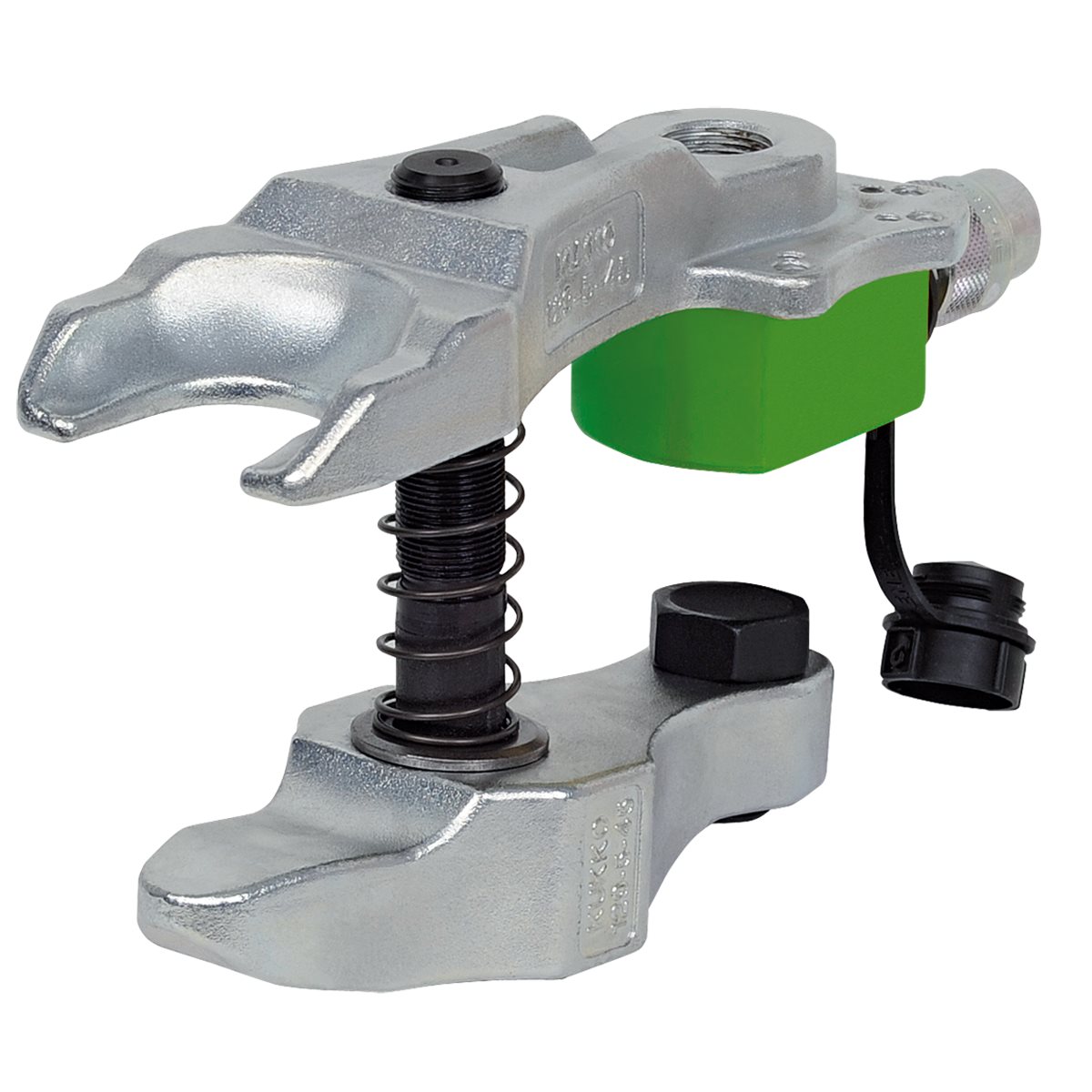

Kukko Tie and connecting rod joint puller with hydraulic lift cylinder



Description

    • High performance is guaranteed by the extra-powerful design of the basic body and reinforced fork.
    • Heavy duty version for hydraulic extraction and separation of the ball joints on the connecting rods and steering tie rods.
    • Hydraulic cylinder.
    • Milled thread treated with special coating.


Use

    • Used for hydraulic extraction of ball pins when dismantling ball joints on push and tie rods.


Advantage

    • The hydraulic extractors (129-5-50-H10 and 129-5-50- H20) are driven by a hydraulic cylinder, which ensures controlled and safe operations.
    • They use the entire performance range of the puller, well beyond the possibilities of a mechanical pressure screw.
    • Simple adjustment of clamping depths thanks to spring mechanism.
    • Continuously adjustable clamping widths.
    • Little force required for a strong pulling performance.


How it works

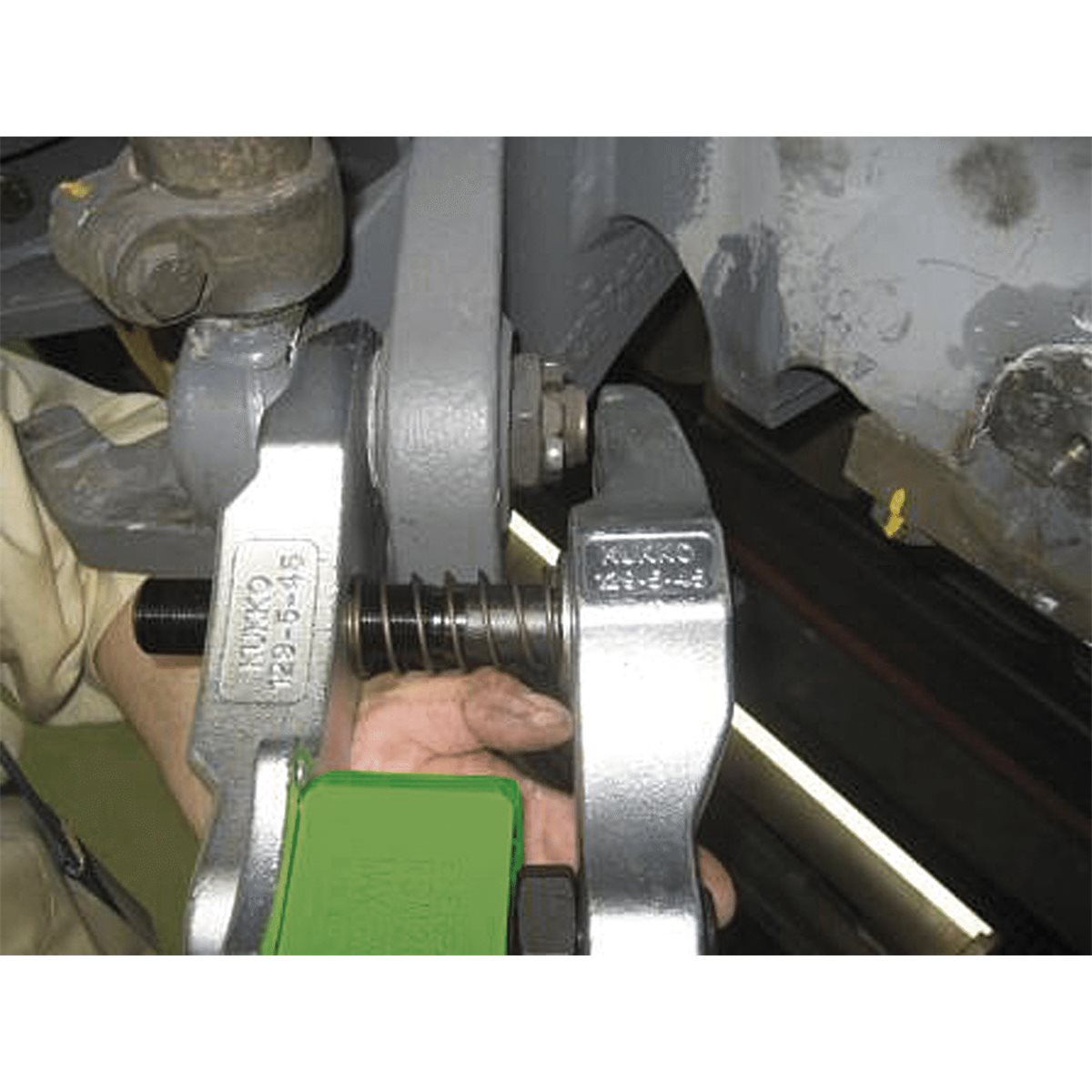

    • Position the puller clamp by pressing on the spring, slide it between the ball joint, and operate the hydraulics.
    • To drive the hydraulic cylinder with the 3/8 high flow coupling box use the YHP-325 series
    • Preposition the extractor at the right height, preload the anvil and then activate the hydraulics/pressure spindle.


Safety information

    • Do not use any electrical or pneumatic servo screwdrivers or hammer drills.
    • Protective blanket required.
    • Protective goggles required.

Product Safety and Downloads

Documents and datasheets

Product safety information

Manufacturer

KUKKO Werkzeugfabrik
Kleinbongartz & Kaiser oHG
Heinrich-Hertz-Straße 5
40721 Hilden
Germany
