Kukko 14-2 2-Arm Puller W. Slender Claws For Ø 10- 140 X 125 Mm
Product number:
1932841
Manufacturer no.:
14-2
EAN:
4021176248443
Weight in kg:
1.06
Product information "Kukko 14-2 2-Arm Puller W. Slender Claws For Ø 10- 140 X 125 Mm"

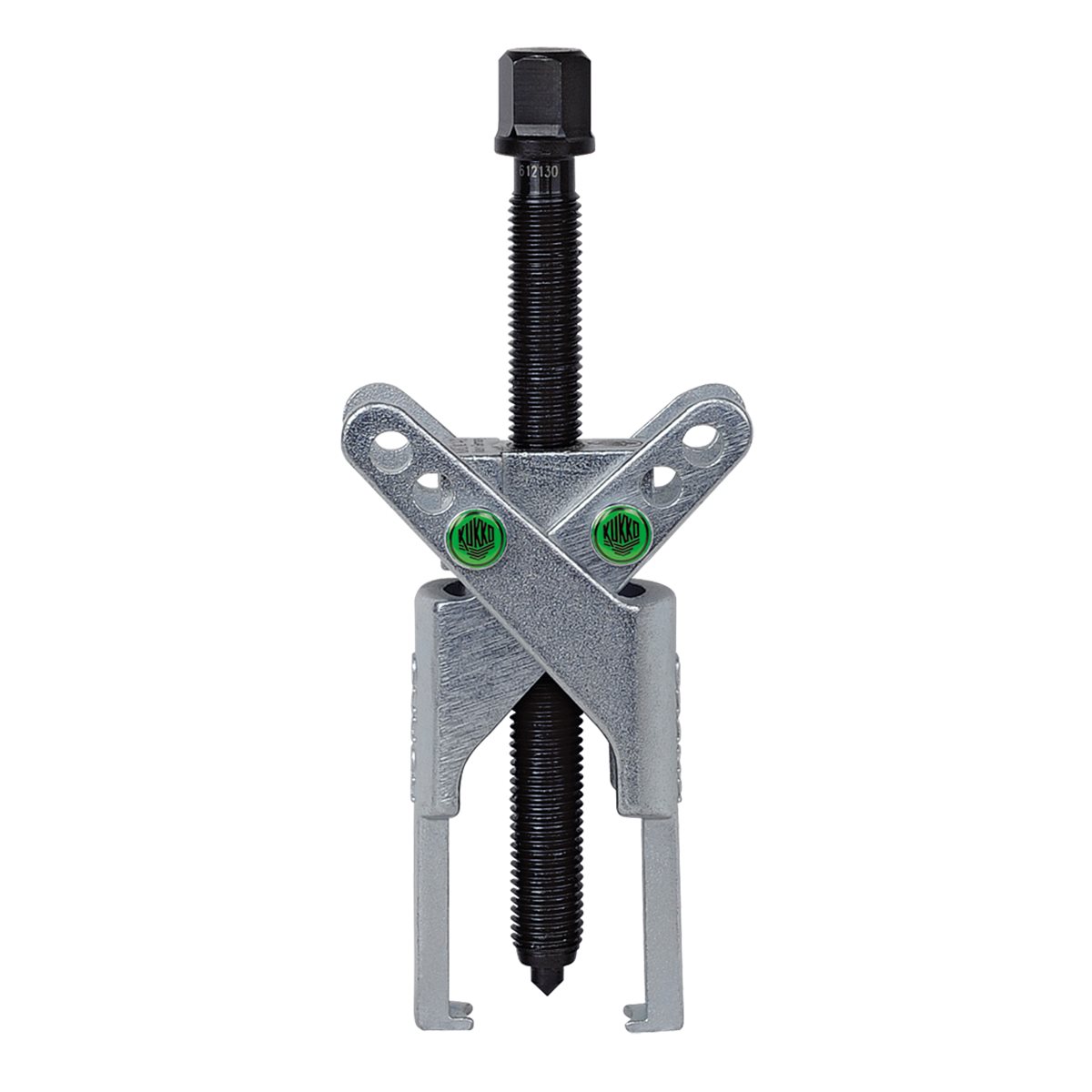

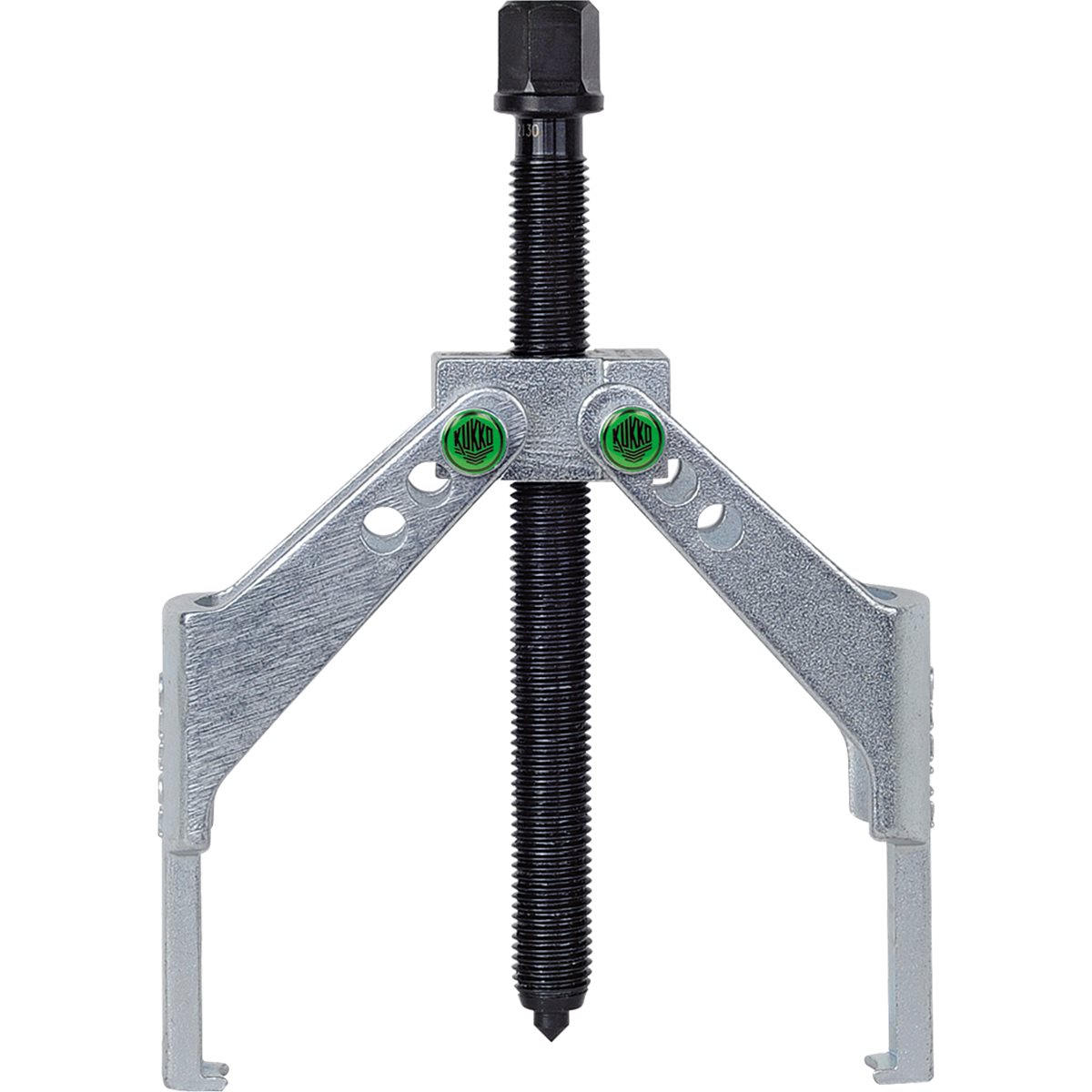

Kukko 14-2 2-jaw puller with quick adjusting capability and T-jaws with claw feet
For tight spaces when pulling sprockets, bearings and similar parts.
Description
- Shears - pulling hooks.
- Parallel pulling hooks in every position, even with full load.
- Mechanical pressure screw.
- Milled thread treated with special coating.
Advantage
- Self-securing locking pins do not fall out during work.
- Clamping widths and depths can be selected on an individual basis.
- Puller is self-tensioning and easy to handle.
- Extremely high clamping width range thanks to variable assembly of puller arms.
- Shear-style hook design presses the claw-style feet when pulling the part to be removed.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
- Quality made in Germany.
- Strong design, high performance and long service life.
- Safety label to ensure protection of intellectual property.
- A tube of KUKKO special grease included for pressure spindle.
Series 14
| Item no. | EAN 4021176 |
Clamping reach outside mm |
Clamping reach outside inch |
Clamping depth mm |
Clamping depth inch |
Hex drive size mm |
Max. tonne t |
Max. torque Nm |
Weight kg |
| 14-01 | 459559 | 6 - 100 | 1/4 - 3 7/8 | 85 | 3 3/8 | 13 | 1 | 30 | 0.45 |
| 14-03 | 460111 | 5 - 140 | 1/4 - 5 1/2 | 160 | 6 3/8 | 17 | 2 | 40 | 1.12 |
| 14-1 | 455421 | 6 - 100 | 1/4 - 3 7/8 | 85 | 3 3/8 | 13 | 2,5 | 50 | 0.475 |
| 14-2 | 248443 | 10 - 140 | 3/8 - 5 1/2 | 125 | 4 7/8 | 17 | 3,5 | 80 | 1.06 |
| 14-3 | 248511 | 15 - 140 | 5/8 - 5 1/2 | 160 | 6 3/8 | 17 | 4,5 | 100 | 1.28 |
