Kukko 15-00 Bearing Separator Ø 6- 40 Mm (M 6)

€76.95*

Content: 1 pcs

Available, delivery time: 2 working days

Available₁: 1 unit(s)

Stk

Product number: 1932854

Manufacturer no.: 15-00

EAN: 4021176101854

Weight in kg: 0.23

Product information "Kukko 15-00 Bearing Separator Ø 6- 40 Mm (M 6) "

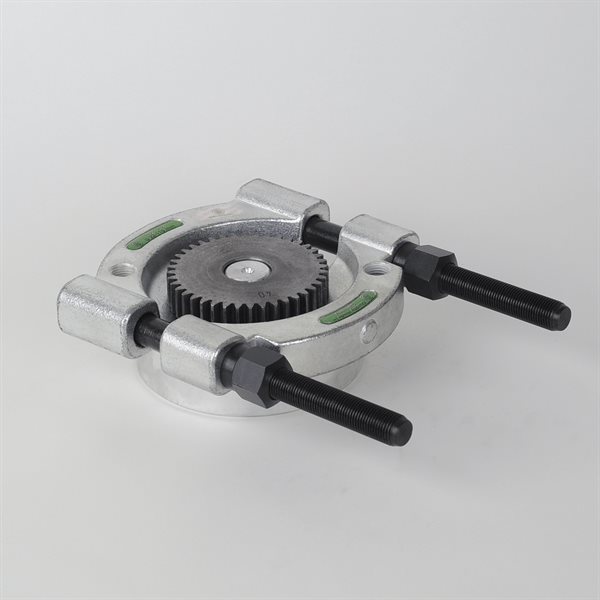

The sharp blades enable flush parts to be removed where pulling jaws cannot be used.
The wedge-shaped separator jaws are secured underneath the component to be removed.
The large supporting surfaces protect the parts to be pulled.
Mechanical pressure screw.

For removing ball bearings, roller bearings, inner races and other tight parts if there is not enough space to use pulling hooks.

Ultimate stability when removing, as the separator and pulling device are screwed firmly together.
Almost all components available as replacement parts, time-saving order process thanks to numbering system.

The flat surfaces of the separator blades are used to remove sensitive parts without damaging them. The separator blades provide a larger supporting surface to prevent the parts from twisting.

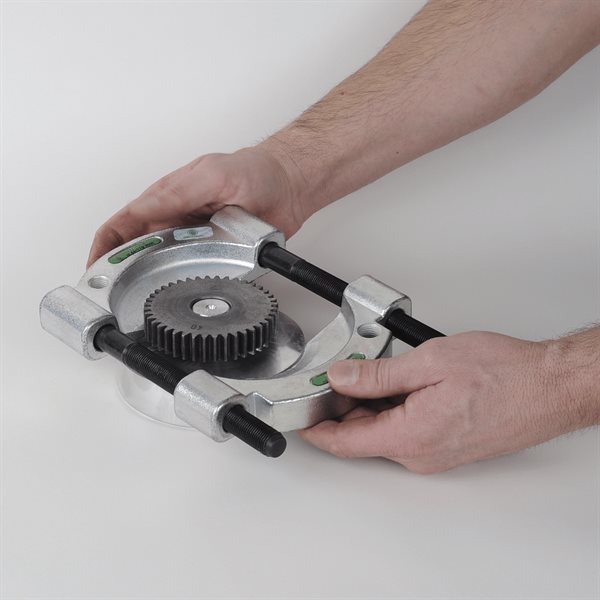

The wedge-shaped separator jaws are secured underneath the component to be removed.

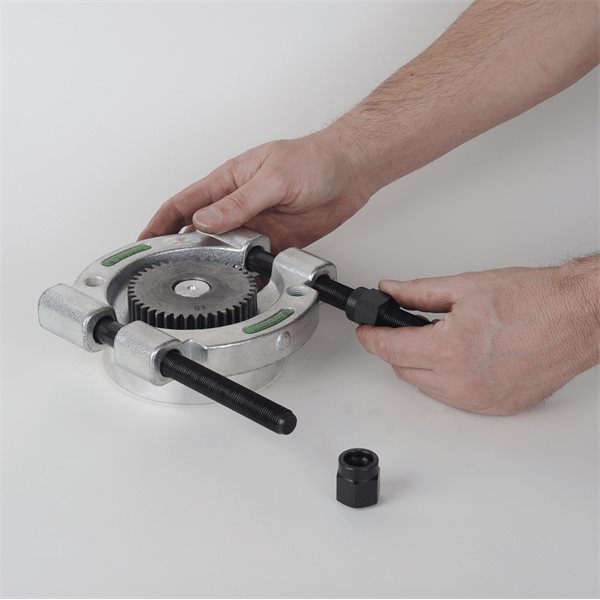

The separator jaws are clamped by tightening the nuts on the side bolts in equal measure.
For removal, the tension bolts on the pulling device series 18 have to be screwed into the separator.
The part is removed by tightening the spindle against the end of the shaft.

If several parts have to be removed, always follow a step-by-step process. Do not remove several parts at the same time.
The separator blades´ support surfaces must always sit fully beneath the part to be removed.
Do not use any electrical or pneumatic servo screwdrivers or hammer drills.
Protective blanket required.
Protective goggles required.
