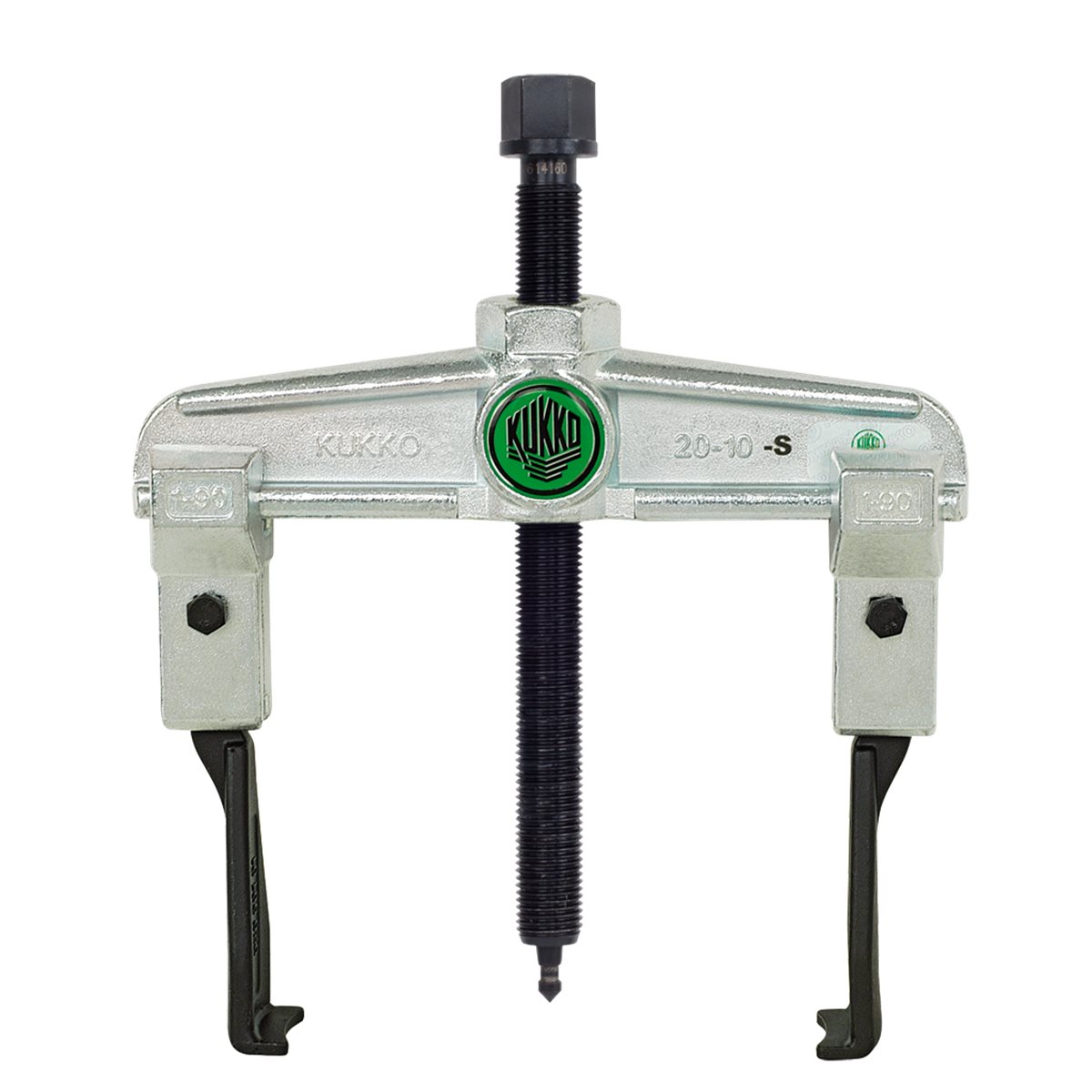

Kukko 20-1-S 2-Arm Univ. Puller 90X100 Mm W ith Arms For Confined-Spaces
Product number:
1932953
Manufacturer no.:
20-1-S
EAN:
4021176757396
Weight in kg:
1.24
Product information "Kukko 20-1-S 2-Arm Univ. Puller 90X100 Mm W ith Arms For Confined-Spaces "
Kukko Universal 2-jaw puller with narrow jaws
For removing bearings, gears, discs, etc. for tight or difficult-to-access spaces.
Description
- Thin pulling hooks.
- Parallel pulling hooks in every position, even with full load.
- Pulling hooks with infinitely variable adjustment on the cross-beam.
- Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
- Mechanical pressure screw.
- Milled thread treated with special coating.
- Two-arm design for space-saving operation.
Advantage
- The thin pulling hooks are suitable for narrow, difficult-to-access locations.
- Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
- Turning the pulling hooks enables them to be used both internally and externally.
- Suitable for pulling asymmetric workpieces.
- Spindle head band prevents the wrench from slipping off.
- Cross-beam with hexagonal profile for good grip.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
- Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
- Stability support from optional series 219 clamp.
Series 20-S
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
