Kukko 20-10+S-T 2-Arm Universal Abzieher 120X100mm mit Abzughaken für enge Räume + Schnellverstellun
Product number:
1932958
Manufacturer no.:
20-10+S-T
EAN:
4021176321368
Weight in kg:
1.35
Product information "Kukko 20-10+S-T 2-Arm Universal Abzieher 120X100mm mit Abzughaken für enge Räume + Schnellverstellun"

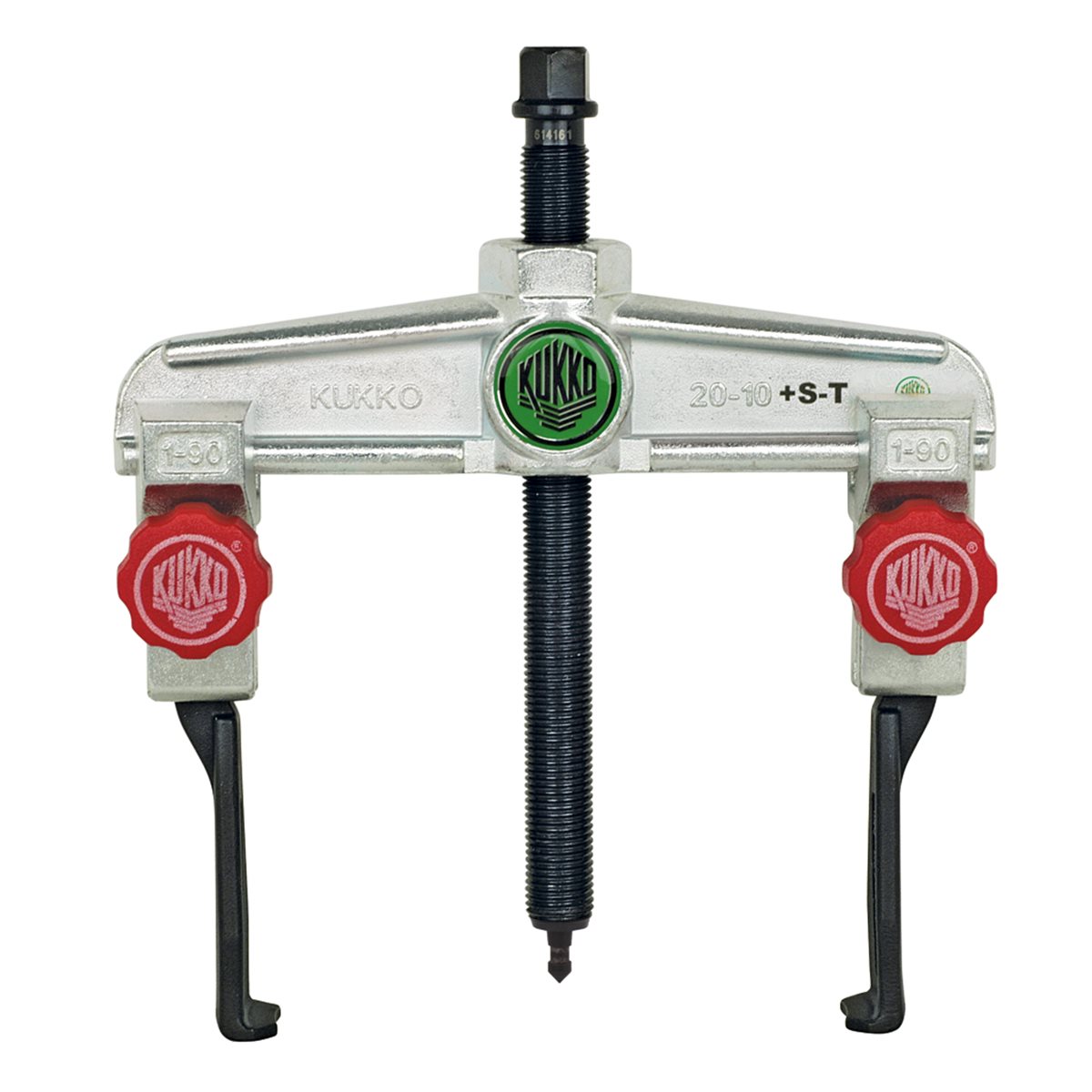

Kukko Universal 2-jaw puller wheel extremely narrow, quick adjusting jaws
For removing gears, bearings, sprockets, synchronizer bodies, etc., in tight or difficult-to-access spaces.
Description
- Extra-thin trapezoidal pulling hook with quick adjusting capability quick adjust.
- Parallel pulling hooks in every position, even with full load.
- Pulling hooks with infinitely variable adjustment on the cross-beam.
- Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
- Mechanical pressure screw.
- Milled thread treated with special coating.
- Two-arm design for space-saving operation.
- If there is adequate free space around the part to be removed, we recommend a 3-jaw puller series 30+S-T for optimal force distribution.
Advantage
- The narrow, trapezoidal pulling jaws are suitable for extremely narrow, difficult to access places.
- A manual adjustment knurl allows rapid loosening and adjusting of the extractor jaws on the cross-beam without using a wrench.
- Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
- Turning the pulling hooks enables them to be used both internally and externally.
- Suitable for pulling asymmetric workpieces.
- Spindle head band prevents the wrench from slipping off.
- Cross-beam with hexagonal profile for good grip.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
- Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
- Stability support from optional series 219 clamp.
KUKKO quality standards
- Quality made in Germany.
- Strong design, high performance and long service life.
- Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
- Safety label to ensure protection of intellectual property.
- A tube of KUKKO special grease included for pressure spindle.
Series 20+S-T
|
|||||||||||||||||||||||||||||||||||||
