Kukko 20-2 2-Arm Univ. Puller 160X150 Mm Sli ding Arm Type
Product number:
1932969
Manufacturer no.:
20-2
EAN:
4021176009501
Weight in kg:
3.01
Product information "Kukko 20-2 2-Arm Univ. Puller 160X150 Mm Sli ding Arm Type "

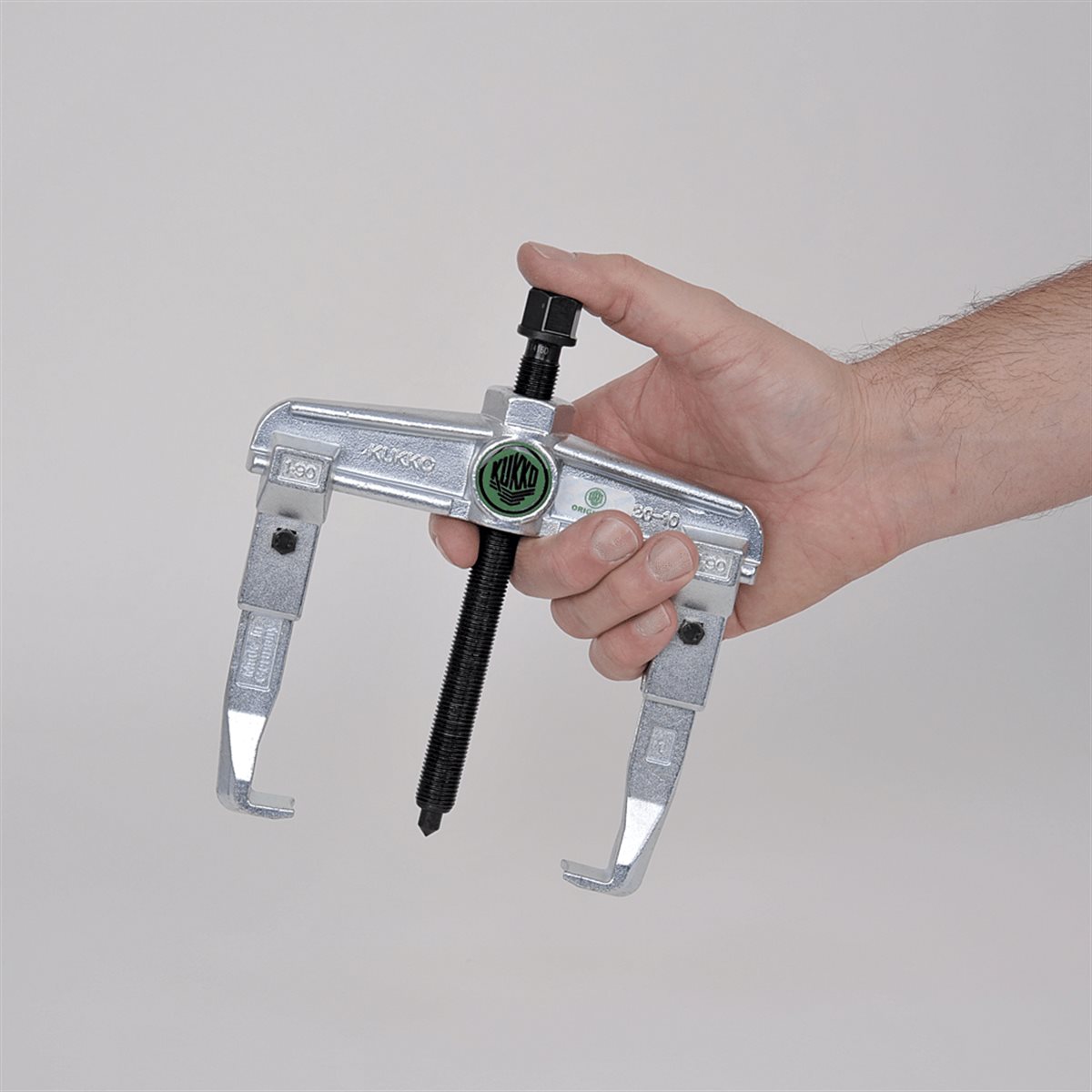

Kukko 2-jaw puller
Description
- Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
Use
- For removing bearings, gears, discs, etc.
Advantage
- Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
- Turning the pulling hooks enables them to be used both internally and externally.
- Suitable for pulling asymmetric workpieces.
- Spindle head band prevents the wrench from slipping off.
- Cross-beam, up to size -30, includes hexagonal profile for holding.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
- Hydraulic spindle series 8-0 for particularly tight parts, available from a particular puller size.
- Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.
- Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
- Stability support from optional series 219 clamp.
How it works

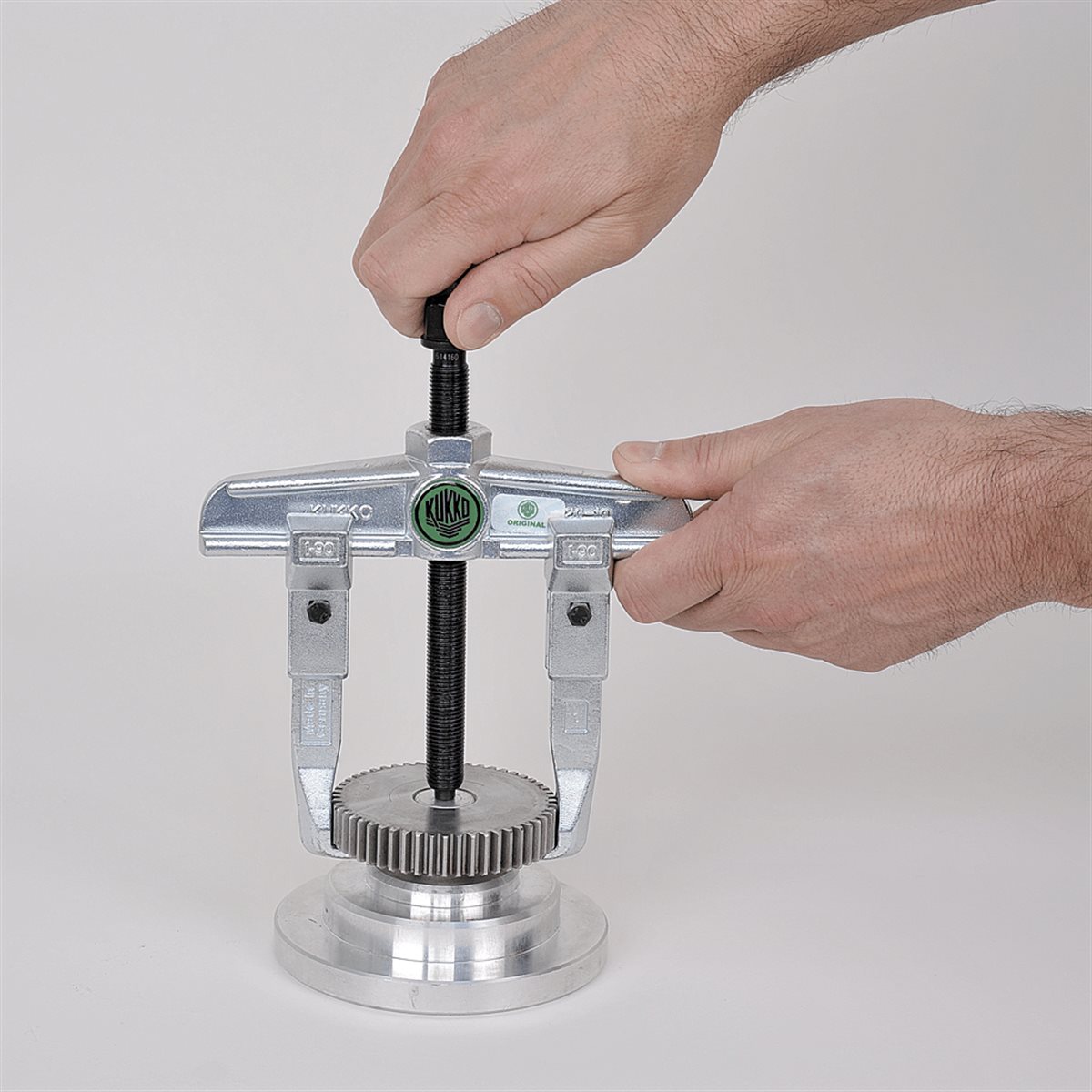

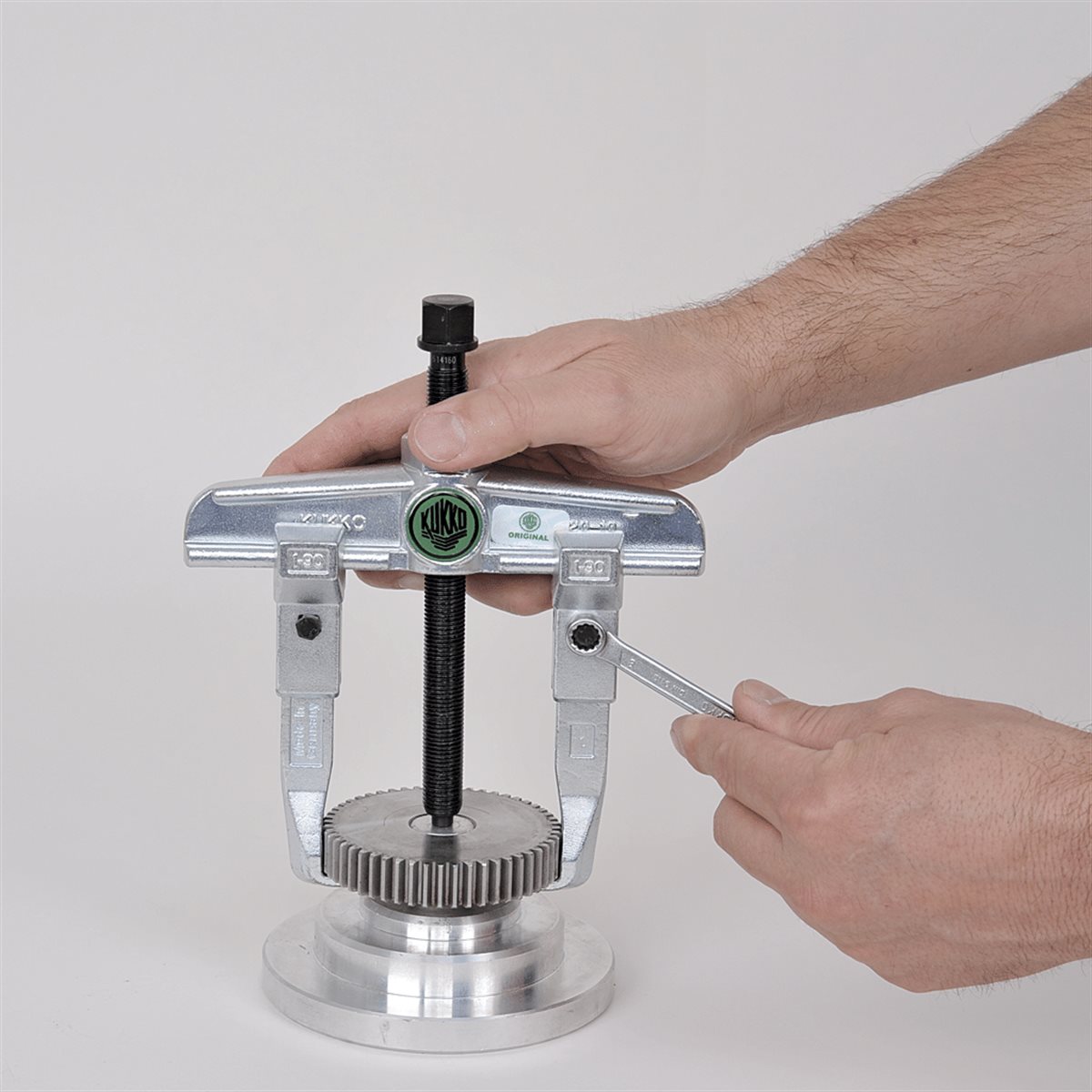

- The part due to be removed (e.g. a gear, pulley or ball bearing) is gripped from the outside. Tightening of the pressure screw and the resulting pressure removes the part from the shaft.
- The puller must be positioned centrally for centre shafts. If the shaft is not sitting centrally, the parts can be removed asymmetrically with pullers with parallel pulling hooks.
Safety information
- The pulling hooks´ sliding parts must always sit stably and fully on the cross-beam.
- If several parts have to be removed, always follow a step-by-step process. Do not remove several parts at the same time.
- The pulling hooks´ support surfaces must always be straight and sit fully beneath the part to be removed.
- Do not use any electrical or pneumatic servo screwdrivers or hammer drills.
- Protective blanket required.
- Protective goggles required.
