Kukko 20-20+ 2-Arm Univ. Puller 200X150 Mm Plus Qu ick-Adjusting

€259.95

Content: 1 pcs

/ 7

Delivery time 7 working days

Stk
Product number: 1932978
Manufacturer no.: 20-20+
EAN: 4021176645013
Weight in kg: 3.32

Product information "Kukko 20-20+ 2-Arm Univ. Puller 200X150 Mm Plus Qu ick-Adjusting"

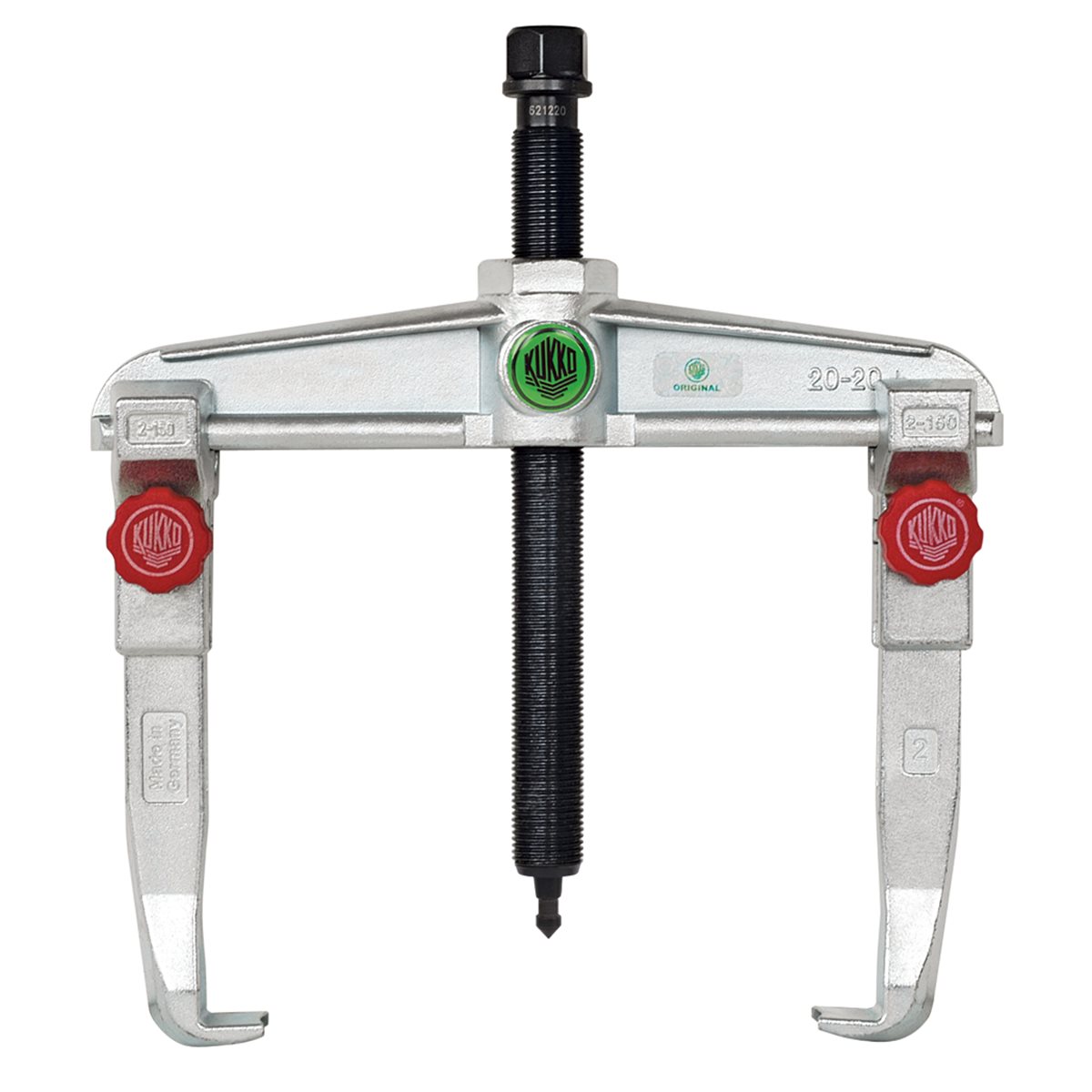

Kukko Universal 2-jaw puller with quick adjusting jaws

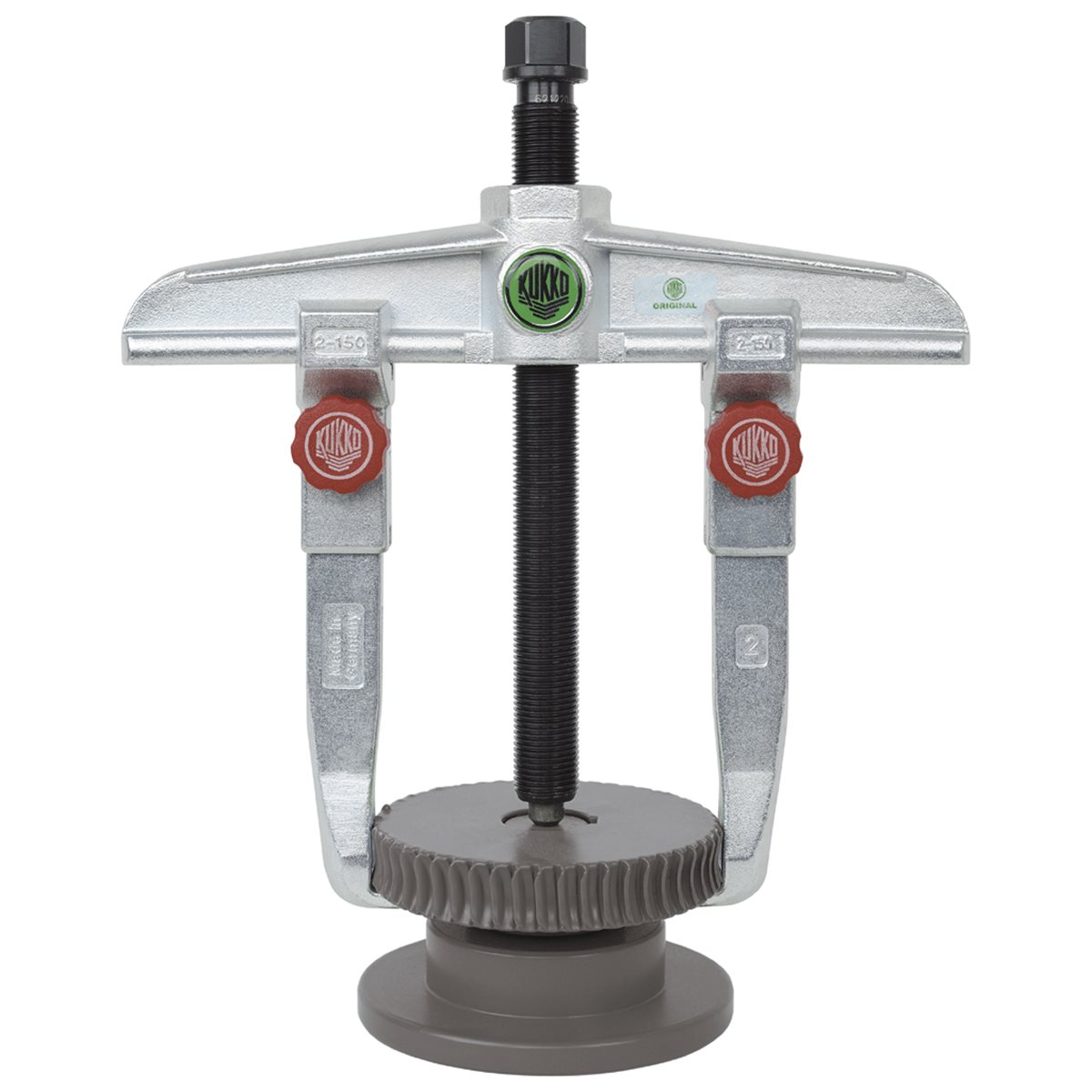

For removing bearings, gears, discs, etc.


Description

  • Standard pulling hook with quick adjusting capability quick adjust.
  • Parallel pulling hooks in every position, even with full load.
  • Pulling hooks with infinitely variable adjustment on the cross-beam.
  • Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
  • Mechanical pressure screw.
  • Milled thread treated with special coating.
  • Two-arm design for space-saving operation.


Advantage

  • A manual adjustment knurl allows rapid loosening and adjusting of the extractor jaws on the cross-beam without using a wrench.
  • Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
  • Turning the pulling hooks enables them to be used both internally and externally.
  • Suitable for pulling asymmetric workpieces.
  • Spindle head band prevents the wrench from slipping off.
  • Cross-beam with hexagonal profile for good grip.
  • Almost all components available as replacement parts, time-saving order process thanks to numbering system.
  • Hydraulic spindle series 8-0 for particularly tight parts, available from a particular puller size.
  • Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.
  • Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
  • Stability support from optional series 219 clamp.


KUKKO quality standards

  • Quality made in Germany.
  • Strong design, high performance and long service life.
  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
  • Safety label to ensure protection of intellectual property.
  • A tube of KUKKO special grease included for pressure spindle.


Series 20+

Item no. EAN
4021176		 Clamping reach
outside
mm		 Clamping reach
outside
inch		 Clamping depth
mm		 Clamping depth
inch		 Clamping reach
inside
mm		 Clamping reach
inside
inch		 Hex drive size
mm		 Max.
tonne
t		 Max.
torque
Nm		 Weight
kg
20-1+ 644771 90 3 1/2 100 3 7/8 70 - 140 2 3/4 - 5 1/2 17 4,5 80 1.27
20-10+ 644856 120 4 3/4 100 3 7/8 70 - 180 2 3/4 - 7 1/8 17 4,5 80 1.44
20-2+ 644931 160 6 3/8 150 5 7/8 100 - 220 3 7/8 - 8 5/8 22 6 150 3.045
20-20+ 645013 200 7 7/8 150 5 7/8 100 - 260 3 7/8 - 10 1/4 22 6 150 3.315
20-3+ 645198 250 9 7/8 200 7 7/8 180 - 340 7 1/8 - 13 3/8 27 8,5 300 7.05
20-30+ 645273 350 13 3/4 200 7 7/8 180 - 440 7 1/8 - 17 3/8 27 8,5 300 7.51
