Kukko 20-3-4-B 2-Arm Univ. Puller 250X400 Mm Slidi ng Arm Type With Hydraulic Screw 8-02
€735.95
Content:
1 pcs
/ 7
Delivery time 7 working days
Product number:
1932996
Manufacturer no.:
20-3-4-B
EAN:
4021176885877
Weight in kg:
11.34
Product information "Kukko 20-3-4-B 2-Arm Univ. Puller 250X400 Mm Slidi ng Arm Type With Hydraulic Screw 8-02 "

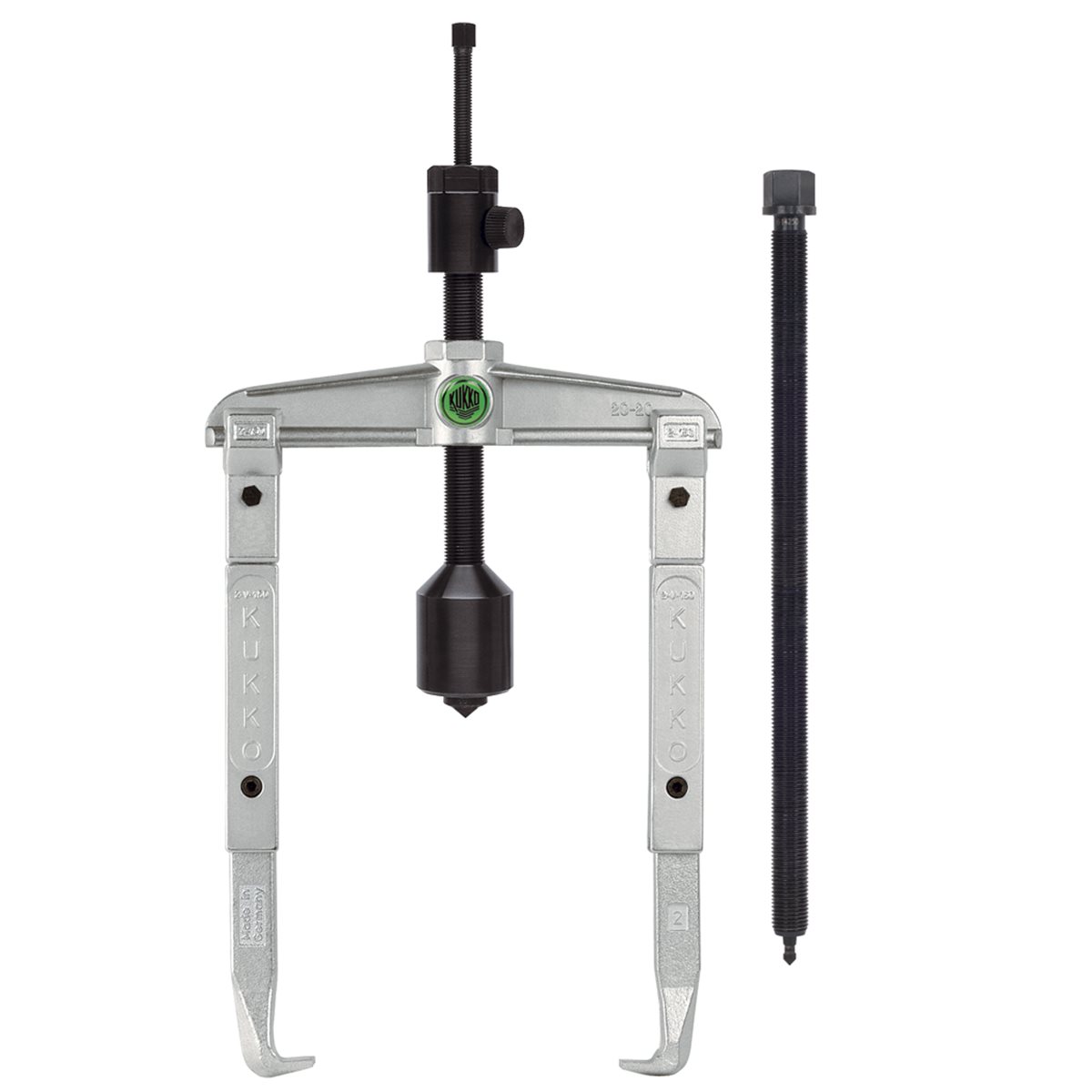

Kukko 2-jaw puller with hydraulic spindle and extended jaws (incl. Mech. spindle)
For pulling particularly tight bearings, gears, discs, etc.
Description
- Grease hydraulics.
- Extended standard puller hook.
- Parallel pulling hooks in every position, even with full load.
- Pulling hooks with infinitely variable adjustment on the cross-beam.
- Hydraulic and mechanical pressure screw.
- Milled thread treated with special coating.
- Two-arm design for space-saving operation.
Advantage
- Easy and even pulling for particularly tight parts.
- Optional conversion to various jaw types for mechanical use.
- Variable reach thanks to jaw extensions, available up to a puller size of -30.
- Turning the pulling hooks enables them to be used both internally and externally.
- Suitable for pulling asymmetric workpieces.
- Spindle head band prevents the wrench from slipping off.
- Cross-beam, up to size -30, includes hexagonal profile for holding.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
- Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
Series 20-B
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Safety and Downloads
Documents and datasheets
Product safety information
Manufacturer
KUKKO Werkzeugfabrik
Kleinbongartz & Kaiser oHG
Heinrich-Hertz-Straße 5
40721 Hilden
Germany
info@kukko.com
