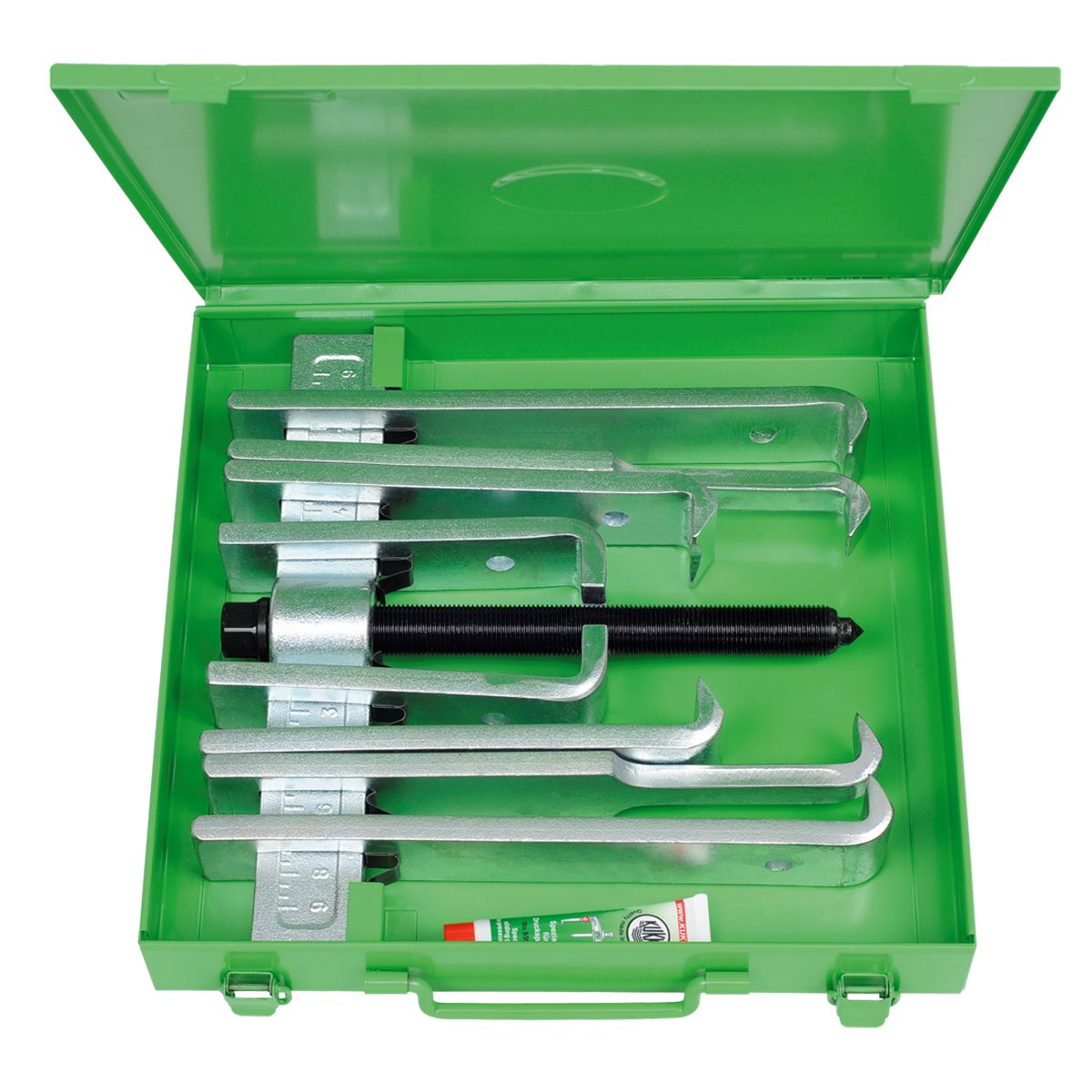

Kukko 200-UM 2-Arm Puller In Metal CaseW ith 8 Multi-Purpose Arms
Product number:
1933043
Manufacturer no.:
200-UM
EAN:
4021176025501
Weight in kg:
8.92
Product information "Kukko 200-UM 2-Arm Puller In Metal CaseW ith 8 Multi-Purpose Arms"
Kukko 200-UM Farm and workshop puller with jaws in varying lengths, in set with metal case
Description
- Four pairs of jaws for different jobs.
- Particularly suitable for agricultural machinery.
- Two-arm design for space-saving operation.
- Pulling hooks with infinitely variable adjustment on the cross-beam.
- Mechanical pressure screw.
- Milled thread treated with special coating.
Use
- For removing bearings, gears, discs, etc.
Advantage
- Versatile and economical.
- By simply turning the pulling jaws, they can be used both internally and externally.
- The pulling jaws can be connected with bolts (M10 / 3/8") up to a reach of 580 mm (23").
- Spindle head band prevents the wrench from slipping off.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
- Quality made in Germany.
- Strong design, high performance and long service life.
- Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
- Safety label to ensure protection of intellectual property.
- A tube of KUKKO special grease included for pressure spindle.
| Item no. | EAN 4021176 |
Clamping reach outside mm |
Clamping reach outside inch |
Clamping depth mm |
Clamping depth inch |
Hex drive size mm |
Weight
kg |
| 200-UM | 025501 | 250 | 9 7/8 | 80 - 180 | 3 3/16 - 7 1/8 | 22 | 8.92 |
