Kukko 22-5 Counterstay For 21-90
Product number:
1933398
Manufacturer no.:
22-5
EAN:
4021176012556
Weight in kg:
7.76
Product information "Kukko 22-5 Counterstay For 21-90 "
Kukko 22-5 Counterstay
Description
- The arms on the counter supports are easy-to-adjust thanks to an internal spring mechanism. (size 1 to 3)
- The counter support nuts' friction resistance is reduced to a minimum as a result of the built-in pressure bearing (size 2 to 5).
- Thanks to their support struts, sizes (4 and 5) counter struts are particularly suited for large ball bearings, etc., and ensure that the assembly remains stable during the extraction process.
- Mechanical pressure screw.
Use
- For use with series 21, series 21-E or series 22-1-AS.
Advantage
- The counter support can be combined with internal extractors and Kukko screw adapters.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
Series 22
| Art.Nr. | EAN 4021176 |
Spannweite Gegenstütze mm |
Spannweite Gegenstütze inch |
Spanntiefe Gegenstütze mm |
Spanntiefe Gegenstütze inch |
Max. zulässige Belastung t |
Gewicht kg |
| 22-1 | 012228 | 55 | 2 3/16 | 120 | 4 3/4 | 3 | 0.69 |

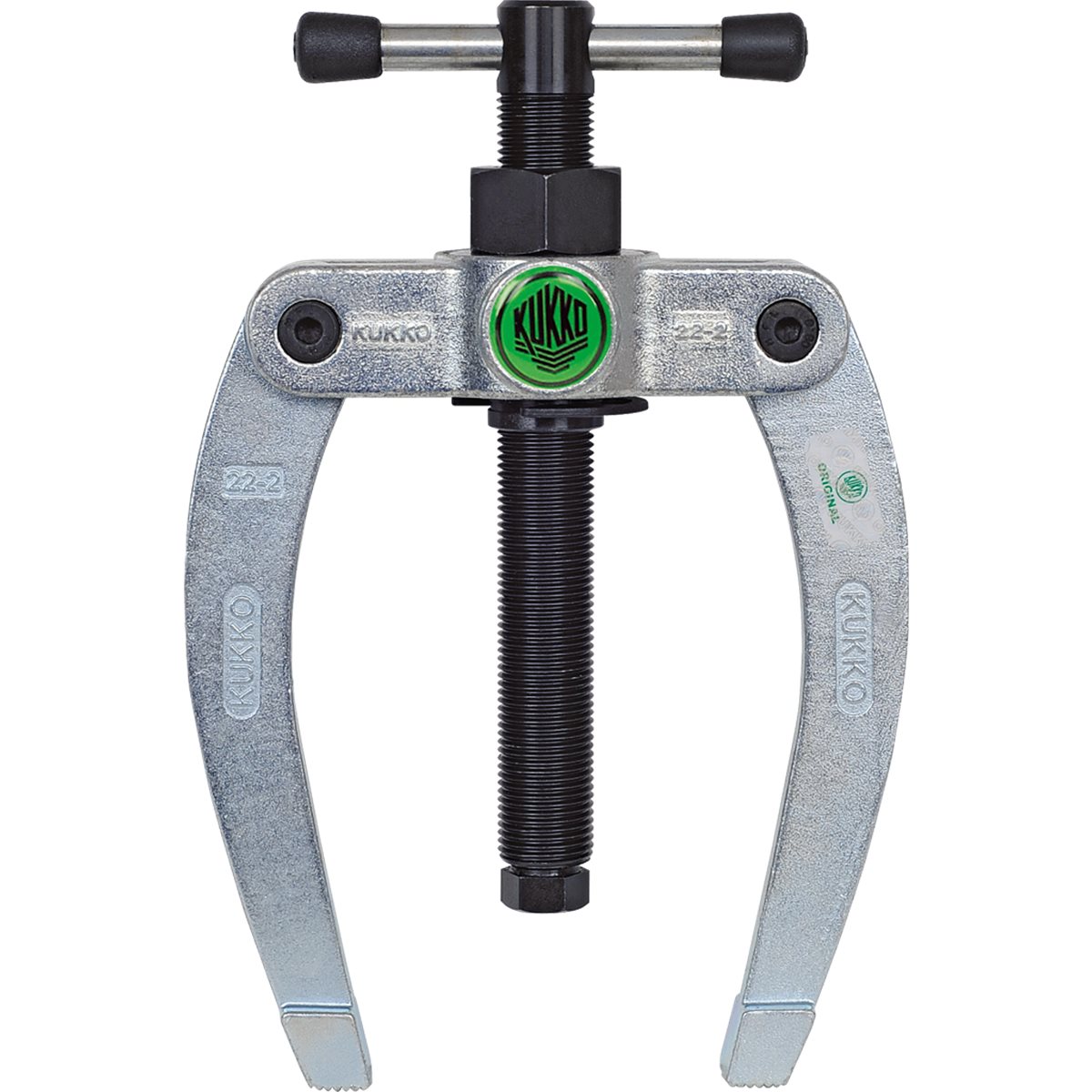

| 22-2 | 012303 | 100 | 165 | 4 | 1.873 | ||
| 22-3 | 012488 | 180 | 280 | 5 | 4 | ||

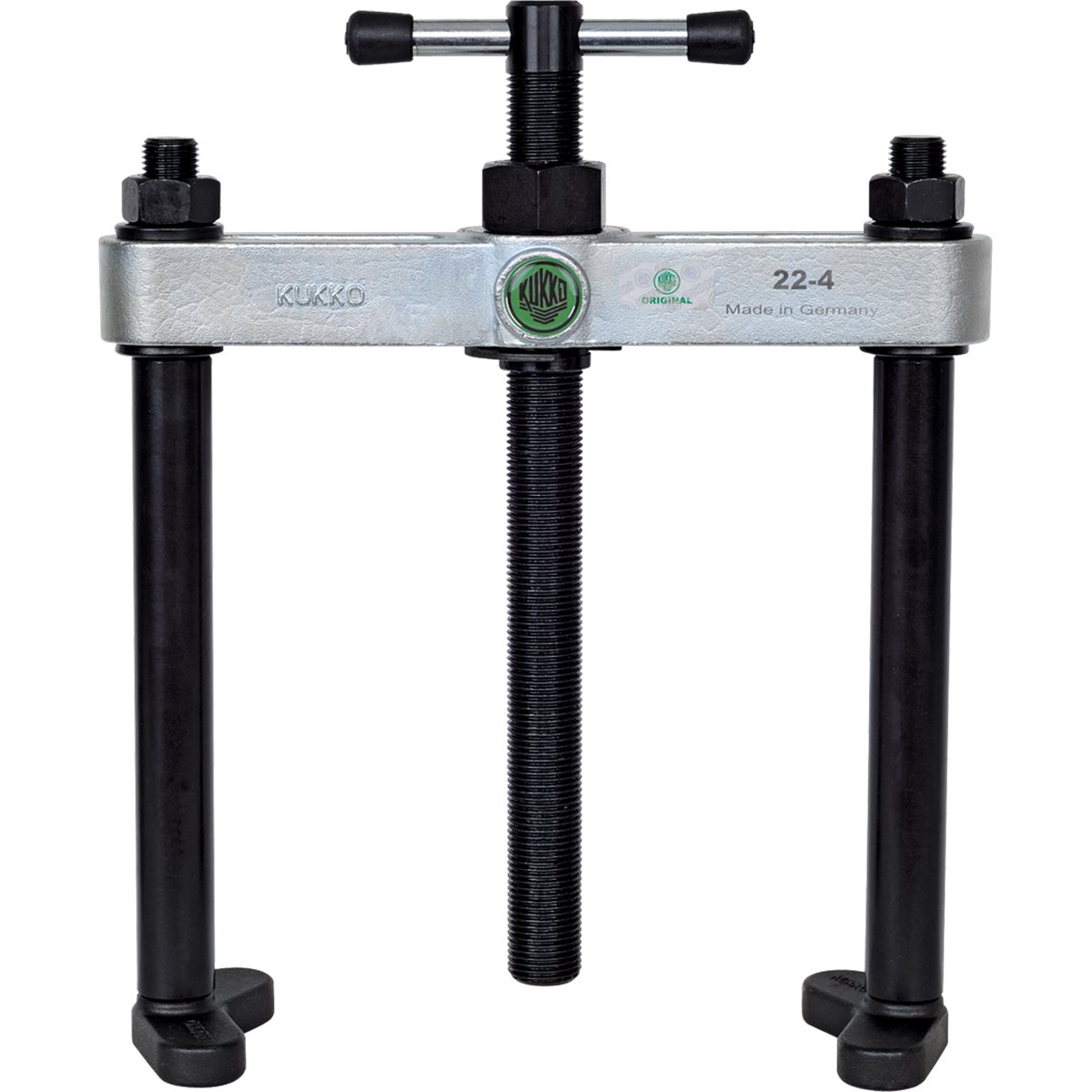

| 22-4 | 112478 | 200 | 205 | 7 | 4.01 | ||
| 22-5 | 012556 | 300 | 260 | 9 | 7.76 |
