Kukko 25-D Bearing Pulling And Extr. Set F. Bear. With Bores 12-110 Mm
Product number:
1933522
Manufacturer no.:
25-D
EAN:
4021176158803
Weight in kg:
9.28
Product information "Kukko 25-D Bearing Pulling And Extr. Set F. Bear. With Bores 12-110 Mm "

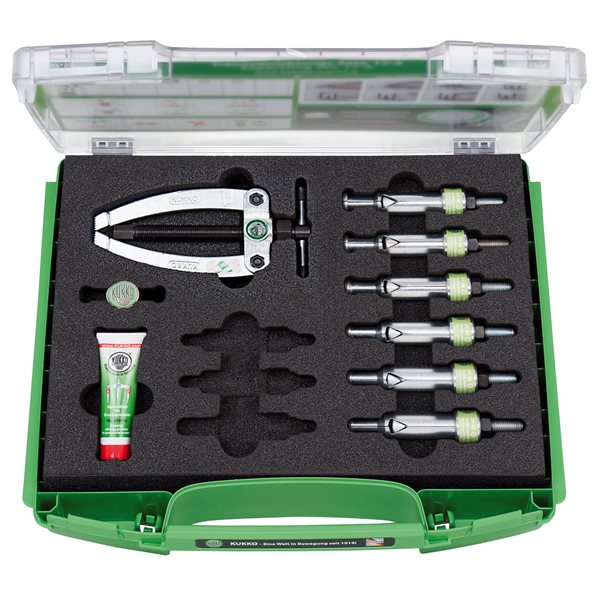

Kukko Set of bearing extracting tools
Description
- The 2-shell design with extra large grasp edges ensures safe extraction.
- The internal extractors are equipped with an internal safety stop to protect against excess spreading and overloading.
- Mechanical pressure screw.
- Milled thread treated with special coating.
- Instructions on the cover.
- Secure storage in special foam.
Use
- For extracting inner bearings, bearing outer rings and bushings.
Advantage
- Practical package for universal use.
- KUKKO internal extractors can be combined with counter supports and slide hammers.
- The arms on the counter supports are easy-to-adjust thanks to an internal spring mechanism. (size 1 to 3)
- Thanks to their support struts, sizes (4 and 5) counter struts are particularly suited for large ball bearings, etc., and ensure that the assembly remains stable during the extraction process.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
How it works
- Place the internal extractor into the bearing´s hole.
- Using a ring spanner, tighten the nuts to open the jaws of the internal extractor. Make sure that the jaws sit securely below the bearing´s inner race.
- For removal, the spindle on the counter support series 22 or on the slide hammer series 22-0 is screwed onto the key spindle on the internal extractor.
- Counter support:
- 2. The counter support´s arms must not block the part due to be removed. Make sure that the arms are parallel.
- 3. Hold on to the T-grip and at the same time use the jaw wrench to tighten the nuts above the cross-beam until the component has been loosened from its position.
Safety information
- Do not use any electrical or pneumatic servo screwdrivers or hammer drills.
- Protective blanket required.
- Protective goggles required.
Product Safety and Downloads
Documents and datasheets
Product safety information
Manufacturer
KUKKO Werkzeugfabrik
Kleinbongartz & Kaiser oHG
Heinrich-Hertz-Straße 5
40721 Hilden
Germany
