Kukko 3-500-S Set (3)Ext´D Pull. Arms 500 Mm

€462.81*

Content: 1 pcs
/ 7

Delivery time 7 working days

Stk
Product number: 1933605
Manufacturer no.: 3-500-S
EAN: 4021176004223
Weight (kg): 9.89
Product information "Kukko 3-500-S Set (3)Ext´D Pull. Arms 500 Mm "

Kukko 3-500-S 3 pulling arms (set)


For removing bearings, gears, discs, etc.


Description

  • Standard pulling hooks in various lengths.
  • Pulling hooks with infinitely variable adjustment on the cross-beam.
  • Pulling hook with sliding part only available in set of 3.

Advantage

  • Adjustable depth thanks to jaw extensions, available up to a puller size of -30.
  • Turning the pulling hooks enables them to be used both internally and externally.
  • Suitable for pulling asymmetric workpieces.
  • As a replacement part or supplement to your Kukko puller.

KUKKO quality standards

  • Quality made in Germany.
  • Strong design, high performance and long service life.
  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

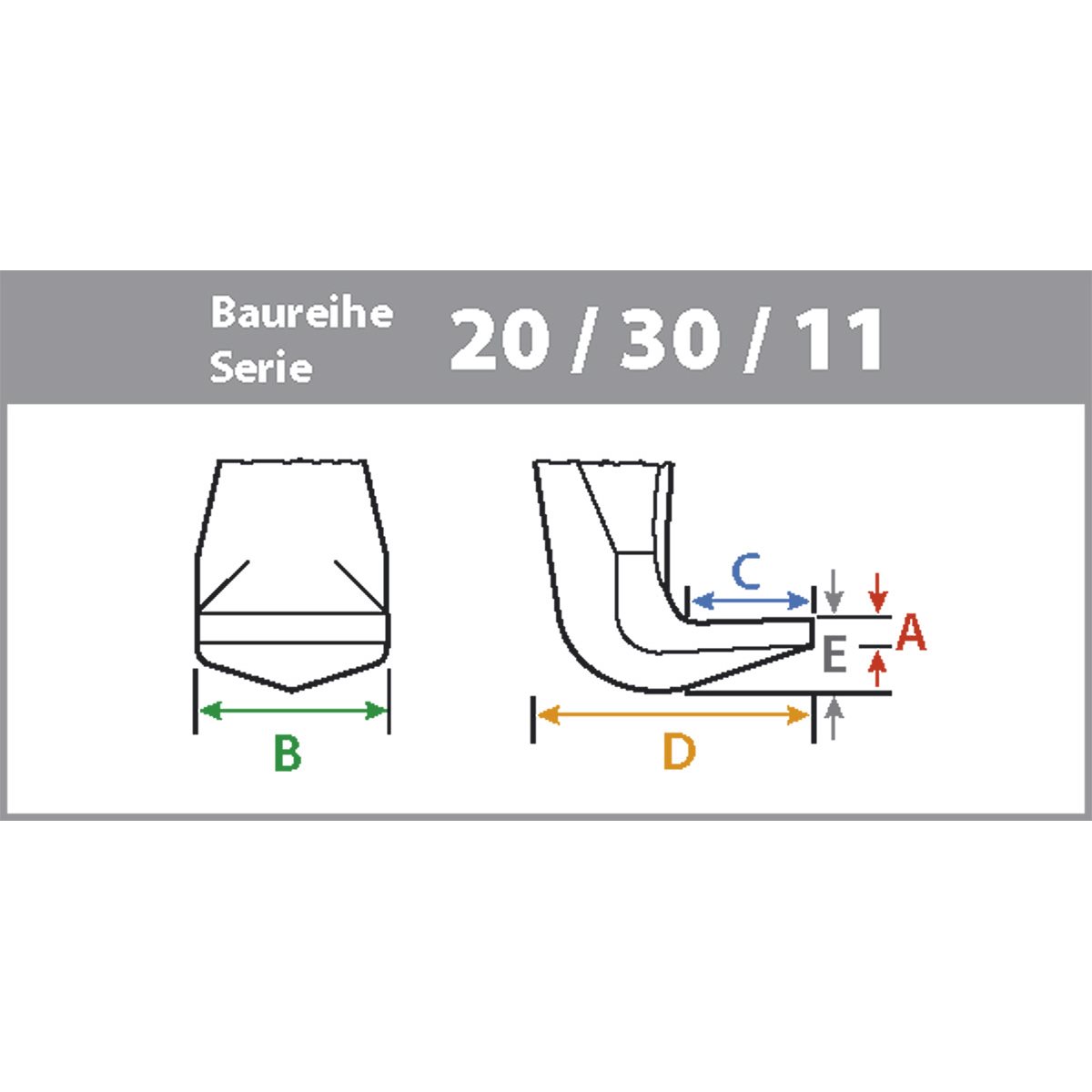

Series 0-S

Item no. EAN
4021176
Hook length
mm
Hook length
inch
A
mm
A
inch
B
mm
B
inch
C
mm
C
inch
D
mm
D
inch
E
mm
E
inch
Weight
kg
1-90-S 001413 100 3 7/8 3 1/8 20 3/4 15 5/8 31 1 1/4 10 3/8 0.835
1-190-S 001741 200 7 7/8 3 1/8 20 3/4 15 5/8 31 1 1/4 10 3/8 1.685
1-250-S 002083 250 9 7/8 3 1/8 20 3/4 15 5/8 31 1 1/4 10 3/8 2.04
1-400-S 975684 400 15 3/4 3 1/8 20 3/4 15 5/8 31 1 1/4 10 3/8 3.48
2-150-S 002571 150 5 7/8 4 3/16 24 7/8 18 3/4 40 1 5/8 9 3/8 1.84
2-300-S 002816 300 11 7/8 4 3/16 24 7/8 18 3/4 40 1 5/8 9 3/8 3.78
3-200-S 003318 200 7 7/8 4 3/16 35 1 3/8 37 1 1/2 67 2 5/8 20 3/4 3.28
3-250-S 901249 250 9 7/8 4 3/16 35 1 3/8 37 1 1/2 67 2 5/8 20 3/4 5.695
3-300-S 003646 300 11 7/8 4 3/16 35 1 3/8 37 1 1/2 67 2 5/8 20 3/4 6.46
3-400-S 003981 400 15 3/4 4 3/16 35 1 3/8 37 1 1/2 67 2 5/8 20 3/4 8.05
3-500-S 004223 500 19 3/4 4 3/16 35 1 3/8 37 1 1/2 67 2 5/8 20 3/4 9.89
