Kukko 3-502-S Set Pull. Arm W. Knob -500Mm- For 20 +/30+, Sizes -3 And -30

€482.24*

Content: 1 pcs
/ 7

Delivery time 7 working days

Stk
Product number: 1933609
Manufacturer no.: 3-502-S
EAN: 4021176974151
Weight (kg): 9.89
Product information "Kukko 3-502-S Set Pull. Arm W. Knob -500Mm- For 20 +/30+, Sizes -3 And -30"

Kukko 3-502-S 3 quick adjusting jaws (set)


For removing bearings, gears, discs, etc.


Description

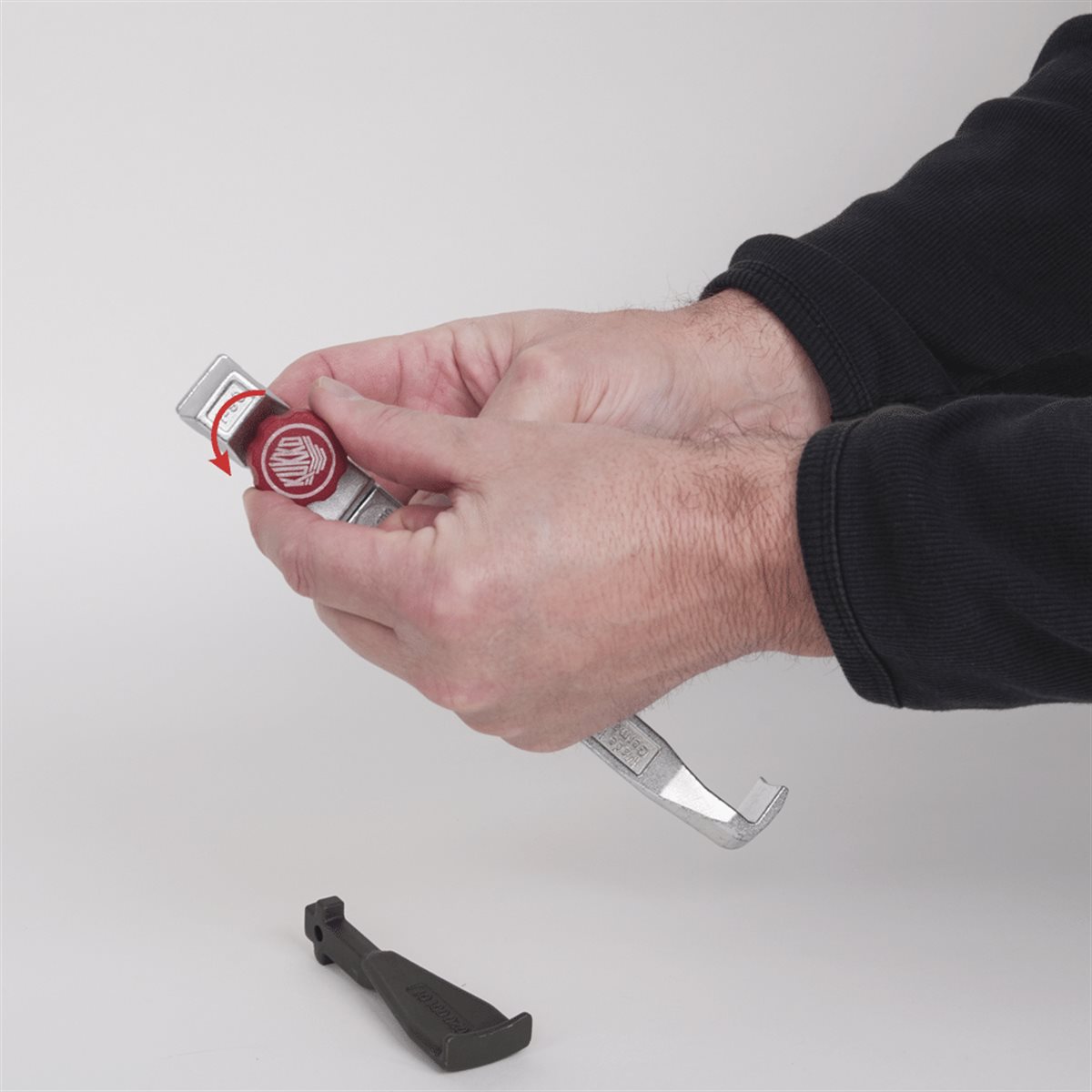

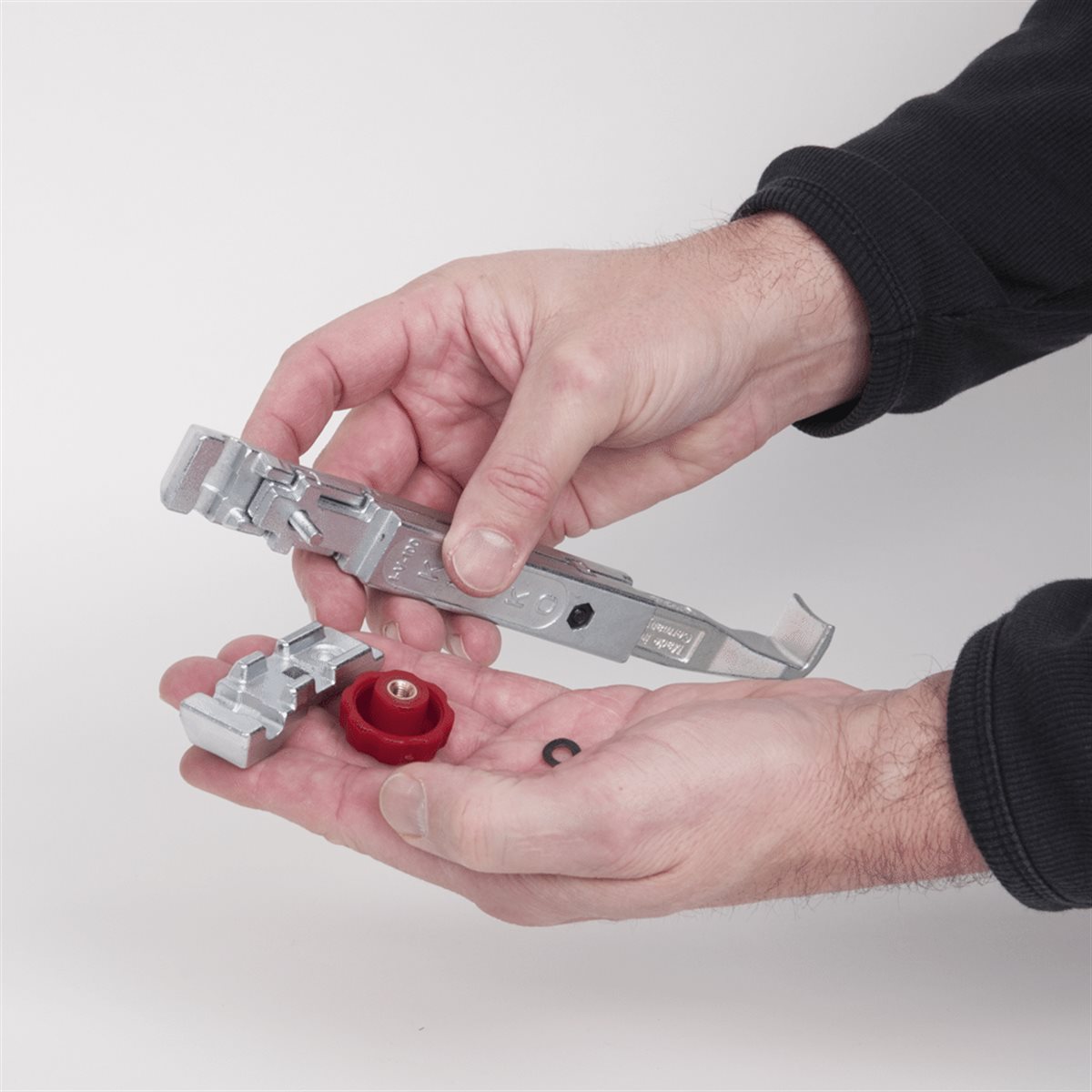

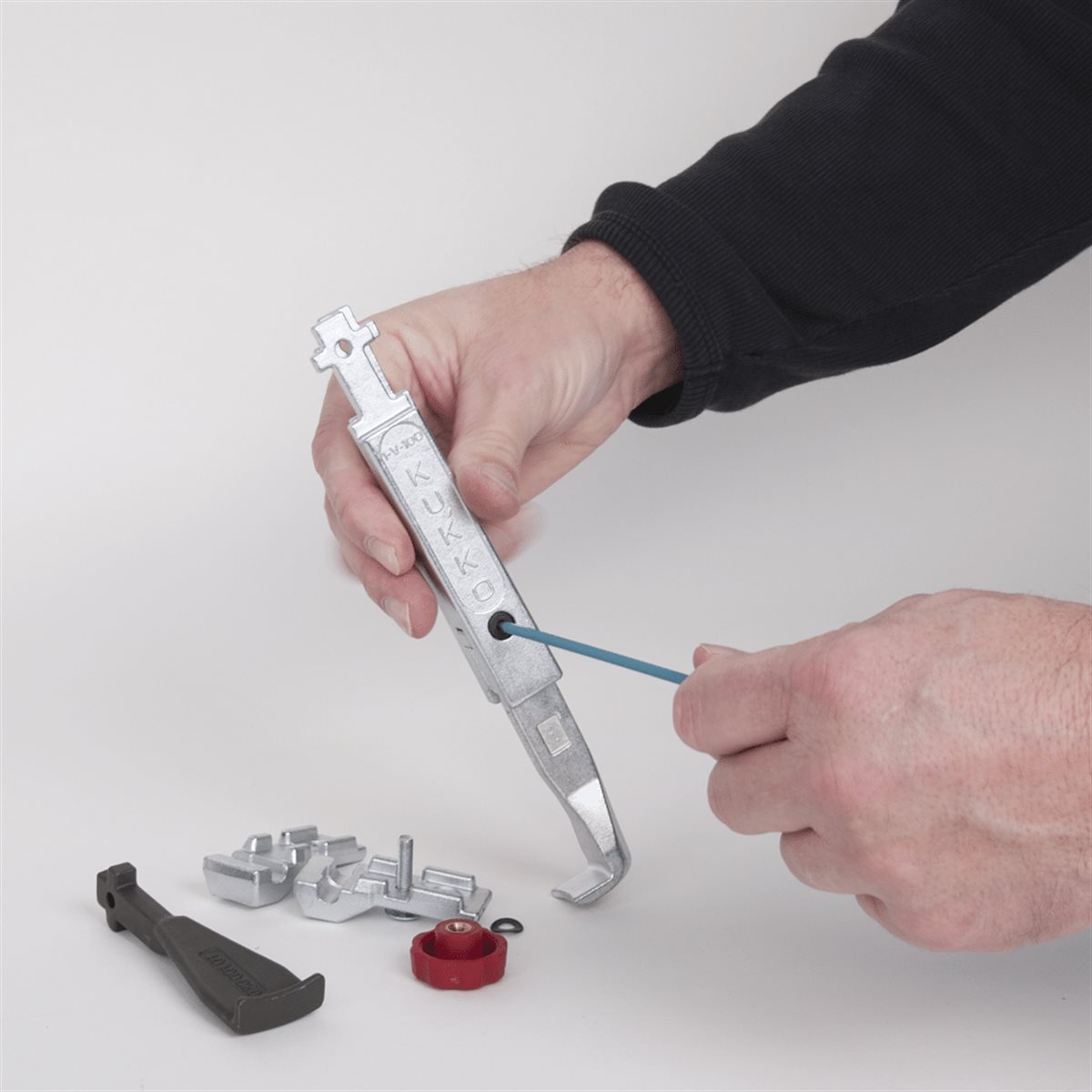

  • Pulling hooks with infinitely variable adjustment on the cross-beam.
  • Pulling hook with sliding part only available in set of 3.

Advantage

  • Adjustable depth thanks to jaw extensions, available up to a puller size of -30.
  • Turning the pulling hooks enables them to be used both internally and externally.
  • Suitable for pulling asymmetric workpieces.
  • As a replacement part or supplement to your Kukko puller.

KUKKO quality standards

  • Quality made in Germany.
  • Strong design, high performance and long service life.
  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).

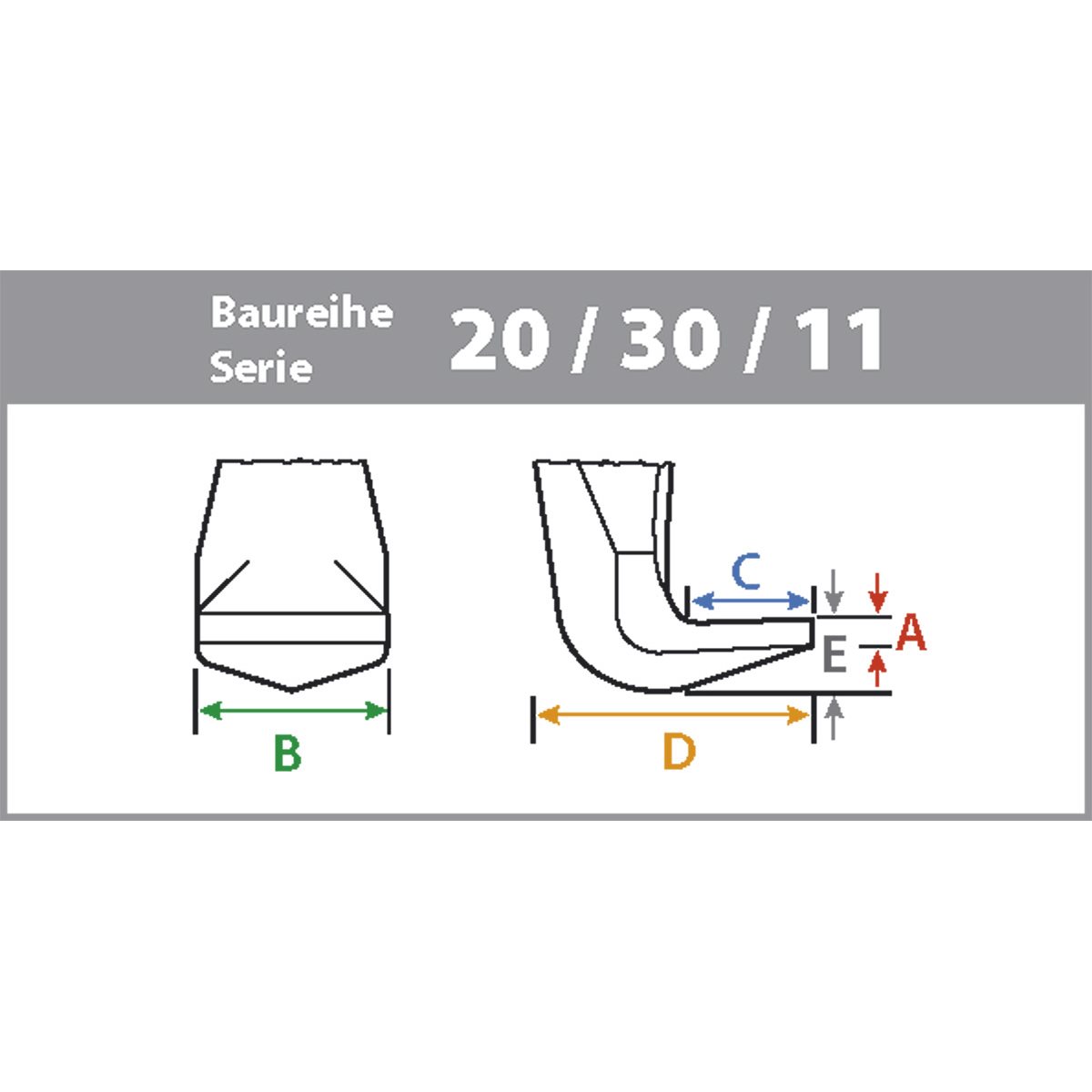

Series 2-S

Item no. EAN
4021176
Hook length
mm
Hook length
inch
Weight
kg
A
mm
A
inch
B
mm
B
inch
C
mm
C
inch
D
mm
D
inch
E
mm
E
inch
1-92-S 973741 100 3 7/8 0.84 3 1/8 20 3/4 15 5/8 31 1 1/4 10 3/8
1-192-S 973635 200 7 7/8 1.86 3 1/8 20 3/4 15 5/8 31 1 1/4 10 3/8
1-252-S 973697 250 9 7/8 1.68 3 1/8 20 3/4 15 5/8 31 1 1/4 10 3/8
2-152-S 973772 150 5 7/8 1.8 4 3/16 24 7/8 18 3/4 40 1 5/8 9 3/8
2-302-S 973833 300 11 7/8 3.775 4 3/16 24 7/8 18 3/4 40 1 5/8 9 3/8
3-202-S 973895 200 7 7/8 4.94 4 3/16 35 1 3/8 37 1 1/2 2 5/8 - 20 3/4
3-302-S 973956 300 11 7/8 6.64 4 3/16 35 1 3/8 37 1 1/2 67 2 5/8 20 3/4
3-402-S 974038 400 15 3/4 8.14 4 3/16 35 1 3/8 37 1 1/2 67 2 5/8 20 3/4
3-502-S 974151 500 19 3/4 9.89 4 3/16 35 1 3/8 37 1 1/2 67 2 5/8 20 3/4
