Kukko 30-1+ 3-Arm Univ. Puller 90 X 100 Mm Pl us Quick-Adjusting
Product number:
1933613
Manufacturer no.:
30-1+
EAN:
4021176731488
Weight (kg):
1.46
Product information "Kukko 30-1+ 3-Arm Univ. Puller 90 X 100 Mm Pl us Quick-Adjusting "

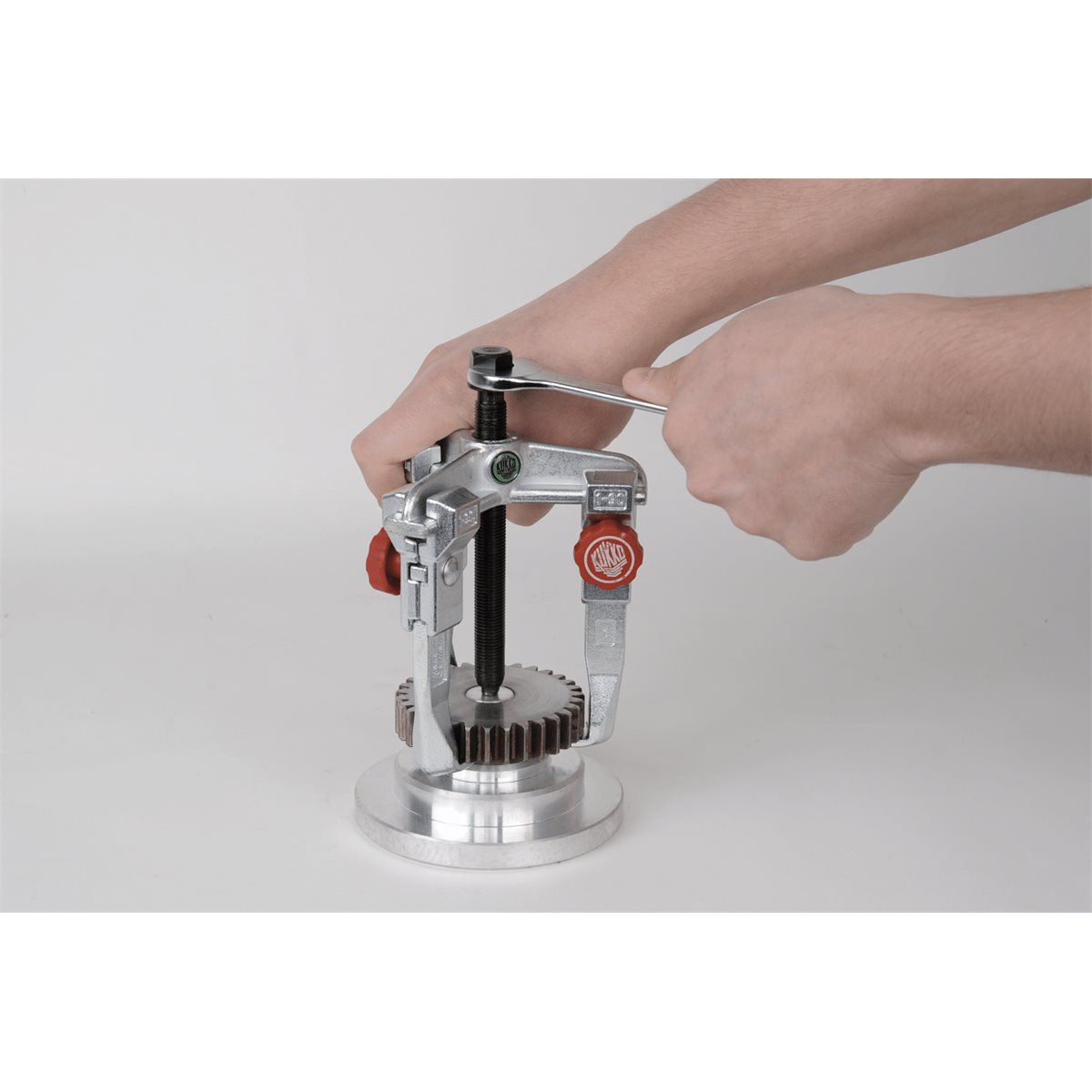

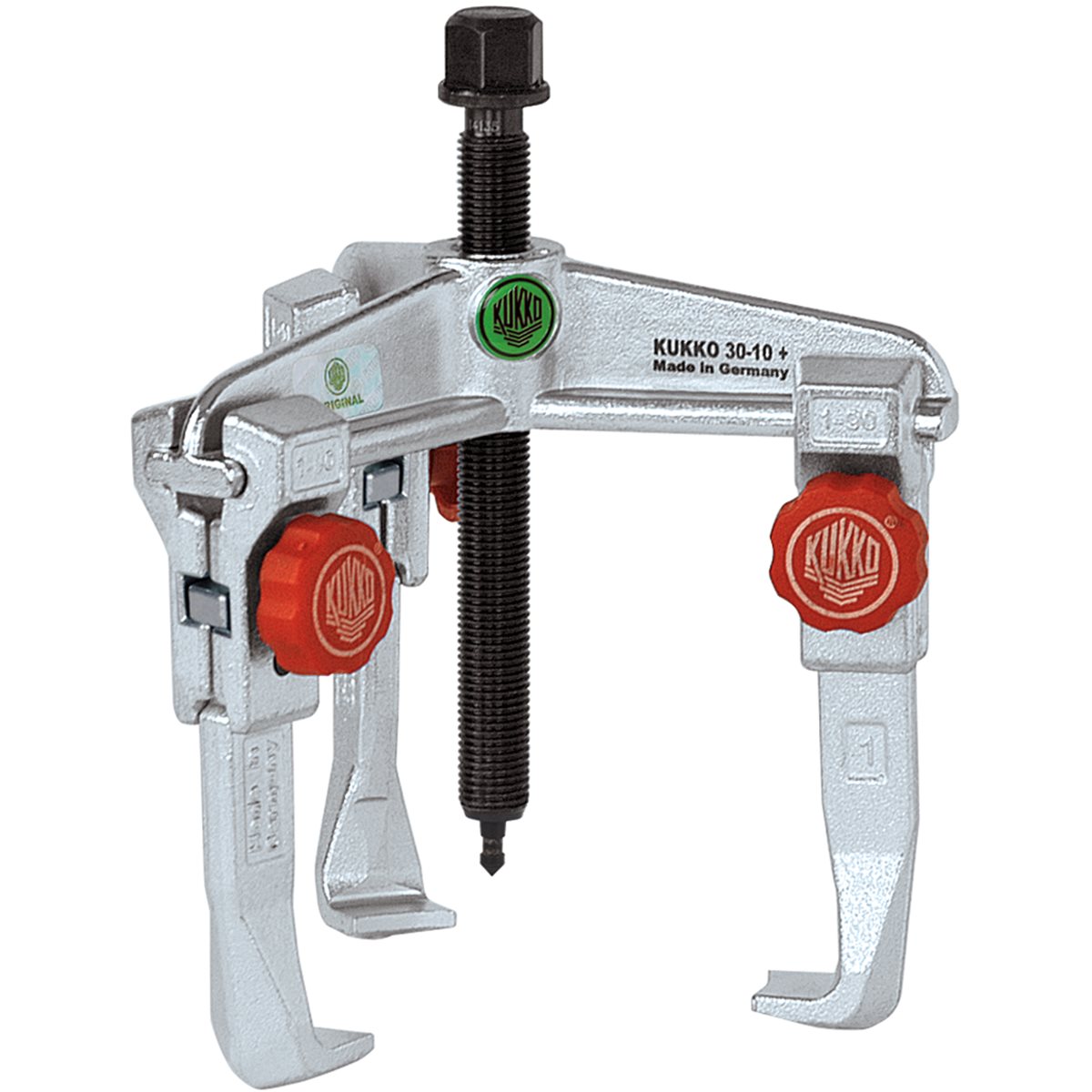

Kukko Universal 3-jaw puller with quick adjusting jaws
Description
- Standard pulling hook with quick adjusting capability quick adjust.
- Parallel pulling hooks in every position, even with full load.
- Pulling hooks with infinitely variable adjustment on the cross-beam.
- Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
- Mechanical pressure screw.
- Milled thread treated with special coating.
- The three-arm design ensures that the load is distributed evenly and that the part to be removed is held securely.
Advantage
- A manual adjustment knurl allows rapid loosening and adjusting of the extractor jaws on the cross-beam without using a wrench.
- Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
- Turning the pulling hooks enables them to be used both internally and externally.
- Suitable for pulling asymmetric workpieces.
- Spindle head band prevents the wrench from slipping off.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
- Hydraulic spindle series 8-0 for particularly tight parts, available from a particular puller size.
- Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.
- Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
KUKKO quality standards
- Quality made in Germany.
- Strong design, high performance and long service life.
- Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
- Safety label to ensure protection of intellectual property.
- A tube of KUKKO special grease included for pressure spindle.
Series 30+
| Item no. | EAN 4021176 |
Clamping reach outside mm |
Clamping reach outside inch |
Clamping depth mm |
Clamping depth inch |
Clamping reach inside mm |
Clamping reach inside inch |
Hex drive size mm |
Max. tonne t |
Max. torque Nm |
Weight kg |
| 30-1+ | 731488 | 90 | 3 1/2 | 100 | 3 7/8 | 70 - 140 | 2 3/4 - 5 1/2 | 17 | 6 | 80 | 1.46 |
| 30-10+ | 731556 | 130 | 5 1/8 | 100 | 3 7/8 | 70 - 180 | 2 3/4 - 7 1/8 | 17 | 6 | 80 | 1.6 |
| 30-2+ | 731631 | 160 | 6 3/8 | 150 | 5 7/8 | 100 - 220 | 3 7/8 - 8 5/8 | 22 | 7 | 150 | 3.8 |
| 30-20+ | 731716 | 200 | 7 7/8 | 150 | 5 7/8 | 100 - 260 | 3 7/8 - 10 1/4 | 22 | 7 | 150 | 4.08 |
| 30-3+ | 731891 | 250 | 9 7/8 | 200 | 7 7/8 | 180 - 340 | 7 1/8 - 13 3/8 | 27 | 10 | 250 | 8.8 |
| 30-30+ | 303333 | 350 | 13 3/4 | 200 | 7 7/8 | 180 - 440 | 7 1/8 - 17 3/8 | 27 | 10 | 250 | 10.635 |
