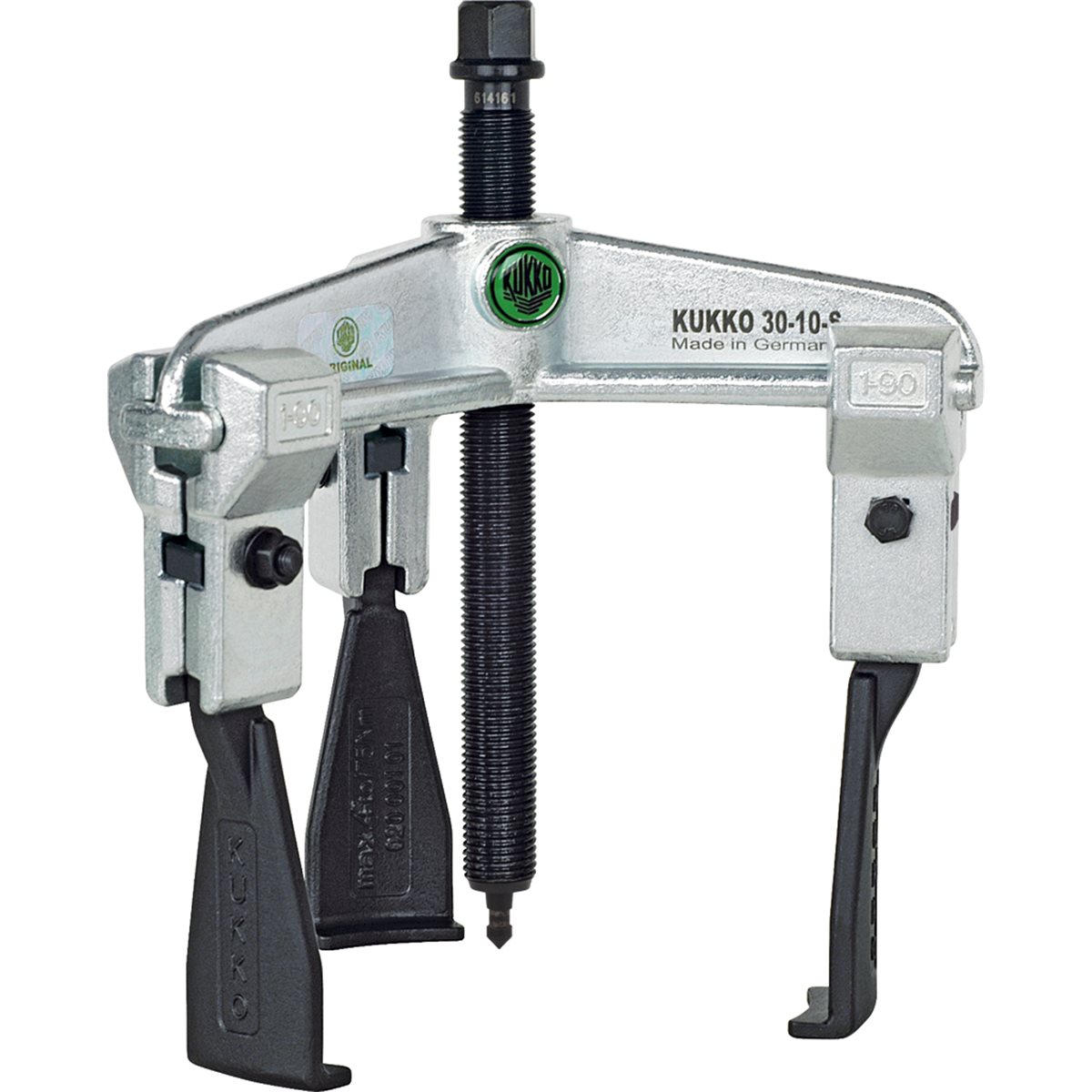

Kukko 30-10-S 3-Arm Univ. Puller 120X100 Mm With Claws F. Confined-Spaces
Product number:
1933625
Manufacturer no.:
30-10-S
EAN:
4021176728198
Weight (kg):
1.52
Product information "Kukko 30-10-S 3-Arm Univ. Puller 120X100 Mm With Claws F. Confined-Spaces "
Kukko Universal 3-jaw puller with narrow jaws
For removing bearings, gears, discs, etc. for tight or difficult-to-access spaces.
Description
- Thin pulling hooks.
- Parallel pulling hooks in every position, even with full load.
- Pulling hooks with infinitely variable adjustment on the cross-beam.
- Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
- Mechanical pressure screw.
- Milled thread treated with special coating.
- The three-arm design ensures that the load is distributed evenly and that the part to be removed is held securely.
Advantage
- The thin pulling hooks are suitable for narrow, difficult-to-access locations.
- Can be installed on various pulling hooks and variable reach thanks to jaw extensions.
- Turning the pulling hooks enables them to be used both internally and externally.
- Suitable for pulling asymmetric workpieces.
- Spindle head band prevents the wrench from slipping off.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
- Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.
KUKKO quality standards
- Quality made in Germany.
- Strong design, high performance and long service life.
- Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).
- Safety label to ensure protection of intellectual property.
- A tube of KUKKO special grease included for pressure spindle.
Series 30-S
| Item no. | EAN 4021176 |
Clamping reach outside mm |
Clamping reach outside inch |
Clamping depth mm |
Clamping depth inch |
Clamping reach inside mm |
Clamping reach inside inch |
Hex drive size mm |
Max. tonne t |
Max. torque Nm |
Weight kg |
| 30-1-S | 727771 | 90 | 3 1/2 | 100 | 3 7/8 | 70 - 140 | 2 3/4 - 5 1/2 | 17 | 3 | 40 | 1.335 |
| 30-10-S | 728198 | 130 | 5 1/8 | 100 | 3 7/8 | 70 - 180 | 2 3/4 - 7 1/8 | 17 | 3 | 40 | 1.52 |
| 30-2-S | 727856 | 160 | 6 3/8 | 150 | 5 7/8 | 100 - 220 | 3 7/8 - 8 5/8 | 22 | 5 | 120 | 3.78 |
| 30-20-S | 727931 | 200 | 7 7/8 | 150 | 5 7/8 | 100 - 260 | 3 7/8 - 10 1/4 | 22 | 5 | 120 | 4.08 |
| 30-3-S | 728013 | 250 | 9 7/8 | 200 | 7 7/8 | 180 - 340 | 7 1/8 - 13 3/8 | 27 | 13,5 | 390 | 9.365 |
