Kukko 30-10-SP-T 3-Arm Abzieher Spannw. 120 mm mit 3 Satz Engraum Abzughaken f. Spannt. 100-200-250m

€536.21*

Content: 1 pcs

Delivery time 7 working days

Stk

Product number: 1933628

Manufacturer no.: 30-10-SP-T

EAN: 4021176770272

Weight (kg): 5.06

Product information "Kukko 30-10-SP-T 3-Arm Abzieher Spannw. 120 mm mit 3 Satz Engraum Abzughaken f. Spannt. 100-200-250m"

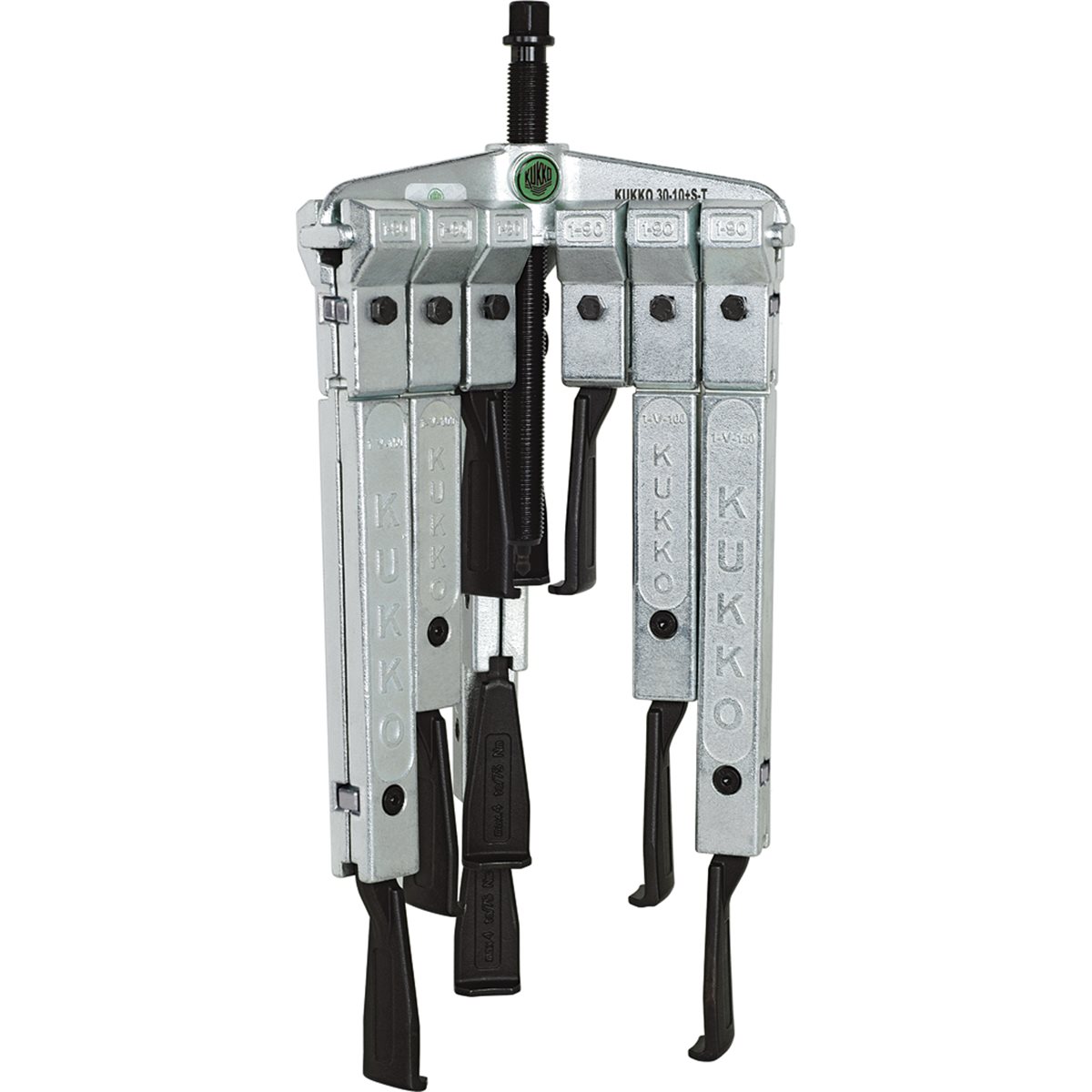

Kukko 3-jaw puller with extremely narrow jaws, in set

Extra-thin pulling hooks in various lengths.
Parallel pulling hooks in every position, even with full load.
Pulling hooks with infinitely variable adjustment on the cross-beam.
Optimal adjustment of the spindle to the shaft with 2-sided spindle tip (ball and tip).
Mechanical pressure screw.
Milled thread treated with special coating.
The three-arm design ensures that the load is distributed evenly and that the part to be removed is held securely.

For removing bearings, gears, discs, etc. for tight or difficult-to-access spaces.

The narrow, trapezoidal pulling jaws are suitable for extremely narrow, difficult to access places.
Variable reach thanks to optional jaw extensions.
Can be installed on various pulling hooks.
Turning the pulling hooks enables them to be used both internally and externally.
Suitable for pulling asymmetric workpieces.
Spindle head band prevents the wrench from slipping off.
Almost all components available as replacement parts, time-saving order process thanks to numbering system.
Note: Pressure pads from series 600-17 are a good addition if the shaft is hollow and the spindle cannot be supported.

The part due to be removed (e.g. a gear, pulley or ball bearing) is gripped from the outside. Tightening of the pressure screw and the resulting pressure removes the part from the shaft.
The puller must be positioned centrally for centre shafts. If the shaft is not sitting centrally, the parts can be removed asymmetrically with pullers with parallel pulling hooks.

Item no.	EAN 4021176	Clamping reach outside mm	Clamping reach outside inch	Clamping depth mm	Clamping depth inch	Clamping reach mm	Max. tonne t	Max. torque Nm	Weight kg
30-10-SP-T	770272	130	5 1/8	100/200/250/350	3 7/8; 7 7/8; 9 7/8; 13 3/4	17	3	40	5.055
