Kukko 41-4 2-Arm Puller 130 X 160 Mm Swi vel Arm Type
Product number:
1934486
Manufacturer no.:
41-4
EAN:
4021176836268
Weight in kg:
1.38
Product information "Kukko 41-4 2-Arm Puller 130 X 160 Mm Swi vel Arm Type"
Kukko 41-4 Universal 2-jaw puller with swiveling jaws
For removing bearings, gears, discs, etc.
Description
- Swivelling standard puller jaws.
- Two-arm design for space-saving operation.
- Mechanical pressure screw.
- Milled thread treated with special coating.
- If there is adequate free space around the part to be removed, we recommend using a 3-jaw puller series 42 for optimal force distribution.
Advantage
- The larger the pulling force, the stronger the puller hook's grip on the workpiece to be removed.
- Spindle head band prevents the wrench from slipping off.
- Hydraulic spindle series 8-0 for particularly tight parts, available from a particular puller size.
- Auxiliary hydraulic ram series 9 for particularly tight parts, can be used from a particular puller size.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
KUKKO quality standards
- Quality made in Germany.
- Strong design, high performance and long service life.
- Safety label to ensure protection of intellectual property.
- A tube of KUKKO special grease included for pressure spindle.

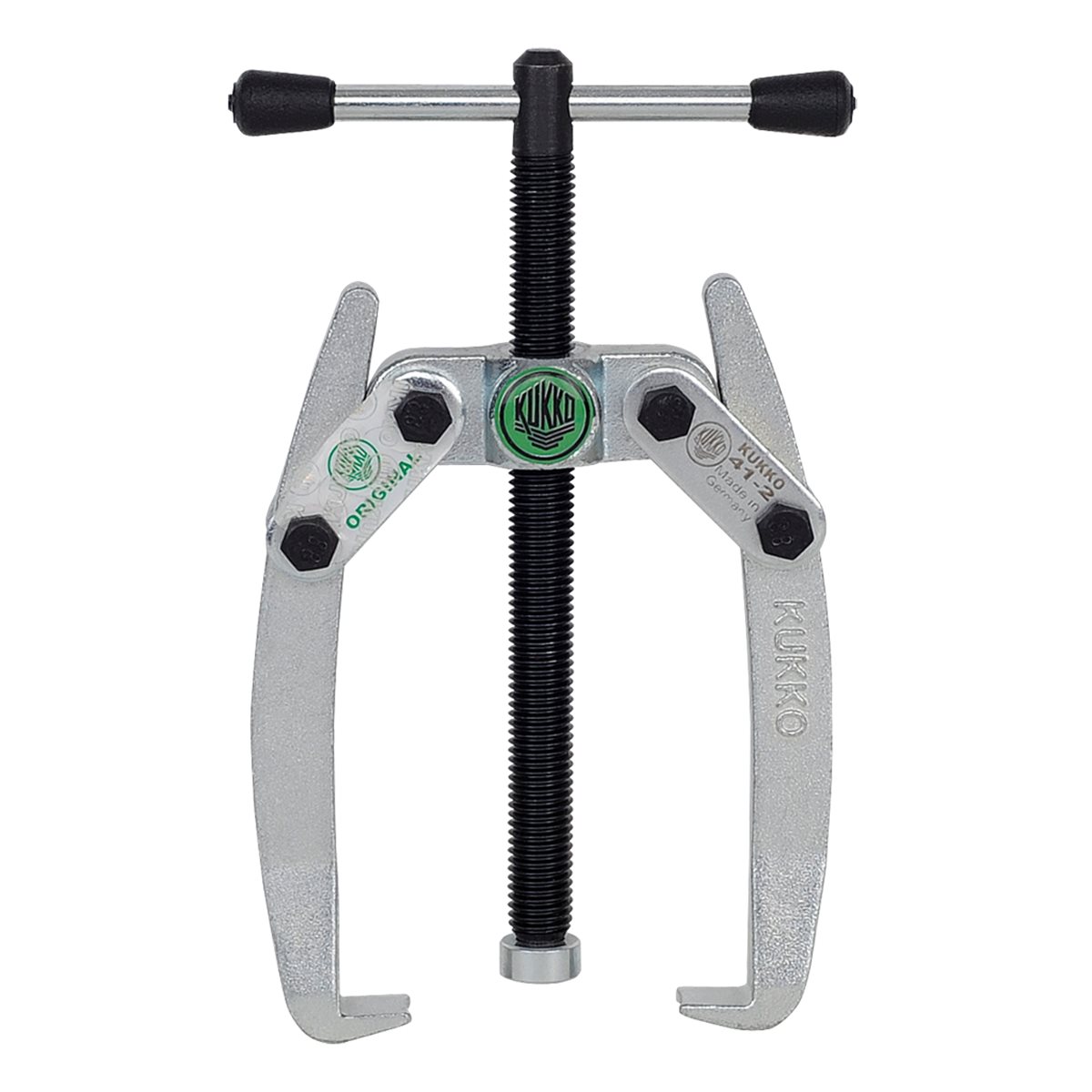

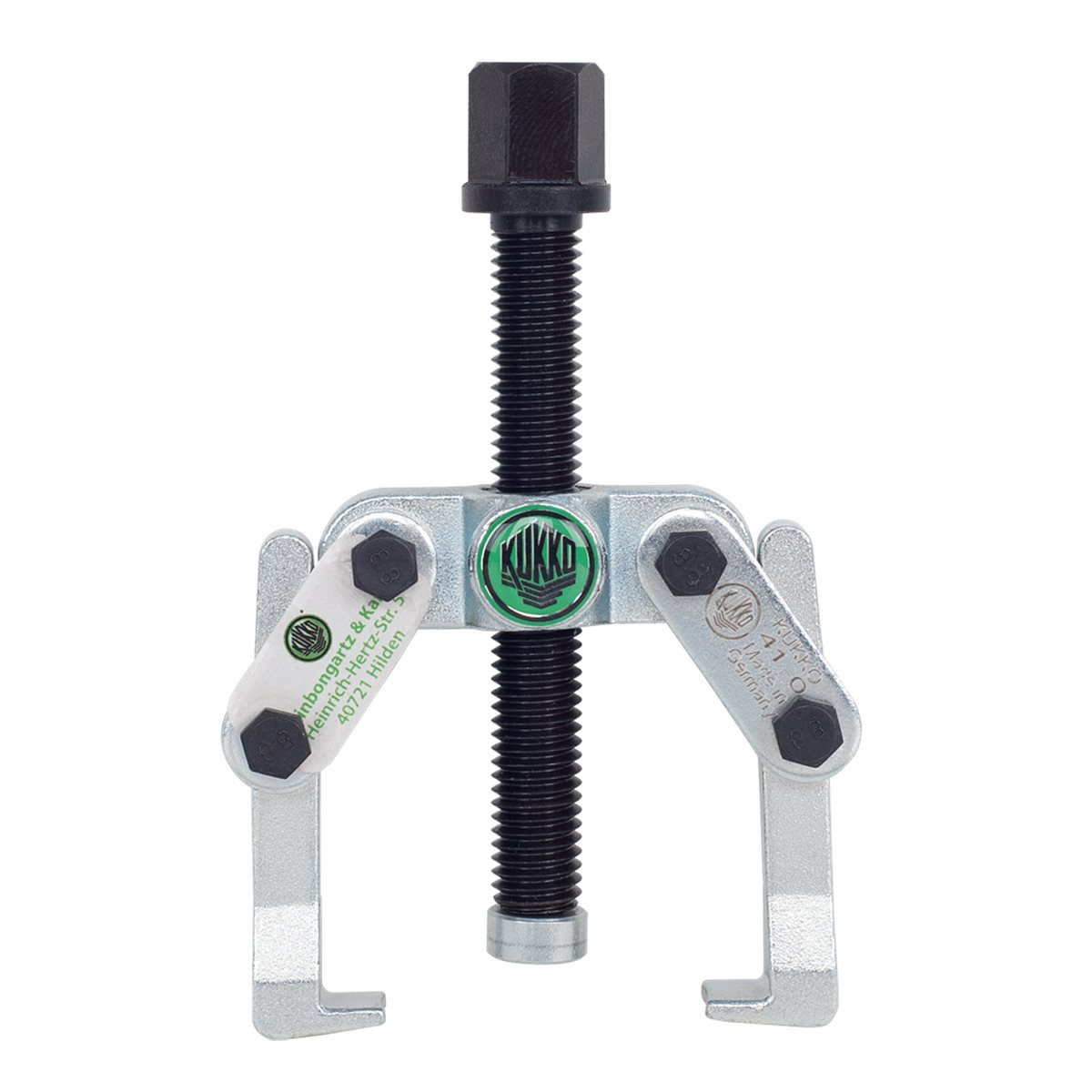

Series 41
| Item no. | EAN 4021176 |
Clamping reach outside mm |
Clamping reach outside inch |
Clamping depth mm |
Clamping depth inch |
Hex drive size mm |
Max. tonne t |
Max. torque Nm |
Weight kg |
| 41-0 | 362859 | 60 | 2 3/8 | 40 | 1 5/8 | 13 | 1,0 | 25 | 0.205 |
| 41-1 | 015038 | 65 | 2 5/8 | 65 | 2 5/8 | 1,0 | - | 0.22 | |
| 41-2 | 015113 | 80 | 3 3/16 | 80 | 3 3/16 | 1,5 | - | 0.25 | |
| 41-3 | 787829 | 90 | 4 | 120 | 4 3/4 | 13 | 3,0 | 40 | 0.66 |
| 41-4 | 836268 | 130 | 5 1/8 | 160 | 6 3/8 | 17 | 5,0 | 85 | 1.38 |
| 41-5 | 836343 | 180 | 7 1/8 | 200 | 7 7/8 | 22 | 7,0 | 150 | 3.28 |
Product Safety and Downloads
Documents and datasheets
Product safety information
